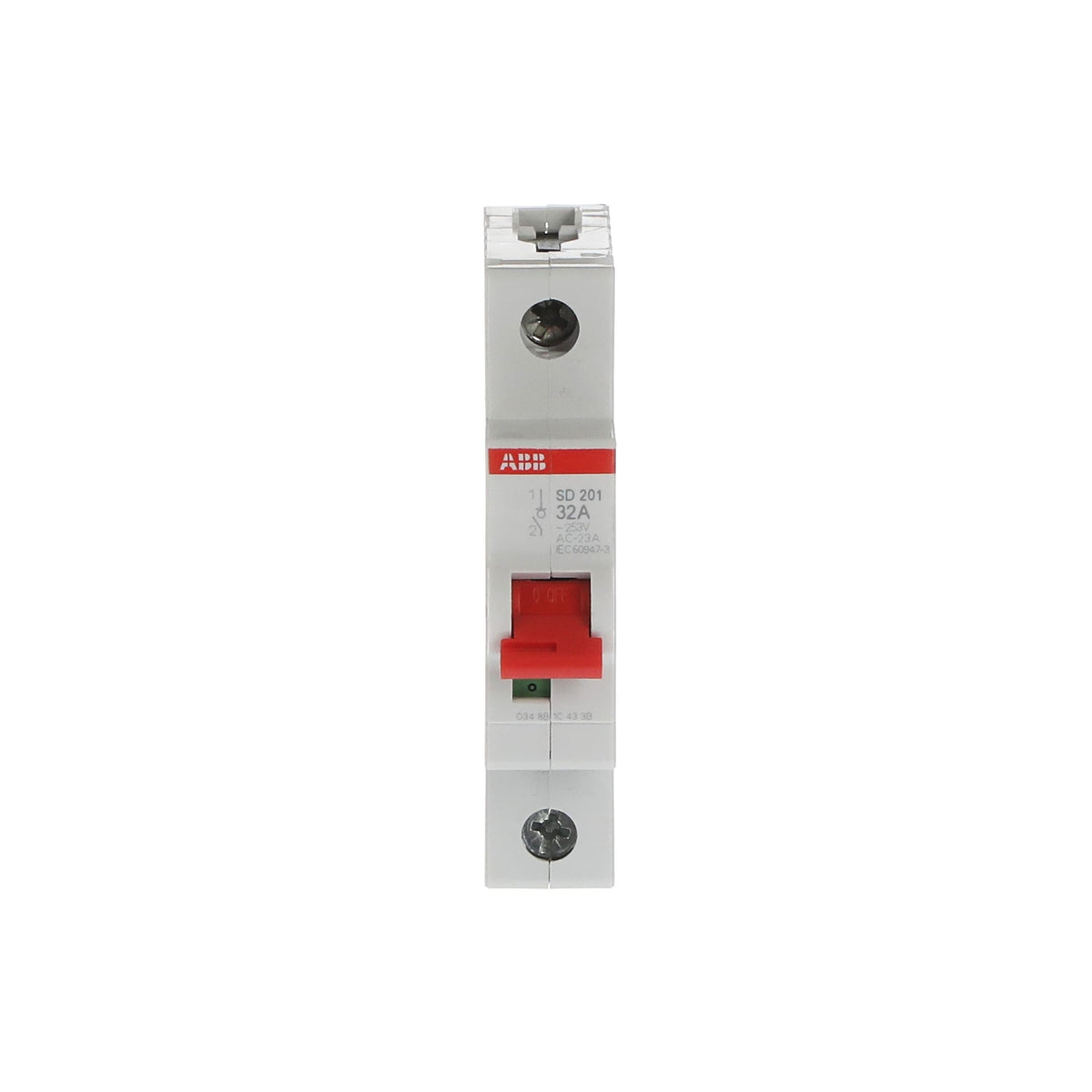

ABB 2CDD281101R0032 SD201/32 1P 32A 253V AC Switch Disconnector

% $-12.50
ABB SD201/32 2CDD281101R0032 1P 32A switch disconnector - 253V AC
ABB SD201/32 2CDD281101R0032 1P 32A switch disconnector - 253V AC

ABB 2CDD281101R0032 SD201/32 1P 32A 253V AC Switch Disconnector

Brand: ABB
Reference No: 2CDD281101R0032
Catalog No: SD201/32
Series: Switch Disconnectors
Tariff Code (HS): 853650
Rated Current: 32
Rated Voltage: 253 V
Poles: 1P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$12.50

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

Rated 32 A at up to 253 V AC, the ABB SD201/32 (SKU 2CDD281101R0032) is the higher-current single-pole member of the SD201 switch disconnector range. It shares the same 17.5 mm module width and 25 kA conditional short-circuit rating as its 25 A sibling, so swapping between the two is a matter of load current, not panel space or terminal capacity.

Technical Specifications

SKU 2CDD281101R0032
Brand ABB
Series Switch Disconnectors
Catalog Designation SD201/32
EAN 4016779904087
Number of Poles 1P
Rated Current (In) 32 A
Rated Operational Voltage 253 V AC / 60 V DC
Rated Voltage (Ur) 253 V (12 V minimum)
Rated Short-Circuit Capacity 25 kA at 230/400 V AC
Rated Conditional Short-Circuit Current (Inc) 25 kA
Rated Impulse Withstand Voltage (Uimp) 4 kV
Overvoltage Category III
Degree of Protection IP20 (IP40 with cover)
Pollution Degree 3
Connecting Capacity Flexible 0.75-25 mm² / Rigid 0.75-35 mm²
Width 17.5 mm (1 module)
Net Weight 0.085 kg
Mounting Type DIN-Rail

Certifications & Standards

  • IEC/EN 60947-3

Selection Notes

The 32 A rating on this 1P SD201/32 covers single-phase loads that exceed the 25 A sibling's capacity while keeping the identical 1-module, 17.5 mm footprint. As a disconnector rather than a breaker, it provides local isolation for maintenance or lockout but relies on upstream devices for fault clearing. Choose it over the 25 A variant whenever the circuit's continuous current approaches or exceeds 25 A, since running a 25 A-rated switch near its limit shortens contact life.

Technical Details

Short Description
ABB SD201/32 1P switch disconnector, In 32 A, 253 V AC, 25 kA conditional short-circuit rating, DIN-rail mounted.
Rated Current (Ampere)
32
Rated Voltage (VAC)
253 V
Mounting Type
DIN-Rail
Protection Type
IP20
Catalog No
SD201/32
Number of Poles
1P
Standards
IEC/EN 60947-3
Delivery Date (Days)
30 days
Model Number
SD201/32
Tariff Code
853650
