ABB 2CCG001213R0001 INS-S/H SCU100 SCU200 Smart Signalling Device Energy Management Device

% $-111.03

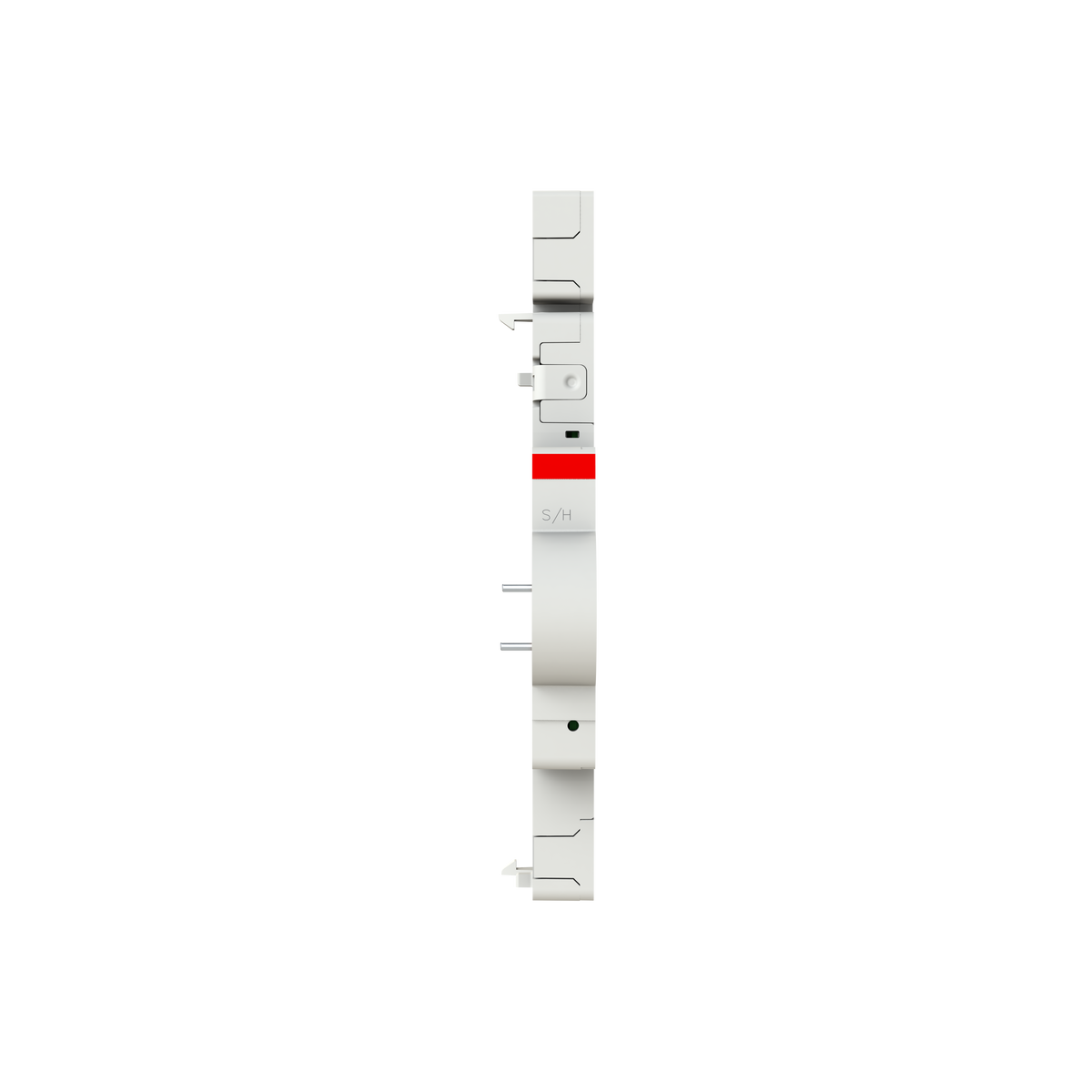

ABB 2CCG001213R0001 INS-S/H Smart Signalling Device for SCU100 SCU200
ABB 2CCG001213R0001 INS-S/H Smart Signalling Device for SCU100 SCU200

ABB 2CCG001213R0001 INS-S/H SCU100 SCU200 Smart Signalling Device Energy Management Device

Brand: ABB
Reference No: 2CCG001213R0001
Catalog No: INS-S/H
Series: InSite Pro M Compact
Tariff Code (HS): 853710
Communication: InSite bus (Flat cable)
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$111.03

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

ABB's INS-S/H (2CCG001213R0001) is a smart signalling and auxiliary contact device for the InSite Pro M Compact energy management system, compatible with both SCU100 and SCU200 control units. It communicates the open/closed status of a corresponding breaker over the InSite bus flat cable, letting the control unit report breaker state alongside metering and I/O data from other InSite modules.

Technical Specifications

SKU 2CCG001213R0001
Brand ABB
Series InSite Pro M Compact
Catalog Designation INS-S/H
EAN 7612271516826
Product Compatibility SCU100 & SCU200
Rated Operational Current AC-15 (Ie) 0.7 A
Communication Interface InSite bus (Flat cable)
Power Consumption 0 kW
Power Loss (Total) 0.1 W
Ambient Air Temperature (Operation) -25...+60 °C
Degree of Protection IP20
Maximum Operating Altitude 2000 m
Mounting Type DIN-Rail
Width 8.8 mm
Height 87 mm
Depth 64.9 mm
Net Weight 30 g

Certifications & Standards

  • EN 61010-1 / IEC 61010-1
  • IEC 61326-1
  • IEC 60068
  • IEC/EN 62019
  • IEC 60947-5-1
  • IEC 61009
  • EN 60898-1

Selection Notes

The INS-S/H only relays breaker open/closed status over the InSite bus; choose it over the INS-E3 metering module when status signalling, not energy measurement, is what the application needs. Its dual SCU100/SCU200 compatibility and 0.7 A AC-15 rating match it to any ABB breaker fitted with a compatible auxiliary contact on the same InSite bus flat-cable run.

Technical Details

Short Description
ABB INS-S/H smart signalling device for SCU100/SCU200, reports breaker status over InSite bus flat cable.
Mounting Type
DIN-Rail
Protection Type
IP20
Catalog No
INS-S/H
Standards
EN 61010-1 / IEC 61010-1, EN IEC 61326-1, IEC 60068, EC / EN 62019 for Main functionality, IEC 60947-5-1 for Main functionality, EC61009 for RCDs compatibility, EN 60898-1 for MCBs compatibility
Delivery Date (Days)
30 days
Model Number
INS-S/H
Tariff Code
853710
