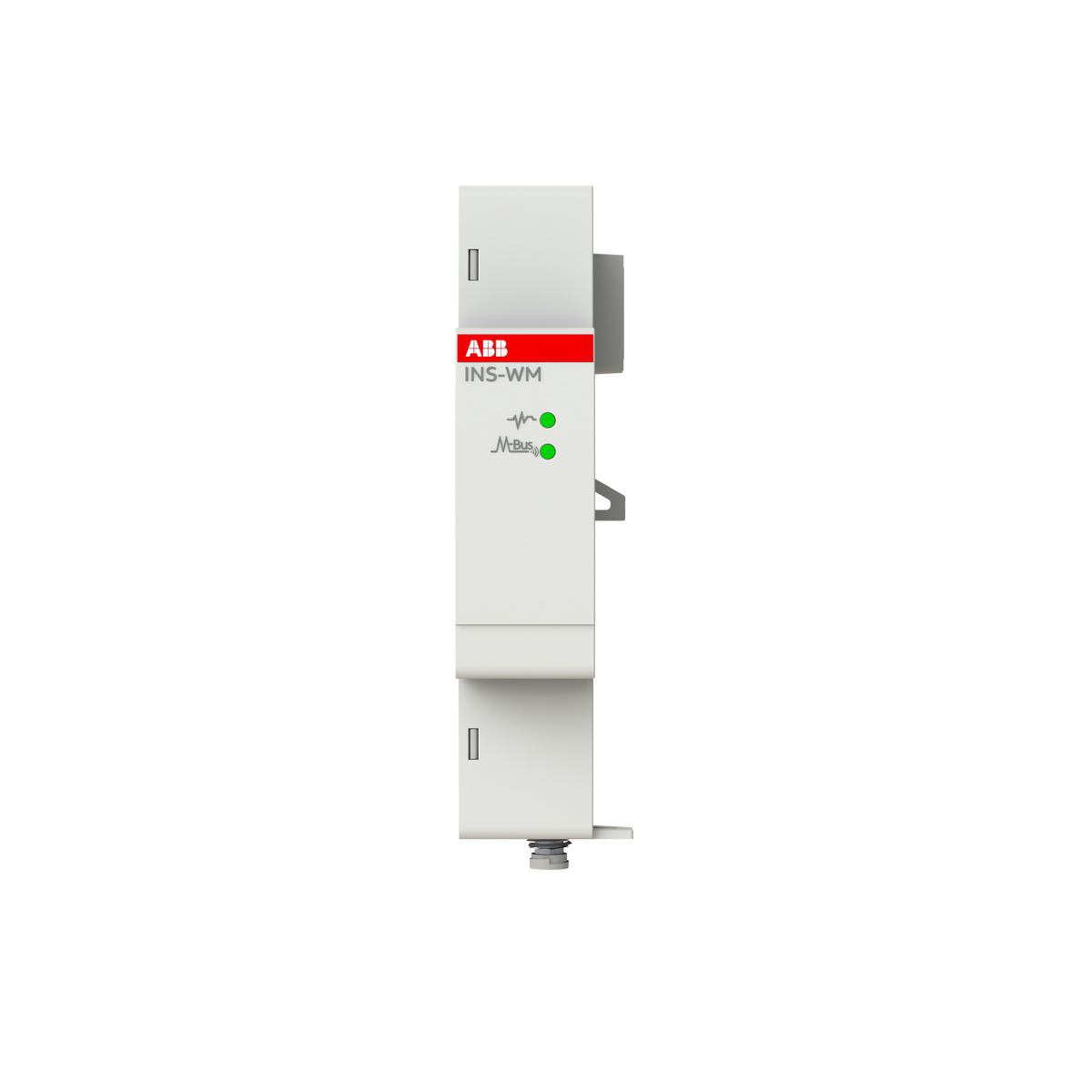

ABB 2CCG001171R0001 INS-WM SCU200 Wireless M-Bus Communication Module Energy Management Device

% $-268.89
ABB 2CCG001171R0001 INS-WM Wireless M-Bus Communication Module for SCU200
ABB 2CCG001171R0001 INS-WM Wireless M-Bus Communication Module for SCU200

ABB 2CCG001171R0001 INS-WM SCU200 Wireless M-Bus Communication Module Energy Management Device

Brand: ABB
Reference No: 2CCG001171R0001
Catalog No: INS-WM
Series: InSite Pro M Compact
Tariff Code (HS): 853710
Communication: Wireless M-Bus, InSite Modular Bus
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$268.89

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

ABB's INS-WM (2CCG001171R0001) is a wireless M-Bus communication module for the InSite Pro M Compact energy management system, integrating up to 32 wireless M-Bus meters into a single SCU200 control unit over the InSite Modular Bus. Collected meter data is viewed on the SCU200 web server for energy monitoring, tariff management and alarm configuration alongside the system's wired InSite modules.

Technical Specifications

SKU 2CCG001171R0001
Brand ABB
Series InSite Pro M Compact
Catalog Designation INS-WM
EAN 7612271516413
Product Compatibility SCU200
Application Power quality
Communication Wireless M-Bus
Communication Interface InSite Modular Bus
Connection Mode and Capacity Up to 32 Wireless M-Bus devices per module
Power Consumption 0 kW
Ambient Air Temperature (Operation) -25...+60 °C
Degree of Protection IP20
Maximum Operating Altitude 2000 m
Mounting Type DIN-Rail
Width 17.4 mm
Height 87 mm
Depth 64.9 mm
Net Weight 50 g

Certifications & Standards

  • EN 61010-1 / IEC 61010-1
  • IEC 61326-1

Selection Notes

The INS-WM's role is bringing third-party wireless M-Bus meters into the InSite system without wired InSite bus runs to each one; use it instead of the wired INS-E3 metering module when sub-meters are physically separate from the SCU200 panel. Its 32-device capacity sets the practical ceiling for a single module before a second INS-WM or SCU200 is needed.

Technical Details

Short Description
ABB INS-WM wireless M-Bus module links up to 32 wireless M-Bus meters to one SCU200 control unit.
Mounting Type
DIN-Rail
Protection Type
IP20
Catalog No
INS-WM
Standards
EN 61010-1 / IEC 61010-1, EN IEC 61326-1
Delivery Date (Days)
30 days
Model Number
INS-WM
Tariff Code
853710
