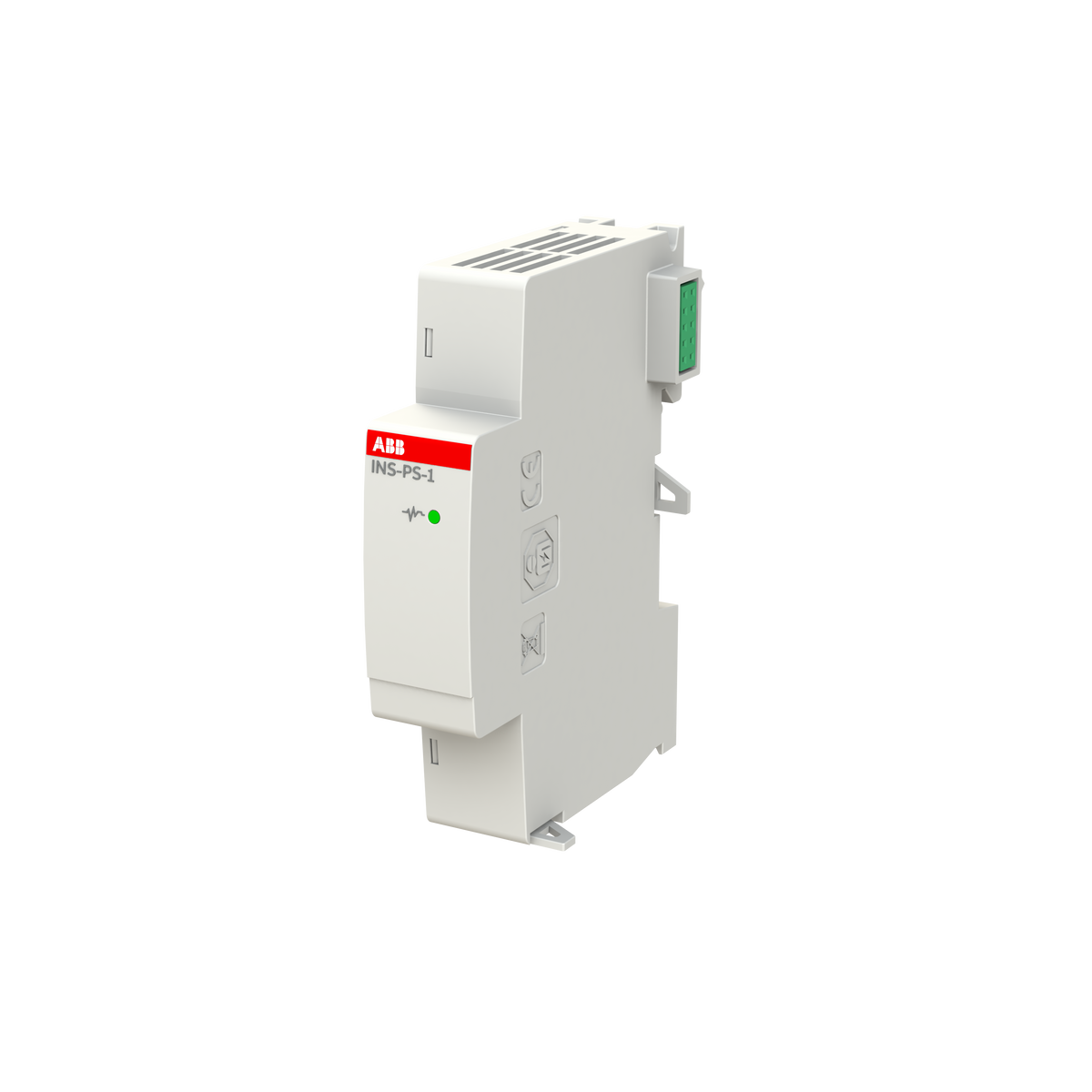

ABB 2CCG001160R0001 INS-PS-1 SCU200 Power Supply Module 10W Energy Management Device

% $-135.90
ABB 2CCG001160R0001 INS-PS-1 Power Supply Module for SCU200 - 10W
ABB 2CCG001160R0001 INS-PS-1 Power Supply Module for SCU200 - 10W

ABB 2CCG001160R0001 INS-PS-1 SCU200 Power Supply Module 10W Energy Management Device

Brand: ABB
Reference No: 2CCG001160R0001
Catalog No: INS-PS-1
Series: InSite Pro M Compact
Tariff Code (HS): 853710
Rated Voltage: 240 V
Communication: InSite Modular Bus
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$135.90

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

ABB's INS-PS-1 (2CCG001160R0001) is a 10 W power supply module for the InSite Pro M Compact energy management system, providing bus power to an SCU200 control unit over the InSite Modular Bus. Rated for a 240 V supply with a 0.18 A input current, it mounts on DIN-rail alongside the metering and communication modules of the same InSite bus assembly.

Technical Specifications

SKU 2CCG001160R0001
Brand ABB
Series InSite Pro M Compact
Catalog Designation INS-PS-1
EAN 7612271516406
Product Compatibility SCU200
Application Power Supply
Output Power 10 W
Communication Interface InSite Modular Bus
Supply Voltage 240 V
Rated Current (In) 0.18 A
Frequency 50/60 ±5% Hz
Ambient Air Temperature (Operation) -25...+60 °C
Degree of Protection IP20
Maximum Operating Altitude 2000 m
Mounting Type DIN-Rail
Width 17.4 mm
Height 87 mm
Depth 64.9 mm
Net Weight 77 g

Certifications & Standards

  • EN 61010-1 / IEC 61010-1
  • EN IEC 61326-1

Selection Notes

The INS-PS-1 supplies bus power for an SCU200 assembly rated up to 10 W; size the InSite module count against this budget before adding metering, communication or signalling modules, since each module draws from the same bus supply. It is the dedicated power module in the InSite Pro M Compact range, distinct from the metering (INS-E3) and communication (INS-WM) modules that share its DIN-rail enclosure footprint.

Technical Details

Short Description
ABB INS-PS-1, 10 W power supply module for SCU200 InSite Pro M Compact, 240 V supply, 0.18 A.
Rated Voltage (VAC)
240 V
Mounting Type
DIN-Rail
Protection Type
IP20
Catalog No
INS-PS-1
Standards
EN 61010-1 / IEC 61010-1, EN IEC 61326-1
Delivery Date (Days)
30 days
Model Number
INS-PS-1
Tariff Code
853710
