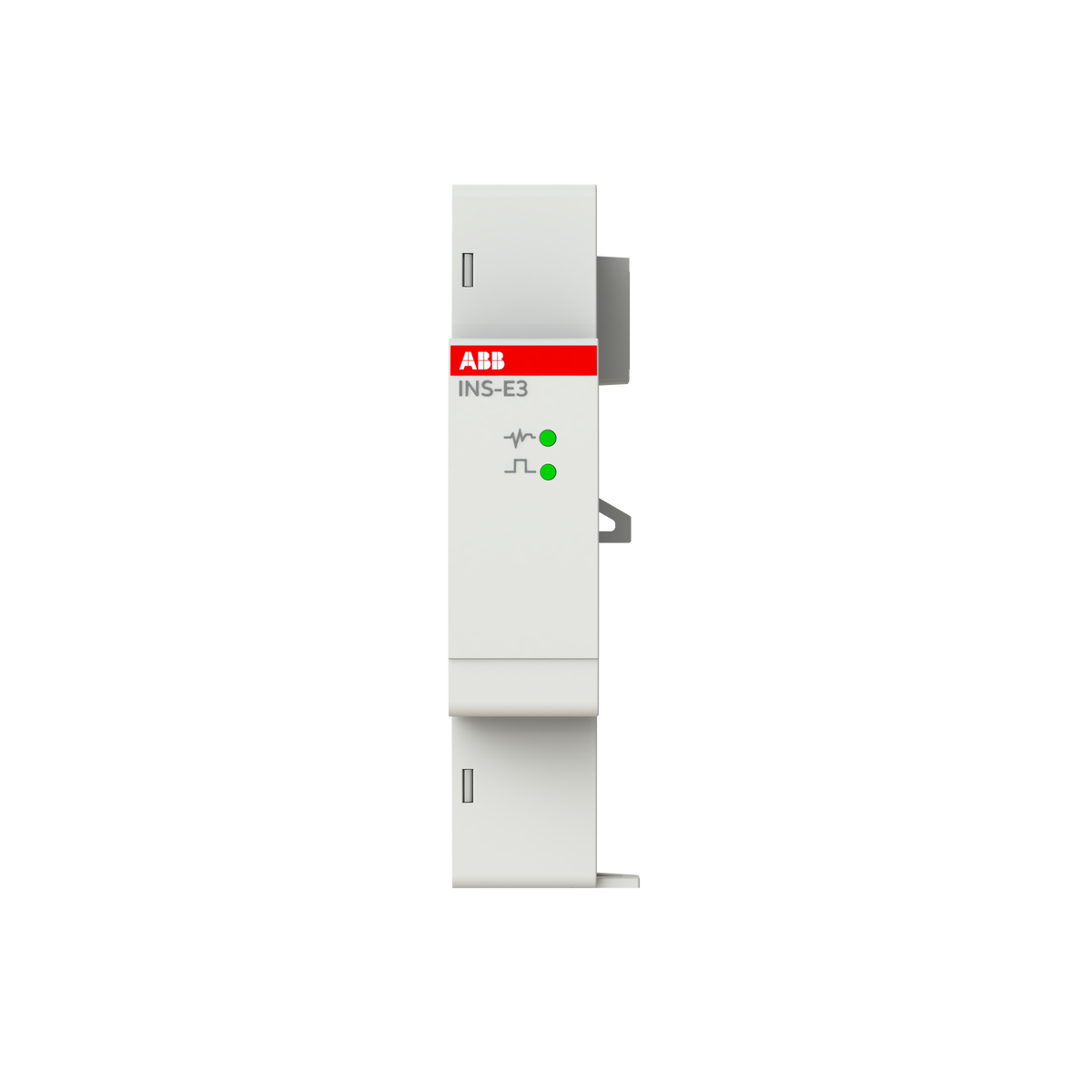

ABB 2CCG001159R0001 INS-E3 SCU200 Metering Module 0-40mA Energy Management Device

% $-205.72
ABB 2CCG001159R0001 INS-E3 Metering Module for SCU200 - 40mA
ABB 2CCG001159R0001 INS-E3 Metering Module for SCU200 - 40mA

ABB 2CCG001159R0001 INS-E3 SCU200 Metering Module 0-40mA Energy Management Device

Brand: ABB
Reference No: 2CCG001159R0001
Catalog No: INS-E3
Series: InSite Pro M Compact
Tariff Code (HS): 853710
Rated Voltage: 240 V
Communication: InSite Modular Bus
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$205.72

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

ABB's INS-E3 (2CCG001159R0001) is a metering module for the InSite Pro M Compact energy management system, equipping an SCU200 control unit with 1-phase or 3-phase power-quality metering up to 40 mA current input. It measures current, voltage, power factor and current quadrant over the InSite Modular Bus, feeding data to the SCU200 web server for monitoring, tariffs and alarms.

Technical Specifications

SKU 2CCG001159R0001
Brand ABB
Series InSite Pro M Compact
Catalog Designation INS-E3
EAN 7612271516291
Product Compatibility SCU200
Application Power quality
Number of Phases 1-phase / 3-phase
Rated Current (In) 0-40 mA
Accuracy 0.5% active energy (1/0.8 PF)
Communication Interface InSite Modular Bus
Supply Voltage 240 V
Voltage Range 0-277 V
Frequency 50/60 Hz
Power Consumption 0.007 kW
Ambient Air Temperature (Operation) -25...+60 °C
Degree of Protection IP20
Maximum Operating Altitude 2000 m
Mounting Type DIN-Rail
Width 17.4 mm
Height 87 mm
Depth 64.9 mm
Net Weight 52 g

Certifications & Standards

  • EN 61010-1 / IEC 61010-1
  • IEC 61326-1

Selection Notes

The INS-E3 is the metering function module of the InSite Pro M Compact range: pick it specifically when power-quality readings (current, voltage, power factor, quadrant) are needed on an SCU200, as distinct from the INS-WM module, which adds wireless meter integration, or the INS-S/H module, which only reports breaker contact status without metering values.

Technical Details

Short Description
ABB INS-E3 metering module for SCU200, 1/3-phase power-quality metering up to 40 mA, InSite Modular Bus.
Rated Voltage (VAC)
240 V
Mounting Type
DIN-Rail
Protection Type
IP20
Catalog No
INS-E3
Standards
EN 61010-1 / IEC 61010-1 EN, IEC 61326-1
Delivery Date (Days)
30 days
Model Number
INS-E3
Tariff Code
853710
