ABB 2CCG001155R0001 CTS-1-50 50A Split-Core for INS-E3 Current Transformer

% $-42.39

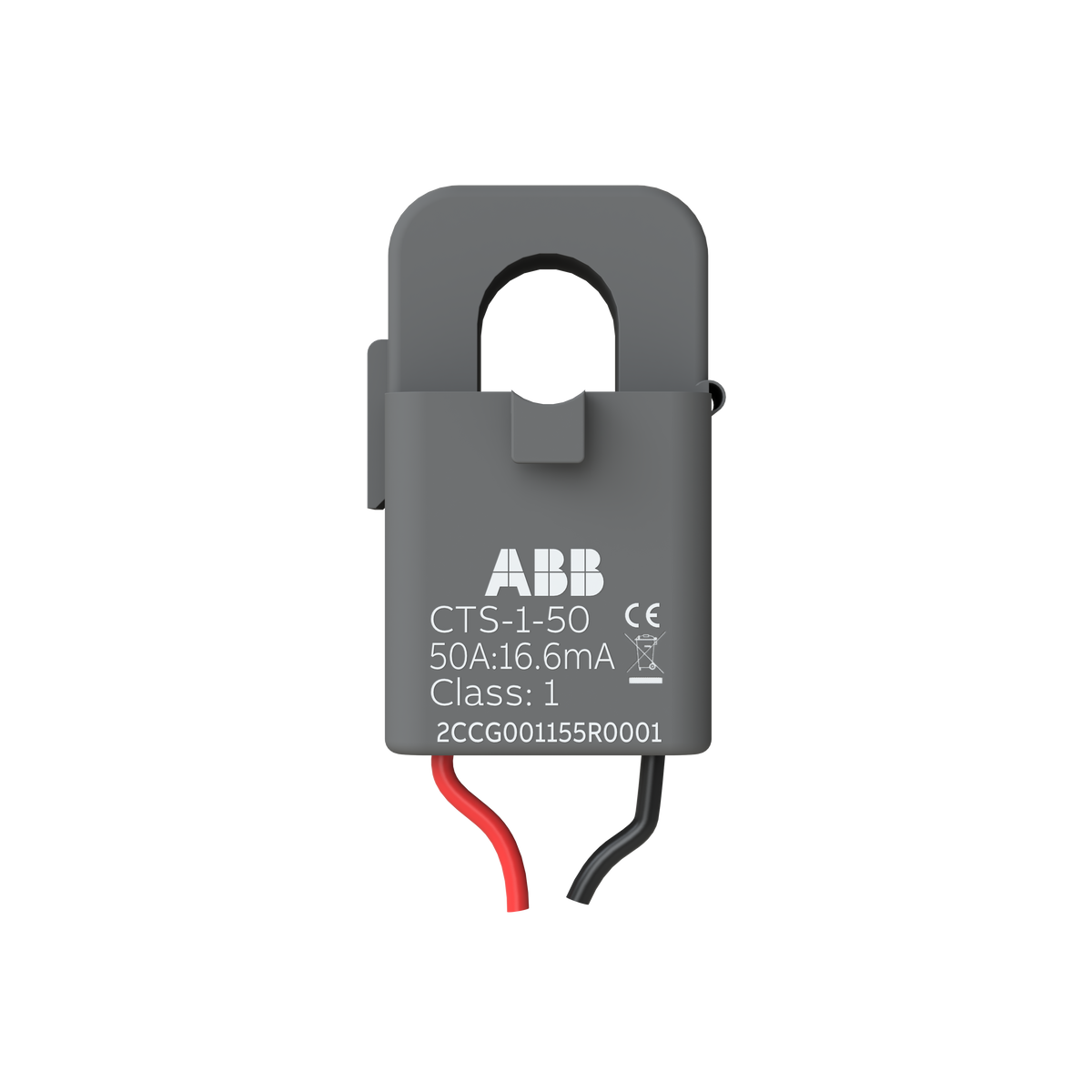

ABB 2CCG001155R0001 CTS-1-50 split-core current transformer - 50A for INS-E3
ABB 2CCG001155R0001 CTS-1-50 split-core current transformer - 50A for INS-E3

ABB 2CCG001155R0001 CTS-1-50 50A Split-Core for INS-E3 Current Transformer

Brand: ABB
Reference No: 2CCG001155R0001
Catalog No: CTS-1-50
Series: InSite Pro M Compact
Tariff Code (HS): 850431
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$42.39

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The ABB 2CCG001155R0001 (CTS-1-50) is a split-core current transformer rated 50 A, 1-phase AC, designed for use with the INS-E3 energy meter module and SCU200 in the InSite Pro M Compact system. It carries Class 1 accuracy per EN 61869-2 and clips around an existing conductor without disconnecting the circuit, simplifying retrofit metering installs.

Technical Specifications

Catalog Designation CTS-1-50
SKU 2CCG001155R0001
Brand ABB
Series InSite Pro M Compact
EAN 7612271516444
Product Compatibility INS-E3, SCU200
Rated Current (In) 50 A
Current Type AC
Number of Phases 1-phase
Accuracy Class 1 (EN 61869-2)
Ambient Temperature -25 to 60°C
Width 22.8 mm
Height 40 mm
Depth 25.8 mm
Weight 45 g

Selection Notes

At 50 A, the CTS-1-50 sits mid-range in this split-core CT family, sized for feeder conductors beyond a smaller clamp's safe limit but below the largest option. It only works with the INS-E3 meter module and SCU200 controller, not as a standalone metering device.

Technical Details

Short Description
ABB CTS-1-50 split-core current transformer, 50A rated, Class 1 accuracy, for INS-E3 energy metering.
Catalog No
CTS-1-50
Delivery Date (Days)
30 days
Model Number
CTS-1-50
Tariff Code
850431
