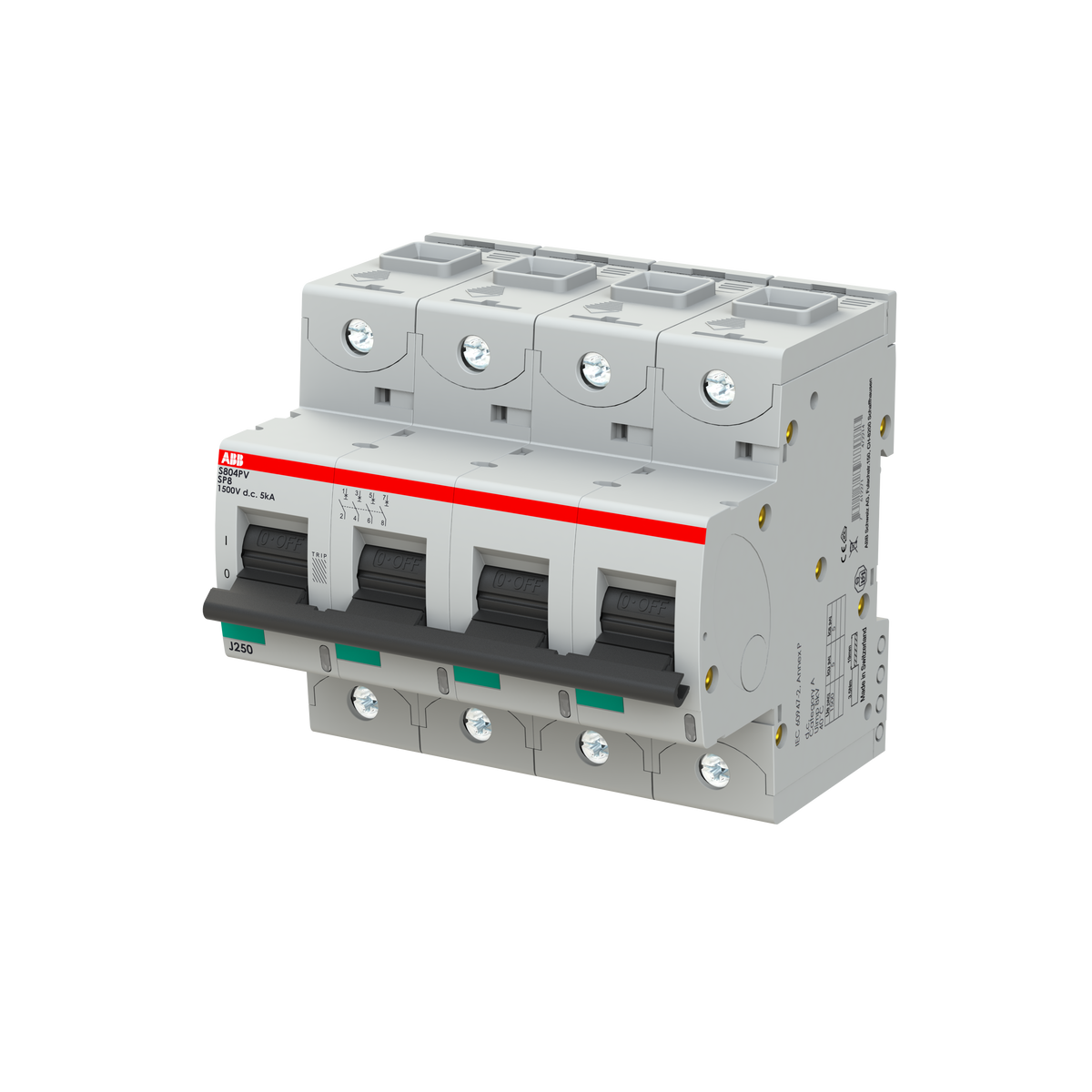

ABB 2CCF019648R0001 S804PV-SP8 4P 8A 5kA 1500V DC High Performance Circuit Breaker

% $-426.32
ABB S804PV-SP8 2CCF019648R0001 4-pole PV DC circuit breaker - 8A 5kA 1500V
ABB S804PV-SP8 2CCF019648R0001 4-pole PV DC circuit breaker - 8A 5kA 1500V

ABB 2CCF019648R0001 S804PV-SP8 4P 8A 5kA 1500V DC High Performance Circuit Breaker

Brand: ABB
Reference No: 2CCF019648R0001
Catalog No: S804PV-SP8
Series: High Performance Circuit Breakers HPCBs - S800
Tariff Code (HS): 853620
Rated Current: 8
Breaking Type: SP
Poles: 4P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$426.32

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The ABB S804PV-SP8 (SKU 2CCF019648R0001) is a 4-pole DC circuit breaker built for photovoltaic strings, rated 8 A with a 5 kA breaking capacity at 1500 V DC. It uses an SP release and current-limiting design (energy limiting class 3) to interrupt DC arc faults on the PV side of an inverter, and it mounts on standard DIN rail alongside the rest of the S800 series.

Technical Specifications

SKU 2CCF019648R0001
Brand ABB
Series High Performance Circuit Breakers HPCBs - S800
Catalog Designation S804PV-SP8
EAN 7612271472214
Number of Poles 4P
Rated Current (In) 8 A
Rated Ultimate Breaking Capacity (Icu) 5 kA at 1500 V DC
Rated Service Breaking Capacity (Ics) 5 kA at 1500 V DC
Energy Limiting Class 3
Release Type SP
Rated Operational Voltage 1500 V DC
Rated Insulation Voltage (Ui) 1500 V
Rated Impulse Withstand Voltage (Uimp) 8 kV
Overvoltage Category III
Degree of Protection IP20
Pollution Degree 2
Connecting Capacity Flexible 0-50 mm² / Rigid 0-70 mm²
Width 105 mm (6 modules)
Net Weight 0.98 kg

Certifications & Standards

  • IEC/EN 60947-2

Selection Notes

SP denotes a thermal-magnetic release tuned for photovoltaic DC fault current; at In 8 A, this breaker is sized for a single PV string output rather than a combiner box. The 5 kA Icu/Ics rating holds across the full 1500 V DC range, so no derating is needed as the string approaches the breaker's maximum insulation voltage. Energy limiting class 3 keeps let-through energy low, which matters more at low fault currents like this 8 A rating than on the higher-current siblings in the same frame.

Technical Details

Short Description
ABB S804PV-SP8 4-pole PV DC circuit breaker, In 8 A, Icu/Ics 5 kA at 1500 V DC, energy limiting class 3, DIN-rail mounted.
Rated Current (Ampere)
8
Mounting Type
DIN-Rail
Protection Type
IP20
Catalog No
S804PV-SP8
Number of Poles
4P
Standards
IEC/EN 60947-2
Delivery Date (Days)
30 days
Model Number
S804PV-SP8
Tariff Code
853620
