ABB 2CCF019628R0001 S804PV-SP40 4P 40A 1500V DC 5kA High Performance Circuit Breaker

% $-476.42

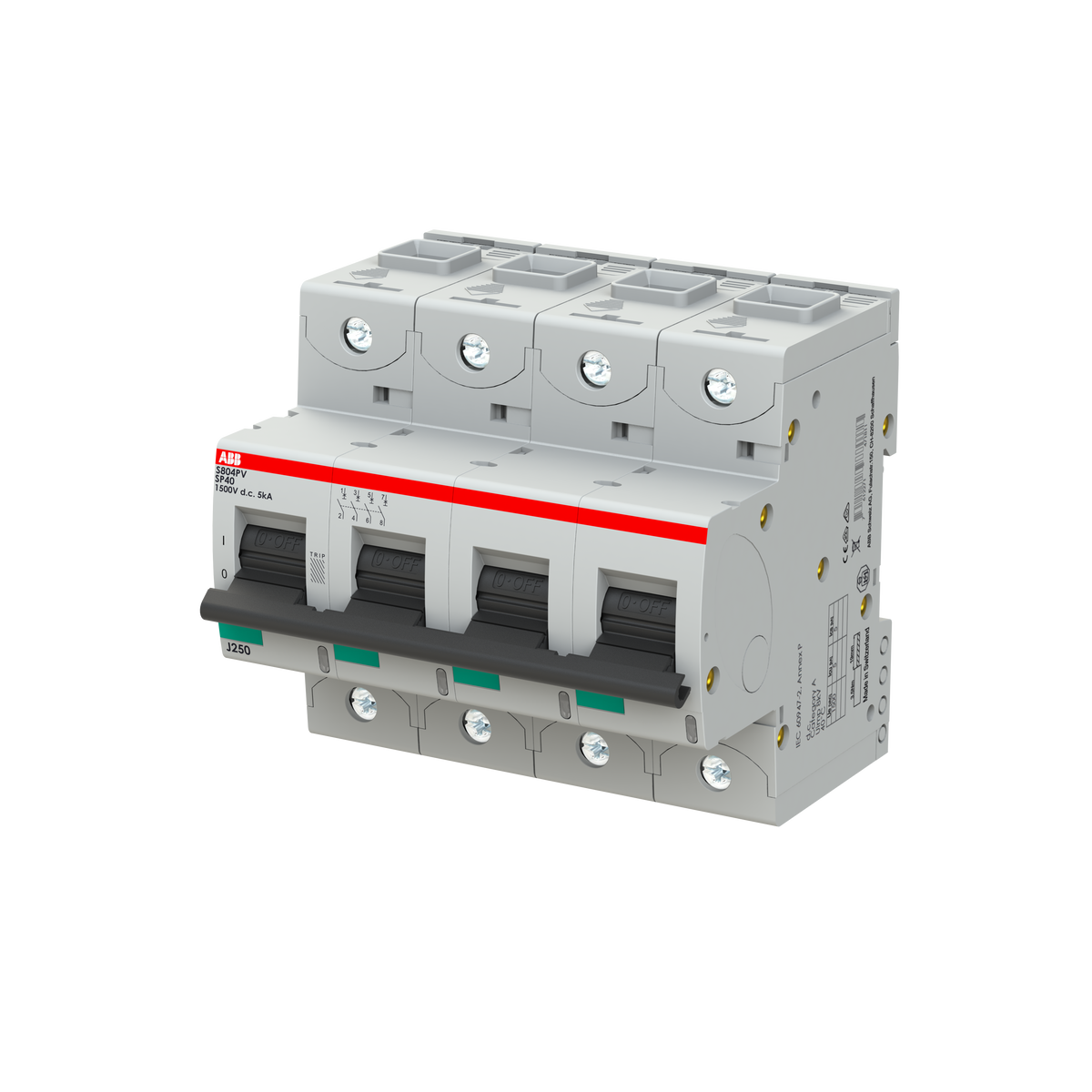

ABB 2CCF019628R0001 S804PV-SP40 4-pole 40A 1500V DC high performance circuit breaker
ABB 2CCF019628R0001 S804PV-SP40 4-pole 40A 1500V DC high performance circuit breaker

ABB 2CCF019628R0001 S804PV-SP40 4P 40A 1500V DC 5kA High Performance Circuit Breaker

Brand: ABB
Reference No: 2CCF019628R0001
Catalog No: S804PV-SP40
Series: High Performance Circuit Breakers HPCBs - S800
Tariff Code (HS): 853620
Rated Current: 40
Breaking Type: SP (thermal + electromechanical)
Rated Voltage: 1500 V DC
Poles: 4P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$476.42

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

Rated 40 A at up to 1500 V DC, the ABB 2CCF019628R0001 S804PV-SP40 is a four-pole high performance circuit breaker for protecting photovoltaic sub-array DC feeders in commercial and utility-scale installations. It combines a thermal overload element with an electromechanical short-circuit element under its SP tripping characteristic and a 5 kA breaking capacity.

Technical Specifications

Catalog No S804PV-SP40
SKU 2CCF019628R0001
Brand ABB
Series High Performance Circuit Breakers HPCBs - S800
Rated Current (In) 40 A
Number of Poles 4P
Tripping / Release Characteristic SP
Rated Operational Voltage 1500 V DC (IEC 60947-2)
Rated Ultimate Short-Circuit Breaking Capacity (Icu) 5 kA at 1500 V DC
Rated Service Short-Circuit Breaking Capacity (Ics) 5 kA at 1500 V DC
Energy Limiting Class 3
Rated Insulation Voltage (Ui) 1500 V
Rated Impulse Withstand Voltage (Uimp) 8 kV
Overvoltage Category III
Pollution Degree 2
Degree of Protection IP20
Power Loss 14.8 W total / 3.7 W per pole
Connecting Capacity Flexible 0-50 mm², Rigid 0-70 mm²
Ambient Temperature -40 to +70 degrees C operation
Width 106 mm (6 modules)
Net Weight 0.98 kg
EAN 7612271471811

Certifications & Standards

  • IEC/EN 60947-2

Selection Notes

At 40 A, the 2CCF019628R0001 fits sub-array combiner circuits that aggregate several strings within the S804PV-SP range. Its SP tripping characteristic pairs thermal overload sensing with electromechanical short-circuit tripping, both rated against the 5 kA breaking capacity at 1500 V DC shared across the frame. Main DC combiner panels carrying more current need a higher-rated breaker from the same family.

Technical Details

Short Description
ABB S804PV-SP40 4-pole, 40 A, 1500 V DC high performance circuit breaker, SP trip, 5 kA breaking capacity, PV sub-arrays.
Rated Current (Ampere)
40
Rated Voltage (VAC)
1500 V DC
Mounting Type
DIN-Rail
Protection Type
IP20
Catalog No
S804PV-SP40
Number of Poles
4P
Standards
IEC/EN 60947-2
Delivery Date (Days)
30 days
Model Number
S804PV-SP40
Tariff Code
853620
