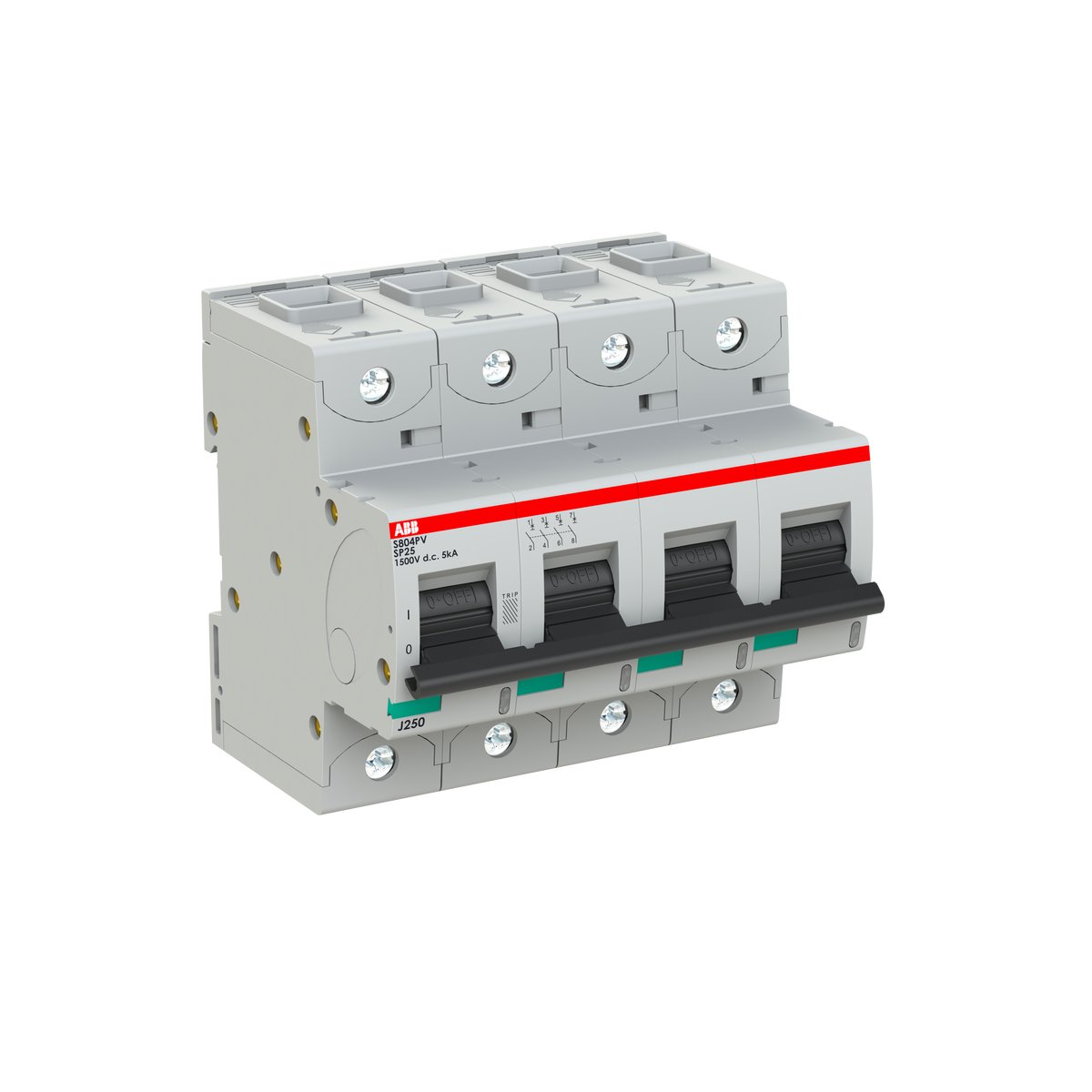

ABB 2CCF019626R0001 S804PV-SP25 4P 25A 1500V DC 5kA High Performance Circuit Breaker

% $-426.32
ABB 2CCF019626R0001 S804PV-SP25 4-pole 25A 1500V DC high performance circuit breaker
ABB 2CCF019626R0001 S804PV-SP25 4-pole 25A 1500V DC high performance circuit breaker

ABB 2CCF019626R0001 S804PV-SP25 4P 25A 1500V DC 5kA High Performance Circuit Breaker

Brand: ABB
Reference No: 2CCF019626R0001
Catalog No: S804PV-SP25
Series: High Performance Circuit Breakers HPCBs - S800
Tariff Code (HS): 853620
Rated Current: 25
Breaking Type: SP (thermal + electromechanical)
Rated Voltage: 1500 V DC
Poles: 4P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$426.32

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

At 25 A and up to 1500 V DC, the ABB 2CCF019626R0001 S804PV-SP25 is a four-pole high performance circuit breaker for photovoltaic string protection. Its SP tripping characteristic combines a thermal overload element with an electromechanical short-circuit element, and it carries a 5 kA breaking capacity for DC fault currents.

Technical Specifications

Catalog No S804PV-SP25
SKU 2CCF019626R0001
Brand ABB
Series High Performance Circuit Breakers HPCBs - S800
Rated Current (In) 25 A
Number of Poles 4P
Tripping / Release Characteristic SP
Rated Operational Voltage 1500 V DC (IEC 60947-2)
Rated Ultimate Short-Circuit Breaking Capacity (Icu) 5 kA at 1500 V DC
Rated Service Short-Circuit Breaking Capacity (Ics) 5 kA at 1500 V DC
Energy Limiting Class 3
Rated Insulation Voltage (Ui) 1500 V
Rated Impulse Withstand Voltage (Uimp) 8 kV
Overvoltage Category III
Pollution Degree 2
Degree of Protection IP20
Power Loss 17.2 W total / 4.3 W per pole
Connecting Capacity Flexible 0-50 mm², Rigid 0-70 mm²
Ambient Temperature -40 to +70 degrees C operation
Width 106 mm (6 modules)
Net Weight 0.98 kg
EAN 7612271471774

Certifications & Standards

  • IEC/EN 60947-2

Selection Notes

Rated 25 A, the 2CCF019626R0001 suits small parallel string combinations rather than a single high-output string, sitting mid-range in the S804PV-SP family. Its SP tripping characteristic combines thermal overload and electromechanical short-circuit sensing, both backed by the 5 kA breaking capacity at 1500 V DC shared across the range. Larger combiner circuits need the higher-current versions of the same frame, while single strings are better matched to a lower-current version.

Technical Details

Short Description
ABB S804PV-SP25 4-pole, 25 A, 1500 V DC high performance circuit breaker, SP trip, 5 kA breaking capacity, PV strings.
Rated Current (Ampere)
25
Rated Voltage (VAC)
1500 V DC
Mounting Type
DIN-Rail
Protection Type
IP20
Catalog No
S804PV-SP25
Number of Poles
4P
Standards
IEC/EN 60947-2
Delivery Date (Days)
30 days
Model Number
S804PV-SP25
Tariff Code
853620
