ABB 2CCF019625R0001 S804PV-SP20 4P 20A 1500V DC 5kA High Performance Circuit Breaker

% $-426.32

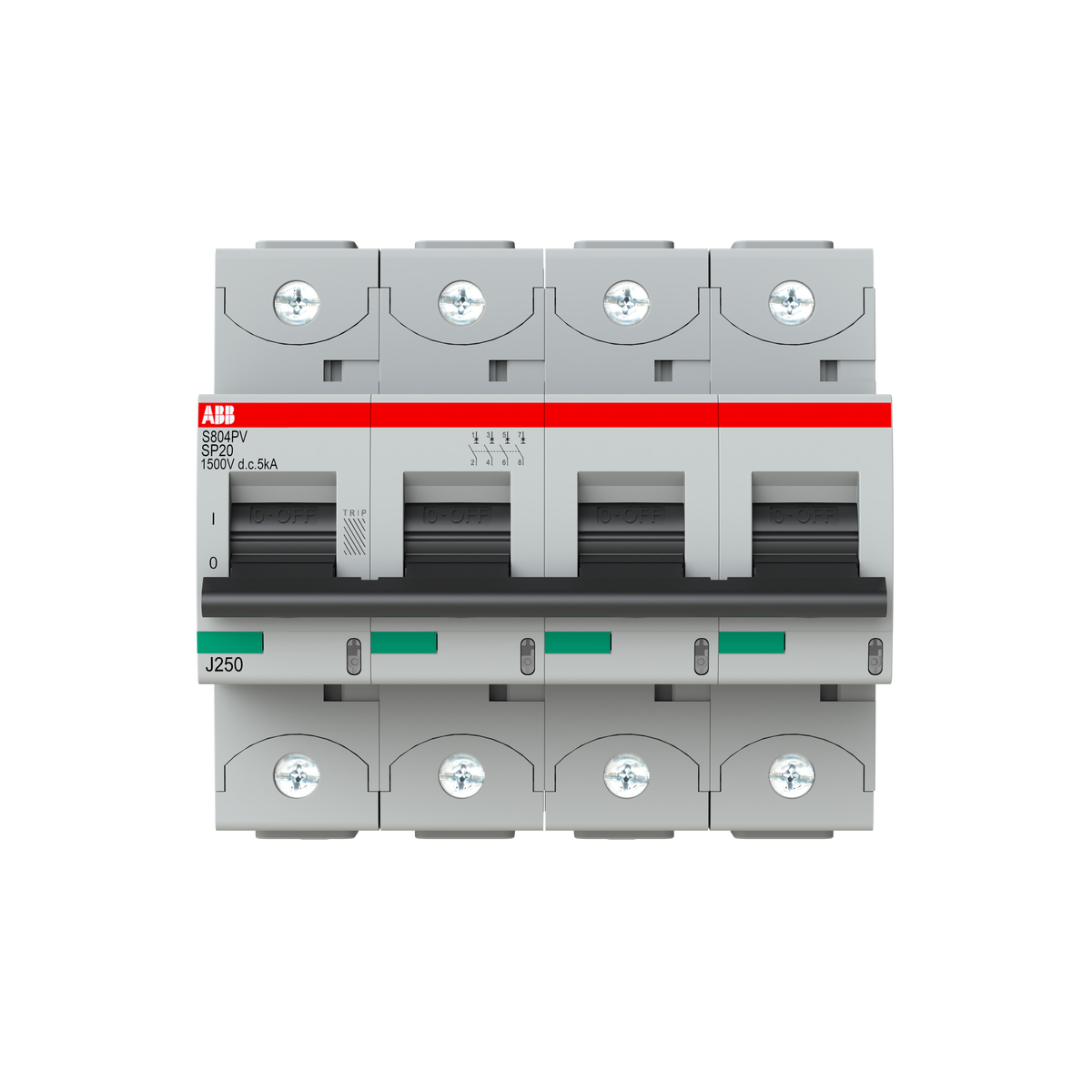

ABB 2CCF019625R0001 S804PV-SP20 4-pole 20A 1500V DC high performance circuit breaker
ABB 2CCF019625R0001 S804PV-SP20 4-pole 20A 1500V DC high performance circuit breaker

ABB 2CCF019625R0001 S804PV-SP20 4P 20A 1500V DC 5kA High Performance Circuit Breaker

Brand: ABB
Reference No: 2CCF019625R0001
Catalog No: S804PV-SP20
Series: High Performance Circuit Breakers HPCBs - S800
Tariff Code (HS): 853620
Rated Current: 20
Breaking Type: SP (thermal + electromechanical)
Rated Voltage: 1500 V DC
Poles: 4P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$426.32

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The ABB 2CCF019625R0001 is an S804PV-SP20 four-pole high performance circuit breaker rated 20 A at up to 1500 V DC, sized for protecting photovoltaic string or small sub-array circuits in commercial solar installations. Its SP tripping characteristic pairs thermal overload sensing with electromechanical short-circuit tripping, backed by a 5 kA breaking capacity.

Technical Specifications

Catalog No S804PV-SP20
SKU 2CCF019625R0001
Brand ABB
Series High Performance Circuit Breakers HPCBs - S800
Rated Current (In) 20 A
Number of Poles 4P
Tripping / Release Characteristic SP
Rated Operational Voltage 1500 V DC (IEC 60947-2)
Rated Ultimate Short-Circuit Breaking Capacity (Icu) 5 kA at 1500 V DC
Rated Service Short-Circuit Breaking Capacity (Ics) 5 kA at 1500 V DC
Energy Limiting Class 3
Rated Insulation Voltage (Ui) 1500 V
Rated Impulse Withstand Voltage (Uimp) 8 kV
Overvoltage Category III
Pollution Degree 2
Degree of Protection IP20
Power Loss 14 W total / 3.5 W per pole
Connecting Capacity Flexible 0-50 mm², Rigid 0-70 mm²
Ambient Temperature -40 to +70 degrees C operation
Width 106 mm (6 modules)
Net Weight 0.98 kg
EAN 7612271471750

Certifications & Standards

  • IEC/EN 60947-2

Selection Notes

At 20 A, the 2CCF019625R0001 covers higher-output single strings or small two-string parallel combinations, one step up from the lower-current versions in the same S804PV-SP range. Its SP tripping characteristic pairs thermal overload sensing with electromechanical short-circuit tripping, both rated against the shared 5 kA breaking capacity at 1500 V DC. Larger sub-array feeders need a higher-current breaker from the same frame.

Technical Details

Short Description
ABB S804PV-SP20 4-pole, 20 A, 1500 V DC high performance circuit breaker, SP trip, 5 kA breaking capacity, PV strings.
Rated Current (Ampere)
20
Rated Voltage (VAC)
1500 V DC
Mounting Type
DIN-Rail
Protection Type
IP20
Catalog No
S804PV-SP20
Number of Poles
4P
Standards
IEC/EN 60947-2
Delivery Date (Days)
30 days
Model Number
S804PV-SP20
Tariff Code
853620
