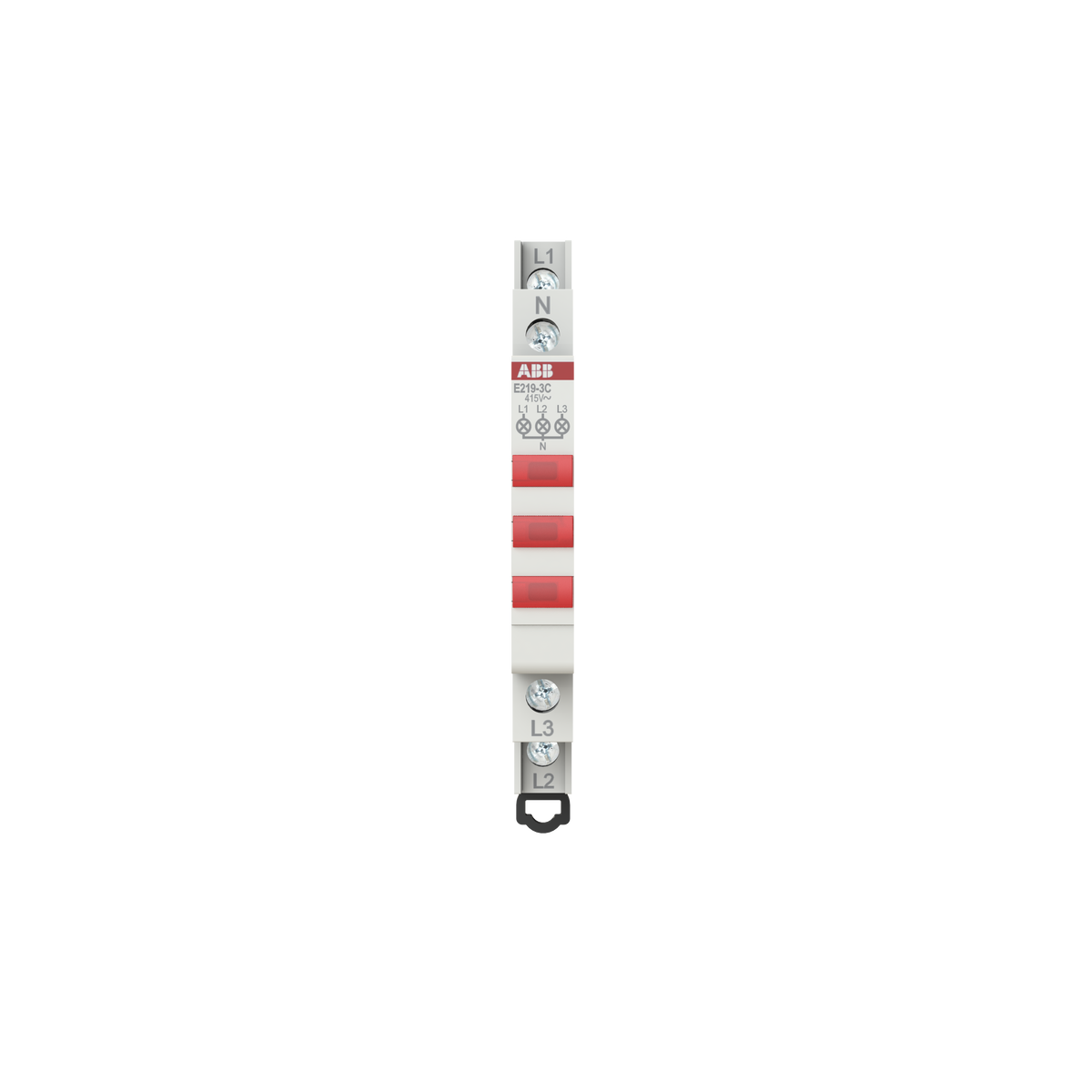

ABB 2CCA703900R0001 E219-3C 3-LED Red 415/230V AC Pilot Light

The ABB 2CCA703900R0001 E219-3C is a DIN-rail indicator light with 3 red LEDs, rated for a 230-415 V AC voltage range in the E210 series. It carries 16 A rated current, a 250 V insulation voltage, a 4 kV impulse withstand voltage and a 50000-hour LED service life, giving continuous panel status signalling without lamp replacement.

Technical Specifications

Certifications & Standards

• EN 60068-2-1
• EN 60068-2-2
• EN 60068-2-30
• DIN EN 62094-1
• UL 508

Selection Notes

The 2CCA703900R0001 uses 3 red LEDs for higher visibility than a single-LED white indicator, suited to applications where the signal needs to be seen from a wider viewing angle or farther away on a panel. Its 230-415 V AC range covers both single-phase and three-phase line-to-line indication without a separate transformer. The fixed red color and fixed 3-LED count mean this SKU is chosen by application voltage and visibility need rather than by configuration options.
