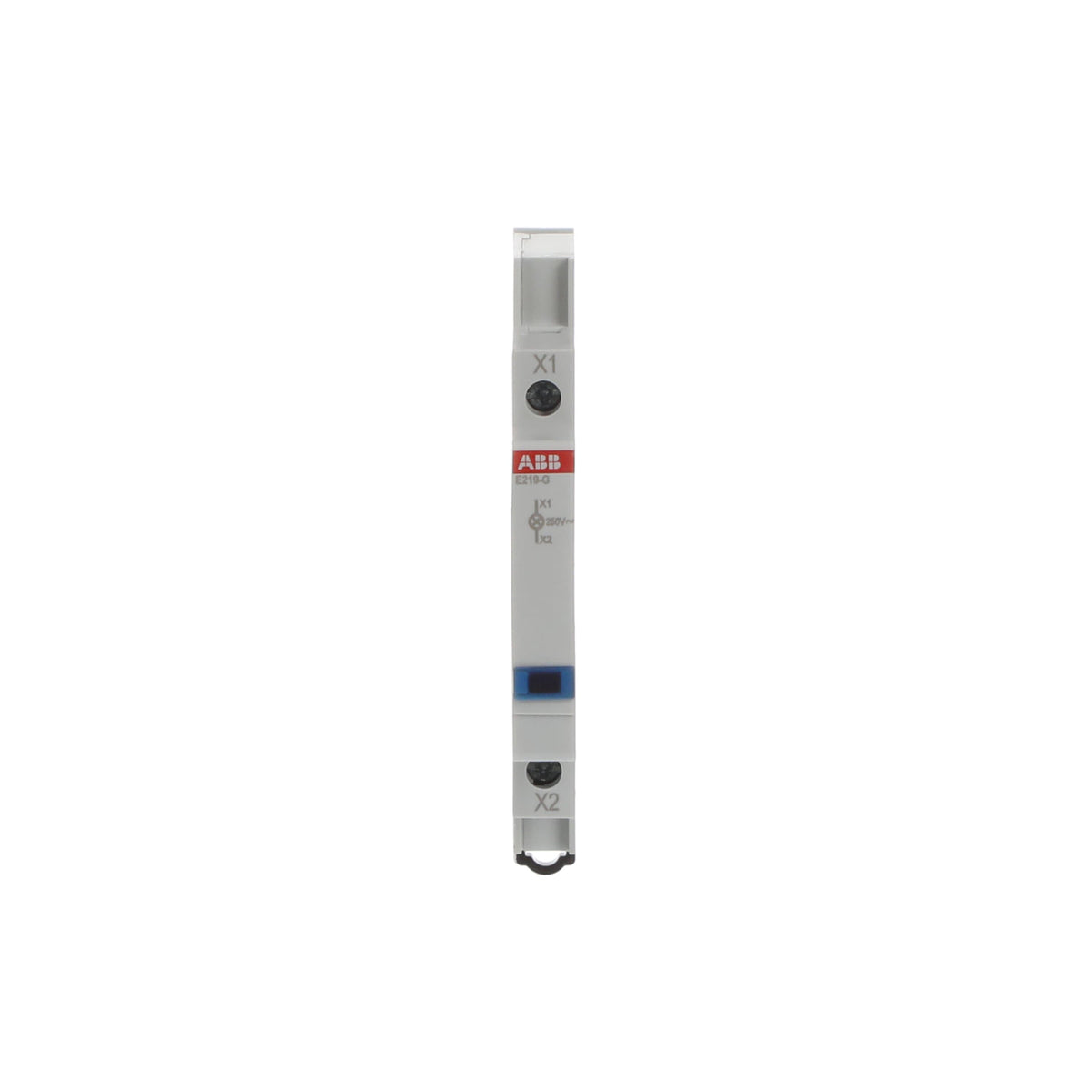

ABB 2CCA703404R0001 E219-G 16A 220V AC Blue LED DIN-Rail Pilot Light

% $-11.67
ABB 2CCA703404R0001 E219-G Pilot Light - 16A 220V AC Blue LED
ABB 2CCA703404R0001 E219-G Pilot Light - 16A 220V AC Blue LED

ABB 2CCA703404R0001 E219-G 16A 220V AC Blue LED DIN-Rail Pilot Light

Brand: ABB
Reference No: 2CCA703404R0001
Catalog No: E219-G
Series: Switches, Pushbuttons and Indicator Lights, E210
Tariff Code (HS): 853661
Rated Voltage: 220 V AC
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$11.67

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The ABB 2CCA703404R0001 E219-G pilot light uses a single blue LED and is rated 16 A at 220 V AC for DIN-rail command panels. It fits 0.5 modules, keeps double interrupting contacts sealable in On or Off, and tolerates -25 to +55 degrees C behind an IP20 housing rated for indoor panel mounting.

Technical Specifications

SKU 2CCA703404R0001
Brand ABB
Series E210
Catalog Designation E219-G
EAN 7612270939329
Number of LEDs 1
Lamp Type LED
Lamp Color Blue
Rated Current (In) 16 A
Rated Operational Voltage 220 V
Voltage Range 115-250 V AC
Rated Insulation Voltage (Ui) 250 V
Rated Impulse Withstand Voltage (Uimp) 4 kV
Rated Frequency 50/60 Hz
Power 0.47 W
Degree of Protection IP20
Ambient Temperature (Operation) -25...+55 degrees C
Module Width 0.5
Net Weight 43 g
Service Life (LED) 50000 h

Certifications & Standards

  • EN 60068-2-1
  • EN 60068-2-2
  • EN 60068-2-30
  • DIN EN 62094-1
  • UL 508

Selection Notes

The E219-G's blue LED and fixed 220 V AC rating suit panels standardized on a single voltage, unlike the red and yellow E219 variants that accept the broader 115-230 V range. Use it where blue is reserved for a specific signal, such as auxiliary or remote power present, rather than fault or run status. Its 16 A contact handles the lamp circuit directly, with no separate control relay needed. The same sealable On/Off cover as its siblings supports tamper-resistant panel assemblies.

Technical Details

Short Description
ABB E219-G blue LED pilot light, 16A, 220V AC, IP20, 0.5 module DIN-rail indicator.
Rated Voltage (VAC)
220 V AC
Protection Type
IP20
Catalog No
E219-G
Standards
EN60068-2-1, EN60068-2-2, EN60068-2-30, DIN EN 62094-1, UL508
Delivery Date (Days)
30 days
Model Number
E219-G
Tariff Code
853661
