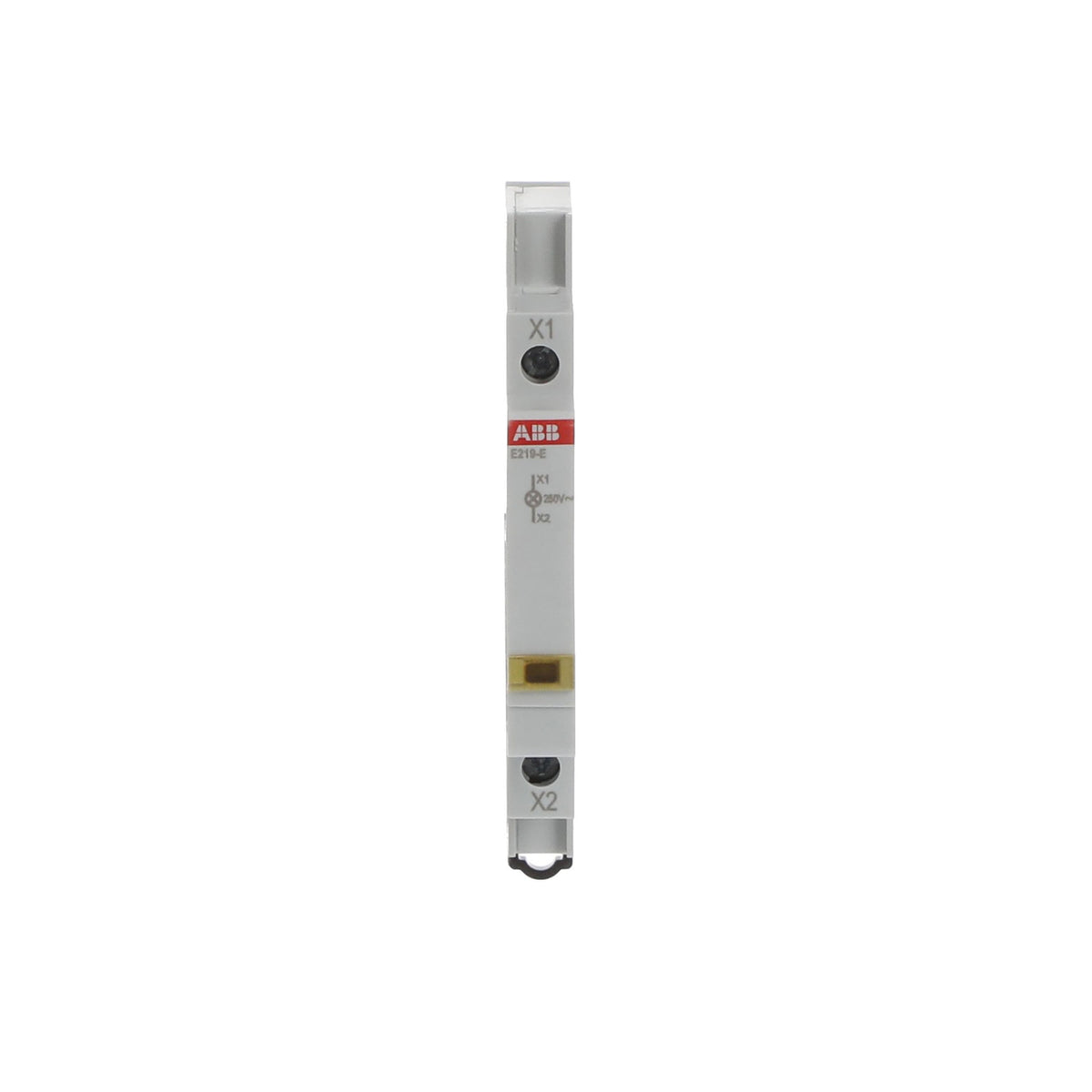

ABB 2CCA703403R0001 E219-E 16A 115-230V AC Yellow LED Pilot Light

% $-11.67
ABB 2CCA703403R0001 E219-E Pilot Light - 16A 115-230V AC Yellow LED
ABB 2CCA703403R0001 E219-E Pilot Light - 16A 115-230V AC Yellow LED

ABB 2CCA703403R0001 E219-E 16A 115-230V AC Yellow LED Pilot Light

Brand: ABB
Reference No: 2CCA703403R0001
Catalog No: E219-E
Series: Switches, Pushbuttons and Indicator Lights, E210
Tariff Code (HS): 853661
Rated Voltage: 115/230 V AC
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$11.67

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

ABB's 2CCA703403R0001 E219-E pilot light carries a single yellow LED and is rated 16 A at 115-230 V AC. Mounted on 0.5 DIN-rail modules, it uses double interrupting contacts that lock in the On or Off position, draws 0.47 W, and operates from -25 to +55 degrees C behind an IP20 cover.

Technical Specifications

SKU 2CCA703403R0001
Brand ABB
Series E210
Catalog Designation E219-E
EAN 7612270939312
Number of LEDs 1
Lamp Type LED
Lamp Color Yellow
Rated Current (In) 16 A
Rated Operational Voltage 115-230 V
Voltage Range 115-250 V AC
Rated Insulation Voltage (Ui) 250 V
Rated Impulse Withstand Voltage (Uimp) 4 kV
Rated Frequency 50/60 Hz
Power 0.47 W
Degree of Protection IP20
Ambient Temperature (Operation) -25...+55 degrees C
Module Width 0.5
Net Weight 43 g
Service Life (LED) 50000 h

Certifications & Standards

  • EN 60068-2-1
  • EN 60068-2-2
  • EN 60068-2-30
  • DIN EN 62094-1
  • UL 508

Selection Notes

The E219-E's yellow LED is commonly paired with the red and blue variants in the E219 range to build a multi-color status panel, since all three share the same 16 A terminal rating and 0.5-module footprint. Choose yellow where the installation needs a caution or standby indication distinct from a red fault lamp or a blue auxiliary signal. It switches directly from the 115-230 V AC control supply without an added relay, and the sealable On/Off cover supports tamper-resistant panel builds.

Technical Details

Short Description
ABB E219-E yellow LED pilot light, 16A, 115-230V AC, IP20, 0.5 module DIN-rail indicator.
Rated Voltage (VAC)
115/230 V AC
Protection Type
IP20
Catalog No
E219-E
Standards
EN60068-2-1, EN60068-2-2, EN60068-2-30, DIN EN 62094-1, UL508
Delivery Date (Days)
30 days
Model Number
E219-E
Tariff Code
853661
