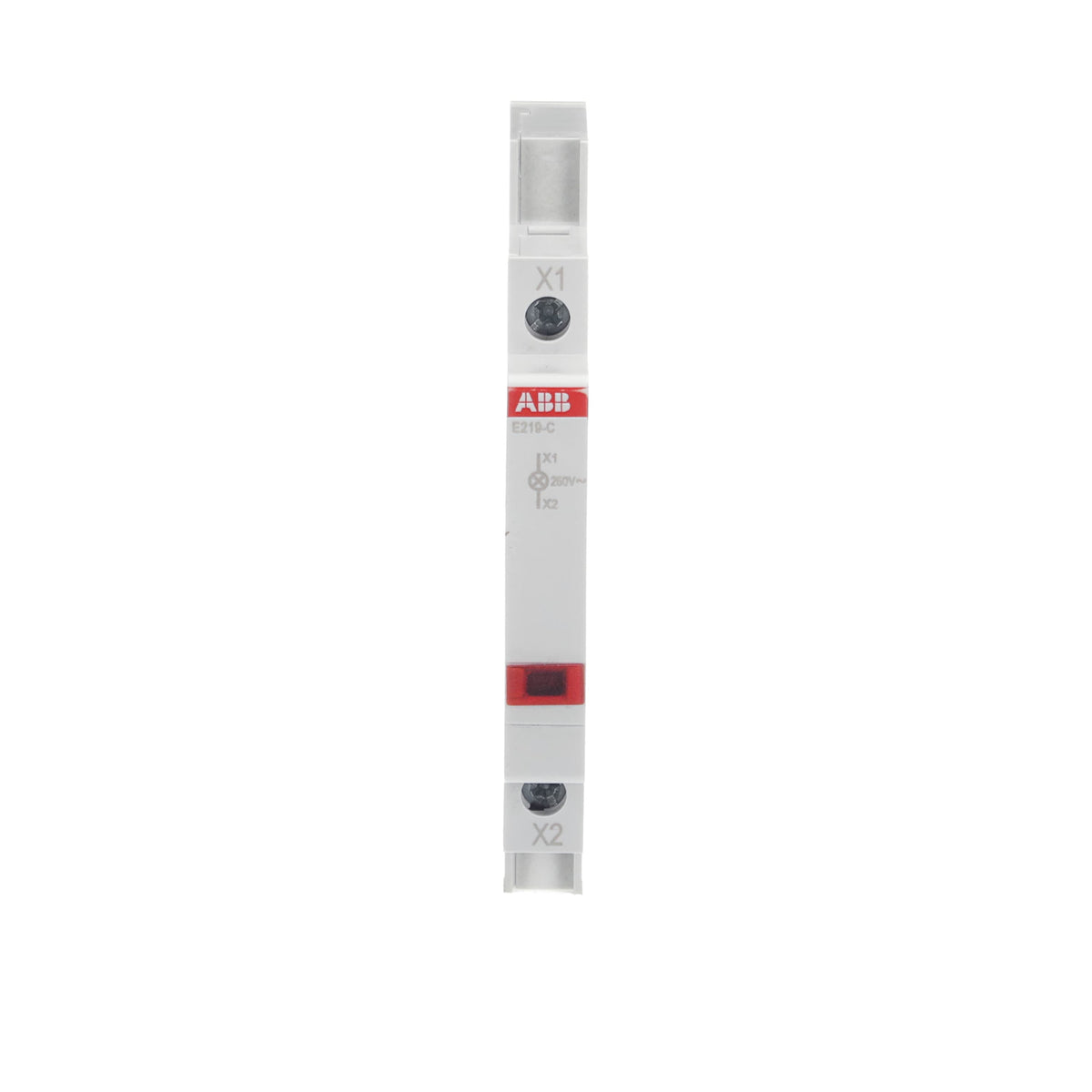

ABB 2CCA703401R0001 E219-C 16A 115-230V AC Red LED Pilot Light

The ABB 2CCA703401R0001 E219-C is a DIN-rail pilot light with a single red LED rated 16 A at 115-230 V AC. It mounts on 0.5 modules, uses double interrupting contacts that can be sealed in the On and Off positions, and signals circuit status on control panel fronts within an IP20 enclosure rated for -25...+55 degrees C ambient operation.

Technical Specifications

Certifications & Standards

• EN 60068-2-1
• EN 60068-2-2
• EN 60068-2-30
• DIN EN 62094-1
• UL 508

Selection Notes

The E219-C's red LED is typically paired with the yellow and blue color variants in the E219 range to build a multi-color status panel, since all three share the same 16 A terminal rating and 0.5-module footprint. Choose red where the installation needs a fault or off-state indication rather than a run or standby signal. It switches directly from the 115-230 V AC control supply without an added relay. The sealable On/Off cover also lets the lamp position be locked for tamper resistance in shared panels.
