ABB 2CCA703400R0001 E219-B 1-LED White 115-230V AC Pilot Light

% $-11.67

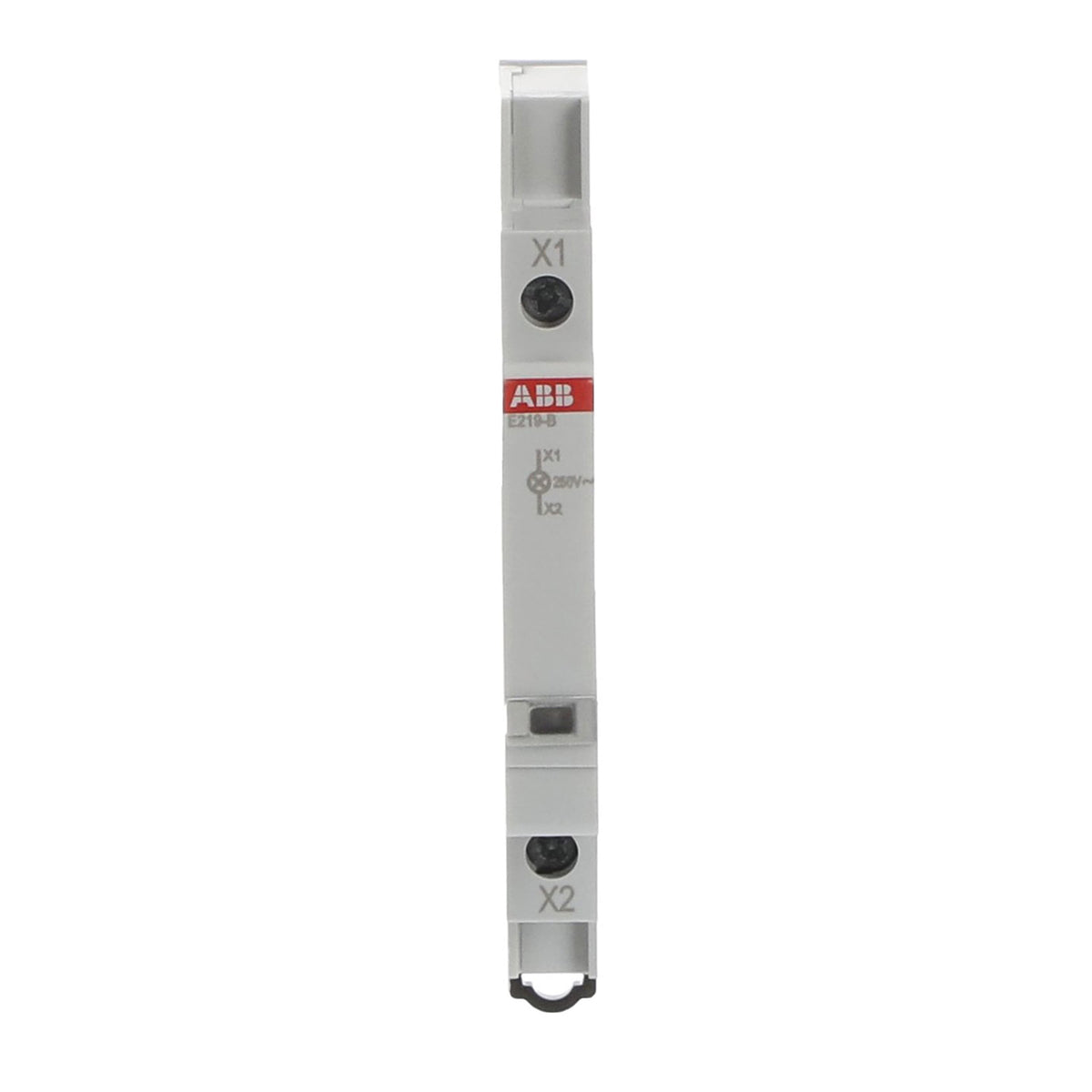

ABB 2CCA703400R0001 E219-B White Pilot Light - 1-LED 115-230V AC
ABB 2CCA703400R0001 E219-B White Pilot Light - 1-LED 115-230V AC

ABB 2CCA703400R0001 E219-B 1-LED White 115-230V AC Pilot Light

Brand: ABB
Reference No: 2CCA703400R0001
Catalog No: E219-B
Series: Switches, Pushbuttons and Indicator Lights, E210
Tariff Code (HS): 853661
Rated Voltage: 115/230 V
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$11.67

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

ABB's 2CCA703400R0001 E219-B is a DIN-rail indicator light with a single white LED, covering a 115-250 V AC voltage range in the E210 series. It is rated 16 A with a 250 V insulation voltage, a 4 kV impulse withstand voltage, and a 50000-hour LED service life for long-term panel status signalling.

Technical Specifications

Catalog No E219-B
SKU 2CCA703400R0001
Brand ABB
Series Switches, Pushbuttons and Indicator Lights, E210
Number of LEDs 1
Lamp Type LED
Lamp Color White
Rated Operational Voltage 115-230 V
Voltage Range 115-250 V AC
Rated Insulation Voltage (Ui) 250 V
Rated Impulse Withstand Voltage (Uimp) 4 kV
Rated Current (In) 16 A
Rated Frequency 50/60 Hz
Short-Circuit Current Rating (SCCR) UL/CSA 3 kA
LED Service Life 50000 hours
Power Loss 0.47-1 W
Degree of Protection IP20
Width in Modular Spacings 0.5
Dimensions (W x H x D) 9 x 85 x 68 mm
Net Weight 43 g
EAN 7612270939282

Certifications & Standards

  • EN 60068-2-1
  • EN 60068-2-2
  • EN 60068-2-30
  • DIN EN 62094-1
  • UL 508

Selection Notes

The 2CCA703400R0001's single white LED and 115-250 V AC range suit lower, single-phase-range indication circuits rather than the wider 230-415 V AC coverage of a 3-LED version. Its 250 V insulation voltage and 4 kV impulse withstand match the rest of the E210 pilot-device range. With one LED instead of three, it draws less and is better suited to compact status indication than high-visibility signalling.

Technical Details

Short Description
ABB E219-B - white 1-LED DIN-rail pilot light, 115-250 V AC, 16 A.
Rated Voltage (VAC)
115/230 V
Mounting Type
DIN-Rail
Protection Type
IP20
Catalog No
E219-B
Standards
EN60068-2-1, EN60068-2-2, EN60068-2-30, DIN EN 62094-1, UL508
Delivery Date (Days)
30 days
Model Number
E219-B
Tariff Code
853661
