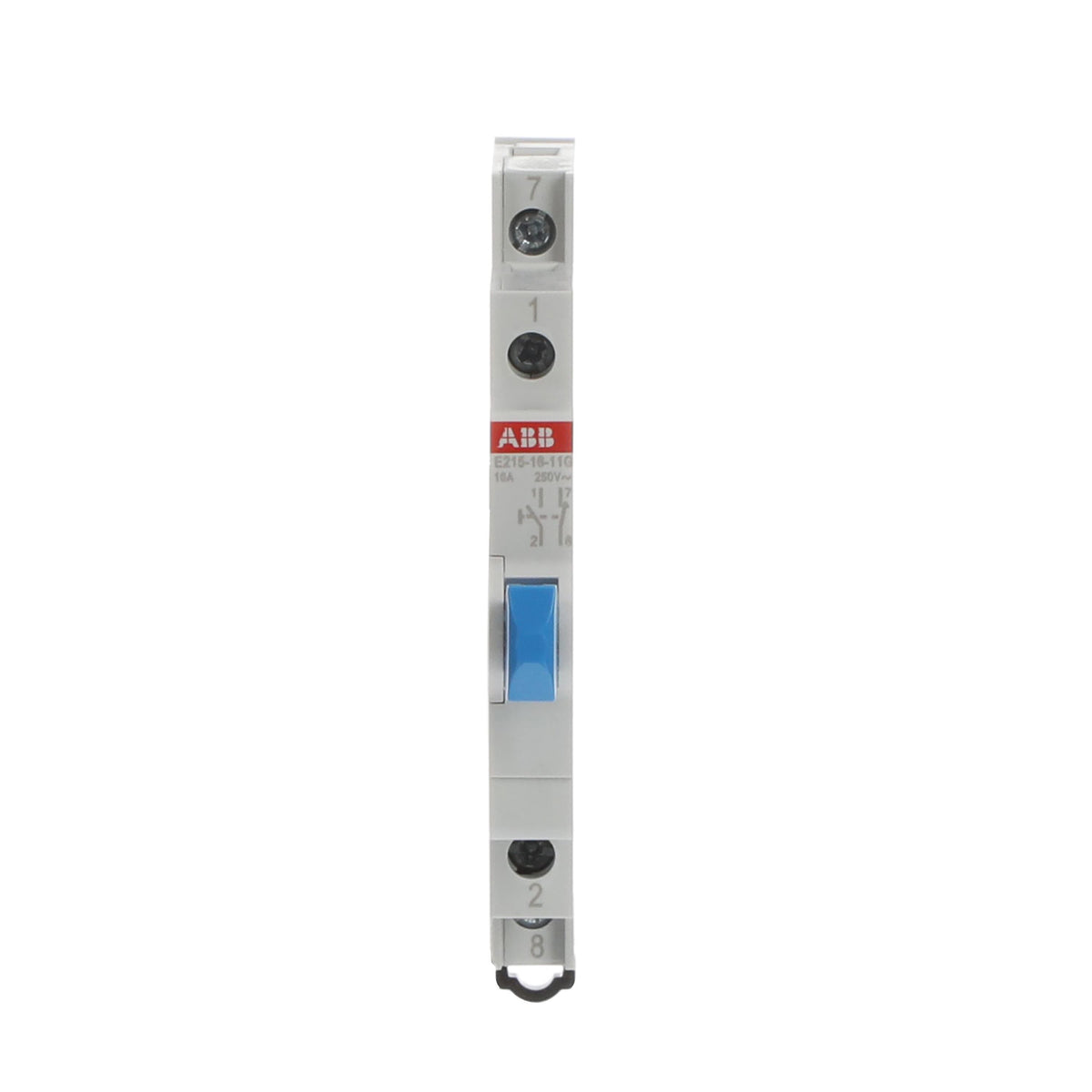

ABB 2CCA703155R0001 E215-16-11G 2P 1NO/1NC 250V AC Blue Push Button

% $-17.33
ABB 2CCA703155R0001 E215-16-11G Blue Push Button - 1NO 1NC 16A 250V AC
ABB 2CCA703155R0001 E215-16-11G Blue Push Button - 1NO 1NC 16A 250V AC

ABB 2CCA703155R0001 E215-16-11G 2P 1NO/1NC 250V AC Blue Push Button

Brand: ABB
Reference No: 2CCA703155R0001
Catalog No: E215-16-11G
Series: Switches, Pushbuttons and Indicator Lights, E210
Tariff Code (HS): 853650
Rated Voltage: 250 V AC
Poles: 2P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$17.33

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

Rated 16 A at 250 V AC, the ABB 2CCA703155R0001 E215-16-11G is a blue-actuator DIN-rail pushbutton with 1 NO and 1 NC double-interrupting contact in a 0.5-module E210-series housing. It meets EN 60669-1 and VDE 0632-1, with screw terminals for 1x1-6 mm² solid or 1x0.75-2x2.5 mm² flexible conductors for control panels.

Technical Specifications

Catalog No E215-16-11G
SKU 2CCA703155R0001
Brand ABB
Series Switches, Pushbuttons and Indicator Lights, E210
Rated Current (In) 16 A
Rated Operational Voltage 250 V AC (acc. to EN) / 240 V AC (acc. to UL 508)
Maximum Switching Voltage 250 V
Rated Frequency 50/60 Hz
Number of Poles 2P
Switch Type Double Interrupting Contacts
Contacts 1 NO, 1 NC
Material of Conductor Copper
Connecting Capacity Solid 1x1-6 mm² / Solid 2x2.5 mm² / Flexible 1x0.75-2x2.5 mm²
Power Loss 0.5 W
Actuator Color Blue
Degree of Protection IP20
Width in Modular Spacings 0.5
Dimensions (W x H x D) 9 x 85 x 68 mm
Net Weight 49 g
EAN 7612270938865

Certifications & Standards

  • EN 60068-2-1
  • EN 60068-2-2
  • EN 60068-2-30
  • DIN EN 60669-1
  • VDE 0632-1
  • UL 508

Selection Notes

With a blue actuator, the 2CCA703155R0001 is otherwise identical to the red, green and yellow E215-16 pushbuttons: 16 A, 250 V AC, 1 NO and 1 NC contacts in the same 0.5-module housing. Blue is often used for a function distinct from the standard red/green/yellow set in a control scheme, though the device does not enforce that usage. Current rating and contact configuration are unchanged from the rest of the range.

Technical Details

Short Description
ABB E215-16-11G - blue DIN-rail pushbutton, 16 A, 250 V AC, 1 NO + 1 NC.
Rated Voltage (VAC)
250 V AC
Mounting Type
DIN-Rail
Protection Type
IP20
Catalog No
E215-16-11G
Number of Poles
2P
Standards
EN60068-2-1, EN60068-2-2, EN60068-2-30, DIN EN 60669-1, VDE 0632-1, UL508
Delivery Date (Days)
30 days
Model Number
E215-16-11G
Tariff Code
853650
