Part number
2CCA703153R0001
Model no
E215-16-11E
$17.33 On request Dispatch — · From TürkiyeGet a Quote
Switches, Pushbuttons and Indicator Lights, E210

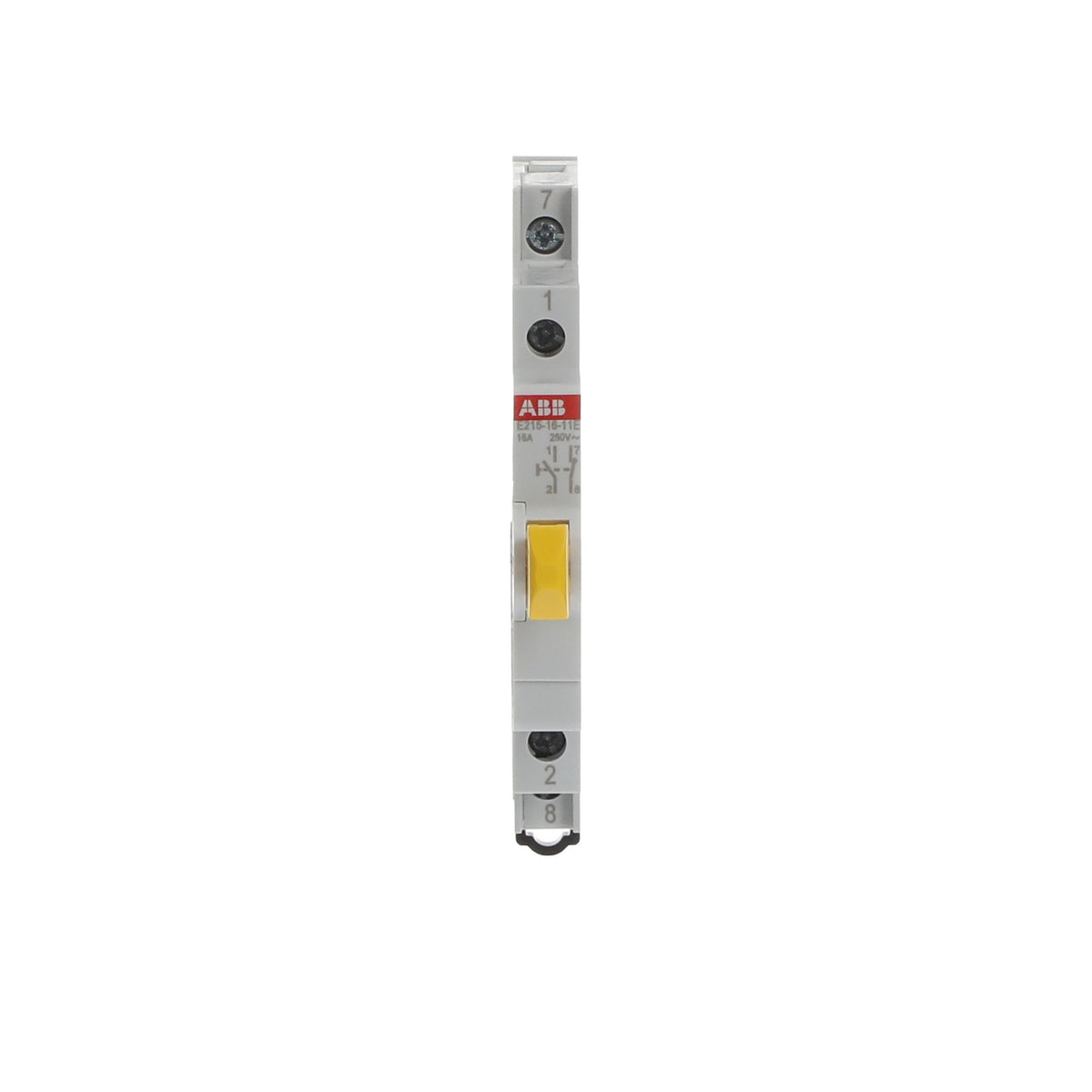

ABB 2CCA703153R0001 E215-16-11E 2P 1NO/1NC Yellow Push Button

ABB E215-16-11E - yellow DIN-rail pushbutton, 16 A, 250 V AC, 1 NO + 1 NC.

Rated operational voltage
250 V AC
Poles
2P
EAN
7612270938841
Description

About the E215-16-11E

The 2CCA703153R0001, ABB's E215-16-11E, is a yellow-actuator DIN-rail pushbutton with 1 NO and 1 NC double-interrupting contact, rated 16 A at 250 V AC in a 0.5-module E210-series housing. It is built to EN 60669-1 and VDE 0632-1, with screw terminals for 1x1-6 mm² solid or 1x0.75-2x2.5 mm² flexible conductors.

Certifications & Standards

  • EN 60068-2-1
  • EN 60068-2-2
  • EN 60068-2-30
  • DIN EN 60669-1
  • VDE 0632-1
  • UL 508

Selection Notes

The 2CCA703153R0001's yellow actuator is the only difference from the red, green and blue E215-16 pushbuttons - all four carry the same 16 A, 250 V AC, 1 NO + 1 NC rating in a 0.5-module housing. Yellow is commonly reserved for caution or reset functions on a panel, but the device itself enforces no such function. Swapping colors within this set changes only the visual coding, not the electrical performance.

Specification

Full specification

57 values · Last verified 02 Oct 2026

Technical 9

Maximum Switching Voltage 250 V
Number of Main Contacts NC 1
Number of Main Contacts NO 1
Number of Poles 2P
Tightening Torque 1.2-1.5 N·m
Switch Type Double Interrupting Contacts
Material of Conductor Copper
Remarks Sealable in the On and Off positions
Connecting Capacity Solid 1x1…6 mm², Solid 2x2.5 mm², Flexible 1x0.75…2x2.5 mm²

Electrical 9

Rated Voltage (Ur) Lamp 48 ... 48 V
Rated Operational Voltage acc. to EN 250 V AC, acc. to UL 508 240 V AC
Rated Current (In) 16 A
Rated Frequency (f) 50/60 Hz
Power Loss Total 0.5 W
Power Watt 0.72 W
Number of Contacts NC 1
Number of Contacts NO 1
Number of Auxiliary Contacts CO (SPDT) 0

Design 2

Color Yellow
Control Element Color Yellow
Show all 57 specifications ↓ Show less ↑37 more values in Identification, Material Compliance, Environmental, Dimensions, Engineering, Installation, External Classifications and Standards, Logistics.

Identification 13

Part number 2CCA703153R0001
Type designation E215-16-11E
Brand ABB
Condition New, factory sealed
Source ABB and its authorised distributors
Warranty Manufacturer warranty
EAN 7612270938841
ETIM class EC001546
eCl@ss 27142302
Package Level 1 Units box 10 piece
Package Level 1 Gross Weight 496 g
E-Number (Sweden) 2102804
E-Number (Switzerland) 467560078

Material Compliance 6

RoHS Information Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date 20260417
REACH Information False - does not contain substances > 0.1 mass percentage
REACH Date 20260414
WEEE Category 5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B Business To Consumer

Environmental 2

Ambient Air Temperature Operation -25...+55 °C, Storage -40...+70 °C
Degree of Protection IP20

Dimensions 6

Width in Number of Modular Spacings 0.5
Product Net Width 9 mm
Product Net Height 85 mm
Product Net Depth / Length 68 mm
Product Net Weight 49 g
Built-In Depth (t2) 75 mm

Engineering 1

EPLAN Data 9AAC407653_EPLAN

Installation 1

Instructions and Manuals No document needed

External Classifications and Standards 4

ETIM 10 EC001546 - Push button for distribution board
UNSPSC 39122216
eClass V11.0 : 27142302
Standards EN60068-2-1, EN60068-2-2, EN60068-2-30, DIN EN 60669-1, VDE 0632-1, UL508

Logistics 4

Shipping weight 0.049 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 02 Oct 2026

Documents

Documents for 2CCA703153R0001

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • EN60068-2-1
  • EN60068-2-2
  • EN60068-2-30
  • DIN EN 60669-1
  • VDE 0632-1
  • UL508
Quick answers

Questions about the E215-16-11E

Which supply voltage is E215-16-11E rated for?

The rated operational voltage of E215-16-11E is 250 V AC.

What is the HS code of E215-16-11E for customs?

The tariff (HS) code on file for E215-16-11E is 853650.

What is the EAN of E215-16-11E?

The EAN (GTIN) of E215-16-11E is 7612270938841.

Where does E215-16-11E ship from, and how fast?

E215-16-11E ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
