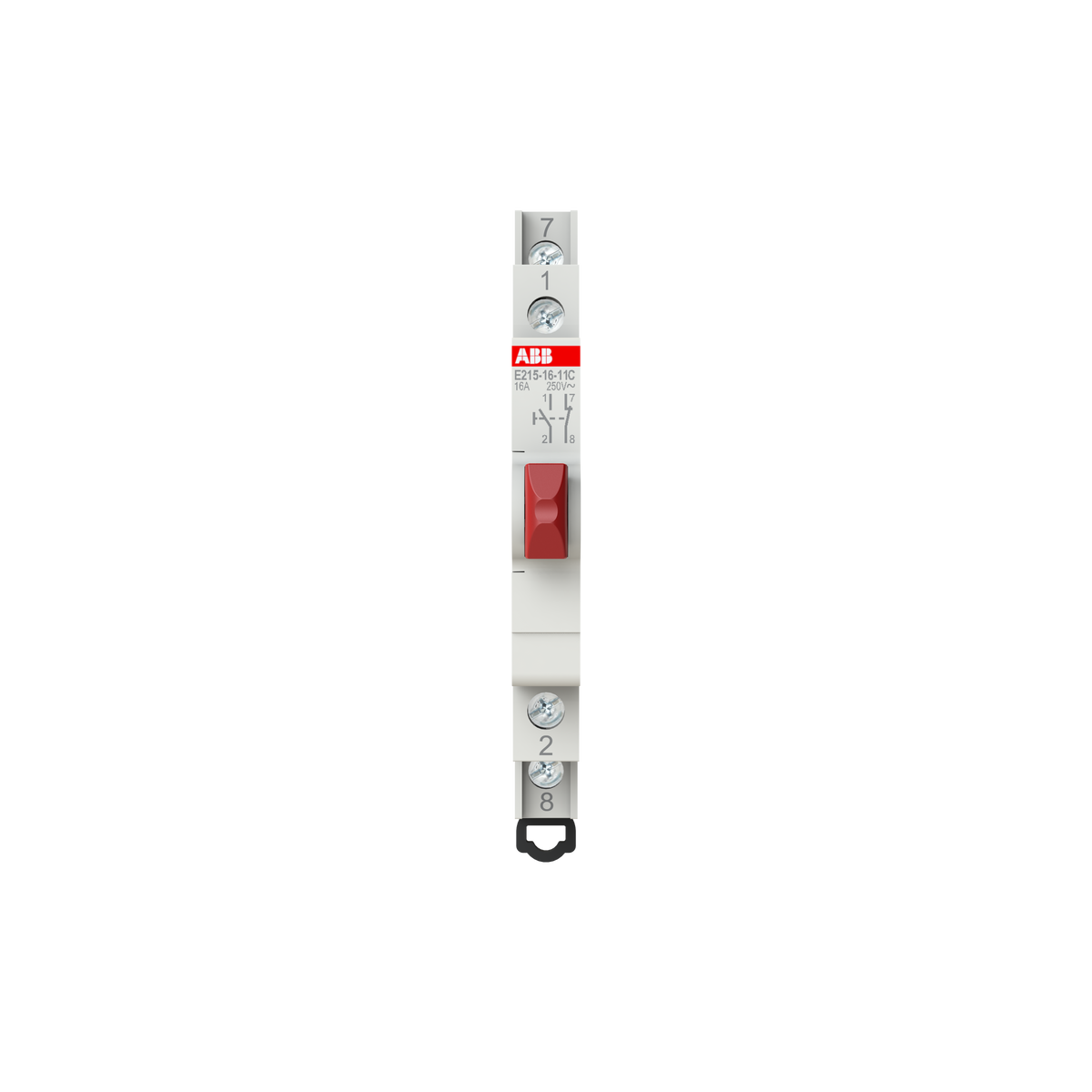

ABB 2CCA703151R0001 E215-16-11C 2P 1NO/1NC 250V AC Red Push Button

The ABB 2CCA703151R0001 E215-16-11C is a red-actuator DIN-rail pushbutton in the E210 series, rated 16 A at 250 V AC with 1 NO and 1 NC double-interrupting contact. Built to EN 60669-1 and VDE 0632-1, it occupies a 0.5-module housing and connects via screw terminals accepting 1x1-6 mm² solid or 1x0.75-2x2.5 mm² flexible conductors, suited to control-panel command circuits.

Technical Specifications

Certifications & Standards

• EN 60068-2-1
• EN 60068-2-2
• EN 60068-2-30
• DIN EN 60669-1
• VDE 0632-1
• UL 508

Selection Notes

The 2CCA703151R0001 is the red-actuator variant of the E215-16 pushbutton, electrically identical to the green, yellow and blue versions at 16 A, 250 V AC with 1 NO and 1 NC contacts. Choosing red over the other colors is purely a panel-convention decision, since current rating, contact configuration and module width do not change across the range. All four share the same 0.5-module footprint, so substituting one color for another does not affect panel layout.
