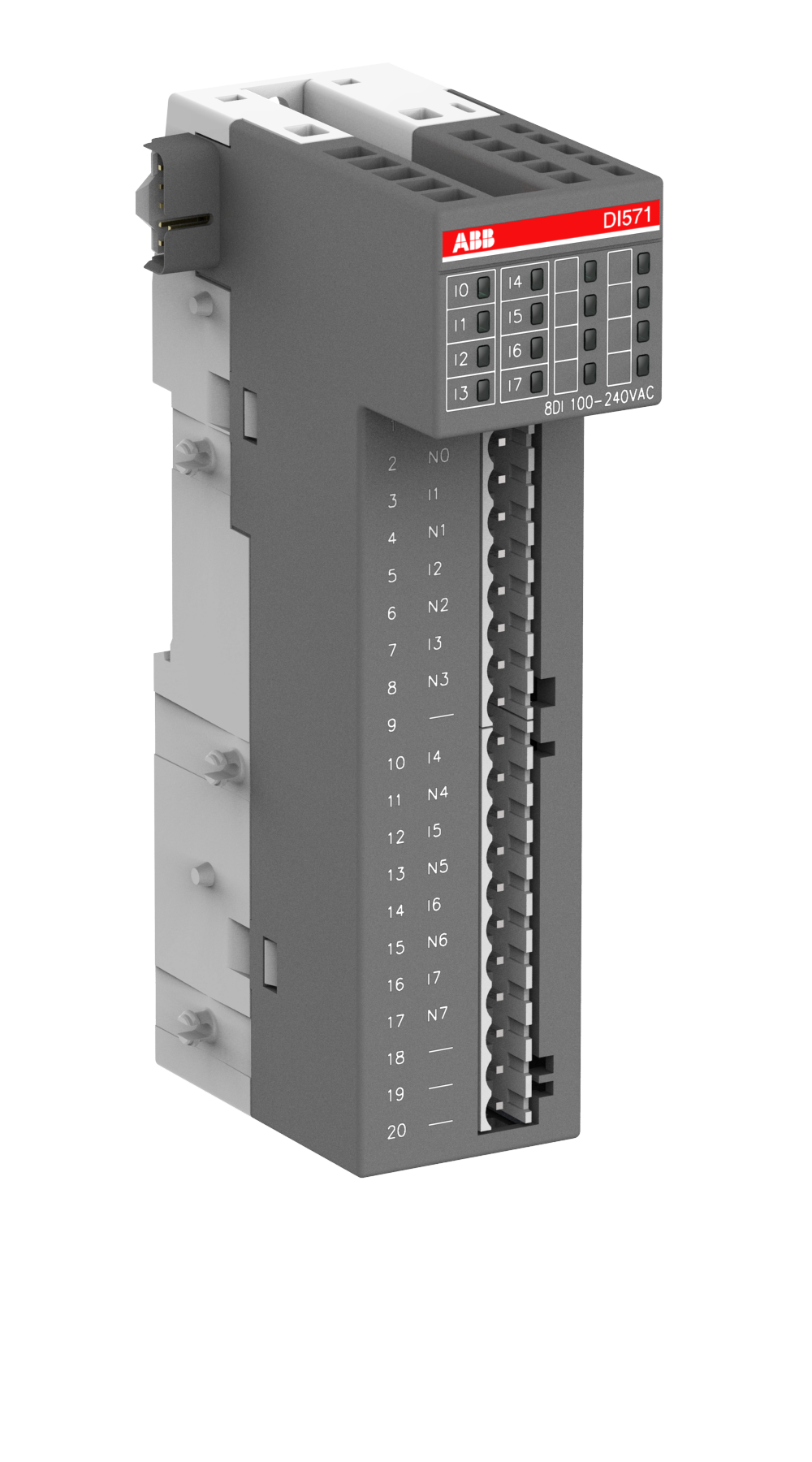

ABB 1TNE968902R2103 DI571 8DI 100-240VAC 2-Wire eCo PLC I/O Module

% $-89.13
ABB 1TNE968902R2103 DI571 eCo PLC I/O Module - 8DI 100-240V AC
ABB 1TNE968902R2103 DI571 eCo PLC I/O Module - 8DI 100-240V AC

ABB 1TNE968902R2103 DI571 8DI 100-240VAC 2-Wire eCo PLC I/O Module

Brand: ABB
Reference No: 1TNE968902R2103
Catalog No: DI571
Series: S500-eCo I/O modules
Tariff Code (HS): 853710
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$89.13

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The ABB 1TNE968902R2103 (DI571) is an AC500-eCo digital input module with 8 DI channels rated 100-240 V AC, wired two-wire per point. Unlike the 24 V DC eCo input modules, it reads mains-level AC signals directly, which avoids an interposing relay when field switches or sensors already run on 100-240 V AC.

Technical Specifications

Order code 1TNE968902R2103
Type code DI571
Brand ABB
Series AC500-eCo S500-eCo I/O Modules
EAN 6943747170237
Digital Inputs 8, 100-240 V AC
Input Current 8 mA
Maximum Input Voltage 0-264 V
Connection Type Pluggable
Degree of Protection IP20
Ambient Temperature 0 to +60 degrees C operation, -40 to +70 degrees C storage
Net Weight 0.129 kg
Dimensions (L x H x W) 135 x 74 x 34 mm
Gross Weight 0.19 kg
Wiring 2-wire

Selection Notes

DI571 reads 8 channels directly at 100-240 V AC, so field switches or sensors already wired to mains voltage connect without an interposing relay or a separate 24 V DC supply. Pick the sibling variant with twice the channel count when more than 8 AC inputs are needed, or the 24 V DC input modules when the field devices run on low voltage instead.

Technical Details

Short Description
ABB DI571 AC500-eCo digital input module: 8 DI 100-240V AC, two-wire, IP20.
Protection Type
IP20
Catalog No
DI571
Delivery Date (Days)
30 days
Model Number
DI571
Tariff Code
853710
