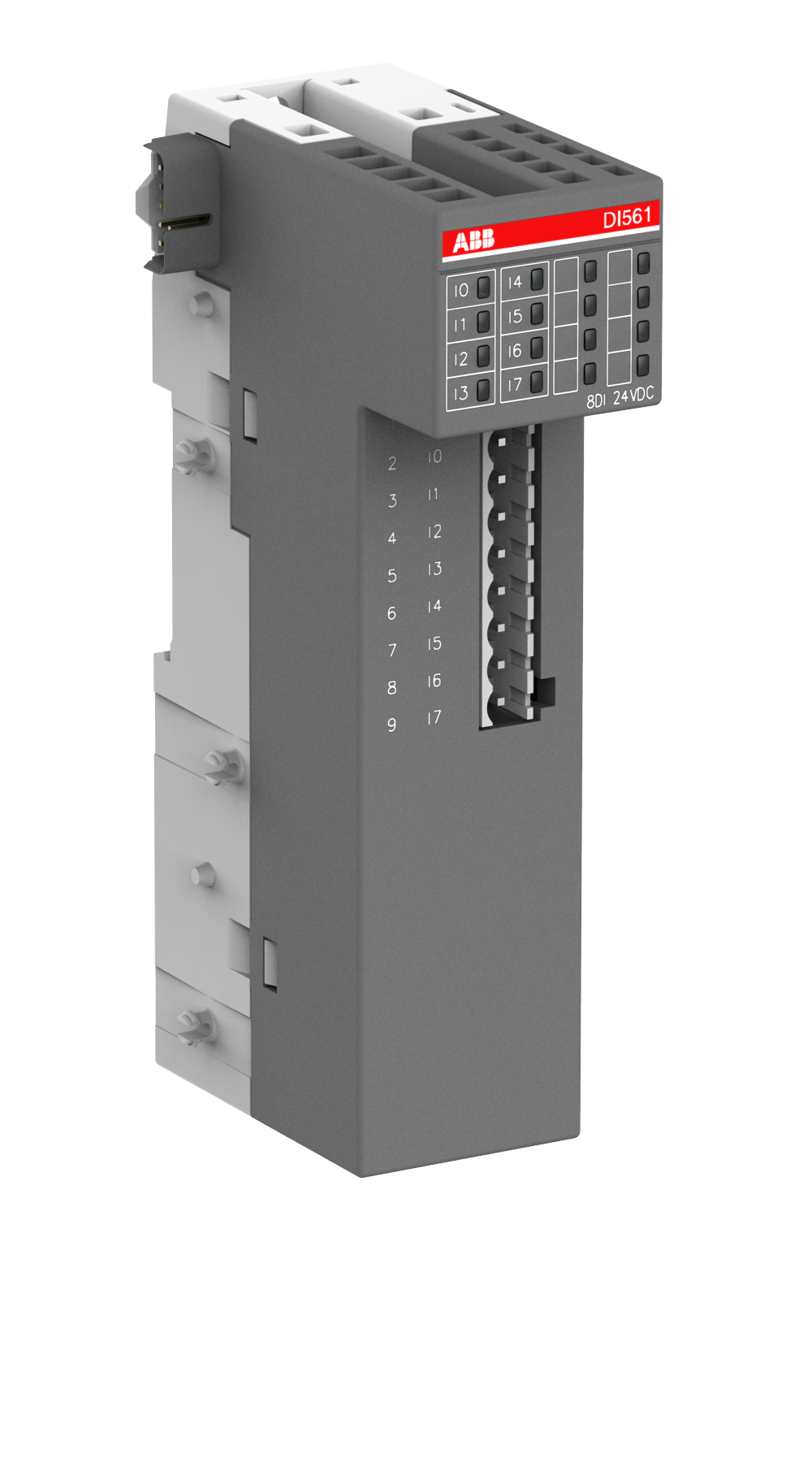

ABB 1TNE968902R2101 DI561 8DI Sink/Source 24VDC eCo PLC I/O Module

% $-48.88
ABB 1TNE968902R2101 DI561 eCo PLC I/O Module - 8DI Sink/Source 24V DC
ABB 1TNE968902R2101 DI561 eCo PLC I/O Module - 8DI Sink/Source 24V DC

ABB 1TNE968902R2101 DI561 8DI Sink/Source 24VDC eCo PLC I/O Module

Brand: ABB
Reference No: 1TNE968902R2101
Catalog No: DI561
Series: S500-eCo I/O modules
Tariff Code (HS): 853710
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$48.88

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The ABB 1TNE968902R2101 (DI561) is an AC500-eCo digital input module with 8 DI channels at 24 V DC, each wired sink or source, on a pluggable connector. The sink/source flexibility lets the same module accept PNP or NPN field sensors without rewiring, which matters on the smaller eCo stations this module targets.

Technical Specifications

Order code 1TNE968902R2101
Type code DI561
Brand ABB
Series AC500-eCo S500-eCo I/O Modules
EAN 6943747170213
Digital Inputs 8 sink/source, 24 V DC
Input Voltage Type AC/DC
Input Current 5 mA
Maximum Input Voltage 0-30 V
Connection Type Pluggable
Degree of Protection IP20
Ambient Temperature 0 to +60 degrees C operation, -40 to +70 degrees C storage
Net Weight 0.113 kg
Dimensions (L x H x W) 135 x 74 x 34 mm
Gross Weight 0.213 kg
Wiring 1-wire

Selection Notes

DI561's sink/source wiring on all 8 DI means the same module accepts PNP or NPN field sensors without a wiring change, useful when the sensor type on a machine is not fixed in advance. Move to the 16-channel sibling variant when the station needs more input points than this module's 8.

Technical Details

Short Description
ABB DI561 AC500-eCo digital input module: 8 sink/source DI 24V DC, pluggable connector, IP20.
Protection Type
IP20
Catalog No
DI561
Delivery Date (Days)
30 days
Model Number
DI561
Tariff Code
853710
