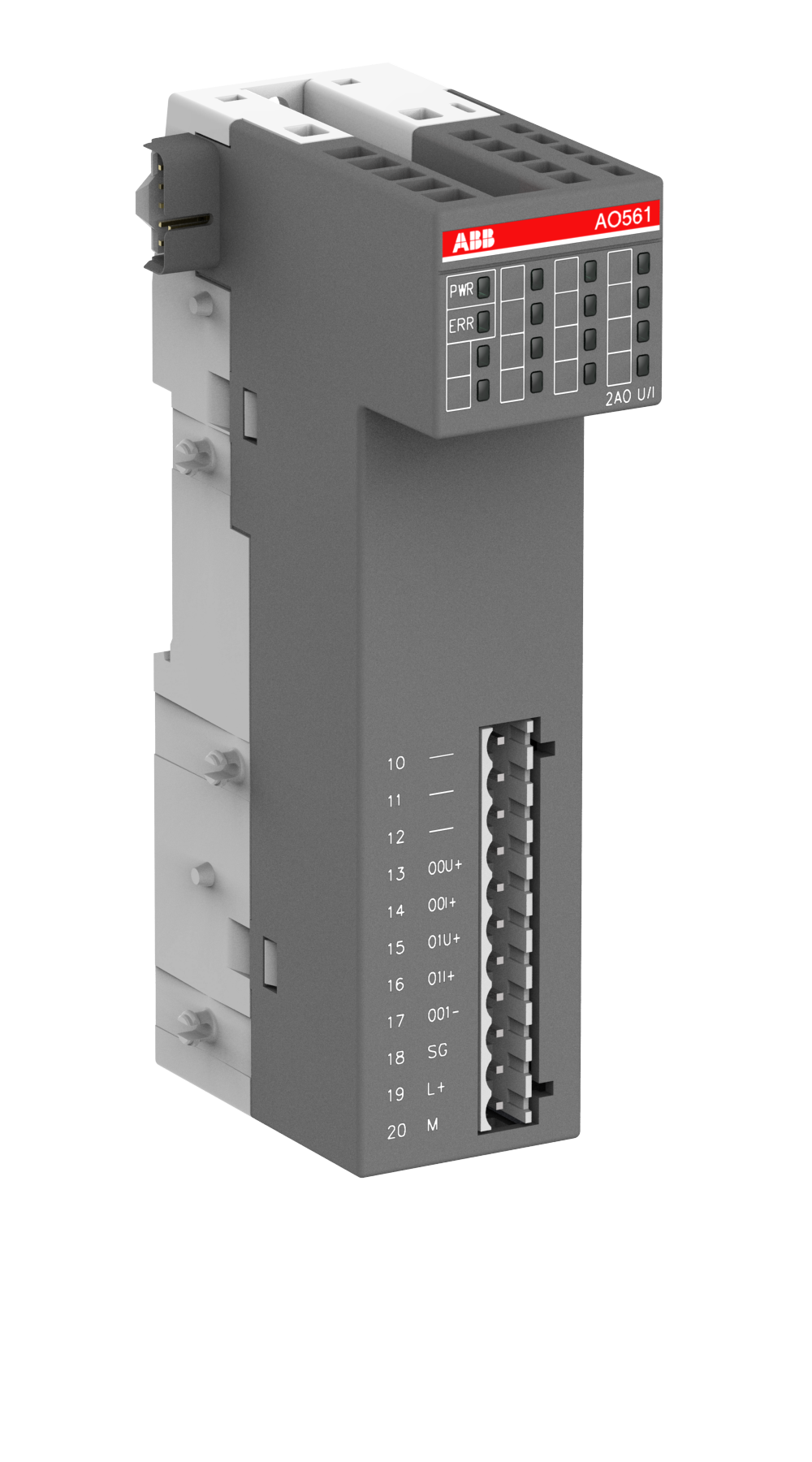

ABB 1TNE968902R1201 AO561 2 AO U/I 12-Bit S500-eCo PLC I/O Module

% $-115.00
ABB 1TNE968902R1201 AO561 S500-eCo 2-Channel Analog Output Module
ABB 1TNE968902R1201 AO561 S500-eCo 2-Channel Analog Output Module

ABB 1TNE968902R1201 AO561 2 AO U/I 12-Bit S500-eCo PLC I/O Module

Brand: ABB
Reference No: 1TNE968902R1201
Catalog No: AO561
Series: S500-eCo I/O modules
Tariff Code (HS): 853710
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$115.00

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The ABB 1TNE968902R1201 (AO561) is a compact S500-eCo analog output module with 2 channels configurable for voltage or current signals at 12-bit resolution. It uses a pluggable connector like the rest of the S500-eCo I/O family, wires 1-wire per channel, and mounts on the AC500-eCo PLC backplane in an IP20 housing.

Technical Specifications

Order code 1TNE968902R1201
Type code AO561
Brand ABB
Series S500-eCo I/O modules
EAN 6943747170183
Function 2 AO: U, I
Analog Outputs 2
Output Signal U, I
Resolution 12 bit
Connection Type Pluggable
Degree of Protection IP20 (housing)
Net Weight 0.118 kg
Gross Weight 0.22 kg
Dimensions (L x H x W) 135 x 74 x 34 mm
Ambient Temperature (Operation) 0 to +60 °C
Ambient Temperature (Storage) -40 to +70 °C

Selection Notes

AO561 is the only dedicated analog output module in the S500-eCo range, so any AC500-eCo system needing analog outputs uses this card regardless of channel-count preference. Its 2 channels cover either voltage or current signals at 12-bit resolution, which suits standard 0-10V or 4-20mA actuator commands rather than high-precision control loops. The pluggable connector keeps field wiring intact when the module itself needs to be swapped.

Technical Details

Short Description
ABB AO561 S500-eCo analog output module, 2 AO (U/I), 12-bit resolution, pluggable, IP20.
Mounting Type
DIN-Rail module, pluggable connector
Protection Type
IP20
Catalog No
AO561
Delivery Date (Days)
30 days
Model Number
AO561
Tariff Code
853710
