ABB 1TNE968902R1102 AI562 2 AI RTD 15-Bit S500-eCo PLC I/O Module

% $-143.75

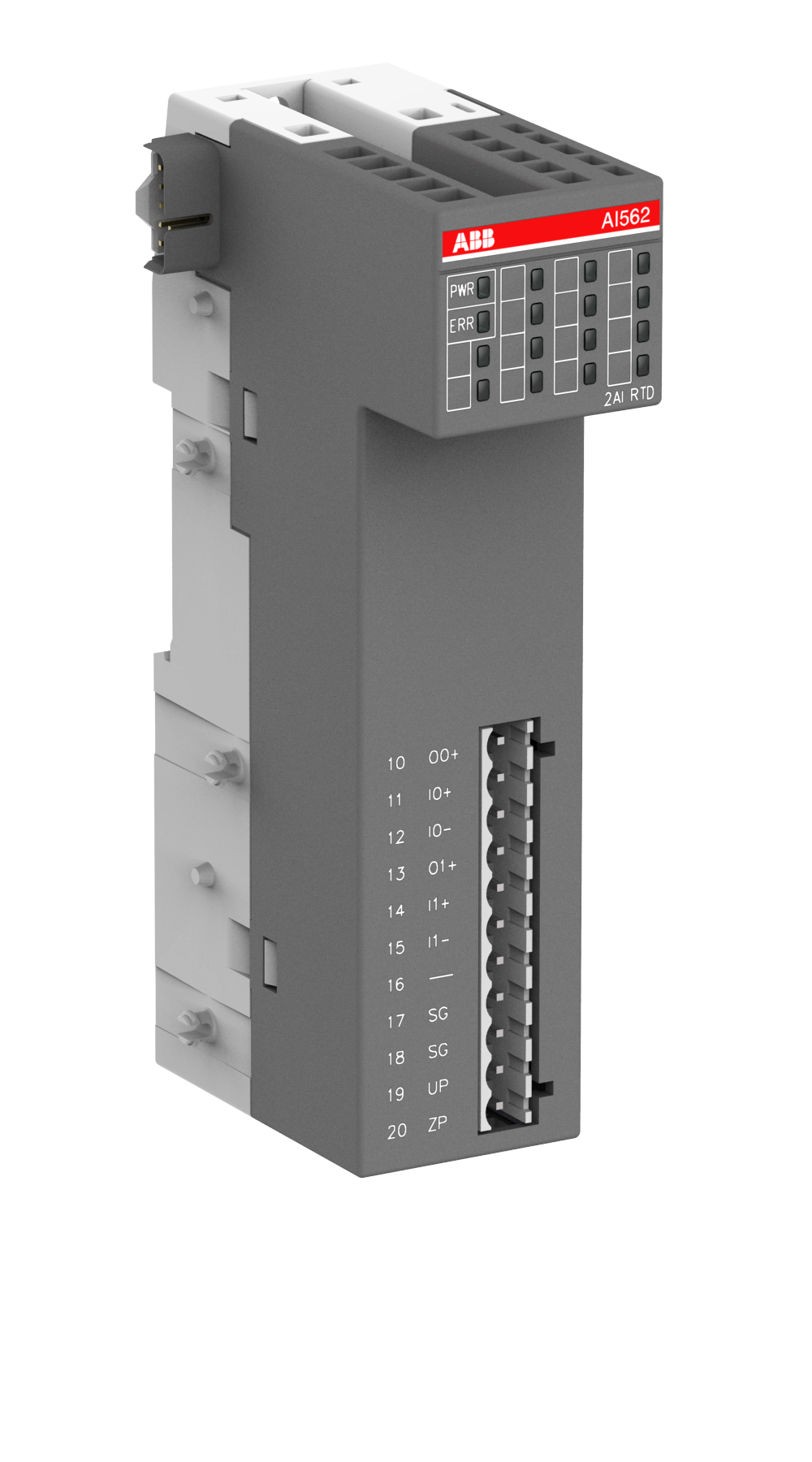

ABB 1TNE968902R1102 AI562 S500-eCo 2-Channel RTD Input Module
ABB 1TNE968902R1102 AI562 S500-eCo 2-Channel RTD Input Module

ABB 1TNE968902R1102 AI562 2 AI RTD 15-Bit S500-eCo PLC I/O Module

Brand: ABB
Reference No: 1TNE968902R1102
Catalog No: AI562
Series: S500-eCo I/O modules
Tariff Code (HS): 853710
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$143.75

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

Type AI562, ABB order code 1TNE968902R1102, is an S500-eCo analog input module built specifically for RTD temperature sensing: 2 input channels wired for 2-to-3-wire RTDs at 15-bit resolution. It plugs into the same AC500-eCo I/O system as the other S500-eCo modules and uses a pluggable connector for field-replaceable wiring, housed to IP20.

Technical Specifications

Order code 1TNE968902R1102
Type code AI562
Brand ABB
Series S500-eCo I/O modules
EAN 6943747170169
Function 2 AI: RTD
Analog Inputs 2
Input Signal RTD, 2-3 wire
Resolution 15 bit
Connection Type Pluggable
Degree of Protection IP20 (housing)
Net Weight 0.121 kg
Gross Weight 0.222 kg
Dimensions (L x H x W) 135 x 74 x 34 mm

Selection Notes

AI562 is a dedicated RTD module rather than a general-purpose analog input card: both channels only accept RTD sensors, wired 2-to-3-wire, and resolve to 15 bit instead of the 12-bit general-purpose module in this range. Choose it when the application is reading platinum or similar RTD elements and needs better resolution than a general U/I input card provides; choose a general U/I module when the inputs are standard voltage or current loops instead of RTDs. The 2-channel count keeps the footprint small for applications that only need one or two temperature points per module.

Technical Details

Short Description
ABB AI562 S500-eCo analog input module, 2 AI RTD, 2-3 wire, 15-bit resolution, IP20.
Mounting Type
DIN-Rail module, pluggable connector
Protection Type
IP20
Catalog No
AI562
Delivery Date (Days)
30 days
Model Number
AI562
Tariff Code
853710
