ABB 1TNE968901R3105 TA565-9 9-Pole Spring Front Cable-Front Terminal Block PLC Connection Module

% $-5.75

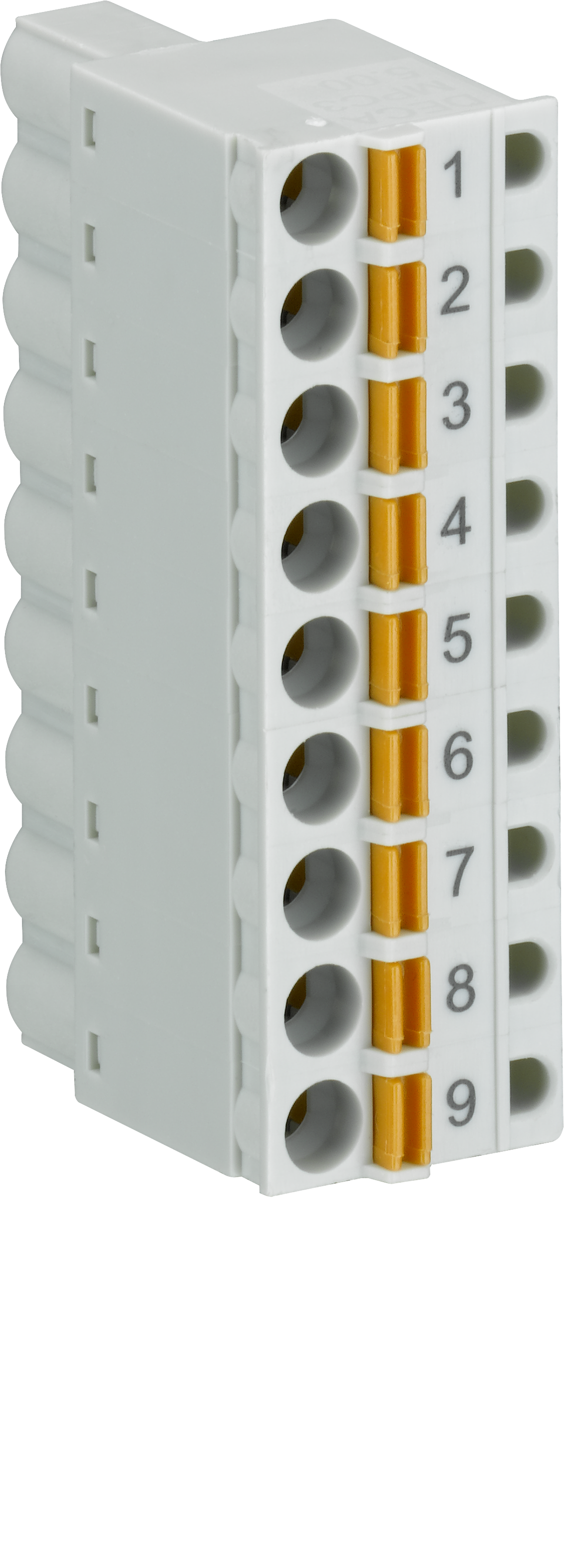

ABB 1TNE968901R3105 TA565-9 9-pole spring terminal block, cable-front, S500-eCo PLC
ABB 1TNE968901R3105 TA565-9 9-pole spring terminal block, cable-front, S500-eCo PLC

ABB 1TNE968901R3105 TA565-9 9-Pole Spring Front Cable-Front Terminal Block PLC Connection Module

Brand: ABB
Reference No: 1TNE968901R3105
Catalog No: TA565-9
Series: Accessories
Tariff Code (HS): 853890
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$5.75

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The ABB 1TNE968901R3105 (TA565-9) is a 9-pole spring-front terminal block with cable-front wiring for the AC500-eCo S500-eCo I/O system. It terminates field wiring at the module front using spring-clamp connections rather than screw clamps. ABB packages TA565-9 in boxes of 6 and requires orders in multiples of 6, so single-unit purchasing is not available.

Technical Specifications

Order code 1TNE968901R3105
Type code TA565-9
Brand ABB
Series AC500-eCo accessories
EAN 6943747170336
Function Spring front, cable front, 9-pole
Accessory Type Electrical: Plug
Degree of Protection IP20
Minimum Order Quantity 6 (multiples of 6)
Net Weight 0.018 kg
Dimensions (L x H x W) 40 x 250 x 150 mm

Selection Notes

TA565-9 uses spring-clamp terminals instead of screws, so field conductors push in and release with a flat-blade tool rather than needing a screw turned and torqued for every pole. That makes it faster to wire or rewire than the screw-terminal cable-front block with the same pole count, at the cost of needing spring-rated ferrules or solid conductors for a reliable clamp. ABB sells it only in boxes of 6, so plan spares in that unit size rather than ordering single blocks.

Technical Details

Short Description
ABB TA565-9 9-pole spring-front terminal block, cable-front wiring, for AC500-eCo S500-eCo I/O modules. Sold in packs of 6.
Mounting Type
Terminal unit
Protection Type
IP20
Catalog No
TA565-9
Delivery Date (Days)
30 days
Model Number
TA565-9
Tariff Code
853890
