Part number
1SVR730885R3300
Model no
CM-MPS.21S
$136.68 Low stock Dispatch Planned dispatch date. We aim to ship within 1 business day. Depending on warehouse workload it can take 2–3 business days. · From Türkiye
CM-MPS

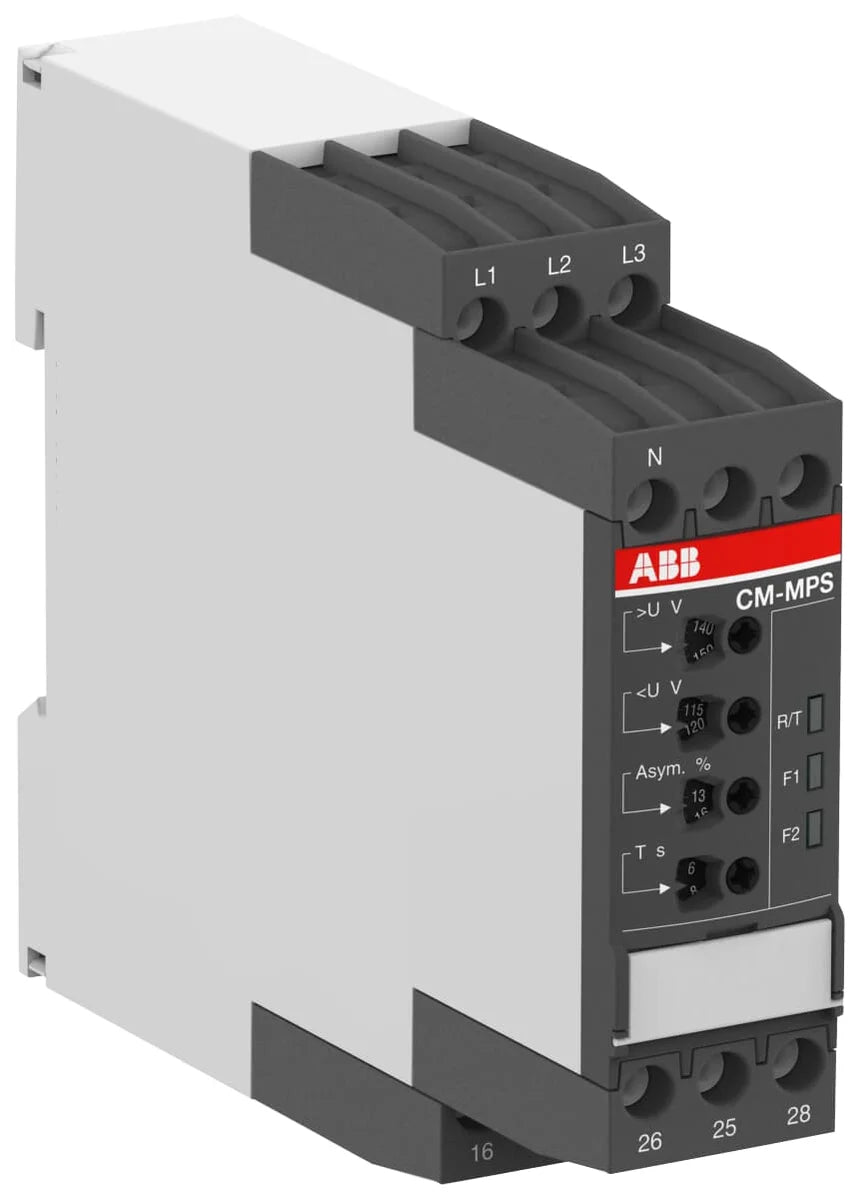

ABB 1SVR730885R3300 CM-MPS.21S Three-Phase Monitoring Relay 2 C/O 180-280V AC 0.1-30s Phase Monitoring Relay

Rated current
4 A
Rated operational voltage
180–280 V AC
EAN
4016779851893
Description

About the CM-MPS.21S

The ABB CM-MPS.21S (SKU: 1SVR730885R3300) is a three-phase monitoring relay from the CM-MPS series, designed to detect phase faults, phase asymmetry, and phase sequence errors in three-phase AC power systems rated 3×180–280V AC. Featuring two changeover (2 C/O) output contacts and an adjustable time delay of 0.1 to 30 seconds, the CM-MPS.21S provides reliable protection for motors, pumps, and industrial machinery from damaging supply anomalies. With a compact 97 × 30 × 109 mm DIN rail mount profile, it fits easily into standard control panels.

Certifications & Standards

  • CE: Conforms to European Union low voltage and EMC directives
  • UKCA: UK Conformity Assessed marking for the United Kingdom market
  • cULus: Listed to both UL and CSA standards for USA and Canada (UL 508)
  • UL 508: Industrial control equipment standard
  • CAN/CSA C22.2 No.14: Canadian standards for industrial control equipment
  • CSA: Canadian Standards Association certification
  • CCC: China Compulsory Certification for the Chinese market
  • DNV GL: Certified for marine and offshore applications
  • IEC/EN 60255-27: Measuring relays and protection equipment — product safety requirements
  • IEC/EN 61000-6-2: Electromagnetic compatibility — immunity for industrial environments
  • IEC/EN 61000-6-3: Electromagnetic compatibility — emission standard for residential/light-industrial environments
  • IEC/EN 63000: Technical documentation for the assessment of electrical and electronic products regarding RoHS
  • IEC 60715: Dimensions of low-voltage switchgear and controlgear — DIN rail mounting
  • EN 60255: Measuring relays and protection equipment
  • EN 61000-6: Electromagnetic compatibility generic standards
  • REACH: Compliant with EU regulation on Registration, Evaluation, Authorisation and Restriction of Chemicals
  • RoHS: Restriction of Hazardous Substances directive compliant

Applications & Use Cases

  • Motor protection against phase loss, phase asymmetry, and incorrect phase sequence
  • Protection of pumps, compressors, and HVAC equipment in industrial installations
  • Control panel integration for three-phase power quality monitoring
  • Marine and offshore electrical systems (DNV GL certified)
  • Building automation and industrial process control panels
Specification

Full specification

67 values · Last verified 30 Oct 2026

Dimensions 4

Product Net Width 22.5 mm
Product Net Height 85.6 mm
Product Net Depth / Length 103.7 mm
Product Net Weight 0.146 kg

Technical 27

Function Over- and undervoltage monitoring, Phase failure detection, Phase unbalance detection, Phase sequence monitoring, Interrupted neutral monitoring
Measuring Range (L-N) 180 ... 280 V AC
Time Range Tripping Delay (ON or OFF) 0 s
Rated Control Supply Voltage (Us) (L-N) 180 ... 280 V AC
Rated Frequency (f) Supply Circuit 50/60 Hz
Output 2 C/O Contacts
Terminal Type Screw Terminals
Rated Operational Current AC-12 (Ie) (230 V) 4 A
Rated Operational Current AC-15 (Ie) (230 V) 3 A
Rated Operational Current DC-12 (Ie) (24 V) 4 A
Rated Operational Current DC-13 (Ie) (24 V) 2 A
Minimum Switching Capacity 24 V, 10 mA
Rated Impulse Withstand Voltage (Uimp) Input Circuit 6 kV, Output Circuit 4 kV
Rated Insulation Voltage (Ui) Input Circuit / Output Circuit 600 V, Output Circuit 1 / Output Circuit 2 300 V
Degree of Protection Housing IP50, Terminals IP20
Overvoltage Category III
Pollution Degree 3
Short-Circuit Protective Devices Output Circuit NC - F Type Fuses 6 A, Output Circuit NO - F Type Fuses 10 A
Electrical Durability AC-12 100000 cycle
Mechanical Durability Nr. Operations 30000000 cycle
Connecting Capacity Flexible with Ferrule 1x 0.5 ... 2.5 mm², Flexible with Ferrule 2x 0.5 ... 1.5 mm², Flexible with Insulated Ferrule 1x 0.5 ... 2.5 mm², Flexible with Insulated Ferrule 2x 0.5 ... 1.5 mm², Flexible 1x 0.5 ... 2.5 mm², Flexible 2x 0.5 ... 1.5 mm², Rigid 1x 0.5 ... 4 mm², Rigid 2x 0.5 ... 2.5 mm²
Tightening Torque 0.6 ... 0.8 N·m
Wire Stripping Length 8 mm
Recommended Screw Driver 4.5, 0.8 x 4, Pozidriv 1
Mounting Position 1 ... 6
Mounting on DIN Rail TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715, TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
Standards CAN/CSA C22.2 No.14, IEC/EN 63000, IEC/EN 60255-27, IEC/EN 61000-6-2, IEC/EN 61000-6-3, UL 508

Technical UL/CSA 6

Maximum Operating Voltage UL/CSA Output Circuit 300 V AC
Contact Rating UL/CSA B300
Connecting Capacity UL/CSA Flexible 1x 18-14 AWG, Flexible 2x 18-16 AWG, Rigid 2x 20-14 AWG, Rigid 1x 20-12 AWG
Tightening Torque UL/CSA 7.08 in·lb
Pilot Duty UL/CSA B300
Flammability According to UL94 V-0
Show all 67 specifications ↓ Show less ↑30 more values in Identification, Environmental, Material Compliance, External Classifications and Standards, Logistics.

Identification 10

Part number 1SVR730885R3300
Type designation CM-MPS.21S
Brand ABB
Condition New, factory sealed
Source ABB and its authorised distributors
Warranty Manufacturer warranty
EAN 4016779851893
eCl@ss 27371803
Minimum Order Quantity 1 piece
Customs Tariff Number 85364900

Environmental 2

Ambient Air Temperature Operation -25 ... +60 °C, Storage -40 ... +85 °C
Maximum Operating Altitude Permissible Without Derating 2000 m

Material Compliance 4

REACH Declaration 1SVD981001-4501
RoHS Declaration 1SVD981001-4401
RoHS Information Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA 2CMT2023-006536

External Classifications and Standards 4

ETIM 7 EC001441 - Phase monitoring relay
eClass V11.0 : 27371803
UNSPSC 39122332
E-Number (Sweden) 3860590

Logistics 10

Package Level 1 Units box 1 piece
Package Level 1 Width 97 mm
Package Level 1 Depth / Length 30 mm
Package Level 1 Height 109 mm
Package Level 1 Gross Weight 0.171 kg
Package Level 1 EAN 4016779851893
Shipping weight 0.171 kg
Ships from Türkiye
Dispatch 18 Nov
Stock Low stock

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for 1SVR730885R3300

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • CE
  • RoHS
  • CCC
  • CAN/CSA C22.2 No.14
  • IEC/EN 63000
  • IEC/EN 60255-27
  • IEC/EN 61000-6-2
  • IEC/EN 61000-6-3
  • UL 508
Quick answers

Questions about the CM-MPS.21S

What is the rated current of CM-MPS.21S?

The rated current of CM-MPS.21S is 4 A.

Which supply voltage is CM-MPS.21S rated for?

The rated operational voltage of CM-MPS.21S is 180–280 V AC.

What is the HS code of CM-MPS.21S for customs?

The tariff (HS) code on file for CM-MPS.21S is 85364900.

What is the EAN of CM-MPS.21S?

The EAN (GTIN) of CM-MPS.21S is 4016779851893.

Where does CM-MPS.21S ship from, and how fast?

CM-MPS.21S ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
