Part number
1SVR730884R3300
Model no
CM-MPS.41S
$143.88 In stock · 50+ Dispatch Planned dispatch date. We aim to ship within 1 business day. Depending on warehouse workload it can take 2–3 business days. · From Türkiye
CM-MPS

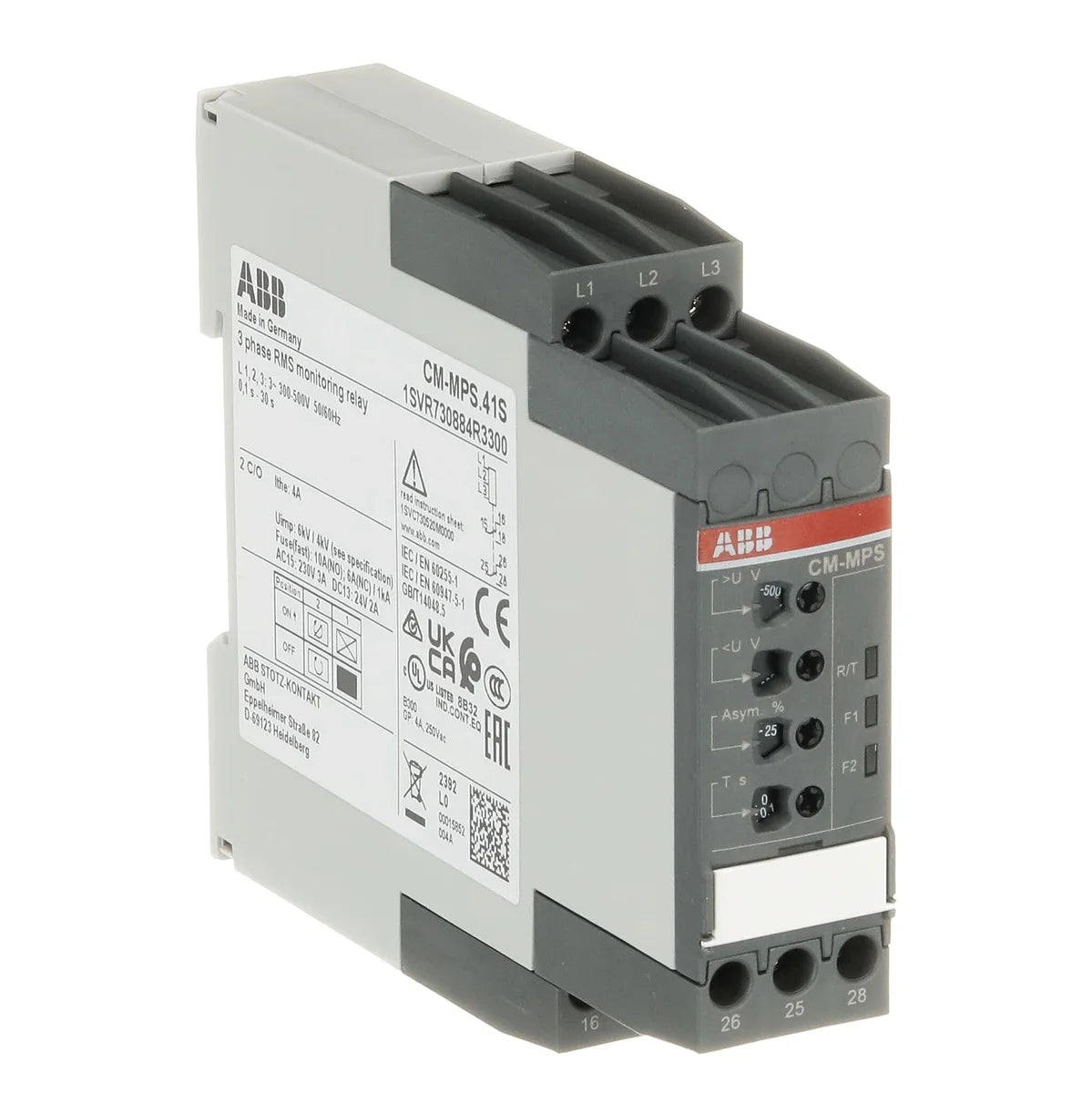

ABB 1SVR730884R3300 CM-MPS.41S Three-Phase Monitoring Relay 2C/O 300-500V AC 0.1-30s Phase Sequence Failure Protection

Rated current
4 A
Rated operational voltage
300–500 V AC
EAN
4016779851862
Description

About the CM-MPS.41S

The ABB CM-MPS.41S (SKU: 1SVR730884R3300) is a three-phase monitoring relay designed to protect motors, machinery, and control panels against phase sequence errors, phase failure, and asymmetry in three-phase power systems rated 300–500V AC. Part of ABB's trusted CM-MPS series, the CM-MPS.41S features a dual change-over (2C/O) output relay and an adjustable time delay of 0.1 to 30 seconds, making it ideal for demanding industrial automation environments.

Certifications & Standards

  • DNV GL: Approved for marine and offshore applications
  • IEC/EN 63000: Technical documentation for RoHS compliance
  • IEC/EN 60255-27: Measuring relays and protection equipment mechanical requirements
  • IEC/EN 61000-6: Electromagnetic compatibility generic standards
  • IEC 60715: Dimensions for DIN rail mounting
  • EN 63000: European harmonized standard for RoHS technical documentation
  • EN 60255-27: European standard for measuring relays mechanical requirements
  • EN 61000-6: European EMC generic standards
  • UL 508: Industrial control equipment (UL Listed)
  • CSA C22.2 No. 14: Industrial control equipment (CSA certified)
  • CSA: Canadian Standards Association certification
  • REACH: Compliant with EU chemical safety regulation
  • RoHS: Restriction of Hazardous Substances compliant
  • cULus: Combined UL and CSA approval for US and Canada
  • CCC: China Compulsory Certification
  • CE: European conformity marking
  • UKCA: UK Conformity Assessed marking for Great Britain market

Applications & Use Cases

  • Motor protection against phase loss, phase sequence reversal, and voltage asymmetry
  • Industrial control panels monitoring three-phase supply integrity
  • HVAC systems and pump stations requiring phase supervision
  • Marine and offshore power distribution (DNV GL approved)
  • Manufacturing automation lines with critical three-phase machinery
  • Building management systems protecting compressors and large HVAC units

Frequently Asked Questions

What voltage range does the CM-MPS.41S monitor?
The CM-MPS.41S monitors three-phase supplies from 300 to 500V AC across phases L1, L2, and L3.

What does the 2C/O output mean?
2C/O means two changeover relay outputs — each output has a normally open (NO) and normally closed (NC) contact, providing flexible wiring options for fault signalling or machine shutdown.

Is the CM-MPS.41S approved for marine applications?
Yes. The CM-MPS.41S carries DNV GL approval, making it suitable for marine and offshore installations.

Can the time delay be adjusted?
Yes. The response time delay is fully adjustable between 0.1 and 30 seconds, allowing engineers to tune trip response to suit their application.

Specification

Full specification

67 values · Last verified 30 Oct 2026

Dimensions 4

Product Net Width 22.5 mm
Product Net Height 85.6 mm
Product Net Depth / Length 103.7 mm
Product Net Weight 0.14 kg

Technical 27

Function Phase failure detection, Phase sequence monitoring, Over- and undervoltage monitoring, Phase unbalance detection
Measuring Range (L-L) 300 ... 500 V AC
Time Range Tripping Delay (ON or OFF) 0 s
Rated Control Supply Voltage (Us) (L-L) 300 ... 500 V AC
Rated Frequency (f) Supply Circuit 50/60 Hz
Output 2 C/O Contacts
Terminal Type Screw Terminals
Rated Operational Current AC-12 (Ie) (230 V) 4 A
Rated Operational Current AC-15 (Ie) (230 V) 3 A
Rated Operational Current DC-12 (Ie) (24 V) 4 A
Rated Operational Current DC-13 (Ie) (24 V) 2 A
Minimum Switching Capacity 24 V, 10 mA
Rated Impulse Withstand Voltage (Uimp) Input Circuit 6 kV, Output Circuit 4 kV
Rated Insulation Voltage (Ui) Input Circuit / Output Circuit 600 V, Output Circuit 1 / Output Circuit 2 300 V
Degree of Protection Housing IP50, Terminals IP20
Overvoltage Category III
Pollution Degree 3
Short-Circuit Protective Devices Output Circuit NC - F Type Fuses 6 A, Output Circuit NO - F Type Fuses 10 A
Electrical Durability AC-12 100000 cycle
Mechanical Durability Nr. Operations 30000000 cycle
Connecting Capacity Flexible with Ferrule 1x 0.5 ... 2.5 mm², Flexible with Ferrule 2x 0.5 ... 1.5 mm², Flexible with Insulated Ferrule 1x 0.5 ... 2.5 mm², Flexible with Insulated Ferrule 2x 0.5 ... 1.5 mm², Flexible 1x 0.5 ... 2.5 mm², Flexible 2x 0.5 ... 1.5 mm², Rigid 1x 0.5 ... 4 mm², Rigid 2x 0.5 ... 2.5 mm²
Tightening Torque 0.6 ... 0.8 N·m
Wire Stripping Length 8 mm
Recommended Screw Driver 0.8 x 4, 4.5, Pozidriv 1
Mounting Position 1 ... 6
Mounting on DIN Rail TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715, TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Standards CAN/CSA C22.2 No.14, IEC/EN 63000, IEC/EN 60255-27, IEC/EN 61000-6-2, IEC/EN 61000-6-3, UL 508

Technical UL/CSA 6

Maximum Operating Voltage UL/CSA Output Circuit 300 V AC
Contact Rating UL/CSA B300
Connecting Capacity UL/CSA Flexible 1x 18-14 AWG, Flexible 2x 18-16 AWG, Rigid 1x 20-12 AWG, Rigid 2x 20-14 AWG
Tightening Torque UL/CSA 7.08 in·lb
Pilot Duty UL/CSA B300
Flammability According to UL94 V-0
Show all 67 specifications ↓ Show less ↑30 more values in Identification, Environmental, Material Compliance, External Classifications and Standards, Logistics.

Identification 10

Part number 1SVR730884R3300
Type designation CM-MPS.41S
Brand ABB
Condition New, factory sealed
Source ABB and its authorised distributors
Warranty Manufacturer warranty
EAN 4016779851862
eCl@ss 27371803
Minimum Order Quantity 1 piece
Customs Tariff Number 85364900

Environmental 2

Ambient Air Temperature Operation -25 ... +60 °C, Storage -40 ... +85 °C
Maximum Operating Altitude Permissible Without Derating 2000 m

Material Compliance 4

REACH Declaration 1SVD981001-4501
RoHS Declaration 1SVD981001-4401
RoHS Information Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA 2CMT2023-006536

External Classifications and Standards 4

ETIM 7 EC001441 - Phase monitoring relay
eClass V11.0 : 27371803
UNSPSC 39122332
E-Number (Sweden) 3860587

Logistics 10

Package Level 1 Units box 1 piece
Package Level 1 Width 97 mm
Package Level 1 Depth / Length 30 mm
Package Level 1 Height 109 mm
Package Level 1 Gross Weight 0.165 kg
Package Level 1 EAN 4016779851862
Shipping weight 0.165 kg
Ships from Türkiye
Dispatch 18 Nov
Stock In stock

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for 1SVR730884R3300

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • CE
  • RoHS
  • UKCA
  • CCC
  • CAN/CSA C22.2 No.14
  • IEC/EN 63000
  • IEC/EN 60255-27
  • IEC/EN 61000-6-2
  • IEC/EN 61000-6-3
  • UL 508
Quick answers

Questions about the CM-MPS.41S

What is the rated current of CM-MPS.41S?

The rated current of CM-MPS.41S is 4 A.

Which supply voltage is CM-MPS.41S rated for?

The rated operational voltage of CM-MPS.41S is 300–500 V AC.

What is the HS code of CM-MPS.41S for customs?

The tariff (HS) code on file for CM-MPS.41S is 85364900.

What is the EAN of CM-MPS.41S?

The EAN (GTIN) of CM-MPS.41S is 4016779851862.

Where does CM-MPS.41S ship from, and how fast?

CM-MPS.41S ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
