Part number
1SVR730850R2200
Model no
CM-ENS.23S
$74.01 Low stock Dispatch Planned dispatch date. We aim to ship within 1 business day. Depending on warehouse workload it can take 2–3 business days. · From Türkiye
CM

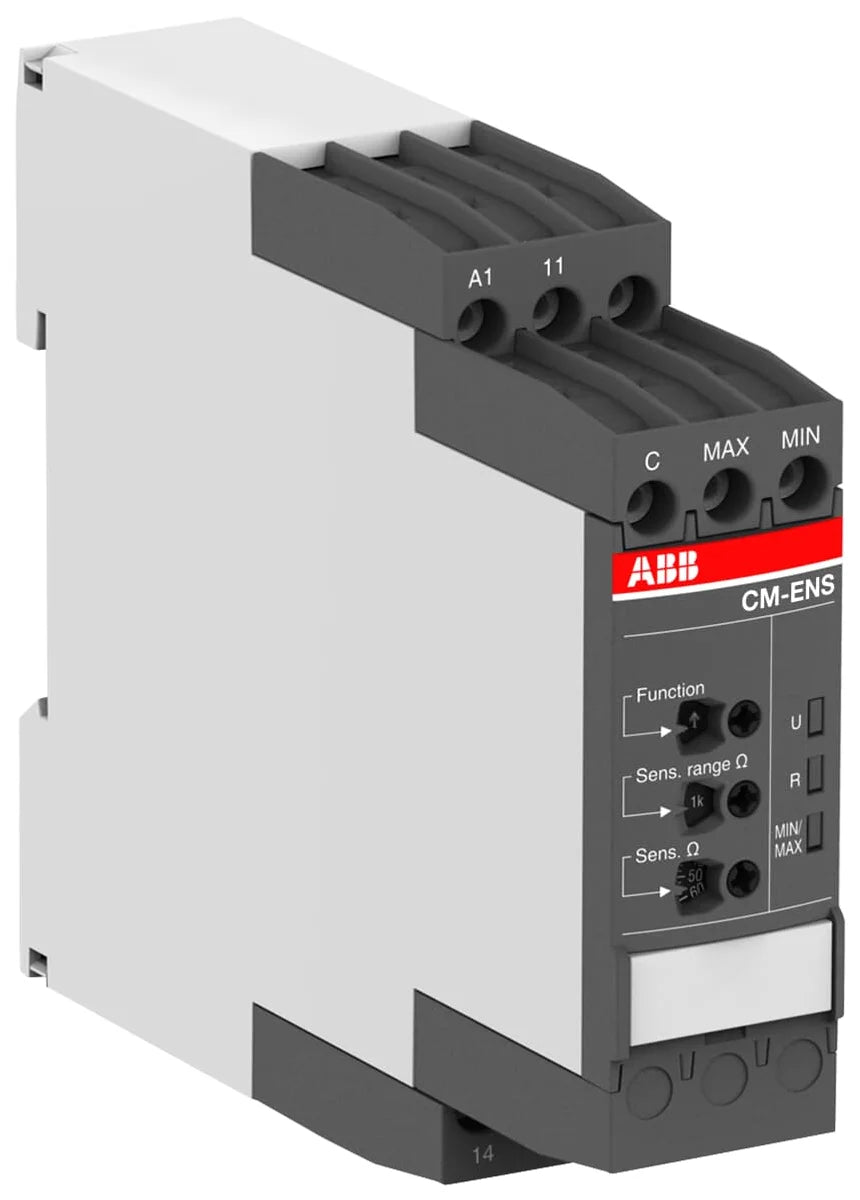

ABB 1SVR730850R2200 CM-ENS.23S 1CO 0.1-1000kOhm 110-240V AC (Fill)Level Monitoring Relay

Rated operational voltage
110–130 – 220–240 V AC
EAN
4013614502897
Description

About the CM-ENS.23S

The ABB CM-ENS.23S (SKU: 1SVR730850R2200) is a liquid level monitoring relay from the ABB CM Series, designed to detect and control fill levels in tanks and vessels using electrode-based conductivity sensing. With an adjustable sensitivity range of 0.1 to 1000 kOhm and a single changeover (1C/O) output contact, the CM-ENS.23S provides reliable, interference-resistant level detection for industrial automation and process control applications operating at 110–130 V AC or 220–240 V AC.

Certifications & Standards

  • IEC/EN 63000: Technical documentation for the assessment of electrical and electronic products with respect to restrictions on hazardous substances
  • IEC/EN 60255-27: Measuring relays and protection equipment — product safety requirements
  • IEC/EN 61000-6: Electromagnetic compatibility — generic emission and immunity standards
  • IEC 60715: Dimensions of low-voltage switchgear and controlgear — standardised mounting on rails
  • EN 63000: European harmonised standard for RoHS technical documentation
  • EN 60255-27: European standard for measuring relay and protection equipment safety
  • EN 61000-6: European EMC generic standards for industrial environments
  • UL 508: Standard for industrial control equipment (North America)
  • CSA C22.2 No. 14: Canadian standard for industrial control equipment
  • CSA: Canadian Standards Association certification
  • REACH: Compliance with EU regulation on registration, evaluation, authorisation and restriction of chemicals
  • RoHS: Restriction of hazardous substances in electrical and electronic equipment

Applications & Use Cases

  • Liquid level detection and control in industrial tanks and reservoirs
  • Pump control systems — automatic fill and drain cycles
  • Overflow and dry-run protection for pumps and vessels
  • Water treatment and wastewater management systems
  • Food and beverage processing where conductive liquid monitoring is required
  • HVAC condensate and coolant level monitoring
  • Control panel integration on standard 35 mm DIN rail
Specification

Full specification

65 values · Last verified 30 Oct 2026

Dimensions 4

Product Net Width 22.5 mm
Product Net Height 85.6 mm
Product Net Depth / Length 103.7 mm
Product Net Weight 0.154 kg

Technical 27

Function Filling or draining monitoring
Number of Electrodes 3
Measuring Range 0, 1 ... 1000 kΩ
Rated Control Supply Voltage (Us) 110 ... 130 V AC, 220 ... 240 V AC
Rated Frequency (f) Supply Circuit 50/60 Hz
Output 1 C/O (SPDT) Contact
Terminal Type Screw Terminals
Rated Operational Current AC-12 (Ie) (230 V) 4 A
Rated Operational Current AC-15 (Ie) (230 V) 3 A
Rated Operational Current DC-12 (Ie) (24 V) 4 A
Rated Operational Current DC-13 (Ie) (24 V) 2 A
Minimum Switching Capacity 12 V, 10 mA
Rated Impulse Withstand Voltage (Uimp) Measuring Circuit / Output Circuit 4 kV, Output Circuit 1 / Output Circuit 2 4 kV, Supply Circuit / Measuring Circuit 4 kV, Supply Circuit / Output Circuit 4 kV
Rated Insulation Voltage (Ui) Measuring Circuit / Output Circuit 300 V, Output Circuit 1 / Output Circuit 2 300 V, Supply Circuit / Measuring Circuit 300 V, Supply Circuit / Output Circuit 300 V
Degree of Protection Housing IP50, Terminals IP20
Overvoltage Category III
Pollution Degree 3
Short-Circuit Protective Devices Output Circuit NC - F Type Fuses 6 A, Output Circuit NO - F Type Fuses 10 A
Electrical Durability AC-12 100000 cycle
Mechanical Durability Nr. Operations 1000000 cycle
Connecting Capacity Flexible with Ferrule 1x 0.5 ... 2.5 mm², Flexible with Ferrule 2x 0.5 ... 1.5 mm², Flexible with Insulated Ferrule 1x 0.5 ... 2.5 mm², Flexible with Insulated Ferrule 2x 0.5 ... 1.5 mm², Flexible 1x 0.5 ... 2.5 mm², Flexible 2x 0.5 ... 1.5 mm², Rigid 1x 0.5 ... 4 mm², Rigid 2x 0.5 ... 2.5 mm²
Tightening Torque 0.6 ... 0.8 N·m, Control Circuit 0.9 N·m, Main Circuit 1 N·m
Wire Stripping Length 8 mm, Main Circuit 10 mm
Recommended Screw Driver 0.8 x 4, 4.5, Pozidriv 1
Mounting Position 1 ... 5, 1 ... 6
Mounting on DIN Rail TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715, TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Standards CAN/CSA C22.2 No.14, IEC/EN 63000, IEC/EN 60255-27, IEC/EN 61000-6-2, IEC/EN 61000-6-3, UL 508

Technical UL/CSA 5

Maximum Operating Voltage UL/CSA Output Circuit 300 V AC
Contact Rating UL/CSA B300
Connecting Capacity UL/CSA Flexible 1x 18-14 AWG, Flexible 2x 18-16 AWG, Rigid 1x 20-12 AWG, Rigid 2x 20-14 AWG
Tightening Torque UL/CSA 7.08 in·lb
Pilot Duty UL/CSA B300
Show all 65 specifications ↓ Show less ↑29 more values in Identification, Environmental, Material Compliance, External Classifications and Standards, Logistics.

Identification 10

Part number 1SVR730850R2200
Type designation CM-ENS.23S
Brand ABB
Condition New, factory sealed
Source ABB and its authorised distributors
Warranty Manufacturer warranty
EAN 4013614502897
eCl@ss 27371813
Minimum Order Quantity 1 piece
Customs Tariff Number 85364900

Environmental 2

Ambient Air Temperature Operation -25 ... +60 °C, Storage -40 ... +85 °C
Maximum Operating Altitude Permissible Without Derating 2000 m

Material Compliance 4

REACH Declaration 1SVD981001-4501
RoHS Declaration 1SVD981001-4401
RoHS Information Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA 2CMT2023-006536

External Classifications and Standards 3

ETIM 7 EC001447 - (Fill) level monitoring relay
eClass V11.0 : 27371813
UNSPSC 39122331

Logistics 10

Package Level 1 Units box 1 piece
Package Level 1 Width 97 mm
Package Level 1 Depth / Length 30 mm
Package Level 1 Height 109 mm
Package Level 1 Gross Weight 0.179 kg
Package Level 1 EAN 4013614502897
Shipping weight 0.179 kg
Ships from Türkiye
Dispatch 18 Nov
Stock Low stock

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for 1SVR730850R2200

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • CSA
  • RoHS
  • CAN/CSA C22.2 No.14
  • IEC/EN 63000
  • IEC/EN 60255-27
  • IEC/EN 61000-6-2
  • IEC/EN 61000-6-3
  • UL 508
Quick answers

Questions about the CM-ENS.23S

Which supply voltage is CM-ENS.23S rated for?

The rated operational voltage of CM-ENS.23S is 110–130 – 220–240 V AC.

What is the HS code of CM-ENS.23S for customs?

The tariff (HS) code on file for CM-ENS.23S is 85364900.

What is the EAN of CM-ENS.23S?

The EAN (GTIN) of CM-ENS.23S is 4013614502897.

Where does CM-ENS.23S ship from, and how fast?

CM-ENS.23S ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
