Part number
1SVR730850R2100
Model no
CM-ENS.13S
$72.27 In stock · 50+ Dispatch Planned dispatch date. We aim to ship within 1 business day. Depending on warehouse workload it can take 2–3 business days. · From Türkiye
CM

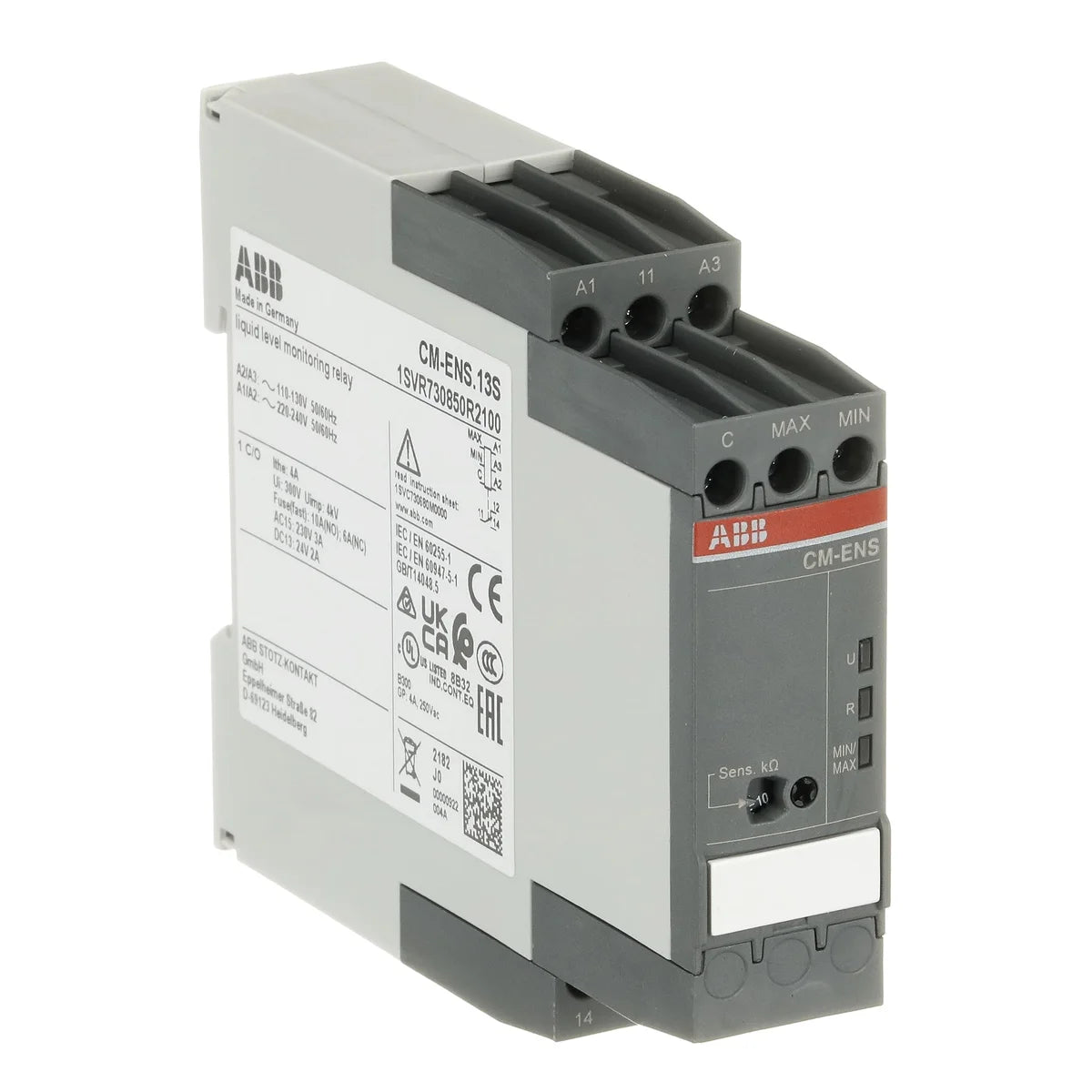

ABB 1SVR730850R2100 CM-ENS.13S Liquid Level (Fill) Monitoring Relay 1 C/O 5-100 kΩ Sensitivity 110-240V AC

Rated operational voltage
110–130 – 220–240 V AC
EAN
4013614502903
Description

About the CM-ENS.13S

The ABB CM-ENS.13S liquid level monitoring relay (SKU: 1SVR730850R2100) is a compact, single-output (1 C/O) fill-level monitoring relay designed for detecting the presence or absence of conductive liquids in industrial tanks and vessels. With an adjustable sensitivity range of 5–100 kΩ and a supply voltage of 110–240 V AC, the CM-ENS.13S provides reliable, cost-effective level control in demanding automation and process environments.

Certifications & Standards

  • DNV GL: Approved for marine and offshore applications
  • IEC/EN63000: Technical documentation for the assessment of electrical and electronic equipment
  • IEC/EN60255-27: Measuring relays and protection equipment – product safety requirements
  • IEC/EN61000-6: Electromagnetic compatibility (EMC) – generic standards
  • IEC60715: Dimensions of low-voltage switchgear and controlgear – standardized DIN rail mounting
  • EN63000: European harmonized standard for electrical/electronic equipment documentation
  • EN60255-27: Measuring relays and protection equipment – European product safety
  • EN61000-6: EMC generic standards – European harmonized
  • UL508: Industrial control equipment – UL Listed
  • CSA C22.2 No.14: Industrial control equipment – Canadian standard
  • CSA: Canadian Standards Association certification
  • REACH: Compliant with EU regulation on chemicals (REACH)
  • RoHS: Restriction of Hazardous Substances compliant
  • cULus: Listed for both US and Canadian markets
  • CCC: China Compulsory Certification
  • CE: Conforms to European Union directives
  • UKCA: UK Conformity Assessed – valid for Great Britain market
Specification

Full specification

65 values · Last verified 30 Oct 2026

Dimensions 4

Product Net Width 22.5 mm
Product Net Height 85.6 mm
Product Net Depth / Length 103.7 mm
Product Net Weight 0.153 kg

Technical 27

Function Filling or draining monitoring
Number of Electrodes 3
Measuring Range 5 ... 100 kΩ
Rated Control Supply Voltage (Us) 110 ... 130 V AC, 220 ... 240 V AC
Rated Frequency (f) Supply Circuit 50/60 Hz
Output 1 C/O (SPDT) Contact
Terminal Type Screw Terminals
Rated Operational Current AC-12 (Ie) (230 V) 4 A
Rated Operational Current AC-15 (Ie) (230 V) 3 A
Rated Operational Current DC-12 (Ie) (24 V) 4 A
Rated Operational Current DC-13 (Ie) (24 V) 2 A
Minimum Switching Capacity 12 V, 10 mA
Rated Impulse Withstand Voltage (Uimp) Measuring Circuit / Output Circuit 4 kV, Output Circuit 1 / Output Circuit 2 4 kV, Supply Circuit / Measuring Circuit 4 kV, Supply Circuit / Output Circuit 4 kV
Rated Insulation Voltage (Ui) Measuring Circuit / Output Circuit 300 V, Output Circuit 1 / Output Circuit 2 300 V, Supply Circuit / Measuring Circuit 300 V, Supply Circuit / Output Circuit 300 V
Degree of Protection Housing IP50, Terminals IP20
Overvoltage Category III
Pollution Degree 3
Short-Circuit Protective Devices Output Circuit NC - F Type Fuses 6 A, Output Circuit NO - F Type Fuses 10 A
Electrical Durability AC-12 100000 cycle
Mechanical Durability Nr. Operations 1000000 cycle
Connecting Capacity Flexible with Ferrule 1x 0.5 ... 2.5 mm², Flexible with Ferrule 2x 0.5 ... 1.5 mm², Flexible with Insulated Ferrule 1x 0.5 ... 2.5 mm², Flexible with Insulated Ferrule 2x 0.5 ... 1.5 mm², Flexible 1x 0.5 ... 2.5 mm², Flexible 2x 0.5 ... 1.5 mm², Rigid 1x 0.5 ... 4 mm², Rigid 2x 0.5 ... 2.5 mm²
Tightening Torque 0.6 ... 0.8 N·m, Control Circuit 0.9 N·m, Main Circuit 1 N·m
Wire Stripping Length 8 mm, Main Circuit 10 mm
Recommended Screw Driver 0.8 x 4, 4.5, Pozidriv 1
Mounting Position 1 ... 5, 1 ... 6
Mounting on DIN Rail TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715, TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Standards CAN/CSA C22.2 No.14, IEC/EN 63000, IEC/EN 60255-27, IEC/EN 61000-6-2, IEC/EN 61000-6-3, UL 508

Technical UL/CSA 5

Maximum Operating Voltage UL/CSA Output Circuit 300 V AC
Contact Rating UL/CSA B300
Connecting Capacity UL/CSA Flexible 1x 18-14 AWG, Flexible 2x 18-16 AWG, Rigid 1x 20-12 AWG, Rigid 2x 20-14 AWG
Tightening Torque UL/CSA 7.08 in·lb
Pilot Duty UL/CSA B300
Show all 65 specifications ↓ Show less ↑29 more values in Identification, Environmental, Material Compliance, External Classifications and Standards, Logistics.

Identification 10

Part number 1SVR730850R2100
Type designation CM-ENS.13S
Brand ABB
Condition New, factory sealed
Source ABB and its authorised distributors
Warranty Manufacturer warranty
EAN 4013614502903
eCl@ss 27371813
Minimum Order Quantity 1 piece
Customs Tariff Number 85364900

Environmental 2

Ambient Air Temperature Operation -25 ... +60 °C, Storage -40 ... +85 °C
Maximum Operating Altitude Permissible Without Derating 2000 m

Material Compliance 4

REACH Declaration 1SVD981001-4501
RoHS Declaration 1SVD981001-4401
RoHS Information Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA 2CMT2023-006536

External Classifications and Standards 3

ETIM 7 EC001447 - (Fill) level monitoring relay
eClass V11.0 : 27371813
UNSPSC 39122331

Logistics 10

Package Level 1 Units box 1 piece
Package Level 1 Width 97 mm
Package Level 1 Depth / Length 30 mm
Package Level 1 Height 109 mm
Package Level 1 Gross Weight 0.177 kg
Package Level 1 EAN 4013614502903
Shipping weight 0.177 kg
Ships from Türkiye
Dispatch 18 Nov
Stock In stock

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for 1SVR730850R2100

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • CE
  • RoHS
  • UKCA
  • CAN/CSA C22.2 No.14
  • IEC/EN 63000
  • IEC/EN 60255-27
  • IEC/EN 61000-6-2
  • IEC/EN 61000-6-3
  • UL 508
Quick answers

Questions about the CM-ENS.13S

Which supply voltage is CM-ENS.13S rated for?

The rated operational voltage of CM-ENS.13S is 110–130 – 220–240 V AC.

What is the HS code of CM-ENS.13S for customs?

The tariff (HS) code on file for CM-ENS.13S is 85364900.

What is the EAN of CM-ENS.13S?

The EAN (GTIN) of CM-ENS.13S is 4013614502903.

Where does CM-ENS.13S ship from, and how fast?

CM-ENS.13S ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
