Part number
1SVR730840R0500
Model no
CM-SRS.22S
$153.46 On request Dispatch — · From TürkiyeGet a Quote
CM single-phase monitors

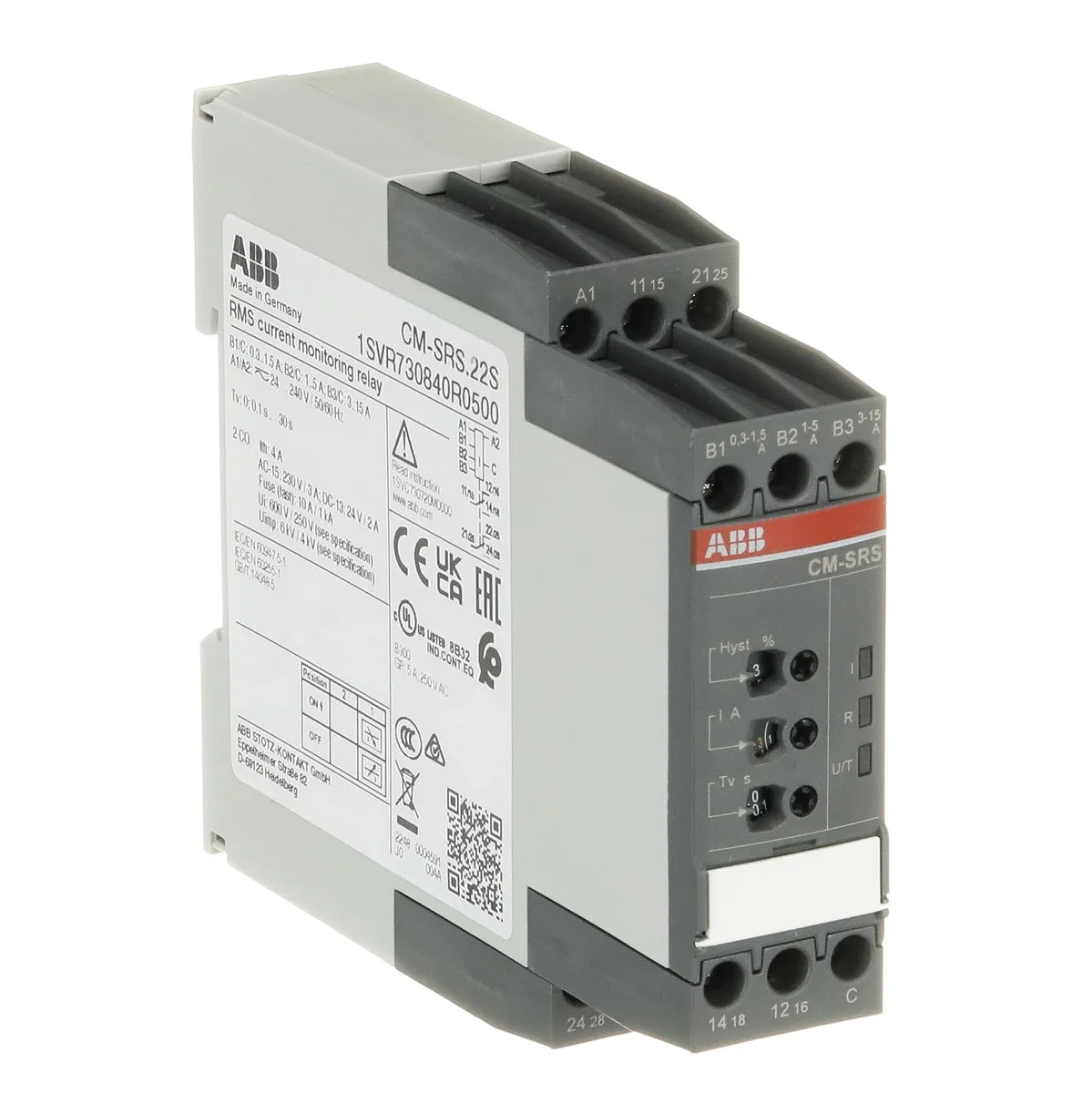

ABB 1SVR730840R0500 CM-SRS.22S 0.3-15A RMS 24-240V AC/DC 2 C/O Current Monitoring Relay

Rated current
15 A
Rated operational voltage
24–240–DC V DC
EAN
4016779852258
Description

About the CM-SRS.22S

The ABB CM-SRS.22S (SKU: 1SVR730840R0500) is a single-phase current monitoring relay designed to detect over-current and under-current conditions in industrial control systems. Part of ABB's CM single-phase monitors series, it supports a wide measurement range of 0.3–15 A RMS and a universal supply voltage of 24–240 V AC/DC, making it highly versatile for global installation. With two changeover (2 c/o) output contacts, the CM-SRS.22S provides reliable switching for alarm and protection circuits in automation and power distribution applications.

Certifications & Standards

  • CE: Compliant with European Union CE marking requirements
  • UKCA: UK Conformity Assessed marking for Great Britain market
  • cULus: Listed to both Canadian and US safety standards (UL/CSA)
  • CCC: China Compulsory Certification for the Chinese market
  • CB: International CB Scheme certification for global market acceptance
  • DNV GL: Certified by DNV GL for marine and offshore applications
  • UL 508: Listed per UL 508 standard for industrial control equipment
  • IEC/EN 63000: Technical documentation and assessment for RoHS compliance
  • IEC/EN 60255-27: Measuring relays and protection equipment — product safety requirements
  • IEC/EN 61000-6: Electromagnetic compatibility (EMC) generic standards
  • IEC 60715: Dimensions of low-voltage switchgear and controlgear — DIN rail mounting
  • EN 63000: European harmonised standard for RoHS technical documentation
  • EN 60255-27: European standard for measuring relays and protection equipment safety
  • EN 61000-6: European EMC generic emission and immunity standards
  • UL 508: UL standard for safety of industrial control equipment
  • CSA C22.2 No. 14: Canadian standard for industrial control equipment
  • CSA: Canadian Standards Association certification
  • REACH: Compliant with EU REACH regulation on chemical substances
  • RoHS: Restriction of Hazardous Substances directive compliant

Applications & Use Cases

  • Over-current and under-current monitoring in motor protection circuits
  • Load monitoring in HVAC, pump, and compressor control panels
  • Process fault detection in industrial automation and PLC-based systems
  • Marine and offshore panel installations (DNV GL certified)
  • DIN rail mounting in low-voltage switchgear and distribution boards
Specification

Full specification

66 values · Last verified 30 Oct 2026

Dimensions 4

Product Net Width 22.5 mm
Product Net Height 85.6 mm
Product Net Depth / Length 103.7 mm
Product Net Weight 0.144 kg

Technical 26

Function Over- or undercurrent monitoring
Measuring Range 0.3 ... 1.5 A, 1 ... 5 A, 3 ... 15 A
Time Range Tripping Delay (ON) 0 s
Rated Control Supply Voltage (Us) 24 ... 240 V AC/DC
Output 2 C/O Contacts
Terminal Type Screw Terminals
Rated Operational Current AC-12 (Ie) (230 V) 4 A
Rated Operational Current AC-15 (Ie) (230 V) 3 A
Rated Operational Current DC-12 (Ie) (24 V) 4 A
Rated Operational Current DC-13 (Ie) (24 V) 2 A
Minimum Switching Capacity 24 V, 10 mA
Rated Impulse Withstand Voltage (Uimp) Measuring Circuit / Output Circuit 6 kV, Output Circuit 1 / Output Circuit 2 4 kV, Supply Circuit / Measuring Circuit 6 kV, Supply Circuit / Output Circuit 4 kV
Rated Insulation Voltage (Ui) Measuring Circuit / Output Circuit 600 V, Output Circuit 1 / Output Circuit 2 250 V, Supply Circuit / Measuring Circuit 600 V, Supply Circuit / Output Circuit 250 V
Degree of Protection Housing IP50, Terminals IP20
Overvoltage Category III
Pollution Degree 3
Short-Circuit Protective Devices Output Circuit NC - F Type Fuses 10 A, Output Circuit NO - F Type Fuses 10 A
Electrical Durability AC-12 100000 cycle
Mechanical Durability Nr. Operations 30000000 cycle
Connecting Capacity Flexible with Ferrule 1x 0.5 ... 2.5 mm², Flexible with Ferrule 2x 0.5 ... 1.5 mm², Flexible with Insulated Ferrule 1x 0.5 ... 2.5 mm², Flexible with Insulated Ferrule 2x 0.5 ... 1.5 mm², Flexible 1x 0.5 ... 2.5 mm², Flexible 2x 0.5 ... 1.5 mm², Rigid 1x 0.5 ... 4 mm², Rigid 2x 0.5 ... 2.5 mm²
Tightening Torque 0.6 ... 0.8 N·m
Wire Stripping Length 8 mm
Recommended Screw Driver 0.8 x 4, 4.5, Pozidriv 1
Mounting Position 1 ... 6
Mounting on DIN Rail TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715, TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Standards CAN/CSA C22.2 No.14, IEC/EN 63000, IEC/EN 60255-27, IEC/EN 61000-6-2, IEC/EN 61000-6-3, UL 508

Technical UL/CSA 6

Maximum Operating Voltage UL/CSA Output Circuit 300 V AC
Contact Rating UL/CSA B300
Connecting Capacity UL/CSA Flexible 1x 18-14 AWG, Flexible 2x 18-16 AWG, Rigid 1x 20-12 AWG, Rigid 2x 20-14 AWG
Tightening Torque UL/CSA 7.08 in·lb
Pilot Duty UL/CSA B300
Flammability According to UL94 V-0
Show all 66 specifications ↓ Show less ↑30 more values in Identification, Environmental, Material Compliance, External Classifications and Standards, Logistics.

Identification 10

Part number 1SVR730840R0500
Type designation CM-SRS.22S
Brand ABB
Condition New, factory sealed
Source ABB and its authorised distributors
Warranty Manufacturer warranty
EAN 4016779852258
eCl@ss 27371802
Minimum Order Quantity 1 piece
Customs Tariff Number 85364900

Environmental 2

Ambient Air Temperature Operation -20 ... +60 °C, Storage -40 ... +85 °C
Maximum Operating Altitude Permissible Without Derating 2000 m

Material Compliance 4

REACH Declaration 1SVD981001-4501
RoHS Declaration 1SVD981001-4401
RoHS Information Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA 2CMT2023-006536

External Classifications and Standards 4

ETIM 7 EC001440 - Current monitoring relay
eClass V11.0 : 27371802
UNSPSC 39122332
E-Number (Sweden) 3860628

Logistics 10

Package Level 1 Units box 1 piece
Package Level 1 Width 97 mm
Package Level 1 Depth / Length 30 mm
Package Level 1 Height 109 mm
Package Level 1 Gross Weight 0.166 kg
Package Level 1 EAN 4016779852258
Shipping weight 0.166 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for 1SVR730840R0500

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • CE
  • RoHS
  • CCC
  • CAN/CSA C22.2 No.14
  • IEC/EN 63000
  • IEC/EN 60255-27
  • IEC/EN 61000-6-2
  • IEC/EN 61000-6-3
  • UL 508
Quick answers

Questions about the CM-SRS.22S

What is the rated current of CM-SRS.22S?

The rated current of CM-SRS.22S is 15 A.

Which supply voltage is CM-SRS.22S rated for?

The rated operational voltage of CM-SRS.22S is 24–240–DC V DC.

What is the HS code of CM-SRS.22S for customs?

The tariff (HS) code on file for CM-SRS.22S is 85364900.

What is the EAN of CM-SRS.22S?

The EAN (GTIN) of CM-SRS.22S is 4016779852258.

Where does CM-SRS.22S ship from, and how fast?

CM-SRS.22S ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
