Part number
1SVR730824R9300
Model no
CM-PFS.S
$77.04 In stock · 21 Dispatch Planned dispatch date. We aim to ship within 1 business day. Depending on warehouse workload it can take 2–3 business days. · From Türkiye
CM

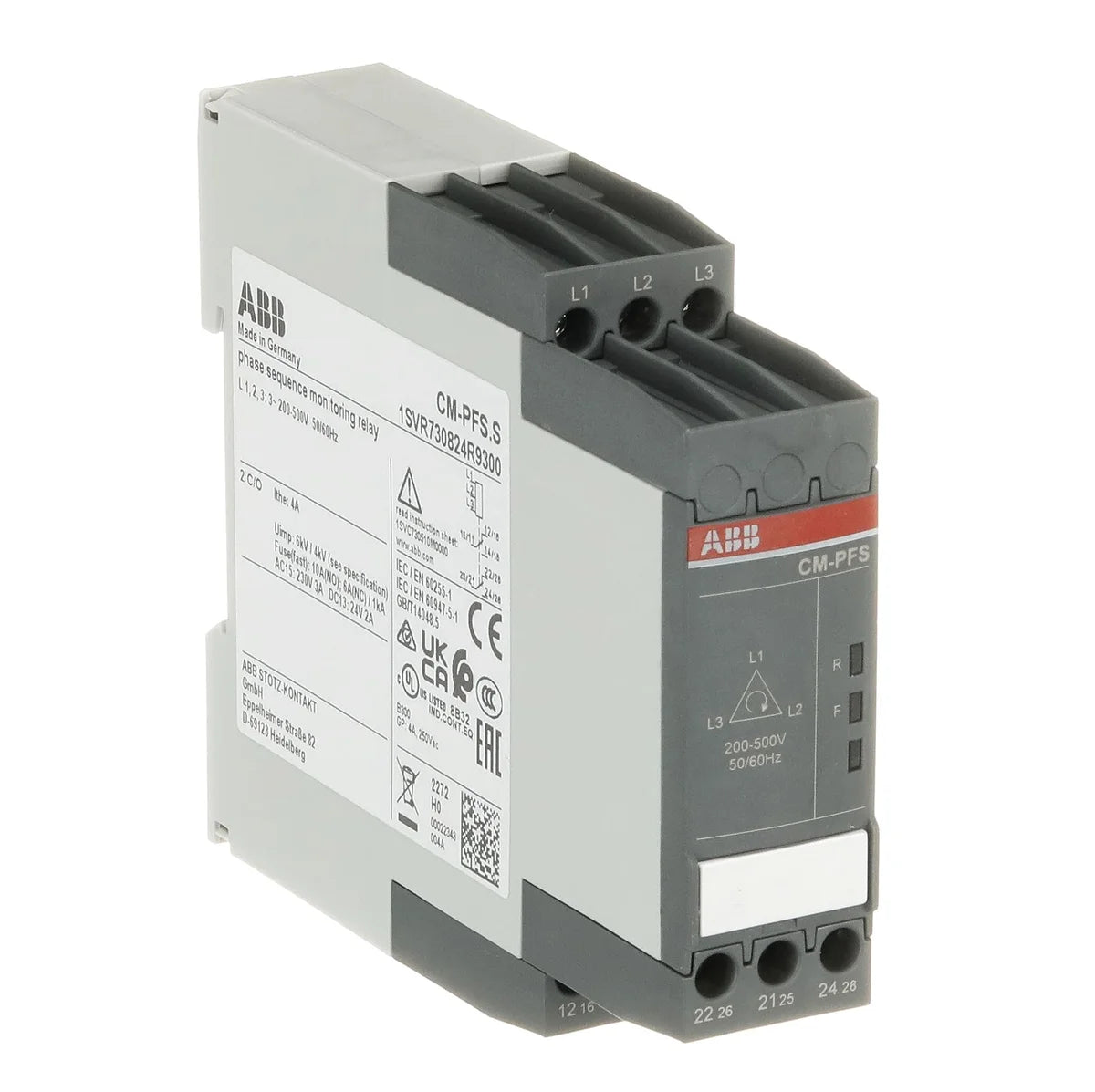

ABB 1SVR730824R9300 CM-PFS.S Three-Phase Monitoring Relay 2C/O 200-500V AC 50/60Hz Phase Sequence Failure Detection

Rated current
4 A
Rated operational voltage
200–500 V AC
EAN
4016779851947
Description

About the CM-PFS.S

The ABB CM-PFS.S (SKU: 1SVR730824R9300) is a three-phase monitoring relay designed to detect phase sequence faults, phase failure, and asymmetry in industrial power systems operating at 200–500V AC, 50/60Hz. Featuring a dual change-over (2C/O) output contact rated at 4A, the CM-PFS.S from ABB's CM Series provides reliable protection for motors, pumps, compressors, and other three-phase loads in demanding control panel environments. Its compact 22.5mm DIN rail footprint makes it ideal for space-constrained installations.

Certifications & Standards

  • CE: Conforms to European Union safety, health, and environmental protection requirements
  • UKCA: UK Conformity Assessed marking for Great Britain market compliance
  • cULus: Listed by Underwriters Laboratories for both US and Canadian markets
  • UL 508: Industrial Control Equipment standard compliance
  • CAN/CSA C22.2 No.14: Canadian Standards Association industrial control equipment certification
  • CSA: CSA Group certified for Canadian electrical safety requirements
  • IEC/EN 60255-27: Measuring relays and protection equipment — product safety requirements
  • IEC/EN 63000: Technical documentation for assessment of electrical and electronic products with respect to restriction of hazardous substances
  • IEC/EN 61000-6-2: Electromagnetic compatibility — immunity standard for industrial environments
  • IEC/EN 61000-6-3: Electromagnetic compatibility — emission standard for residential and light industrial environments
  • CCC: China Compulsory Certification for the Chinese market
  • REACH: Compliant with EU REACH regulation on registration, evaluation, authorisation and restriction of chemicals
  • RoHS: Compliant with EU Restriction of Hazardous Substances Directive
Specification

Full specification

65 values · Last verified 30 Oct 2026

Dimensions 4

Product Net Width 22.5 mm
Product Net Height 85.6 mm
Product Net Depth / Length 103.7 mm
Product Net Weight 0.127 kg

Technical 26

Function Phase failure detection, Phase sequence monitoring
Measuring Range (L-L) 200 ... 500 V AC
Rated Control Supply Voltage (Us) (L-L) 200 ... 500 V AC
Rated Frequency (f) Supply Circuit 50/60 Hz
Output 2 C/O Contacts
Terminal Type Screw Terminals
Rated Operational Current AC-12 (Ie) (230 V) 4 A
Rated Operational Current AC-15 (Ie) (230 V) 3 A
Rated Operational Current DC-12 (Ie) (24 V) 4 A
Rated Operational Current DC-13 (Ie) (24 V) 2 A
Minimum Switching Capacity 24 V, 10 mA
Rated Impulse Withstand Voltage (Uimp) Input Circuit 6 kV, Output Circuit 4 kV
Rated Insulation Voltage (Ui) Input Circuit / Output Circuit 600 V, Output Circuit 1 / Output Circuit 2 300 V
Degree of Protection Housing IP50, Terminals IP20
Overvoltage Category III
Pollution Degree 3
Short-Circuit Protective Devices Output Circuit NC - F Type Fuses 6 A, Output Circuit NO - F Type Fuses 10 A
Electrical Durability AC-12 100000 cycle
Mechanical Durability Nr. Operations 30000000 cycle
Connecting Capacity Flexible with Ferrule 1x 0.5 ... 2.5 mm², Flexible with Ferrule 2x 0.5 ... 1.5 mm², Flexible with Insulated Ferrule 1x 0.5 ... 2.5 mm², Flexible with Insulated Ferrule 2x 0.5 ... 1.5 mm², Flexible 1x 0.5 ... 2.5 mm², Flexible 2x 0.5 ... 1.5 mm², Rigid 1x 0.5 ... 4 mm², Rigid 2x 0.5 ... 2.5 mm²
Tightening Torque 0.6 ... 0.8 N·m
Wire Stripping Length 8 mm
Recommended Screw Driver 0.8 x 4, 4.5, Pozidriv 1
Mounting Position 1 ... 6
Mounting on DIN Rail TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715, TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Standards CAN/CSA C22.2 No.14, IEC/EN 63000, IEC/EN 60255-27, IEC/EN 61000-6-2, IEC/EN 61000-6-3, UL 508

Technical UL/CSA 5

Maximum Operating Voltage UL/CSA Output Circuit 300 V AC
Contact Rating UL/CSA B300
Connecting Capacity UL/CSA Flexible 1x 18-14 AWG, Flexible 2x 18-16 AWG, Rigid 1x 20-12 AWG, Rigid 2x 20-14 AWG
Tightening Torque UL/CSA 7.08 in·lb
Pilot Duty UL/CSA B300
Show all 65 specifications ↓ Show less ↑30 more values in Identification, Environmental, Material Compliance, External Classifications and Standards, Logistics.

Identification 10

Part number 1SVR730824R9300
Type designation CM-PFS.S
Brand ABB
Condition New, factory sealed
Source ABB and its authorised distributors
Warranty Manufacturer warranty
EAN 4016779851947
eCl@ss 27371803
Minimum Order Quantity 1 piece
Customs Tariff Number 85364900

Environmental 2

Ambient Air Temperature Operation -25 ... +60 °C, Storage -40 ... +85 °C
Maximum Operating Altitude Permissible Without Derating 2000 m

Material Compliance 4

REACH Declaration 1SVD981001-4501
RoHS Declaration 1SVD981001-4401
RoHS Information Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA 2CMT2023-006536

External Classifications and Standards 4

ETIM 7 EC001441 - Phase monitoring relay
eClass V11.0 : 27371803
UNSPSC 39122332
E-Number (Sweden) 3860595

Logistics 10

Package Level 1 Units box 1 piece
Package Level 1 Width 97 mm
Package Level 1 Depth / Length 30 mm
Package Level 1 Height 109 mm
Package Level 1 Gross Weight 0.152 kg
Package Level 1 EAN 4016779851947
Shipping weight 0.152 kg
Ships from Türkiye
Dispatch 18 Nov
Stock In stock

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for 1SVR730824R9300

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • CE
  • RoHS
  • CAN/CSA C22.2 No.14
  • IEC/EN 63000
  • IEC/EN 60255-27
  • IEC/EN 61000-6-2
  • IEC/EN 61000-6-3
  • UL 508
Quick answers

Questions about the CM-PFS.S

What is the rated current of CM-PFS.S?

The rated current of CM-PFS.S is 4 A.

Which supply voltage is CM-PFS.S rated for?

The rated operational voltage of CM-PFS.S is 200–500 V AC.

What is the HS code of CM-PFS.S for customs?

The tariff (HS) code on file for CM-PFS.S is 85364900.

What is the EAN of CM-PFS.S?

The EAN (GTIN) of CM-PFS.S is 4016779851947.

Where does CM-PFS.S ship from, and how fast?

CM-PFS.S ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
