Part number
1SVR730784R2300
Model no
CM-PSS.31S
$124.25 Low stock Dispatch Planned dispatch date. We aim to ship within 1 business day. Depending on warehouse workload it can take 2–3 business days. · From Türkiye
CM

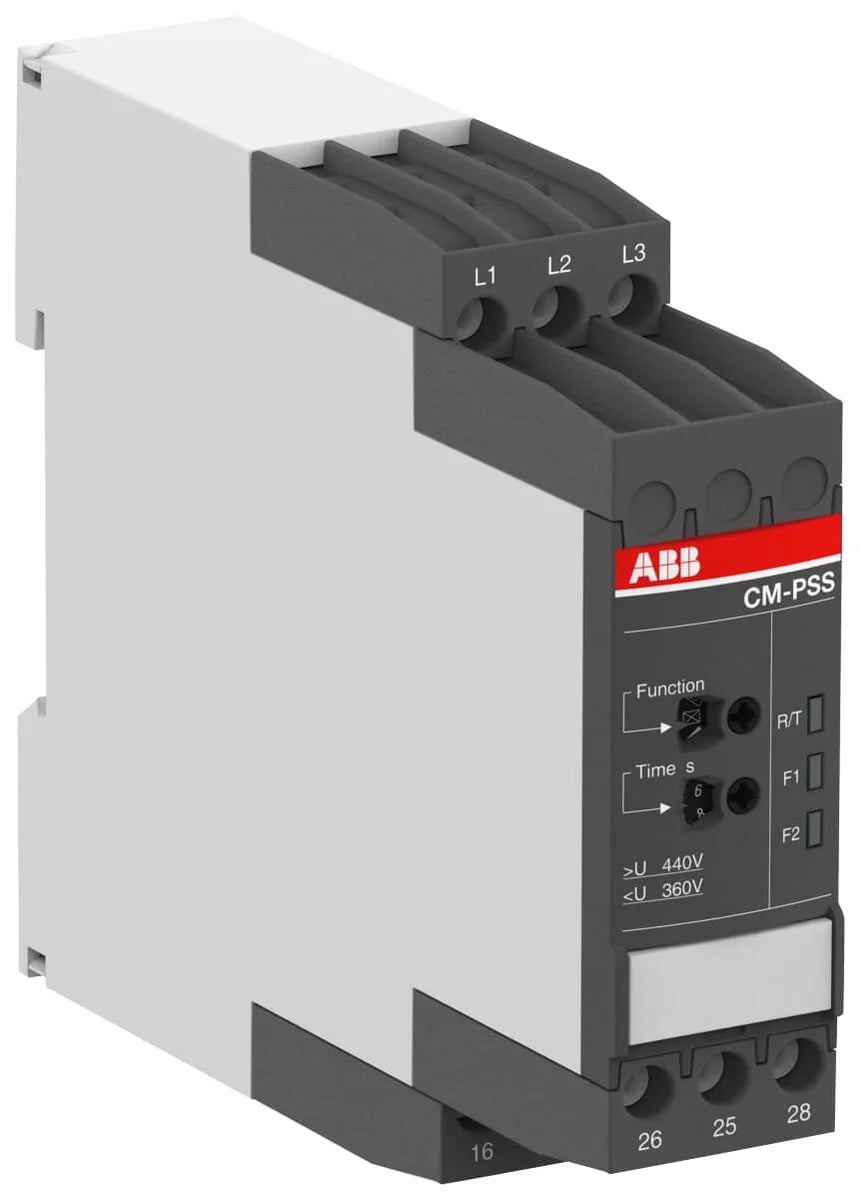

ABB 1SVR730784R2300 CM-PSS.31S Three-Phase Monitoring Relay 2 C/O 0.1-30s 3x380V AC Phase Monitoring Relay

Rated current
4 A
Rated operational voltage
380 V AC
EAN
4016779851817
Description

About the CM-PSS.31S

The ABB CM-PSS.31S (SKU: 1SVR730784R2300) is a three-phase monitoring relay designed to protect motors, transformers, and industrial loads against phase faults including phase failure, phase sequence errors, and phase asymmetry. Rated at 3×380V AC with a 2 C/O output and an adjustable time delay of 0.1–30 seconds, the CM-PSS.31S provides reliable protection in demanding control panel environments.

Certifications & Standards

  • CE: Conformité Européenne — meets EU safety, health, and environmental requirements
  • UKCA: UK Conformity Assessed — compliant for Great Britain market
  • cULus: Listed to both UL and CSA standards for North American markets
  • UL 508: Standard for industrial control equipment
  • CCC: China Compulsory Certification for the Chinese market
  • CSA: Canadian Standards Association certification
  • CAN/CSA C22.2 No.14: Canadian standard for industrial control equipment
  • IEC/EN 60255-27: Measuring relays and protection equipment — product safety requirements
  • IEC/EN 61000-6-2: Electromagnetic compatibility — immunity for industrial environments
  • IEC/EN 61000-6-3: Electromagnetic compatibility — emission standard for residential/light industrial environments
  • IEC/EN 63000: Technical documentation for the assessment of electrical and electronic products regarding restricted substances
  • IEC 60715: Dimensions of low-voltage switchgear and controlgear — DIN rail mounting
  • EN 60255 / EN 61000-6: European standards for measuring relays and EMC
  • RoHS: Restriction of Hazardous Substances — compliant with EU Directive 2011/65/EU
  • REACH: Registration, Evaluation, Authorisation and Restriction of Chemicals — EU compliance

Applications & Use Cases

  • Motor protection against phase failure, incorrect phase sequence, and phase asymmetry
  • Protection of three-phase loads in industrial automation control panels
  • Pump, compressor, and conveyor motor protection systems
  • Generator and transformer monitoring in power distribution
  • Building automation and HVAC motor protection applications

Frequently Asked Questions

What does the CM-PSS.31S monitor?
The ABB CM-PSS.31S monitors three-phase AC supplies for phase failure, incorrect phase sequence, and phase asymmetry, triggering its 2 C/O output contacts upon a fault condition.

What is the adjustable time delay range?
The time delay is adjustable from 0.1 to 30 seconds, allowing engineers to set appropriate response times to avoid nuisance tripping.

Is the CM-PSS.31S suitable for DIN rail mounting?
Yes. The CM-PSS.31S is compliant with IEC 60715 and is designed for standard 35 mm DIN rail installation inside control panels.

What certifications does the CM-PSS.31S carry?
The relay holds CE, UKCA, cULus, UL 508, CCC, CSA, CAN/CSA C22.2 No.14, RoHS, and REACH certifications, making it suitable for global deployment.

Specification

Full specification

67 values · Last verified 30 Oct 2026

Dimensions 4

Product Net Width 22.5 mm
Product Net Height 85.6 mm
Product Net Depth / Length 103.7 mm
Product Net Weight 0.132 kg

Technical 27

Function Phase failure detection, Phase sequence monitoring, Over- and undervoltage monitoring
Measuring Range (L-L) 342 ... 418 V AC
Time Range Tripping Delay (ON or OFF) 0 s
Rated Control Supply Voltage (Us) (L-L) 380 V AC
Rated Frequency (f) Supply Circuit 50/60 Hz
Output 2 C/O Contacts
Terminal Type Screw Terminals
Rated Operational Current AC-12 (Ie) (230 V) 4 A
Rated Operational Current AC-15 (Ie) (230 V) 3 A
Rated Operational Current DC-12 (Ie) (24 V) 4 A
Rated Operational Current DC-13 (Ie) (24 V) 2 A
Minimum Switching Capacity 24 V, 10 mA
Rated Impulse Withstand Voltage (Uimp) Input Circuit 6 kV, Output Circuit 4 kV
Rated Insulation Voltage (Ui) Input Circuit / Output Circuit 600 V, Output Circuit 1 / Output Circuit 2 300 V
Degree of Protection Housing IP50, Terminals IP20
Overvoltage Category III
Pollution Degree 3
Short-Circuit Protective Devices Output Circuit NC - F Type Fuses 6 A, Output Circuit NO - F Type Fuses 10 A
Electrical Durability AC-12 100000 cycle
Mechanical Durability Nr. Operations 30000000 cycle
Connecting Capacity Flexible with Ferrule 1x 0.5 ... 2.5 mm², Flexible with Ferrule 2x 0.5 ... 1.5 mm², Flexible with Insulated Ferrule 1x 0.5 ... 2.5 mm², Flexible with Insulated Ferrule 2x 0.5 ... 1.5 mm², Flexible 1x 0.5 ... 2.5 mm², Flexible 2x 0.5 ... 1.5 mm², Rigid 1x 0.5 ... 4 mm², Rigid 2x 0.5 ... 2.5 mm²
Tightening Torque 0.6 ... 0.8 N·m
Wire Stripping Length 8 mm
Recommended Screw Driver 0.8 x 4, 4.5, Pozidriv 1
Mounting Position 1 ... 6
Mounting on DIN Rail TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715, TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Standards CAN/CSA C22.2 No.14, IEC/EN 63000, IEC/EN 60255-27, IEC/EN 61000-6-2, IEC/EN 61000-6-3, UL 508

Technical UL/CSA 6

Maximum Operating Voltage UL/CSA Output Circuit 300 V AC
Contact Rating UL/CSA B300
Connecting Capacity UL/CSA Flexible 1x 18-14 AWG, Flexible 2x 18-16 AWG, Rigid 1x 20-12 AWG, Rigid 2x 20-14 AWG
Tightening Torque UL/CSA 7.08 in·lb
Pilot Duty UL/CSA B300
Flammability According to UL94 V-0
Show all 67 specifications ↓ Show less ↑30 more values in Identification, Environmental, Material Compliance, External Classifications and Standards, Logistics.

Identification 10

Part number 1SVR730784R2300
Type designation CM-PSS.31S
Brand ABB
Condition New, factory sealed
Source ABB and its authorised distributors
Warranty Manufacturer warranty
EAN 4016779851817
eCl@ss 27371803
Minimum Order Quantity 1 piece
Customs Tariff Number 85364900

Environmental 2

Ambient Air Temperature Operation -25 ... +60 °C, Storage -40 ... +85 °C
Maximum Operating Altitude Permissible Without Derating 2000 m

Material Compliance 4

REACH Declaration 1SVD981001-4501
RoHS Declaration 1SVD981001-4401
RoHS Information Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA 2CMT2023-006536

External Classifications and Standards 4

ETIM 7 EC001441 - Phase monitoring relay
eClass V11.0 : 27371803
UNSPSC 39122332
E-Number (Sweden) 3860581

Logistics 10

Package Level 1 Units box 1 piece
Package Level 1 Width 97 mm
Package Level 1 Depth / Length 30 mm
Package Level 1 Height 109 mm
Package Level 1 Gross Weight 0.157 kg
Package Level 1 EAN 4016779851817
Shipping weight 0.157 kg
Ships from Türkiye
Dispatch 18 Nov
Stock Low stock

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for 1SVR730784R2300

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • CE
  • RoHS
  • CCC
  • CAN/CSA C22.2 No.14
  • IEC/EN 63000
  • IEC/EN 60255-27
  • IEC/EN 61000-6-2
  • IEC/EN 61000-6-3
  • UL 508
Quick answers

Questions about the CM-PSS.31S

What is the rated current of CM-PSS.31S?

The rated current of CM-PSS.31S is 4 A.

Which supply voltage is CM-PSS.31S rated for?

The rated operational voltage of CM-PSS.31S is 380 V AC.

What is the HS code of CM-PSS.31S for customs?

The tariff (HS) code on file for CM-PSS.31S is 85364900.

What is the EAN of CM-PSS.31S?

The EAN (GTIN) of CM-PSS.31S is 4016779851817.

Where does CM-PSS.31S ship from, and how fast?

CM-PSS.31S ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
