Part number
1SVR730774R1300
Model no
CM-PAS.31S
$134.41 Critical stock Dispatch Planned dispatch date. We aim to ship within 1 business day. Depending on warehouse workload it can take 2–3 business days. · From Türkiye
CM

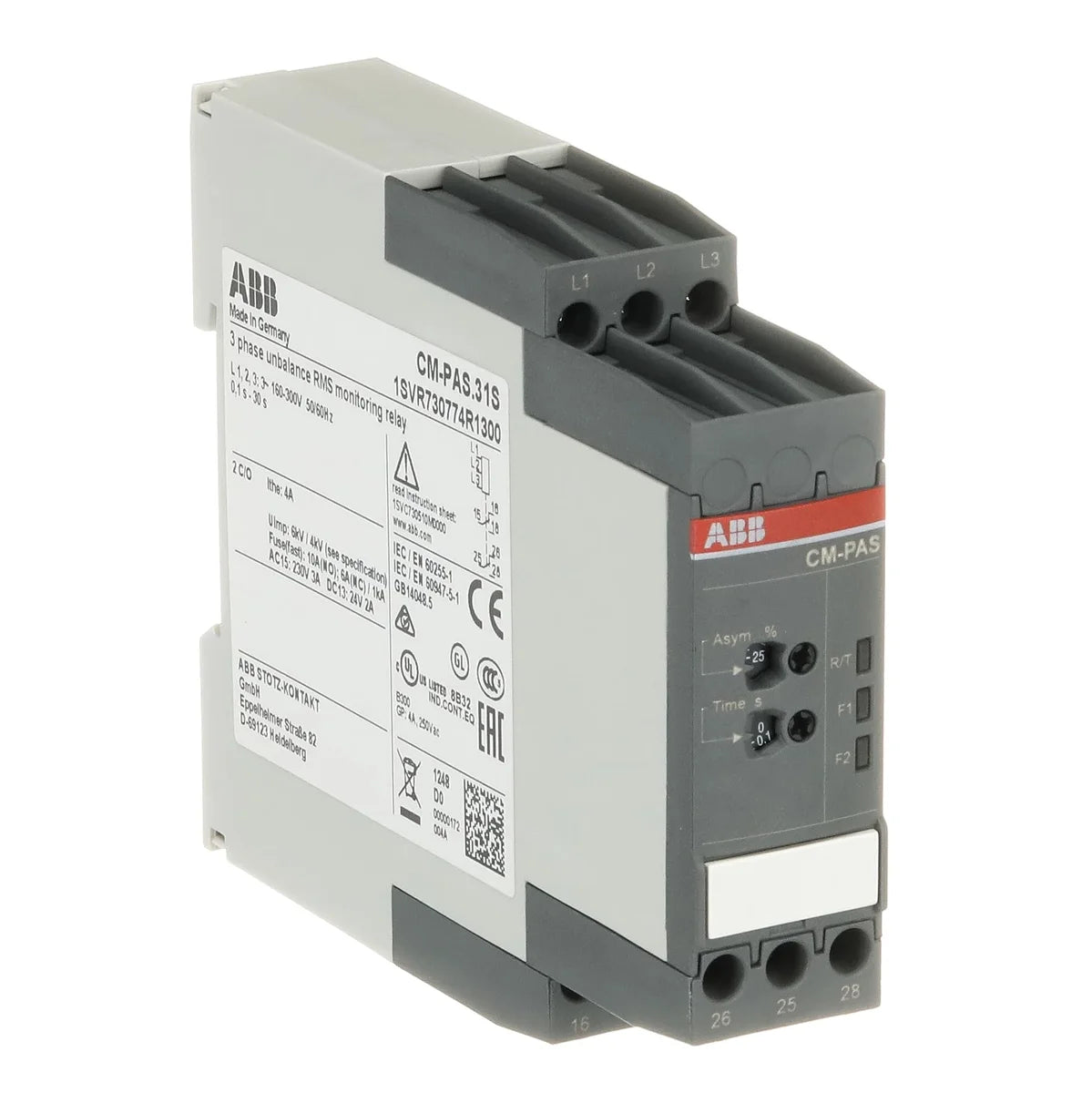

ABB 1SVR730774R1300 CM-PAS.31S Three-Phase Monitoring Relay 2 C/O 160-300V AC 0.1-30s Phase Monitoring Relay

Rated current
4 A
Rated operational voltage
160–300 V AC
EAN
4016779851794
Description

About the CM-PAS.31S

The ABB CM-PAS.31S (SKU: 1SVR730774R1300) is a three-phase monitoring relay designed to protect industrial electrical systems from phase faults including phase loss, phase sequence errors, and phase asymmetry across a supply voltage range of 160–300 V AC. Featuring 2 changeover (C/O) output contacts and an adjustable time delay of 0.1 to 30 seconds, the CM-PAS.31S provides flexible and reliable protection for motors, drives, and control panel applications in industrial automation environments.

Certifications & Standards

  • CE: Conformité Européenne — meets EU safety, health, and environmental requirements
  • UKCA: UK Conformity Assessed — required for the Great Britain market
  • cULus: Listed by Underwriters Laboratories for both US and Canadian markets
  • UL 508: UL standard for industrial control equipment
  • CCC: China Compulsory Certification for the Chinese market
  • CSA / CAN/CSA C22.2 No.14: Canadian Standards Association industrial control equipment standard
  • IEC/EN 60255-27: Measuring relays and protection equipment — product safety
  • IEC/EN 61000-6-2: Electromagnetic compatibility — immunity for industrial environments
  • IEC/EN 61000-6-3: Electromagnetic compatibility — emission standard for residential, commercial, and light-industrial environments
  • IEC/EN 63000: Technical documentation for the assessment of electrical and electronic products with respect to the restriction of hazardous substances
  • RoHS: Restriction of Hazardous Substances — compliant with EU Directive 2011/65/EU
  • REACH: Registration, Evaluation, Authorisation and Restriction of Chemicals — EU chemical safety compliance
Specification

Full specification

67 values · Last verified 30 Oct 2026

Dimensions 4

Product Net Width 22.5 mm
Product Net Height 85.6 mm
Product Net Depth / Length 103.7 mm
Product Net Weight 0.133 kg

Technical 27

Function Phase failure detection, Phase sequence monitoring, Phase unbalance detection
Measuring Range (L-L) 160 ... 300 V AC
Time Range Tripping Delay (ON) 0 s
Rated Control Supply Voltage (Us) (L-L) 160 ... 300 V AC
Rated Frequency (f) Supply Circuit 50/60 Hz
Output 2 C/O Contacts
Terminal Type Screw Terminals
Rated Operational Current AC-12 (Ie) (230 V) 4 A
Rated Operational Current AC-15 (Ie) (230 V) 3 A
Rated Operational Current DC-12 (Ie) (24 V) 4 A
Rated Operational Current DC-13 (Ie) (24 V) 2 A
Minimum Switching Capacity 24 V, 10 mA
Rated Impulse Withstand Voltage (Uimp) Input Circuit 6 kV, Output Circuit 4 kV
Rated Insulation Voltage (Ui) Input Circuit / Output Circuit 600 V, Output Circuit 1 / Output Circuit 2 300 V
Degree of Protection Housing IP50, Terminals IP20
Overvoltage Category III
Pollution Degree 3
Short-Circuit Protective Devices Output Circuit NC - F Type Fuses 6 A, Output Circuit NO - F Type Fuses 10 A
Electrical Durability AC-12 100000 cycle
Mechanical Durability Nr. Operations 30000000 cycle
Connecting Capacity Flexible with Ferrule 1x 0.5 ... 2.5 mm², Flexible with Ferrule 2x 0.5 ... 1.5 mm², Flexible with Insulated Ferrule 1x 0.5 ... 2.5 mm², Flexible with Insulated Ferrule 2x 0.5 ... 1.5 mm², Flexible 1x 0.5 ... 2.5 mm², Flexible 2x 0.5 ... 1.5 mm², Rigid 1x 0.5 ... 4 mm², Rigid 2x 0.5 ... 2.5 mm²
Tightening Torque 0.6 ... 0.8 N·m
Wire Stripping Length 8 mm
Recommended Screw Driver 0.8 x 4, 4.5, Pozidriv 1
Mounting Position 1 ... 6
Mounting on DIN Rail TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715, TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Standards CAN/CSA C22.2 No.14, IEC/EN 63000, IEC/EN 60255-27, IEC/EN 61000-6-2, IEC/EN 61000-6-3, UL 508

Technical UL/CSA 6

Maximum Operating Voltage UL/CSA Output Circuit 300 V AC
Contact Rating UL/CSA B300
Connecting Capacity UL/CSA Flexible 1x 18-14 AWG, Flexible 2x 18-16 AWG, Rigid 1x 20-12 AWG, Rigid 2x 20-14 AWG
Tightening Torque UL/CSA 7.08 in·lb
Pilot Duty UL/CSA B300
Flammability According to UL94 V-0
Show all 67 specifications ↓ Show less ↑30 more values in Identification, Environmental, Material Compliance, External Classifications and Standards, Logistics.

Identification 10

Part number 1SVR730774R1300
Type designation CM-PAS.31S
Brand ABB
Condition New, factory sealed
Source ABB and its authorised distributors
Warranty Manufacturer warranty
EAN 4016779851794
eCl@ss 27371803
Minimum Order Quantity 1 piece
Customs Tariff Number 85364900

Environmental 2

Ambient Air Temperature Operation -25 ... +60 °C, Storage -40 ... +85 °C
Maximum Operating Altitude Permissible Without Derating 2000 m

Material Compliance 4

REACH Declaration 1SVD981001-4501
RoHS Declaration 1SVD981001-4401
RoHS Information Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA 2CMT2023-006536

External Classifications and Standards 4

ETIM 7 EC001441 - Phase monitoring relay
eClass V11.0 : 27371803
UNSPSC 39122332
E-Number (Sweden) 3860579

Logistics 10

Package Level 1 Units box 1 piece
Package Level 1 Width 97 mm
Package Level 1 Depth / Length 30 mm
Package Level 1 Height 109 mm
Package Level 1 Gross Weight 0.158 kg
Package Level 1 EAN 4016779851794
Shipping weight 0.158 kg
Ships from Türkiye
Dispatch 18 Nov
Stock Critical stock

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for 1SVR730774R1300

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • CE
  • RoHS
  • UKCA
  • CCC
  • CAN/CSA C22.2 No.14
  • IEC/EN 63000
  • IEC/EN 60255-27
  • IEC/EN 61000-6-2
  • IEC/EN 61000-6-3
  • UL 508
Quick answers

Questions about the CM-PAS.31S

What is the rated current of CM-PAS.31S?

The rated current of CM-PAS.31S is 4 A.

Which supply voltage is CM-PAS.31S rated for?

The rated operational voltage of CM-PAS.31S is 160–300 V AC.

What is the HS code of CM-PAS.31S for customs?

The tariff (HS) code on file for CM-PAS.31S is 85364900.

What is the EAN of CM-PAS.31S?

The EAN (GTIN) of CM-PAS.31S is 4016779851794.

Where does CM-PAS.31S ship from, and how fast?

CM-PAS.31S ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
