Part number
1SVR730740R0200
Model no
CM-TCS.12S
$175.42 Low stock Dispatch Planned dispatch date. We aim to ship within 1 business day. Depending on warehouse workload it can take 2–3 business days. · From Türkiye
CM temperature monitors

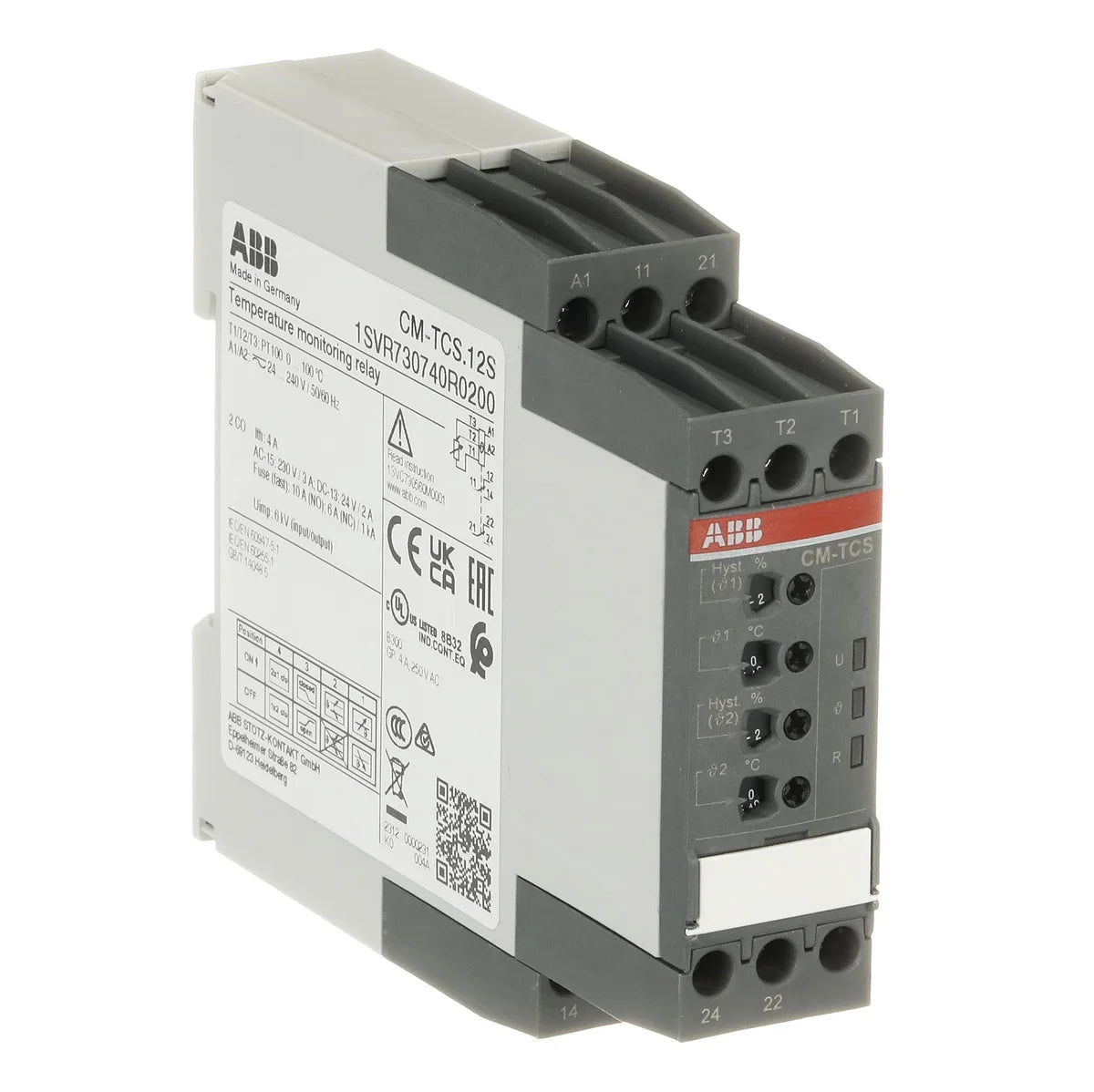

ABB 1SVR730740R0200 CM-TCS.12S 0–100°C 24-240VAC/DC 4A Temperature Monitoring Relay

Rated current
4 A
Rated operational voltage
250 V AC
EAN
4016779852722
Description

About the CM-TCS.12S

The ABB CM-TCS.12S (SKU: 1SVR730740R0200) is a temperature monitoring relay from the ABB CM temperature monitors series, designed to continuously monitor temperatures in the range of 0 to +100°C using a 24–240V AC/DC supply voltage. The CM-TCS.12S provides reliable overshoot and undershoot protection for motors, transformers, and process equipment in industrial automation and control panel applications, offering a compact 97 × 30 × 109 mm DIN-rail mountable footprint.

Certifications & Standards

  • CE: Conformité Européenne — meets EU safety, health, and environmental requirements
  • UKCA: UK Conformity Assessed — meets Great Britain market requirements post-Brexit
  • cULus: Listed by UL for both US and Canadian markets
  • UL 60947-5-1: Low-voltage switchgear and controlgear — control circuit devices and switching elements (UL)
  • CCC: China Compulsory Certification for the Chinese market
  • DNV GL: Det Norske Veritas — maritime and offshore industry type approval
  • CSA: Canadian Standards Association product certification
  • CAN/CSA C22.2 No. 60947-5-1: Canadian standard for low-voltage switchgear control circuit devices
  • IEC/EN 60947-5-1: International/European standard for low-voltage control circuit devices
  • IEC/EN 60255-26: Measuring relays and protection equipment — electromagnetic compatibility requirements
  • IEC/EN 60255-27: Measuring relays and protection equipment — product safety requirements
  • IEC/EN 61000-6-2: Electromagnetic compatibility — immunity for industrial environments
  • IEC/EN 61000-6-3: Electromagnetic compatibility — emission standard for residential environments
  • IEC/EN 63000: Technical documentation for the assessment of electrical and electronic products with respect to the restriction of hazardous substances
  • IEC 60715: Dimensions of low-voltage switchgear and controlgear — standardized mounting on DIN rails
  • EN 60255: European standard series for measuring relays and protection equipment
  • EN 61000-6: European EMC standard series for generic emission and immunity
  • EN 60947-5: European standard for low-voltage switchgear control circuit devices
  • REACH: EU regulation on Registration, Evaluation, Authorisation and Restriction of Chemicals
  • RoHS: Restriction of Hazardous Substances — compliant with EU Directive 2011/65/EU

Applications & Use Cases

The CM-TCS.12S temperature monitoring relay is widely deployed across industrial automation and process control applications where thermal protection is critical. Typical use cases include:

  • Motor winding temperature monitoring to prevent thermal overload damage
  • Transformer and power supply thermal protection in control panels
  • HVAC and refrigeration system temperature supervision
  • Industrial process equipment temperature control and alarming
  • Marine and offshore applications (DNV GL approved)
Specification

Full specification

66 values · Last verified 30 Oct 2026

Dimensions 4

Product Net Width 22.5 mm
Product Net Height 85.6 mm
Product Net Depth / Length 103.7 mm
Product Net Weight 0.151 kg

Technical 27

Function Overtemperature monitoring, Undertemperature monitoring, Over- and undertemperature monitoring
Measuring Range 0 ... 100 °C
Sensor Type PT100
Rated Control Supply Voltage (Us) 24 ... 240 V AC/DC
Rated Frequency (f) Supply Circuit 50 Hz, Supply Circuit 60 Hz, Supply Circuit DC
Output 2x 1 C/O or 1x 2 C/O Contact, Configurable
Terminal Type Screw Terminals
Rated Operational Current AC-12 (Ie) (230 V) 4 A
Rated Operational Current AC-15 (Ie) (230 V) 3 A
Rated Operational Current DC-12 (Ie) (24 V) 4 A
Rated Operational Current DC-13 (Ie) (24 V) 2 A
Minimum Switching Capacity 24 V, 10 mA
Rated Impulse Withstand Voltage (Uimp) Measuring Circuit / Output Circuit 4 kV, Output Circuit 1 / Output Circuit 2 4 kV, Supply Circuit / Measuring Circuit 4 kV, Supply Circuit / Output Circuit 4 kV
Rated Insulation Voltage (Ui) Measuring Circuit / Output Circuit 300 V, Output Circuit 1 / Output Circuit 2 300 V, Supply Circuit / Measuring Circuit 300 V, Supply Circuit / Output Circuit 300 V
Degree of Protection Housing IP50, Terminals IP20
Overvoltage Category III
Pollution Degree 3
Short-Circuit Protective Devices Output Circuit NC - F Type Fuses 6 A, Output Circuit NO - F Type Fuses 10 A
Electrical Durability AC-12 100000 cycle
Mechanical Durability Nr. Operations 30000000 cycle
Connecting Capacity Flexible with Ferrule 1x 0.5 ... 2.5 mm², Flexible with Ferrule 2x 0.5 ... 1.5 mm², Flexible with Insulated Ferrule 1x 0.5 ... 2.5 mm², Flexible with Insulated Ferrule 2x 0.5 ... 1.5 mm², Flexible 1x 0.5 ... 2.5 mm², Flexible 2x 0.5 ... 1.5 mm², Rigid 1x 0.5 ... 4 mm², Rigid 2x 0.5 ... 2.5 mm²
Tightening Torque 0.6 ... 0.8 N·m
Wire Stripping Length 8 mm
Recommended Screw Driver 0.8 x 4, 4.5, Pozidriv 1
Mounting Position 1 ... 6
Mounting on DIN Rail TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715, TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Standards CAN/CSA C22.2 No.60947-5-1, IEC/EN 60255-26, IEC/EN 60255-27, IEC/EN 61000-6-2, IEC/EN 61000-6-3, IEC/EN 63000, UL 60947-5-1, IEC/EN 60947-5-1

Technical UL/CSA 5

Maximum Operating Voltage UL/CSA Output Circuit 300 V AC
Contact Rating UL/CSA B300
Connecting Capacity UL/CSA Flexible 1x 18-14 AWG, Flexible 2x 18-16 AWG, Rigid 1x 20-12 AWG, Rigid 2x 20-14 AWG
Tightening Torque UL/CSA 7.08 in·lb
Pilot Duty UL/CSA B300
Show all 66 specifications ↓ Show less ↑30 more values in Identification, Environmental, Material Compliance, External Classifications and Standards, Logistics.

Identification 10

Part number 1SVR730740R0200
Type designation CM-TCS.12S
Brand ABB
Condition New, factory sealed
Source ABB and its authorised distributors
Warranty Manufacturer warranty
EAN 4016779852722
eCl@ss 27371810
Minimum Order Quantity 1 piece
Customs Tariff Number 85364900

Environmental 2

Ambient Air Temperature Operation -40 ... +60 °C, Storage -40 ... +85 °C
Maximum Operating Altitude Permissible Without Derating 2000 m

Material Compliance 4

REACH Declaration 1SVD981001-4501
RoHS Declaration 1SVD981001-4401
RoHS Information Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA 2CMT2023-006536

External Classifications and Standards 4

ETIM 7 EC001446 - Temperature monitoring relay
eClass V11.0 : 27371810
UNSPSC 39122331
E-Number (Sweden) 3860664

Logistics 10

Package Level 1 Units box 1 piece
Package Level 1 Width 97 mm
Package Level 1 Depth / Length 30 mm
Package Level 1 Height 109 mm
Package Level 1 Gross Weight 0.176 kg
Package Level 1 EAN 4016779852722
Shipping weight 0.176 kg
Ships from Türkiye
Dispatch 18 Nov
Stock Low stock

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for 1SVR730740R0200

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • CE
  • RoHS
  • UKCA
  • CCC
  • CAN/CSA C22.2 No.60947-5-1
  • IEC/EN 60255-26
  • IEC/EN 60255-27
  • IEC/EN 61000-6-2
  • IEC/EN 61000-6-3
  • IEC/EN 63000
  • UL 60947-5-1
  • IEC/EN 60947-5-1
Quick answers

Questions about the CM-TCS.12S

What is the rated current of CM-TCS.12S?

The rated current of CM-TCS.12S is 4 A.

Which supply voltage is CM-TCS.12S rated for?

The rated operational voltage of CM-TCS.12S is 250 V AC.

What is the HS code of CM-TCS.12S for customs?

The tariff (HS) code on file for CM-TCS.12S is 85364900.

What is the EAN of CM-TCS.12S?

The EAN (GTIN) of CM-TCS.12S is 4016779852722.

Where does CM-TCS.12S ship from, and how fast?

CM-TCS.12S ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
