Part number
1SVR730712R2200
Model no
CM-MSS.33S
$71.51 On request Dispatch — · From TürkiyeGet a Quote
CM-MSS

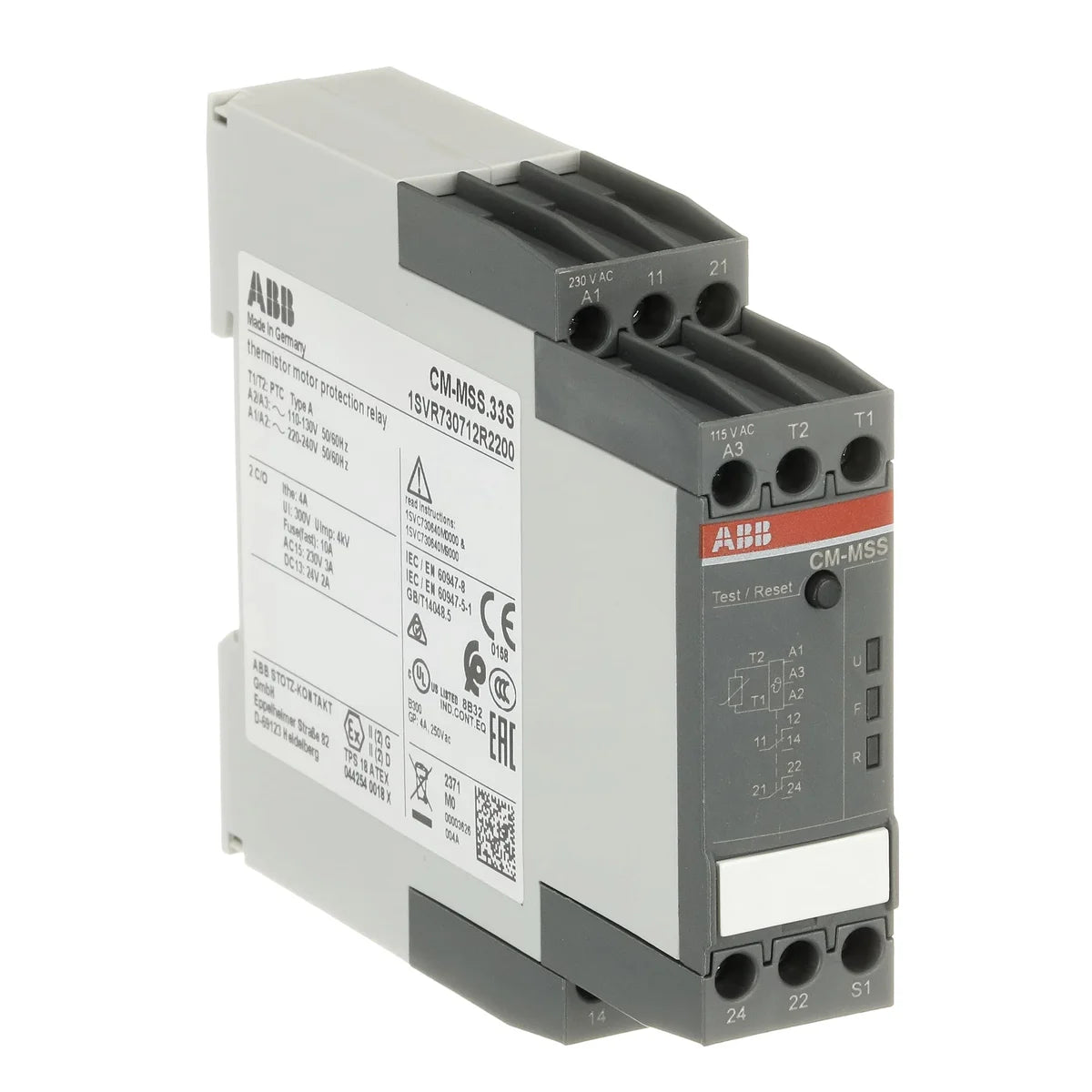

ABB 1SVR730712R2200 CM-MSS.33S Thermistor Motor Protection Relay 2C/O 110-130V/220-240VAC PTC Relay

Product Net Width
22.5 mm
Product Net Height
85.6 mm
Product Net Depth / Length
103.7 mm
Product Net Weight
0.172 kg
EAN
4013614496646
Description

About the CM-MSS.33S

The ABB CM-MSS.33S (SKU: 1SVR730712R2200) is a thermistor (PTC) motor protection relay from the CM-MSS series, designed to safeguard electric motors against overtemperature damage by monitoring embedded PTC thermistor sensors. The CM-MSS.33S features a dual changeover (2C/O) output contact configuration and accepts a wide supply voltage range of 110–130V AC and 220–240V AC, making it suitable for diverse international control panel applications. With global certifications including ATEX, CE, UKCA, cULus, CCC, and DNV GL, this relay is engineered for demanding industrial and hazardous area environments.

Certifications & Standards

  • ATEX (Directive 94/9/EC): Approved for use in explosive atmospheres and hazardous area installations
  • CE: Conforms to applicable European Union directives
  • UKCA: Meets United Kingdom Conformity Assessed requirements for the UK market
  • cULus (UL 508): Listed to UL 508 industrial control equipment standard for North American markets
  • CCC: China Compulsory Certification for the Chinese market
  • CB: International CB Scheme certification for global market access
  • DNV GL: Certified for marine and offshore applications
  • CAN/CSA C22.2 No. 14: Canadian Standards Association approval for industrial control equipment
  • EN 50495: Safety devices for use in potentially explosive atmospheres
  • IEC/EN 63000: Technical documentation for assessment of electrical and electronic products regarding restricted substances
  • IEC/EN 60079-7: Explosive atmospheres — equipment protection by increased safety
  • IEC/EN 60947-5-1: Low-voltage switchgear and controlgear — control circuit devices and switching elements
  • IEC/EN 60947-8: Control units for built-in thermal protection (PTC) for rotating electrical machines
  • UL 508: Standard for industrial control equipment
  • IEC 60715: Dimensions of low-voltage switchgear and controlgear — standardized mounting on rails
  • REACH: Compliant with EU REACH regulation on chemical substances
  • RoHS: Compliant with EU Restriction of Hazardous Substances directive
  • CSA C22.2 / CSA: Canadian Standards Association certified for industrial applications

Applications & Use Cases

  • Motor overtemperature protection in industrial drives and automation systems
  • Hazardous area motor protection where ATEX compliance is mandatory
  • Marine and offshore motor control panels (DNV GL certified)
  • Control cabinet integration for motors equipped with embedded PTC thermistor sensors
  • International installations requiring multi-voltage supply compatibility (110–130V / 220–240V AC)
Specification

Full specification

68 values · Last verified 30 Oct 2026

Dimensions 4

Product Net Width 22.5 mm
Product Net Height 85.6 mm
Product Net Depth / Length 103.7 mm
Product Net Weight 0.172 kg

Technical 26

Function 1 sensor circuit, Short-circuit detection, Dynamic interrupted wire detection, Auto, manual or remote reset, ATEX approved
Rated Control Supply Voltage (Us) 110 ... 130 V AC, 220 ... 240 V AC
Rated Operational Voltage Auxiliary Circuit 250 V AC
Rated Frequency (f) Supply Circuit 50/60 Hz
Output 2 C/O Contacts
Terminal Type Screw Terminals
Rated Operational Current AC-12 (Ie) (230 V) 4 A
Rated Operational Current AC-15 (Ie) (230 V) 3 A
Rated Operational Current DC-12 (Ie) (24 V) 4 A
Rated Operational Current DC-13 (Ie) (24 V) 2 A
Minimum Switching Capacity 24 V, 10 mA
Rated Impulse Withstand Voltage (Uimp) Output Circuit 1 / Output Circuit 2 4 kV, Output Circuit 4 kV
Rated Insulation Voltage (Ui) Measuring Circuit / Output Circuit 300 V, Output Circuit 1 / Output Circuit 2 300 V, Supply Circuit / Measuring Circuit 300 V, Supply Circuit / Output Circuit 300 V
Degree of Protection Housing IP50, Terminals IP20
Overvoltage Category III
Pollution Degree 3
Short-Circuit Protective Devices Output Circuit NC - F Type Fuses 10 A, Output Circuit NO - F Type Fuses 10 A
Electrical Durability AC-12 100000 cycle
Mechanical Durability Nr. Operations 30000000 cycle
Connecting Capacity Flexible 1x 0.5 ... 2.5 mm², Flexible 2x 0.5 ... 1.5 mm², Rigid 1x 0.5 ... 4 mm², Rigid 2x 0.5 ... 2.5 mm²
Tightening Torque 0.6 ... 0.8 N·m
Wire Stripping Length 8 mm
Recommended Screw Driver 0.8 x 4, 4.5, Pozidriv 1
Mounting Position 1 ... 6
Mounting on DIN Rail TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715, TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Standards CAN/CSA C22.2 No.14, EN 50495, IEC/EN 63000, IEC/EN 60079-7, IEC/EN 60947-5-1, IEC/EN 60947-8, UL 508

Technical UL/CSA 6

Maximum Operating Voltage UL/CSA Output Circuit 300 V AC
Contact Rating UL/CSA B300
Connecting Capacity UL/CSA Flexible 1x 18-14 AWG, Flexible 2x 18-16 AWG, Rigid 1x 20-12 AWG, Rigid 2x 20-14 AWG
Tightening Torque UL/CSA 7.08 in·lb
Pilot Duty UL/CSA B300
Flammability According to UL94 V-0
Show all 68 specifications ↓ Show less ↑32 more values in Identification, Environmental, Material Compliance, External Classifications and Standards, Logistics.

Identification 10

Part number 1SVR730712R2200
Type designation CM-MSS.33S
Brand ABB
Condition New, factory sealed
Source ABB and its authorised distributors
Warranty Manufacturer warranty
EAN 4013614496646
eCl@ss 27371503
Minimum Order Quantity 1 piece
Customs Tariff Number 85364900

Environmental 2

Ambient Air Temperature Operation -25 ... +60 °C, Storage -40 ... +85 °C
Maximum Operating Altitude Permissible Without Derating 2000 m

Material Compliance 6

REACH Declaration 1SVD981001-4501
RoHS Declaration 1SVD981001-4401
RoHS Information Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP 9da287c7-ccf1-4ea8-a63d-caa3ac9450f3 Germany
Simplified SCIP 046c0cde-8cd9-4f3e-88f4-f7c1a62be706 Poland, 22eb63b2-2283-4cf1-a617-8cd99b0017b1 Germany, 37c621de-8d68-4a14-9432-cee4cb1ffd3c Spain, 38fac2e2-60f1-423e-9b5e-f34ce5641939 Hungary, 3e6569f8-c105-440c-a03e-7a6e613873d2 Poland, 3f05788e-739b-422c-8a7a-f5ea808c454a Italy, 4963e341-6e65-406a-866e-1e1b0d272545 Sweden, 4bec622e-b463-4add-812a-052deb519889 Estonia, 4c09a941-fa1f-442e-acd4-28247ad76270 Czechia, 54bff939-f3a3-4505-b5b8-1685ffaf7f82 Denmark, 592a6898-3e1d-4cc2-bd2d-206b74cfbd24 Germany, 622f612a-727b-469a-9f75-82bbaba7f1d4 Germany, 630a1f56-8892-4970-a01e-4adfad6d20ba Belgium, 65489c13-64ce-4721-9541-28ee09e6f9ca Portugal, 66d2e50e-3607-48bf-bae5-7d4a2a31a67d Poland, 7b2a91ca-81aa-4893-8a99-da5d17e2b04d Hungary, 81c52bf4-783b-4e45-b39b-4271079c8845 Norway, b62de57e-645d-4b39-b3b4-61c66634ecd4 France, b70a3d32-0b01-4f7b-9597-125962c4bf97 Croatia, b87d66f8-3cf0-49b0-a1e1-23ea30a2514f Sweden, cf1b565e-cde0-4ece-9d98-8450e6283c8d France, d060e5ba-985e-42b5-8127-6ed1c9140a46 Germany, d27c9c18-29a3-4fa5-ba41-c2d7700b978d Belgium, d3f13ae0-919c-483a-aafc-cba5ef2df923 Finland, e9012ab8-2d8a-40ca-b0c7-e1e582531457 Greece, fa43dc96-fd06-4aba-b8df-24e5d9aa0b03 Bulgaria, fe6d375c-53b2-4a06-b123-5c58a4c22e66 Netherlands
Toxic Substances Control Act - TSCA 2CMT2023-006536

External Classifications and Standards 4

ETIM 7 EC002568 - Relay for thermistor protection (PTC)
eClass V11.0 : 27371503
UNSPSC 39122331
E-Number (Sweden) 3860736

Logistics 10

Package Level 1 Units box 1 piece
Package Level 1 Width 97 mm
Package Level 1 Depth / Length 30 mm
Package Level 1 Height 109 mm
Package Level 1 Gross Weight 0.199 kg
Package Level 1 EAN 4013614496646
Shipping weight 0.199 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for 1SVR730712R2200

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • CE
  • ATEX
  • CAN/CSA C22.2 No.14
  • EN 50495
  • IEC/EN 63000
  • IEC/EN 60079-7
  • IEC/EN 60947-5-1
  • IEC/EN 60947-8
  • UL 508
Quick answers

Questions about the CM-MSS.33S

What is the HS code of CM-MSS.33S for customs?

The tariff (HS) code on file for CM-MSS.33S is 85364900.

What is the EAN of CM-MSS.33S?

The EAN (GTIN) of CM-MSS.33S is 4013614496646.

Where does CM-MSS.33S ship from, and how fast?

CM-MSS.33S ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
