Part number
1SVR730712R1200
Model no
CM-MSS.41S
$117.99 Low stock Dispatch Planned dispatch date. We aim to ship within 1 business day. Depending on warehouse workload it can take 2–3 business days. · From Türkiye
CM-MSS

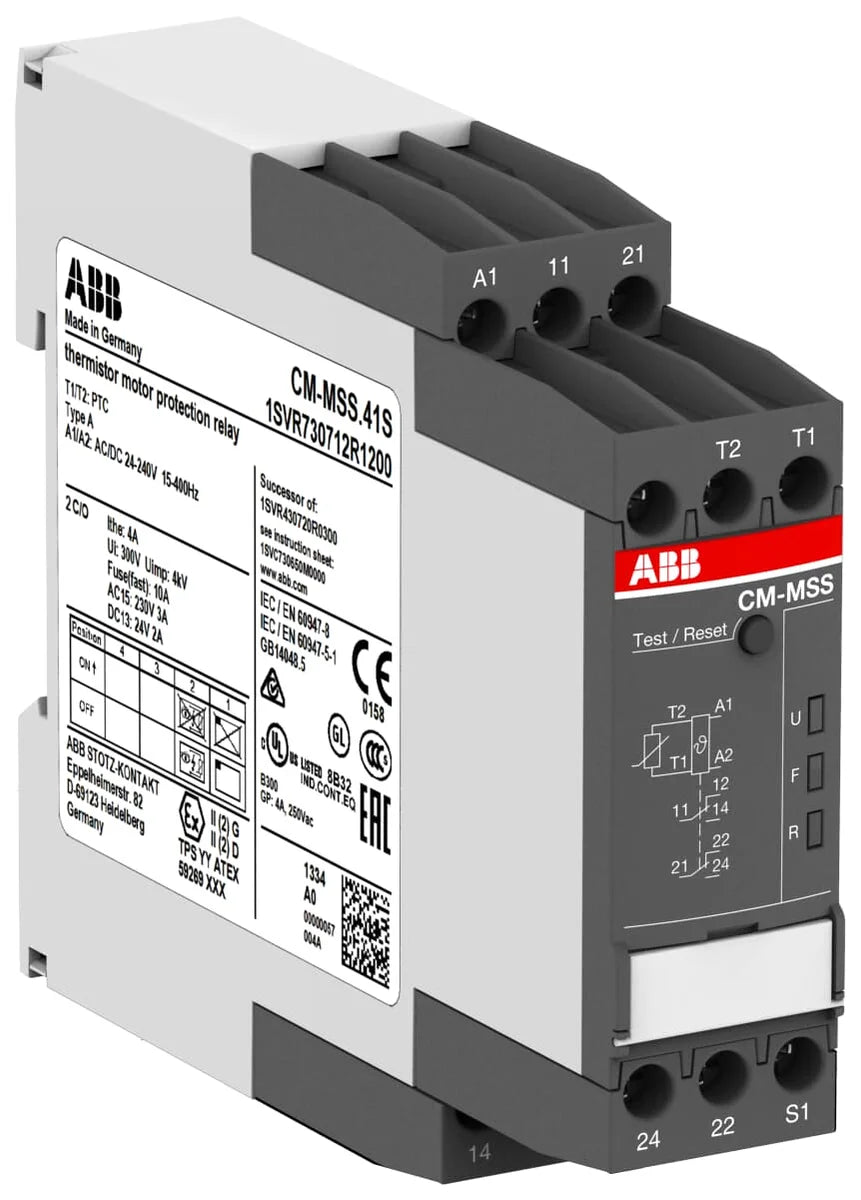

ABB 1SVR730712R1200 CM-MSS.41S Thermistor Motor Protection Relay 2 C/O 24-240V AC/DC PTC Relay

Product Net Width
22.5 mm
Product Net Height
85.6 mm
Product Net Depth / Length
103.7 mm
Product Net Weight
0.141 kg
EAN
4013614496677
Description

About the CM-MSS.41S

The ABB CM-MSS.41S (SKU: 1SVR730712R1200) is a relay for thermistor protection (PTC) designed to safeguard electric motors from overtemperature damage in industrial automation and control panel applications. Part of the CM-MSS series, the CM-MSS.41S features a 2 C/O (DPDT) output contact configuration and accepts a wide supply voltage range of 24–240V AC/DC, making it highly versatile for global installations. Weighing just 167 g and measuring 97 × 30 × 109 mm, it is engineered for compact DIN-rail mounting in demanding environments.

Certifications & Standards

  • ATEX (Directive 94/9/EC): Approved for use in explosive atmospheres per European ATEX directive
  • UKCA: UK Conformity Assessed — meets Great Britain market requirements
  • DNV GL: Certified for marine and offshore applications
  • CAN/CSA C22.2 No.14: Canadian Standards Association industrial control equipment standard
  • EN 50495: Safety devices for explosion protection
  • IEC/EN 63000: Technical documentation for RoHS compliance assessment
  • IEC/EN 60079-7: Explosion-proof increased safety equipment
  • IEC/EN 60947-5-1: Low-voltage switchgear — control circuit devices and switching elements
  • IEC/EN 60947-8: Control units for built-in thermal protection (PTC) of rotating electrical machines
  • UL 508: Industrial control equipment — UL standard for safety
  • IEC 60715: DIN rail mounting dimensions for low-voltage switchgear
  • EN 60079: Electrical apparatus for explosive gas atmospheres
  • EN 60947-5 / EN 60947: Low-voltage switchgear and controlgear standards
  • CSA C22.2 / CSA: Canadian Standards Association product certification
  • REACH: EU regulation on chemical substances compliance
  • RoHS: Restriction of hazardous substances in electrical and electronic equipment
  • CCC: China Compulsory Certification for the Chinese market
  • cULus: Dual US and Canadian UL safety certification
  • CE: European conformity marking

Applications & Use Cases

  • Motor overtemperature protection using PTC thermistor sensors embedded in motor windings
  • Protection of pumps, compressors, fans, and conveyors in industrial automation
  • Safe integration into ATEX-rated and potentially explosive environments
  • Marine and offshore motor protection systems (DNV GL certified)
  • Control panels requiring compact DIN-rail mounted protection relays
  • Multi-voltage installations across global facilities (24–240V AC/DC universally)
Specification

Full specification

66 values · Last verified 30 Oct 2026

Dimensions 4

Product Net Width 22.5 mm
Product Net Height 85.6 mm
Product Net Depth / Length 103.7 mm
Product Net Weight 0.141 kg

Technical 26

Function 1 sensor circuit, Auto, manual or remote reset, ATEX approved, Dynamic interrupted wire detection, Short-circuit detection, configurable, Non-volatile fault storage, configurable
Rated Control Supply Voltage (Us) 24 ... 240 V AC/DC
Rated Operational Voltage Auxiliary Circuit 250 V AC
Rated Frequency (f) Supply Circuit 15 ... 400 Hz
Output 2 C/O Contacts
Terminal Type Screw Terminals
Rated Operational Current AC-12 (Ie) (230 V) 4 A
Rated Operational Current AC-15 (Ie) (230 V) 3 A
Rated Operational Current DC-12 (Ie) (24 V) 4 A
Rated Operational Current DC-13 (Ie) (24 V) 2 A
Minimum Switching Capacity 24 V, 10 mA
Rated Impulse Withstand Voltage (Uimp) Output Circuit 1 / Output Circuit 2 4 kV, Output Circuit 4 kV
Rated Insulation Voltage (Ui) Measuring Circuit / Output Circuit 300 V, Output Circuit 1 / Output Circuit 2 300 V, Supply Circuit / Measuring Circuit 300 V, Supply Circuit / Output Circuit 300 V
Degree of Protection Housing IP50, Terminals IP20
Overvoltage Category III
Pollution Degree 3
Short-Circuit Protective Devices Output Circuit NC - F Type Fuses 10 A, Output Circuit NO - F Type Fuses 10 A
Electrical Durability AC-12 100000 cycle
Mechanical Durability Nr. Operations 30000000 cycle
Connecting Capacity Flexible 1x 0.5 ... 2.5 mm², Flexible 2x 0.5 ... 1.5 mm², Rigid 1x 0.5 ... 4 mm², Rigid 2x 0.5 ... 2.5 mm²
Tightening Torque 0.6 ... 0.8 N·m
Wire Stripping Length 8 mm
Recommended Screw Driver 4.5, 0.8 x 4, Pozidriv 1
Mounting Position 1 ... 6
Mounting on DIN Rail TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715, TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
Standards CAN/CSA C22.2 No.14, EN 50495, IEC/EN 63000, IEC/EN 60079-7, IEC/EN 60947-5-1, IEC/EN 60947-8, UL 508

Technical UL/CSA 6

Maximum Operating Voltage UL/CSA Output Circuit 300 V AC
Contact Rating UL/CSA B300
Connecting Capacity UL/CSA Flexible 1x 18-14 AWG, Flexible 2x 18-16 AWG, Rigid 2x 20-14 AWG, Rigid 1x 20-12 AWG
Tightening Torque UL/CSA 7.08 in·lb
Pilot Duty UL/CSA B300
Flammability According to UL94 V-0
Show all 66 specifications ↓ Show less ↑30 more values in Identification, Environmental, Material Compliance, External Classifications and Standards, Logistics.

Identification 10

Part number 1SVR730712R1200
Type designation CM-MSS.41S
Brand ABB
Condition New, factory sealed
Source ABB and its authorised distributors
Warranty Manufacturer warranty
EAN 4013614496677
eCl@ss 27371503
Minimum Order Quantity 1 piece
Customs Tariff Number 85364900

Environmental 2

Ambient Air Temperature Operation -25 ... +60 °C, Storage -40 ... +85 °C
Maximum Operating Altitude Permissible Without Derating 2000 m

Material Compliance 4

REACH Declaration 1SVD981001-4501
RoHS Declaration 1SVD981001-4401
RoHS Information Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA 2CMT2023-006536

External Classifications and Standards 4

ETIM 7 EC002568 - Relay for thermistor protection (PTC)
eClass V11.0 : 27371503
UNSPSC 39122331
E-Number (Sweden) 3860738

Logistics 10

Package Level 1 Units box 1 piece
Package Level 1 Width 97 mm
Package Level 1 Depth / Length 30 mm
Package Level 1 Height 109 mm
Package Level 1 Gross Weight 0.167 kg
Package Level 1 EAN 4013614496677
Shipping weight 0.167 kg
Ships from Türkiye
Dispatch 18 Nov
Stock Low stock

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for 1SVR730712R1200

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • CE
  • ATEX
  • CAN/CSA C22.2 No.14
  • EN 50495
  • IEC/EN 63000
  • IEC/EN 60079-7
  • IEC/EN 60947-5-1
  • IEC/EN 60947-8
  • UL 508
Quick answers

Questions about the CM-MSS.41S

What is the HS code of CM-MSS.41S for customs?

The tariff (HS) code on file for CM-MSS.41S is 85364900.

What is the EAN of CM-MSS.41S?

The EAN (GTIN) of CM-MSS.41S is 4013614496677.

Where does CM-MSS.41S ship from, and how fast?

CM-MSS.41S ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
