Part number
1SVR730700R2200
Model no
CM-MSS.23S
$66.87 Critical stock Dispatch Planned dispatch date. We aim to ship within 1 business day. Depending on warehouse workload it can take 2–3 business days. · From Türkiye
CM-MSS

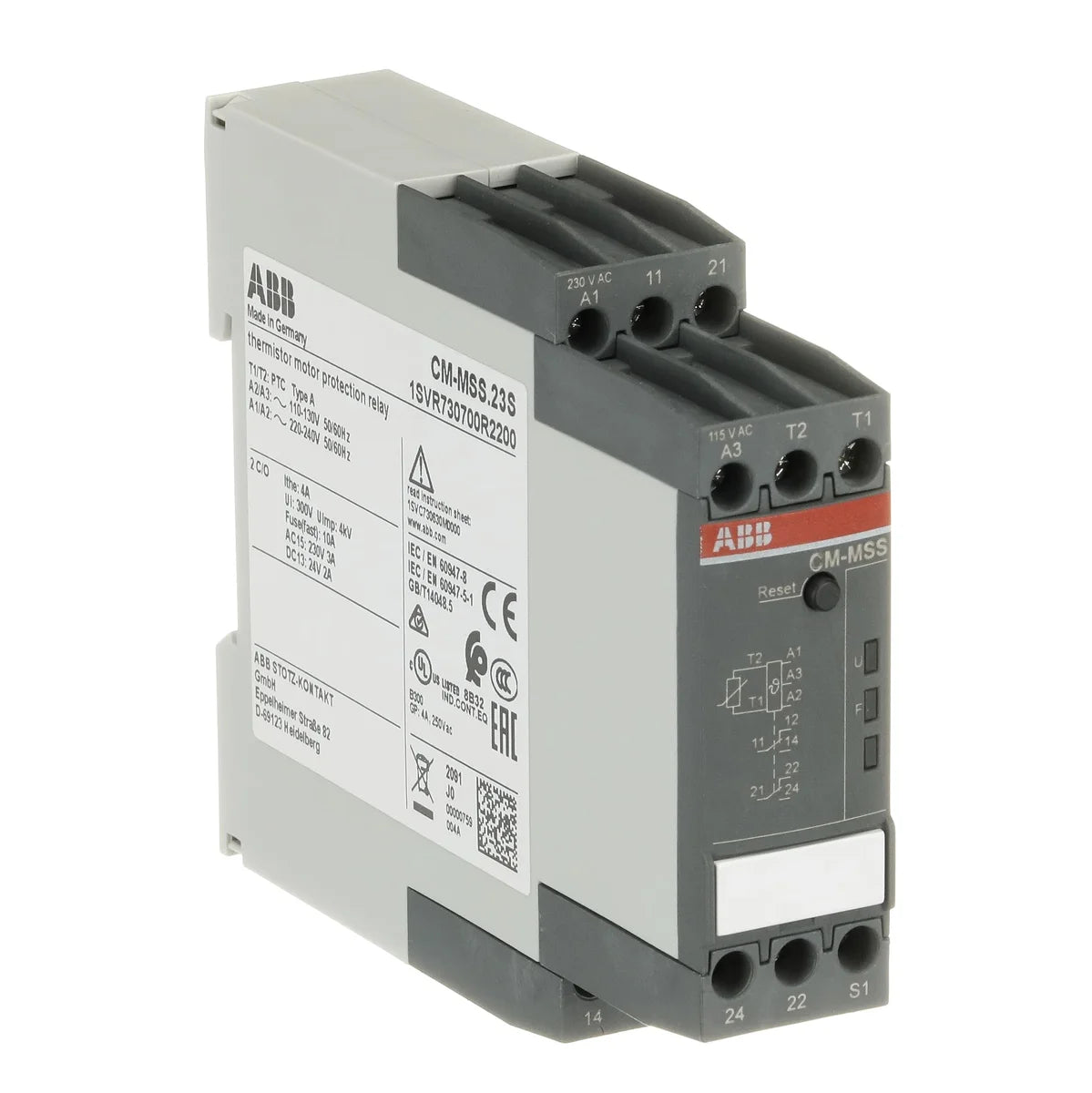

ABB 1SVR730700R2200 CM-MSS.23S Thermistor Motor Protection Relay 2 C/O 110-130V / 220-240V AC PTC

Product Net Width
22.5 mm
Product Net Height
85.6 mm
Product Net Depth / Length
103.7 mm
Product Net Weight
0.174 kg
EAN
4013614496691
Description

About the CM-MSS.23S

The ABB CM-MSS.23S (SKU: 1SVR730700R2200) is a thermistor-based motor protection relay designed to safeguard electric motors against overtemperature by continuously monitoring PTC thermistor resistance embedded in motor windings. Part of the trusted CM-MSS series, the CM-MSS.23S provides a 2 change-over (2 C/O) output contact configuration and accepts a wide supply voltage range of 110–130 V AC or 220–240 V AC, making it suitable for global industrial installations and control panel applications.

Certifications & Standards

  • CE: Conformity with European Union safety, health, and environmental requirements
  • UKCA: UK Conformity Assessed — meets Great Britain market regulations post-Brexit
  • cULus: Certified to both Canadian (cUL) and US (UL) safety standards
  • CCC: China Compulsory Certification for the Chinese market
  • DNV GL: Marine and offshore type approval by DNV GL classification society
  • CAN/CSA C22.2 No.14: Canadian standard for industrial control equipment
  • IEC/EN 63000: Technical documentation for electrical and electronic equipment (RoHS)
  • IEC/EN 60947-5-1: Low-voltage switchgear — control circuit devices and switching elements
  • IEC/EN 60947-8: Control units for built-in thermal protection of rotating electrical machines
  • UL 508: Standard for industrial control equipment (USA)
  • CSA C22.2 No.14: Industrial control equipment per CSA Group standard
  • REACH: Compliant with EU regulation on registration, evaluation, authorisation and restriction of chemicals
  • RoHS: Restriction of Hazardous Substances — compliant with EU Directive 2011/65/EU

Applications & Use Cases

  • Overtemperature protection of AC and DC motors via embedded PTC thermistors
  • Motor protection in industrial automation and control panel environments
  • Marine and offshore motor protection (DNV GL approved)
  • HVAC fan and pump motor protection in building automation systems
  • Compressor and conveyor drive motor protection in manufacturing
Specification

Full specification

68 values · Last verified 30 Oct 2026

Dimensions 4

Product Net Width 22.5 mm
Product Net Height 85.6 mm
Product Net Depth / Length 103.7 mm
Product Net Weight 0.174 kg

Technical 26

Function 1 sensor circuit, Auto, manual or remote reset
Rated Control Supply Voltage (Us) 110 ... 130 V AC, 220 ... 240 V AC
Rated Operational Voltage Auxiliary Circuit 250 V AC
Rated Frequency (f) Supply Circuit 50/60 Hz
Output 2 C/O Contacts
Terminal Type Screw Terminals
Rated Operational Current AC-12 (Ie) (230 V) 4 A
Rated Operational Current AC-15 (Ie) (230 V) 3 A
Rated Operational Current DC-12 (Ie) (24 V) 4 A
Rated Operational Current DC-13 (Ie) (24 V) 2 A
Minimum Switching Capacity 24 V, 10 mA
Rated Impulse Withstand Voltage (Uimp) Output Circuit 1 / Output Circuit 2 4 kV, Output Circuit 4 kV
Rated Insulation Voltage (Ui) Measuring Circuit / Output Circuit 300 V, Output Circuit 1 / Output Circuit 2 300 V, Supply Circuit / Measuring Circuit 300 V, Supply Circuit / Output Circuit 300 V
Degree of Protection Housing IP50, Terminals IP20
Overvoltage Category III
Pollution Degree 3
Short-Circuit Protective Devices Output Circuit NC - F Type Fuses 10 A, Output Circuit NO - F Type Fuses 10 A
Electrical Durability AC-12 100000 cycle
Mechanical Durability Nr. Operations 30000000 cycle
Connecting Capacity Flexible 1x 0.5 ... 2.5 mm², Flexible 2x 0.5 ... 1.5 mm², Rigid 1x 0.5 ... 4 mm², Rigid 2x 0.5 ... 2.5 mm²
Tightening Torque 0.6 ... 0.8 N·m, Auxiliary Circuit 1 ... 1.2 N·m, Main Circuit 2.5 ... 2.7 N·m
Wire Stripping Length 8 mm, Auxiliary Circuit 9 mm, Main Circuit 12 mm
Recommended Screw Driver 0.8 x 4, 4.5, Pozidriv 1
Mounting Position 1 ... 6
Mounting on DIN Rail TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715, TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Standards CAN/CSA C22.2 No.14, IEC/EN 63000, IEC/EN 60947-5-1, IEC/EN 60947-8, UL 508

Technical UL/CSA 8

Maximum Operating Voltage UL/CSA Output Circuit 300 V AC
Contact Rating UL/CSA (NC:) Q600, (NO:) Q600, (NC:) B600, (NO:) D300, B300
Connecting Capacity UL/CSA Flexible 1x 18-14 AWG, Flexible 2x 18-16 AWG, Rigid 1x 20-12 AWG, Rigid 2x 20-14 AWG
Tightening Torque UL/CSA 7.08 in·lb
Connecting Capacity Main Circuit UL/CSA Flexible 1/2x 18-10 AWG
Connecting Capacity Auxiliary Circuit UL/CSA Flexible 1/2x 18-12 AWG
Pilot Duty UL/CSA B300, NC B600, NC Q600, NO D300, NO Q600
Flammability According to UL94 V-0
Show all 68 specifications ↓ Show less ↑30 more values in Identification, Environmental, Material Compliance, External Classifications and Standards, Logistics.

Identification 10

Part number 1SVR730700R2200
Type designation CM-MSS.23S
Brand ABB
Condition New, factory sealed
Source ABB and its authorised distributors
Warranty Manufacturer warranty
EAN 4013614496691
eCl@ss 27371503
Minimum Order Quantity 1 piece
Customs Tariff Number 85364900

Environmental 2

Ambient Air Temperature Operation -25 ... +60 °C, Storage -40 ... +85 °C
Maximum Operating Altitude Permissible Without Derating 2000 m

Material Compliance 4

REACH Declaration 1SVD981001-4501
RoHS Declaration 1SVD981001-4401
RoHS Information Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA 2CMT2023-006536

External Classifications and Standards 4

ETIM 7 EC002568 - Relay for thermistor protection (PTC)
eClass V11.0 : 27371503
UNSPSC 39122331
E-Number (Sweden) 3860726

Logistics 10

Package Level 1 Units box 1 piece
Package Level 1 Width 97 mm
Package Level 1 Depth / Length 30 mm
Package Level 1 Height 109 mm
Package Level 1 Gross Weight 0.197 kg
Package Level 1 EAN 4013614496691
Shipping weight 0.197 kg
Ships from Türkiye
Dispatch 18 Nov
Stock Critical stock

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for 1SVR730700R2200

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • CE
  • RoHS
  • UKCA
  • CCC
  • CAN/CSA C22.2 No.14
  • IEC/EN 63000
  • IEC/EN 60947-5-1
  • IEC/EN 60947-8
  • UL 508
Quick answers

Questions about the CM-MSS.23S

What is the HS code of CM-MSS.23S for customs?

The tariff (HS) code on file for CM-MSS.23S is 85364900.

What is the EAN of CM-MSS.23S?

The EAN (GTIN) of CM-MSS.23S is 4013614496691.

Where does CM-MSS.23S ship from, and how fast?

CM-MSS.23S ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
