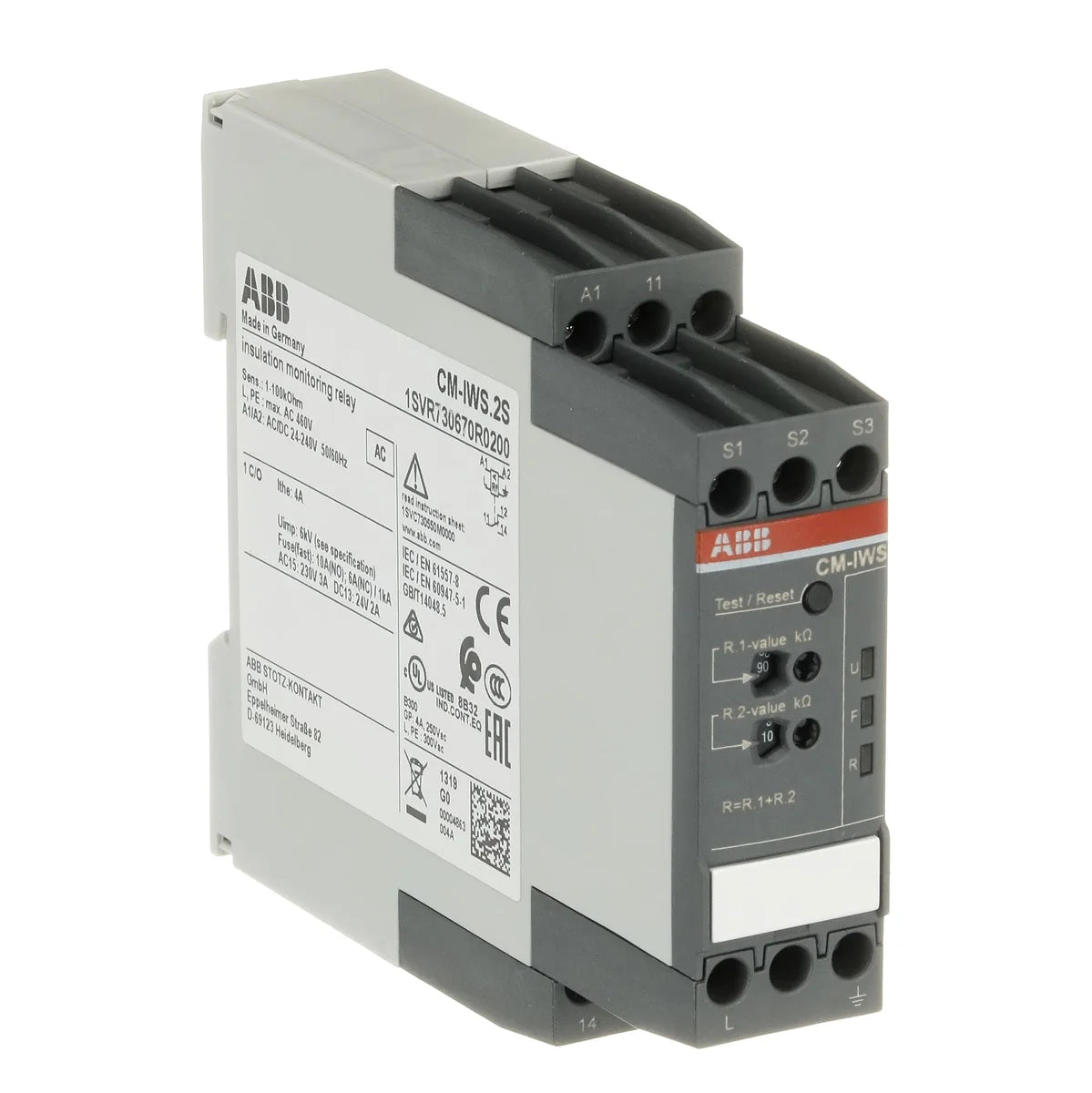

CM-IWSABB 1SVR730670R0200 CM-IWS.2S Insulation and Earth Fault Monitoring Relay 1 C/O 1-100kΩ 24-240VAC/DC
Description
About the CM-IWS.2S
About the CM-IWS.2S
The ABB CM-IWS.2S insulation and earth fault monitoring relay (SKU: 1SVR730670R0200) continuously monitors the insulation resistance of unearthed AC, DC, and mixed electrical systems, providing a single changeover (1 C/O) output contact when insulation resistance falls below the set threshold. Designed for control panels and industrial automation environments, the CM-IWS.2S supports a wide monitoring range of 1–100 kΩ and operates across a broad supply voltage range of 24–240V AC/DC, making it suitable for diverse global applications.
Certifications & Standards
- IEC 61557-8: Insulation fault location in IT systems
- IEC/EN 61557-1: General requirements for measuring and monitoring devices
- IEC/EN 61557-8: Insulation monitoring devices for IT systems
- IEC/EN 63000: Technical documentation for the assessment of electrical and electronic products with respect to the restriction of hazardous substances
- IEC/EN 61326-2-4: EMC requirements for equipment used in industrial locations
- EN 63000: European harmonised standard for RoHS technical documentation
- EN 61326-2: EMC requirements — particular requirements
- EN 61557-1: Measuring and monitoring devices — general requirements
- EN 61557-8: Insulation monitoring devices for IT systems
- UL 508: Industrial control equipment (USA)
- CAN/CSA C22.2 No.14: Industrial control equipment (Canada)
- CSA: Canadian Standards Association certification
- cULus: Combined UL and CSA mark for North American markets
- CE: European conformity marking
- UKCA: UK Conformity Assessed marking for the British market
- CCC: China Compulsory Certification
- REACH: EU regulation on chemicals — compliance confirmed
- RoHS: Restriction of Hazardous Substances — compliant
Applications & Use Cases
- Continuous insulation resistance monitoring in unearthed IT power systems
- Earth fault detection in industrial control panels and switchgear
- Protection of machines, motors, and generators in manufacturing environments
- Building automation systems requiring wide-range voltage monitoring
- Medical, offshore, and critical infrastructure installations demanding high electrical safety
Specification
Full specification
Dimensions 4
| Product Net Width | 22.5 mm |
|---|---|
| Product Net Height | 85.6 mm |
| Product Net Depth / Length | 103.7 mm |
| Product Net Weight | 0.141 kg |
Technical 27
| Function | Unearthed AC systems, Up to 400 V AC |
|---|---|
| Measuring Range | 1 ... 100 kΩ |
| Rated Control Supply Voltage (Us) | 24 ... 240 V AC/DC |
| Rated Frequency (f) | Measuring Circuit DC Hz, Measuring Circuit 15 ... 400 Hz, Supply Circuit 50/60 Hz |
| Output | 1 C/O (SPDT) Contact |
| Terminal Type | Screw Terminals |
| Rated Operational Current AC-12 (Ie) | (230 V) 4 A |
| Rated Operational Current AC-15 (Ie) | (230 V) 3 A |
| Rated Operational Current DC-12 (Ie) | (24 V) 4 A |
| Rated Operational Current DC-13 (Ie) | (24 V) 2 A |
| Minimum Switching Capacity | 24 V, 10 mA |
| Rated Impulse Withstand Voltage (Uimp) | Measuring Circuit / Output Circuit 6 kV, Supply Circuit / Measuring Circuit 6 kV, Supply Circuit / Output Circuit 6 kV |
| Rated Insulation Voltage (Ui) | Measuring Circuit / Output Circuit 400 V, Supply Circuit / Measuring Circuit 400 V, Supply Circuit / Output Circuit 300 V |
| Degree of Protection | Housing IP50, Terminals IP20 |
| Overvoltage Category | III |
| Pollution Degree | 3 |
| Short-Circuit Protective Devices | Output Circuit NC - F Type Fuses 6 A, Output Circuit NO - F Type Fuses 10 A |
| System Leakage Capacitance (CE) | 10 µF |
| Electrical Durability | AC-12 100000 cycle |
| Mechanical Durability | Nr. Operations 30000000 cycle |
| Connecting Capacity | Flexible with Ferrule 1x 0.5 ... 2.5 mm², Flexible with Ferrule 2x 0.5 ... 1.5 mm², Flexible with Insulated Ferrule 1x 0.5 ... 2.5 mm², Flexible with Insulated Ferrule 2x 0.5 ... 1.5 mm², Flexible 1x 0.5 ... 2.5 mm², Flexible 2x 0.5 ... 1.5 mm², Rigid 1x 0.5 ... 4 mm², Rigid 2x 0.5 ... 2.5 mm² |
| Tightening Torque | 0.6 ... 0.8 N·m |
| Wire Stripping Length | 8 mm |
| Recommended Screw Driver | 0.8 x 4 |
| Mounting Position | 1 ... 6 |
| Mounting on DIN Rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715, TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 |
| Standards | CAN/CSA C22.2 No.14, IEC/EN 63000, IEC/EN 61326-2-4, IEC/EN 61557-1, IEC/EN 61557-8, UL 508 |
Technical UL/CSA 6
| Maximum Operating Voltage UL/CSA | Output Circuit 300 V AC |
|---|---|
| Contact Rating UL/CSA | B300 |
| Connecting Capacity UL/CSA | Flexible 1x 18-14 AWG, Flexible 2x 18-16 AWG, Rigid 1x 20-12 AWG, Rigid 2x 20-14 AWG |
| Tightening Torque UL/CSA | 7.08 in·lb |
| Pilot Duty UL/CSA | B300 |
| Flammability According to UL94 | V-0 |
Show all 67 specifications ↓ Show less ↑30 more values in Identification, Environmental, Material Compliance, External Classifications and Standards, Logistics.
Identification 10
| Part number | 1SVR730670R0200 |
|---|---|
| Type designation | CM-IWS.2S |
| Brand | ABB |
| Condition | New, factory sealed |
| Source | ABB and its authorised distributors |
| Warranty | Manufacturer warranty |
| EAN | 4016779852616 |
| eCl@ss | 27371807 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85364900 |
Environmental 2
| Ambient Air Temperature | Operation -25 ... +60 °C, Storage -40 ... +85 °C |
|---|---|
| Maximum Operating Altitude Permissible | Without Derating 2000 m |
Material Compliance 4
| REACH Declaration | 1SVD981001-4501 |
|---|---|
| RoHS Declaration | 1SVD981001-4401 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006536 |
External Classifications and Standards 4
| ETIM 7 | EC001444 - Insulation and earth fault monitoring relay |
|---|---|
| eClass | V11.0 : 27371807 |
| UNSPSC | 39122331 |
| E-Number (Sweden) | 3860656 |
Logistics 10
| Package Level 1 Units | box 1 piece |
|---|---|
| Package Level 1 Width | 97 mm |
| Package Level 1 Depth / Length | 30 mm |
| Package Level 1 Height | 109 mm |
| Package Level 1 Gross Weight | 0.166 kg |
| Package Level 1 EAN | 4016779852616 |
| Shipping weight | 0.166 kg |
| Ships from | Türkiye |
| Dispatch | 12 Nov |
| Stock | Critical stock |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for 1SVR730670R0200
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- CE
- CSA
- RoHS
- UKCA
- CCC
- CAN/CSA C22.2 No.14
- IEC/EN 63000
- IEC/EN 61326-2-4
- IEC/EN 61557-1
- IEC/EN 61557-8
- UL 508
Quick answers
Questions about the CM-IWS.2S
Which supply voltage is CM-IWS.2S rated for?
The rated operational voltage of CM-IWS.2S is 24–240–DC V DC.
What is the HS code of CM-IWS.2S for customs?
The tariff (HS) code on file for CM-IWS.2S is 85364900.
What is the EAN of CM-IWS.2S?
The EAN (GTIN) of CM-IWS.2S is 4016779852616.
Where does CM-IWS.2S ship from, and how fast?
CM-IWS.2S ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
