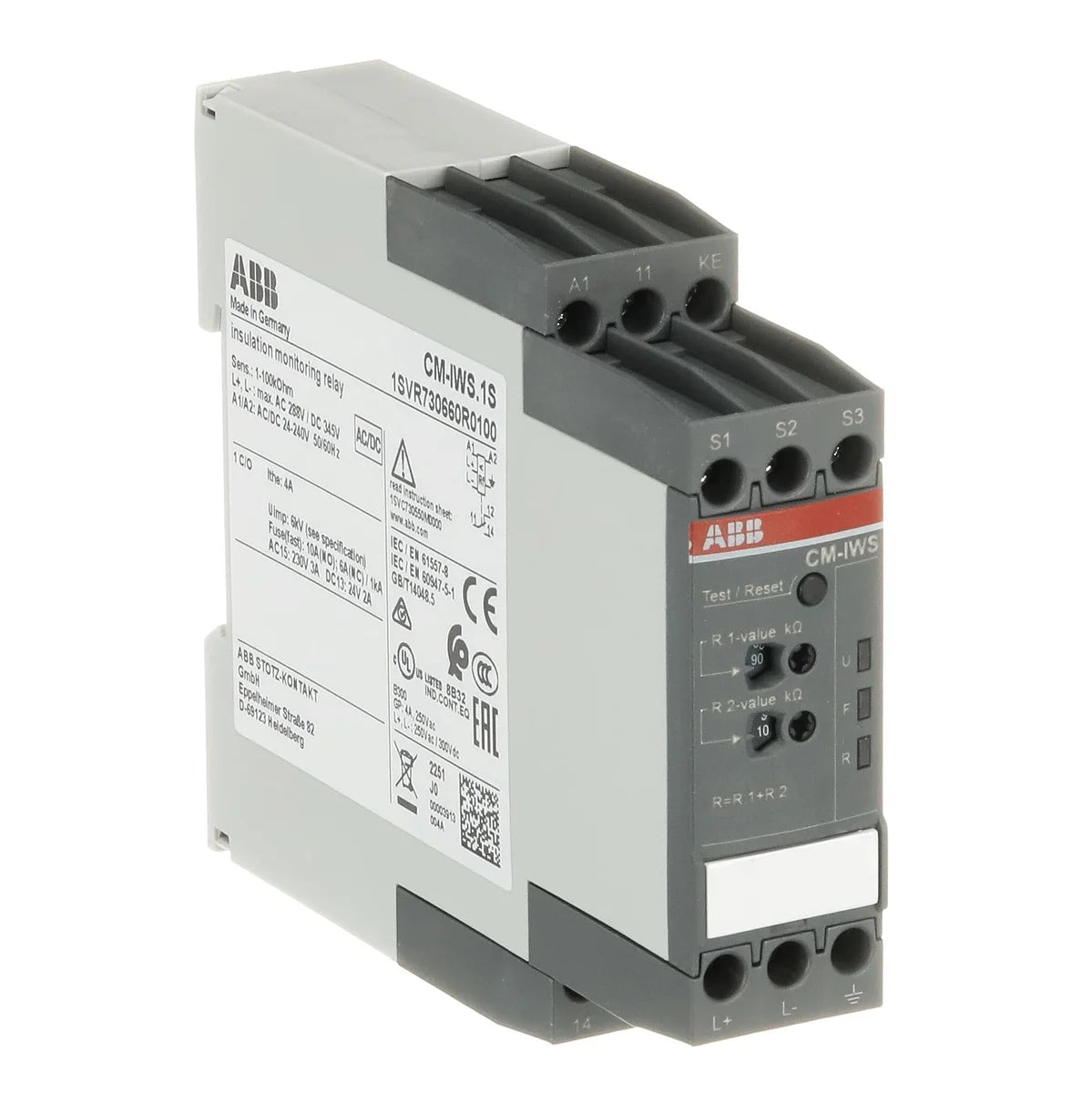

CM-IWSABB 1SVR730660R0100 CM-IWS.1S Insulation and Earth Fault Monitoring Relay 1 C/O 1-100kΩ 24-240VAC/DC
Description
About the CM-IWS.1S
About the CM-IWS.1S
The ABB CM-IWS.1S insulation and earth fault monitoring relay (SKU: 1SVR730660R0100) continuously monitors insulation resistance in ungrounded AC and DC systems, tripping its 1 change-over (C/O) output when resistance falls below a user-selectable threshold between 1 and 100 kΩ. Designed for demanding industrial control panel environments, the CM-IWS.1S operates across a wide supply voltage range of 24–240 V AC/DC, making it a versatile choice for global applications.
Certifications & Standards
- IEC 61557-8: Insulation monitoring devices for IT systems
- IEC/EN 61557-1: General requirements for measuring equipment for electrical safety
- IEC/EN 61557-8: Insulation monitoring devices for IT systems (EN harmonised)
- IEC/EN 61326-2-4: EMC requirements for portable test and measurement equipment
- IEC/EN 63000: Technical documentation for evaluation of electrical and electronic products with respect to hazardous substances
- IEC 60715: Dimensions of low-voltage switchgear and controlgear — DIN rail mounting
- UL 508: Standard for industrial control equipment (USA)
- CAN/CSA C22.2 No.14: Industrial control equipment (Canada)
- cULus: Listed for both US (UL) and Canadian (CSA) markets
- CE: European conformity marking
- UKCA: UK Conformity Assessed marking for Great Britain market
- CCC: China Compulsory Certification
- REACH: EU regulation on chemicals — compliant
- RoHS: Restriction of hazardous substances — compliant
Applications & Use Cases
- Continuous insulation monitoring in ungrounded (IT) AC and DC power systems
- Earth fault detection in industrial machinery and control panels
- Protection of medical, marine, and process plant electrical installations
- Early warning systems preventing unplanned shutdowns due to insulation degradation
- Building automation and infrastructure applications requiring 24–240 V AC/DC flexibility
Specification
Full specification
Dimensions 4
| Product Net Width | 22.5 mm |
|---|---|
| Product Net Height | 85.6 mm |
| Product Net Depth / Length | 103.7 mm |
| Product Net Weight | 0.148 kg |
Technical 27
| Function | Unearthed AC systems, Unearthed DC systems, Unearthed mixed AC / DC systems, Up to 250 V AC, Up to 300 V DC |
|---|---|
| Measuring Range | 1 ... 100 kΩ |
| Rated Control Supply Voltage (Us) | 24 ... 240 V AC/DC |
| Rated Frequency (f) | Measuring Circuit 15 ... 400 Hz |
| Output | 1 C/O (SPDT) Contact |
| Terminal Type | Screw Terminals |
| Rated Operational Current AC-12 (Ie) | (230 V) 4 A |
| Rated Operational Current AC-15 (Ie) | (230 V) 3 A |
| Rated Operational Current DC-12 (Ie) | (24 V) 4 A |
| Rated Operational Current DC-13 (Ie) | (24 V) 2 A |
| Minimum Switching Capacity | 24 V, 10 mA |
| Rated Impulse Withstand Voltage (Uimp) | Measuring Circuit / Output Circuit 6 kV, Supply Circuit / Measuring Circuit 6 kV, Supply Circuit / Output Circuit 6 kV |
| Rated Insulation Voltage (Ui) | Measuring Circuit / Output Circuit 300 V, Supply Circuit / Measuring Circuit 300 V, Supply Circuit / Output Circuit 300 V |
| Degree of Protection | Housing IP50, Terminals IP20 |
| Overvoltage Category | III |
| Pollution Degree | 3 |
| Short-Circuit Protective Devices | Output Circuit NC - F Type Fuses 6 A, Output Circuit NO - F Type Fuses 10 A |
| System Leakage Capacitance (CE) | 10 µF |
| Electrical Durability | AC-12 100000 cycle |
| Mechanical Durability | Nr. Operations 30000000 cycle |
| Connecting Capacity | Flexible with Ferrule 1x 0.5 ... 2.5 mm², Flexible with Ferrule 2x 0.5 ... 1.5 mm², Flexible with Insulated Ferrule 1x 0.5 ... 2.5 mm², Flexible with Insulated Ferrule 2x 0.5 ... 1.5 mm², Flexible 1x 0.5 ... 2.5 mm², Flexible 2x 0.5 ... 1.5 mm², Rigid 1x 0.5 ... 4 mm², Rigid 2x 0.5 ... 2.5 mm² |
| Tightening Torque | 0.6 ... 0.8 N·m |
| Wire Stripping Length | 8 mm |
| Recommended Screw Driver | 0.8 x 4 |
| Mounting Position | 1 ... 6 |
| Mounting on DIN Rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715, TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 |
| Standards | CAN/CSA C22.2 No.14, IEC/EN 63000, IEC/EN 61326-2-4, IEC/EN 61557-1, IEC/EN 61557-8, UL 508 |
Technical UL/CSA 6
| Maximum Operating Voltage UL/CSA | Output Circuit 300 V AC |
|---|---|
| Contact Rating UL/CSA | B300 |
| Connecting Capacity UL/CSA | Flexible 1x 18-14 AWG, Flexible 2x 18-16 AWG, Rigid 1x 20-12 AWG, Rigid 2x 20-14 AWG |
| Tightening Torque UL/CSA | 7.08 in·lb |
| Pilot Duty UL/CSA | B300 |
| Flammability According to UL94 | V-0 |
Show all 67 specifications ↓ Show less ↑30 more values in Identification, Environmental, Material Compliance, External Classifications and Standards, Logistics.
Identification 10
| Part number | 1SVR730660R0100 |
|---|---|
| Type designation | CM-IWS.1S |
| Brand | ABB |
| Condition | New, factory sealed |
| Source | ABB and its authorised distributors |
| Warranty | Manufacturer warranty |
| EAN | 4016779852609 |
| eCl@ss | 27371807 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85364900 |
Environmental 2
| Ambient Air Temperature | Operation -25 ... +60 °C, Storage -40 ... +85 °C |
|---|---|
| Maximum Operating Altitude Permissible | Without Derating 2000 m |
Material Compliance 4
| REACH Declaration | 1SVD981001-4501 |
|---|---|
| RoHS Declaration | 1SVD981001-4401 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006536 |
External Classifications and Standards 4
| ETIM 7 | EC001444 - Insulation and earth fault monitoring relay |
|---|---|
| eClass | V11.0 : 27371807 |
| UNSPSC | 39122331 |
| E-Number (Sweden) | 3860655 |
Logistics 10
| Package Level 1 Units | box 1 piece |
|---|---|
| Package Level 1 Width | 97 mm |
| Package Level 1 Depth / Length | 30 mm |
| Package Level 1 Height | 109 mm |
| Package Level 1 Gross Weight | 0.173 kg |
| Package Level 1 EAN | 4016779852609 |
| Shipping weight | 0.173 kg |
| Ships from | Türkiye |
| Dispatch | 13 Nov |
| Stock | In stock |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for 1SVR730660R0100
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- CE
- RoHS
- UKCA
- CAN/CSA C22.2 No.14
- IEC/EN 63000
- IEC/EN 61326-2-4
- IEC/EN 61557-1
- IEC/EN 61557-8
- UL 508
Quick answers
Questions about the CM-IWS.1S
Which supply voltage is CM-IWS.1S rated for?
The rated operational voltage of CM-IWS.1S is 24–240–DC V DC.
What is the HS code of CM-IWS.1S for customs?
The tariff (HS) code on file for CM-IWS.1S is 85364900.
What is the EAN of CM-IWS.1S?
The EAN (GTIN) of CM-IWS.1S is 4016779852609.
Where does CM-IWS.1S ship from, and how fast?
CM-IWS.1S ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
