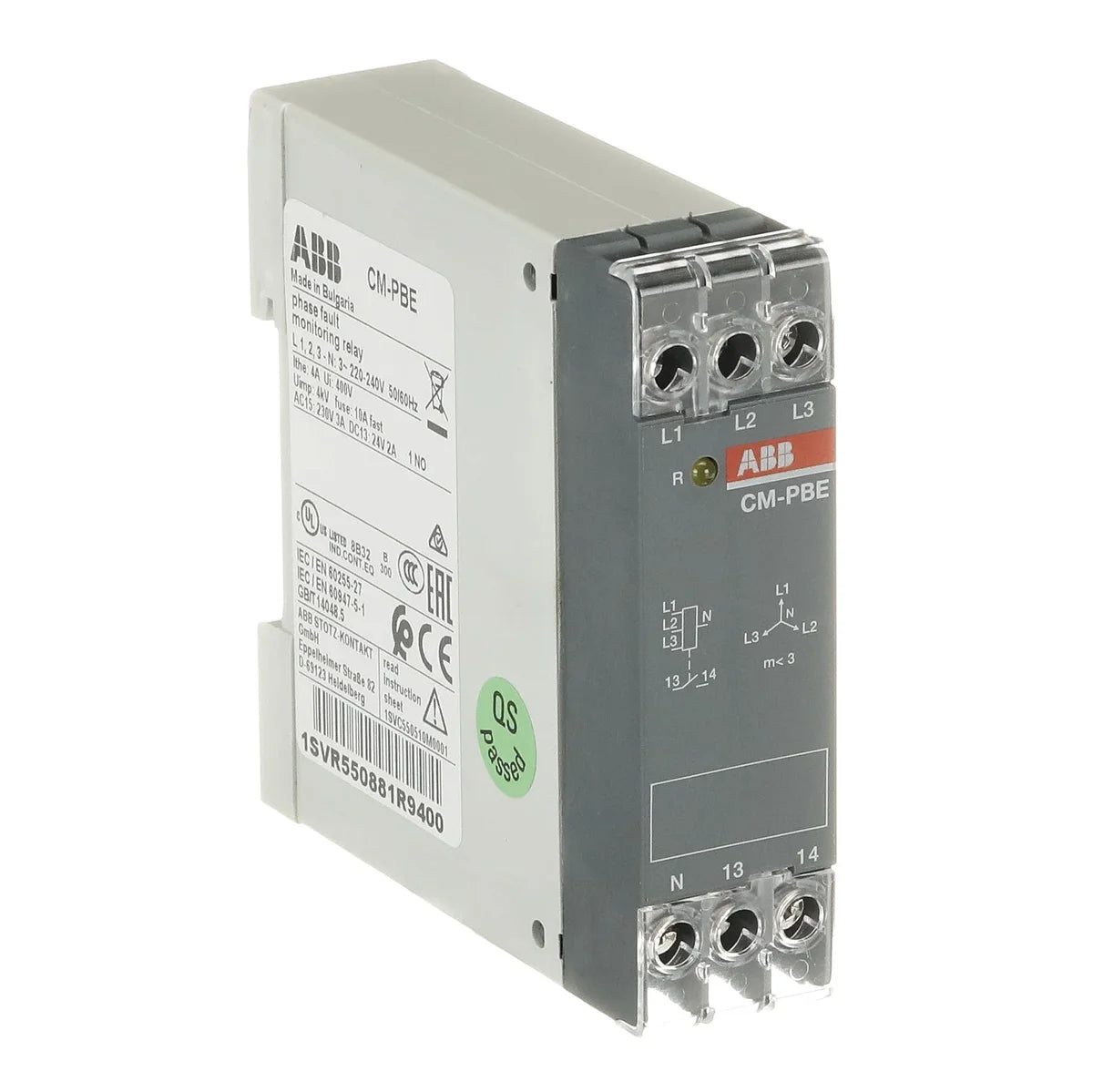

CMABB 1SVR550881R9400 CM-PBE Phase Loss Monitoring Relay 1NO 220-240V AC Phase Monitoring Relay
Description
About the CM-PBE
About the CM-PBE
The ABB CM-PBE phase monitoring relay (SKU: 1SVR550881R9400) is a compact, DIN-rail-mounted phase loss monitoring relay designed to protect three-phase electrical systems against phase loss conditions across L1, L2, and L3 relative to neutral (220–240V AC). Featuring a 1NO output contact, the CM-PBE delivers reliable fault detection for motors, pumps, compressors, and industrial automation equipment, making it an essential component in control panels and motor protection circuits.
Certifications & Standards
- CE: Compliant with European Union CE marking requirements
- CCC: China Compulsory Certification for the Chinese market
- UL 508: Listed per UL 508 standard for industrial control equipment
- cUL: Canadian UL listing for safety compliance
- CSA C22.2 No.14: Certified per Canadian Standards Association industrial control equipment standard
- CSA: CSA certified for Canadian and North American markets
- EU Declaration of Conformity: Full EU DoC issued by ABB
- IEC/EN 63000: Compliant with technical documentation requirements for RoHS
- EN 63000: European harmonised standard for technical documentation
- IEC/EN 61000-6: Electromagnetic compatibility — generic emission and immunity standards
- EN 61000-6: European EMC generic standards for industrial environments
- IEC 60715: Compliant with DIN rail mounting dimensions standard
- REACH: Compliant with EU REACH regulation on chemical substances
- RoHS: Restriction of Hazardous Substances compliant
- UKCA: UK Conformity Assessed marking for the UK market
Applications & Use Cases
- Three-phase motor protection against phase loss in pumps, fans, and compressors
- Industrial control panels requiring phase integrity monitoring
- Automation systems where phase loss could damage connected loads
- Building management and HVAC systems with three-phase supply
- Manufacturing and process control environments requiring reliable phase monitoring relay protection
Specification
Full specification
Dimensions 4
| Product Net Width | 22.5 mm |
|---|---|
| Product Net Height | 78 mm |
| Product Net Depth / Length | 78.5 mm |
| Product Net Weight | 0.066 kg |
Technical 24
| Function | Phase failure detection, Interrupted neutral monitoring |
|---|---|
| Sub-Function | Phase loss |
| Measuring Range | (L-L) 380 ... 440 V AC, (L-N) 220 ... 240 V AC |
| Time Range | Tripping Delay (ON or OFF) 150 ms |
| Rated Control Supply Voltage (Us) | (L-L) 380 ... 440 V AC, (L-N) 220 ... 240 V AC |
| Rated Frequency (f) | Supply Circuit 50/60 Hz |
| Output | 1 N/O Contact |
| Terminal Type | Screw Terminals |
| Rated Operational Current AC-12 (Ie) | (230 V) 4 A |
| Rated Operational Current AC-15 (Ie) | (230 V) 3 A |
| Rated Operational Current DC-12 (Ie) | (24 V) 4 A |
| Rated Operational Current DC-13 (Ie) | (24 V) 2 A |
| Rated Impulse Withstand Voltage (Uimp) | Input Circuit 4 kV |
| Rated Insulation Voltage (Ui) | Input Circuit / Output Circuit 400 V |
| Degree of Protection | Housing IP50, Terminals IP20 |
| Overvoltage Category | III |
| Pollution Degree | 3 |
| Short-Circuit Protective Devices | Output Circuit NC - F Type Fuses 10 A, Output Circuit NO - F Type Fuses 10 A |
| Connecting Capacity | Flexible with Ferrule 2x 0.75 ... 1.5 mm², Flexible 2x 1 ... 1.5 mm², Rigid 2x 0.75 ... 1.5 mm² |
| Tightening Torque | 0.6 ... 0.8 N·m |
| Wire Stripping Length | 10 mm |
| Mounting Position | 1 ... 6 |
| Mounting on DIN Rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715, TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 |
| Standards | CAN/CSA C22.2 No.14, IEC/EN 63000, IEC/EN 61000-6-2, IEC/EN 61000-6-3, UL 508 |
Technical UL/CSA 5
| Maximum Operating Voltage UL/CSA | Output Circuit 250 V AC |
|---|---|
| Contact Rating UL/CSA | B300 |
| Connecting Capacity UL/CSA | Flexible with Ferrule 2x 18-16 AWG, Flexible 2x 18-16 AWG, Rigid 2x 18-16 AWG |
| Tightening Torque UL/CSA | 7.08 in·lb |
| Pilot Duty UL/CSA | B300 |
Show all 64 specifications ↓ Show less ↑31 more values in Identification, Environmental, Material Compliance, External Classifications and Standards, Logistics.
Identification 10
| Part number | 1SVR550881R9400 |
|---|---|
| Type designation | CM-PBE |
| Brand | ABB |
| Condition | New, factory sealed |
| Source | ABB and its authorised distributors |
| Warranty | Manufacturer warranty |
| EAN | 4013614350498 |
| eCl@ss | 27371803 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85364900 |
Environmental 2
| Ambient Air Temperature | Operation -20 ... +60 °C, Storage -40 ... +85 °C |
|---|---|
| Maximum Operating Altitude Permissible | Without Derating 2000 m |
Material Compliance 4
| REACH Declaration | 1SVD981001-4501 |
|---|---|
| RoHS Declaration | 1SVD981001-4401 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006536 |
External Classifications and Standards 4
| ETIM 7 | EC001441 - Phase monitoring relay |
|---|---|
| eClass | V11.0 : 27371803 |
| UNSPSC | 39122332 |
| E-Number (Sweden) | 3860175 |
Logistics 11
| Package Level 1 Units | box 1 piece |
|---|---|
| Package Level 1 Width | 23 mm |
| Package Level 1 Depth / Length | 82 mm |
| Package Level 1 Height | 82 mm |
| Package Level 1 Gross Weight | 0.078 kg |
| Package Level 1 EAN | 4013614350498 |
| Package Level 2 EAN | 4013614580796 |
| Shipping weight | 0.078 kg |
| Ships from | Türkiye |
| Dispatch | 11 Nov |
| Stock | Low stock |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for 1SVR550881R9400
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- CE
- CSA
- RoHS
- UKCA
- CCC
- CAN/CSA C22.2 No.14
- IEC/EN 63000
- IEC/EN 61000-6-2
- IEC/EN 61000-6-3
- UL 508
Quick answers
Questions about the CM-PBE
Which supply voltage is CM-PBE rated for?
The rated operational voltage of CM-PBE is 220–240 V AC.
What is the HS code of CM-PBE for customs?
The tariff (HS) code on file for CM-PBE is 85364900.
What is the EAN of CM-PBE?
The EAN (GTIN) of CM-PBE is 4013614350498.
Where does CM-PBE ship from, and how fast?
CM-PBE ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
