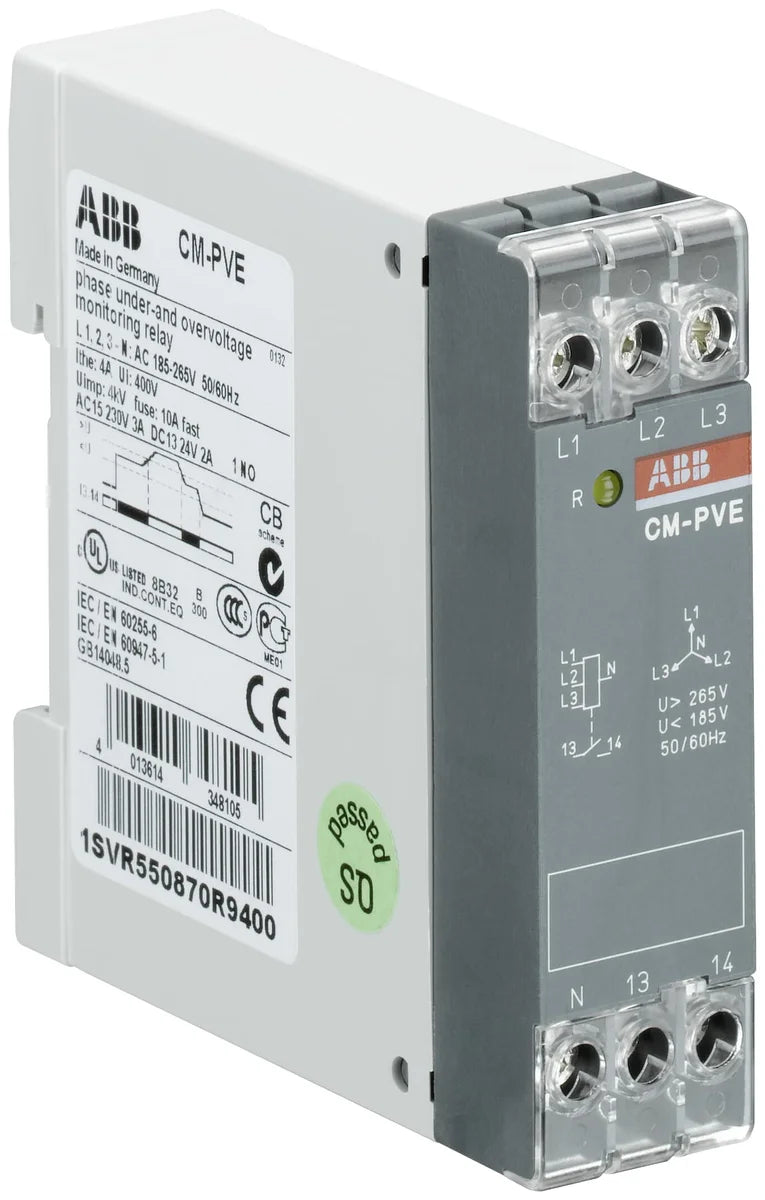

CMABB 1SVR550870R9400 CM-PVE Phase Monitoring Relay 1NO 185-265V AC L1 L2 L3-N
Description
About the CM-PVE
About the CM-PVE
The ABB CM-PVE (SKU: 1SVR550870R9400) is a phase monitoring relay designed to protect three-phase electrical systems by continuously supervising voltage across L1, L2, L3, and N. The CM-PVE operates on a rated voltage of 185–265 V AC and features a 1NO output contact, making it a compact, reliable solution for detecting phase loss, phase asymmetry, and under/over-voltage conditions in industrial control panels and automation systems.
Certifications & Standards
- CE: Compliant with European Union directives for electrical equipment safety and EMC
- UKCA: UK Conformity Assessed marking for Great Britain market access
- UL 508: Listed to UL 508 standard for industrial control equipment (USA)
- cUL: UL certification recognized for Canada
- CAN/CSA C22.2 No.14: Canadian Standards Association certification for industrial control equipment
- CSA C22.2: CSA standard compliance for electrical products in Canada
- CCC: China Compulsory Certification for the Chinese market
- IEC/EN 63000: Technical documentation for RoHS assessment of electrical and electronic equipment
- IEC/EN 61000-6-2: Electromagnetic compatibility — immunity for industrial environments
- IEC/EN 61000-6-3: Electromagnetic compatibility — emission standard for residential and industrial environments
- EN 61000-6: Generic EMC standards for industrial applications
- REACH: Compliant with EU REACH regulation on chemical substances
- RoHS: Restriction of Hazardous Substances compliant
Applications & Use Cases
- Phase loss and phase failure detection in three-phase industrial power systems
- Motor protection in manufacturing plants, pumping stations, and HVAC systems
- Preventing equipment damage from unbalanced or missing phase voltages in control panels
- Integration into building automation and industrial automation control systems
- Safeguarding three-phase loads in compressors, conveyors, and process machinery
Specification
Full specification
Dimensions 4
| Product Net Width | 22.5 mm |
|---|---|
| Product Net Height | 78 mm |
| Product Net Depth / Length | 78.5 mm |
| Product Net Weight | 0.069 kg |
Technical 25
| Function | Phase failure detection, Over- and undervoltage monitoring, Interrupted neutral monitoring |
|---|---|
| Sub-Function | Phase loss |
| Sub-Function 2 | 02 Over- and undervoltage (fixed) |
| Measuring Range | (L-L) 320 ... 460 V AC, (L-N) 185 ... 265 V AC |
| Time Range | Tripping Delay (ON or OFF) 500 ms |
| Rated Control Supply Voltage (Us) | (L-L) 320 ... 460 V AC, (L-N) 185 ... 265 V AC |
| Rated Frequency (f) | Supply Circuit 50/60 Hz |
| Output | 1 N/O Contact |
| Terminal Type | Screw Terminals |
| Rated Operational Current AC-12 (Ie) | (230 V) 4 A |
| Rated Operational Current AC-15 (Ie) | (230 V) 3 A |
| Rated Operational Current DC-12 (Ie) | (24 V) 4 A |
| Rated Operational Current DC-13 (Ie) | (24 V) 2 A |
| Rated Impulse Withstand Voltage (Uimp) | Input Circuit 4 kV |
| Rated Insulation Voltage (Ui) | Input Circuit / Output Circuit 400 V |
| Degree of Protection | Housing IP50, Terminals IP20 |
| Overvoltage Category | III |
| Pollution Degree | 3 |
| Short-Circuit Protective Devices | Output Circuit NC - F Type Fuses 10 A, Output Circuit NO - F Type Fuses 10 A |
| Connecting Capacity | Flexible with Ferrule 2x 0.75 ... 1.5 mm², Flexible 2x 1 ... 1.5 mm², Rigid 2x 0.75 ... 1.5 mm² |
| Tightening Torque | 0.6 ... 0.8 N·m |
| Wire Stripping Length | 10 mm |
| Mounting Position | 1 ... 6 |
| Mounting on DIN Rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715, TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 |
| Standards | CAN/CSA C22.2 No.14, IEC/EN 63000, IEC/EN 61000-6-2, IEC/EN 61000-6-3, UL 508 |
Technical UL/CSA 5
| Maximum Operating Voltage UL/CSA | Output Circuit 250 V AC |
|---|---|
| Contact Rating UL/CSA | B300 |
| Connecting Capacity UL/CSA | Flexible with Ferrule 2x 18-16 AWG, Flexible 2x 18-16 AWG, Rigid 2x 18-16 AWG |
| Tightening Torque UL/CSA | 7.08 in·lb |
| Pilot Duty UL/CSA | B300 |
Show all 67 specifications ↓ Show less ↑33 more values in Identification, Environmental, Material Compliance, External Classifications and Standards, Logistics.
Identification 10
| Part number | 1SVR550870R9400 |
|---|---|
| Type designation | CM-PVE |
| Brand | ABB |
| Condition | New, factory sealed |
| Source | ABB and its authorised distributors |
| Warranty | Manufacturer warranty |
| EAN | 4013614348105 |
| eCl@ss | 27371803 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85364900 |
Environmental 2
| Ambient Air Temperature | Operation -20 ... +60 °C, Storage -40 ... +85 °C |
|---|---|
| Maximum Operating Altitude Permissible | Without Derating 2000 m |
Material Compliance 6
| REACH Declaration | 1SVD981001-4501 |
|---|---|
| RoHS Declaration | 1SVD981001-4401 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | 0029dc96-431d-4c21-a3e5-d008242b8fd6 Germany |
| Simplified SCIP | 035eec1f-ec37-4945-8087-7a391717e864 Poland, 12eee281-b8f8-47ac-b384-ac022872d939 Belgium, 148a98fe-c16b-47f3-8cb7-adbb31887415 Hungary, 1f63376c-1863-4d50-a72c-aa7d5816d7e4 Finland, 25b60a32-21ea-46e8-8e5a-43d3ac5ce131 Germany, 4222eded-f2de-4415-b804-f53af7f96197 Bulgaria, 4543facd-072f-4c6d-ac5f-b0e77891ccad Czechia, 4f85f8a5-9a2b-4f98-b210-ede0354c06d6 Germany, 55c89343-f9b6-4e71-bc56-964949a742cc Spain, 662a5cfc-bc45-4050-beb8-84bc608c9850 Denmark, 7b533556-cc8f-40ed-b0c7-d2f134bf9962 Poland, 84ae8b2b-1222-4bd4-9133-deefacb3cfa3 Sweden, 8cb66f18-b0ee-4b5c-9fbe-79cc74a393ba Greece, 8f03a329-58c6-4ed9-a60e-16b08d9412b5 Sweden, 99dd5abb-005b-4921-b77e-51ed3cce18c1 Hungary, a25c1e9f-2f96-4f70-bb67-e9484a0f3cac Croatia, a8216dcf-e738-43f4-a86d-d90293c103ac Netherlands, aa0c131e-acc7-449b-9eaa-c76b725c43c2 Norway, b71dddaa-d304-4663-a3da-7335981ac894 Portugal, b98ab511-5612-4a32-a506-a8d409c0079d Belgium, bf643592-7e38-4aea-8b73-4c14f14cc24e Poland, c82899be-8681-43f4-978c-f131e74ee2fa Germany, cc0166de-394a-49ed-a1f6-30f1248247b5 Estonia, ccb371fc-87ce-49e5-b08c-3aa60e3f393b Italy, d3db90a8-f8f8-4791-8ee9-e0d625cb388f France, e5708a0b-2625-4887-8f95-53114dc28181 Germany, fccf703e-727a-467c-baa5-90febb108f71 France |
| Toxic Substances Control Act - TSCA | 2CMT2023-006536 |
External Classifications and Standards 4
| ETIM 7 | EC001441 - Phase monitoring relay |
|---|---|
| eClass | V11.0 : 27371803 |
| UNSPSC | 39122332 |
| E-Number (Sweden) | 3860174 |
Logistics 11
| Package Level 1 Units | box 1 piece |
|---|---|
| Package Level 1 Width | 23 mm |
| Package Level 1 Depth / Length | 82 mm |
| Package Level 1 Height | 82 mm |
| Package Level 1 Gross Weight | 0.08 kg |
| Package Level 1 EAN | 4013614348105 |
| Package Level 2 EAN | 4013614580772 |
| Shipping weight | 0.08 kg |
| Ships from | Türkiye |
| Dispatch | 11 Nov |
| Stock | In stock |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for 1SVR550870R9400
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- CE
- CSA
- RoHS
- UKCA
- CCC
- CAN/CSA C22.2 No.14
- IEC/EN 63000
- IEC/EN 61000-6-2
- IEC/EN 61000-6-3
- UL 508
Quick answers
Questions about the CM-PVE
Which supply voltage is CM-PVE rated for?
The rated operational voltage of CM-PVE is 185–265 V AC.
What is the HS code of CM-PVE for customs?
The tariff (HS) code on file for CM-PVE is 85364900.
What is the EAN of CM-PVE?
The EAN (GTIN) of CM-PVE is 4013614348105.
Where does CM-PVE ship from, and how fast?
CM-PVE ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
