Part number
1SVR550851R9500
Model no
CM-ENE
$50.90 Critical stock Dispatch Planned dispatch date. We aim to ship within 1 business day. Depending on warehouse workload it can take 2–3 business days. · From Türkiye
CM

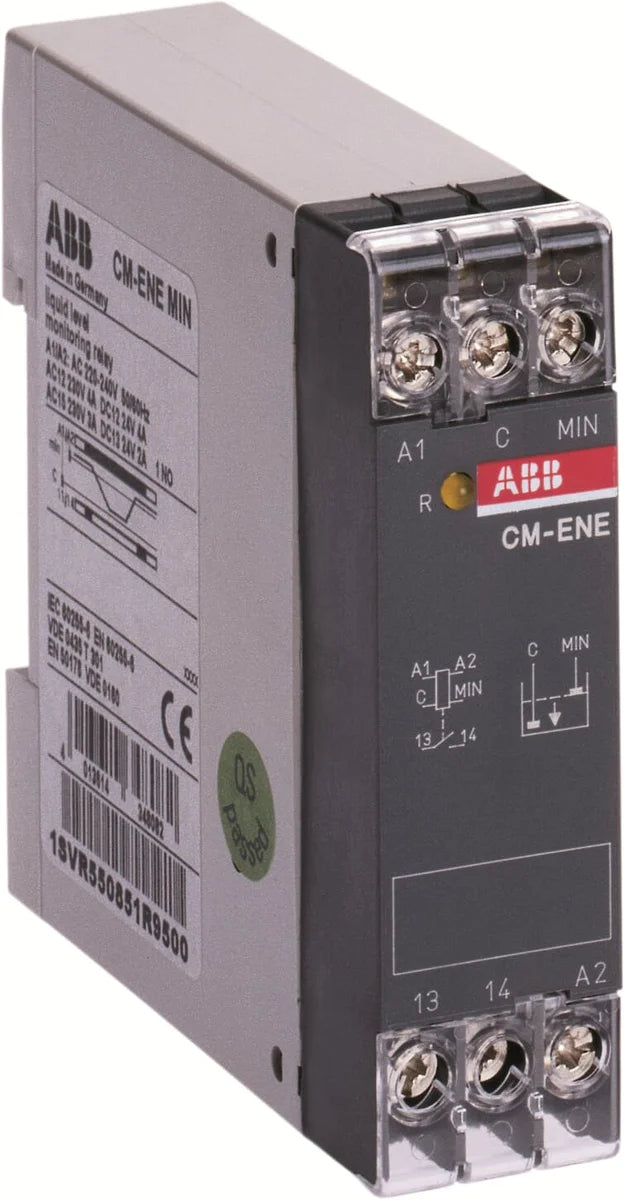

ABB 1SVR550851R9500 CM-ENE MIN 1NO 220-240V AC (Fill)Level Monitoring Relay

Rated operational voltage
220–240 V AC
EAN
4013614348082
Description

About the CM-ENE

The ABB CM-ENE MIN (1SVR550851R9500) is a liquid fill-level monitoring relay from the ABB CM series, designed to detect minimum liquid levels in tanks, reservoirs, and industrial process vessels. Equipped with a 1NO (normally open) output contact and rated for 220–240V AC supply, the CM-ENE MIN provides reliable level detection for use in control panels and automation systems requiring precise fluid-level monitoring.

Certifications & Standards

  • CE: Complies with European Union directives for electrical equipment safety and electromagnetic compatibility.
  • UKCA: UK Conformity Assessed marking for products placed on the Great Britain market.
  • UL 508: Listed to UL 508 standard for industrial control equipment (USA).
  • cUL: Canadian UL recognition for industrial control equipment, meeting CSA requirements.
  • CSA: Certified to Canadian Standards Association requirements for electrical equipment.
  • CCC: China Compulsory Certification for electrical products sold in the Chinese market.
  • RoHS: Restriction of Hazardous Substances compliant — free from restricted harmful materials.
  • REACH: Compliant with EU REACH regulation on chemical substance safety.

Applications & Use Cases

  • Minimum liquid level detection in water tanks, storage vessels, and process reservoirs
  • Pump protection against dry running by monitoring minimum fill levels
  • Industrial automation and control panel integration for fluid management systems
  • Building services, HVAC, and water treatment plant level monitoring
  • Machine building applications requiring reliable conductive level sensing

Frequently Asked Questions

What does the CM-ENE MIN monitor?

The CM-ENE MIN monitors the minimum liquid level in a tank or vessel using conductive level sensing. When the liquid drops below the set electrode level, the relay output changes state to trigger an alarm or control action.

What is the supply voltage for the CM-ENE MIN?

The ABB CM-ENE MIN relay operates on a 220–240V AC supply voltage.

How many output contacts does the CM-ENE MIN provide?

The CM-ENE MIN provides one normally open (1NO) output contact for integration into your control circuit.

What is the mounting width of the CM-ENE MIN?

The CM-ENE MIN has a width of 22.5 mm, making it suitable for space-efficient DIN rail installation in control panels.

Specification

Full specification

61 values · Last verified 30 Oct 2026

Dimensions 4

Product Net Width 22.5 mm
Product Net Height 78 mm
Product Net Depth / Length 78.5 mm
Product Net Weight 0.106 kg

Technical 22

Function Draining monitoring
Sub-Function Dry running protection
Number of Electrodes 2
Measuring Range 0 ... 100 kΩ
Rated Control Supply Voltage (Us) 220 ... 240 V AC
Rated Frequency (f) Supply Circuit 50/60 Hz
Output 1 N/O Contact
Terminal Type Screw Terminals
Rated Operational Current AC-12 (Ie) (230 V) 4 A
Rated Operational Current AC-15 (Ie) (230 V) 3 A
Rated Operational Current DC-12 (Ie) (24 V) 4 A
Rated Operational Current DC-13 (Ie) (24 V) 2 A
Rated Impulse Withstand Voltage (Uimp) Measuring Circuit / Output Circuit 4 kV, Supply Circuit / Measuring Circuit 4 kV, Supply Circuit / Output Circuit 4 kV
Rated Insulation Voltage (Ui) Measuring Circuit / Output Circuit 250 V, Supply Circuit / Measuring Circuit 250 V, Supply Circuit / Output Circuit 250 V
Degree of Protection Housing IP50, Terminals IP20
Short-Circuit Protective Devices Output Circuit NO - F Type Fuses 10 A
Connecting Capacity Flexible with Ferrule 2x 0.75 ... 1.5 mm², Flexible 2x 1 ... 1.5 mm², Rigid 2x 0.75 ... 1.5 mm²
Tightening Torque 0.6 ... 0.8 N·m
Wire Stripping Length 10 mm
Mounting Position 1 ... 6
Mounting on DIN Rail TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715, TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Standards CAN/CSA C22.2 No.14, IEC/EN 63000, IEC/EN 61000-6-2, IEC/EN 61000-6-3, UL 508

Technical UL/CSA 4

Maximum Operating Voltage UL/CSA Output Circuit 300 V AC
Contact Rating UL/CSA B300
Connecting Capacity UL/CSA Flexible with Ferrule 2x 18-16 AWG, Flexible 2x 18-16 AWG, Rigid 2x 18-16 AWG
Tightening Torque UL/CSA 7.08 in·lb
Show all 61 specifications ↓ Show less ↑31 more values in Identification, Environmental, Material Compliance, External Classifications and Standards, Logistics.

Identification 10

Part number 1SVR550851R9500
Type designation CM-ENE
Brand ABB
Condition New, factory sealed
Source ABB and its authorised distributors
Warranty Manufacturer warranty
EAN 4013614348082
eCl@ss 27371813
Minimum Order Quantity 1 piece
Customs Tariff Number 85364900

Environmental 2

Ambient Air Temperature Operation -20 ... +60 °C, Storage -40 ... +85 °C
Maximum Operating Altitude Permissible Without Derating 2000 m

Material Compliance 4

REACH Declaration 1SVD981001-4501
RoHS Declaration 1SVD981001-4401
RoHS Information Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA 2CMT2023-006536

External Classifications and Standards 4

ETIM 7 EC001447 - (Fill) level monitoring relay
eClass V11.0 : 27371813
UNSPSC 39122331
E-Number (Sweden) 3860805

Logistics 11

Package Level 1 Units box 1 piece
Package Level 1 Width 23 mm
Package Level 1 Depth / Length 82 mm
Package Level 1 Height 82 mm
Package Level 1 Gross Weight 0.118 kg
Package Level 1 EAN 4013614348082
Package Level 2 EAN 4013614580871
Shipping weight 0.118 kg
Ships from Türkiye
Dispatch 18 Nov
Stock Critical stock

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for 1SVR550851R9500

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • CE
  • CSA
  • RoHS
  • UKCA
  • CCC
  • CAN/CSA C22.2 No.14
  • IEC/EN 63000
  • IEC/EN 61000-6-2
  • IEC/EN 61000-6-3
  • UL 508
Quick answers

Questions about the CM-ENE

Which supply voltage is CM-ENE rated for?

The rated operational voltage of CM-ENE is 220–240 V AC.

What is the HS code of CM-ENE for customs?

The tariff (HS) code on file for CM-ENE is 85364900.

What is the EAN of CM-ENE?

The EAN (GTIN) of CM-ENE is 4013614348082.

Where does CM-ENE ship from, and how fast?

CM-ENE ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
