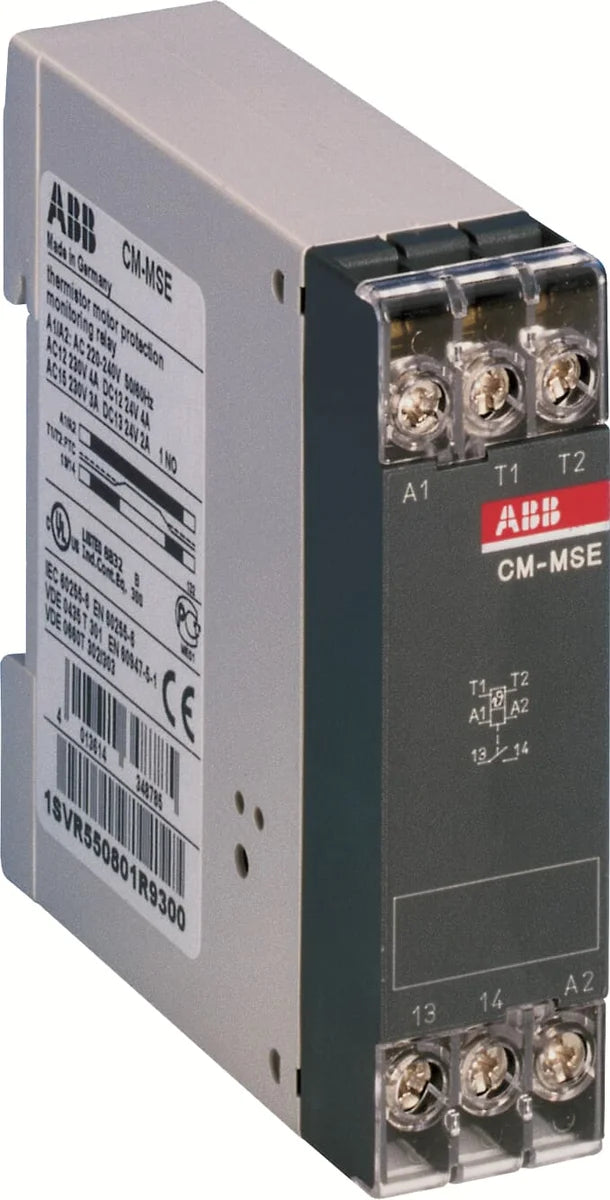

CMABB 1SVR550805R9300 CM-MSE Thermistor Motor Protection Relay 1NO 24VAC Relay for Thermistor Protection (PTC)
Description
About the CM-MSE
About the CM-MSE
The ABB CM-MSE (SKU: 1SVR550805R9300) is a thermistor motor protection relay (PTC) designed to protect electric motors from overtemperature damage by monitoring PTC thermistor sensors embedded in the motor windings. Rated at 4 A / 250 V with a 24 VAC supply and a single normally-open (1NO) output contact, the CM-MSE delivers reliable thermal protection in compact 22.5 mm DIN-rail format for control panels and industrial automation systems.
Certifications & Standards
- UL 508: Listed for industrial control equipment (USA)
- cUL: Canadian UL recognition for industrial control use
- CSA: Certified to Canadian Standards Association requirements
- CE: Compliant with EU directives for electrical safety and EMC
- UKCA: UK Conformity Assessed for post-Brexit Great Britain market
- CCC: China Compulsory Certification for import and sale in China
- RoHS: Compliant with EU Restriction of Hazardous Substances Directive
- REACH: Compliant with EU REACH chemical safety regulation
Applications & Use Cases
- Motor thermal protection in industrial drives and motor starters
- Integration with PTC thermistor sensors embedded in motor windings
- Control panel automation circuits requiring compact DIN-rail mounting
- HVAC, pump, compressor, and conveyor motor protection
- OEM machinery requiring UL508 / CSA certified thermistor monitoring relays
Frequently Asked Questions
What sensor type does the CM-MSE work with?
The CM-MSE is designed exclusively for PTC (Positive Temperature Coefficient) thermistors embedded in motor windings, triggering the output contact when sensor resistance indicates an overtemperature condition.
What is the supply voltage of the CM-MSE?
The relay for thermistor protection CM-MSE operates on a 24 VAC control supply voltage.
What output configuration does the CM-MSE provide?
It provides one normally-open (1NO) output contact rated at 4 A / 250 V for integration into motor control or alarm circuits.
Specification
Full specification
Dimensions 4
| Product Net Width | 22.5 mm |
|---|---|
| Product Net Height | 78 mm |
| Product Net Depth / Length | 78.5 mm |
| Product Net Weight | 0.105 kg |
Technical 21
| Function | 1 sensor circuit, Auto reset |
|---|---|
| Sub-Function | none |
| Sub-Function 2 | Auto reset |
| Rated Control Supply Voltage (Us) | 24 V AC |
| Rated Frequency (f) | Supply Circuit 50/60 Hz |
| Output | 1 N/O Contact |
| Terminal Type | Screw Terminals |
| Rated Operational Current AC-12 (Ie) | (230 V) 4 A |
| Rated Operational Current AC-15 (Ie) | (230 V) 3 A |
| Rated Operational Current DC-12 (Ie) | (24 V) 4 A |
| Rated Operational Current DC-13 (Ie) | (24 V) 2 A |
| Rated Impulse Withstand Voltage (Uimp) | Output Circuit 4 kV |
| Rated Insulation Voltage (Ui) | Measuring Circuit / Output Circuit 250 V, Supply Circuit / Output Circuit 250 V |
| Degree of Protection | Housing IP50, Terminals IP20 |
| Short-Circuit Protective Devices | Output Circuit NC - F Type Fuses 10 A, Output Circuit NO - F Type Fuses 10 A |
| Connecting Capacity | Flexible with Ferrule 2x 1.5 mm², Flexible 2x 1 ... 1.5 mm², Rigid 2x 0.75 ... 1.5 mm² |
| Tightening Torque | 0.6 ... 0.8 N·m |
| Wire Stripping Length | 10 mm |
| Mounting Position | 1 ... 6 |
| Mounting on DIN Rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715, TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 |
| Standards | CAN/CSA C22.2 No.14, IEC/EN 63000, IEC/EN 61000-6-2, IEC/EN 61000-6-3, UL 508 |
Technical UL/CSA 3
| Maximum Operating Voltage UL/CSA | Output Circuit 250 V AC |
|---|---|
| Connecting Capacity UL/CSA | Flexible with Ferrule 2x 16 AWG, Flexible 2x 18-16 AWG, Rigid 2x 18-16 AWG |
| Tightening Torque UL/CSA | 7.08 in·lb |
Show all 59 specifications ↓ Show less ↑31 more values in Identification, Environmental, Material Compliance, External Classifications and Standards, Logistics.
Identification 10
| Part number | 1SVR550805R9300 |
|---|---|
| Type designation | CM-MSE |
| Brand | ABB |
| Condition | New, factory sealed |
| Source | ABB and its authorised distributors |
| Warranty | Manufacturer warranty |
| EAN | 4013614348761 |
| eCl@ss | 27371503 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85364900 |
Environmental 2
| Ambient Air Temperature | Operation -20 ... +60 °C, Storage -40 ... +85 °C |
|---|---|
| Maximum Operating Altitude Permissible | Without Derating 2000 m |
Material Compliance 4
| REACH Declaration | 1SVD981001-4501 |
|---|---|
| RoHS Declaration | 1SVD981001-4401 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006536 |
External Classifications and Standards 4
| ETIM 7 | EC002568 - Relay for thermistor protection (PTC) |
|---|---|
| eClass | V11.0 : 27371503 |
| UNSPSC | 39122331 |
| E-Number (Sweden) | 3860214 |
Logistics 11
| Package Level 1 Units | box 1 piece |
|---|---|
| Package Level 1 Width | 23 mm |
| Package Level 1 Depth / Length | 82 mm |
| Package Level 1 Height | 82 mm |
| Package Level 1 Gross Weight | 0.116 kg |
| Package Level 1 EAN | 4013614348761 |
| Package Level 2 EAN | 4013614580833 |
| Shipping weight | 0.116 kg |
| Ships from | Türkiye |
| Dispatch | 11 Nov |
| Stock | Low stock |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for 1SVR550805R9300
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- CE
- RoHS
- CAN/CSA C22.2 No.14
- IEC/EN 63000
- IEC/EN 61000-6-2
- IEC/EN 61000-6-3
- UL 508
Quick answers
Questions about the CM-MSE
What is the rated current of CM-MSE?
The rated current of CM-MSE is 4 A.
Which supply voltage is CM-MSE rated for?
The rated operational voltage of CM-MSE is 250 V AC.
What is the HS code of CM-MSE for customs?
The tariff (HS) code on file for CM-MSE is 85364900.
What is the EAN of CM-MSE?
The EAN (GTIN) of CM-MSE is 4013614348761.
Where does CM-MSE ship from, and how fast?
CM-MSE ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
