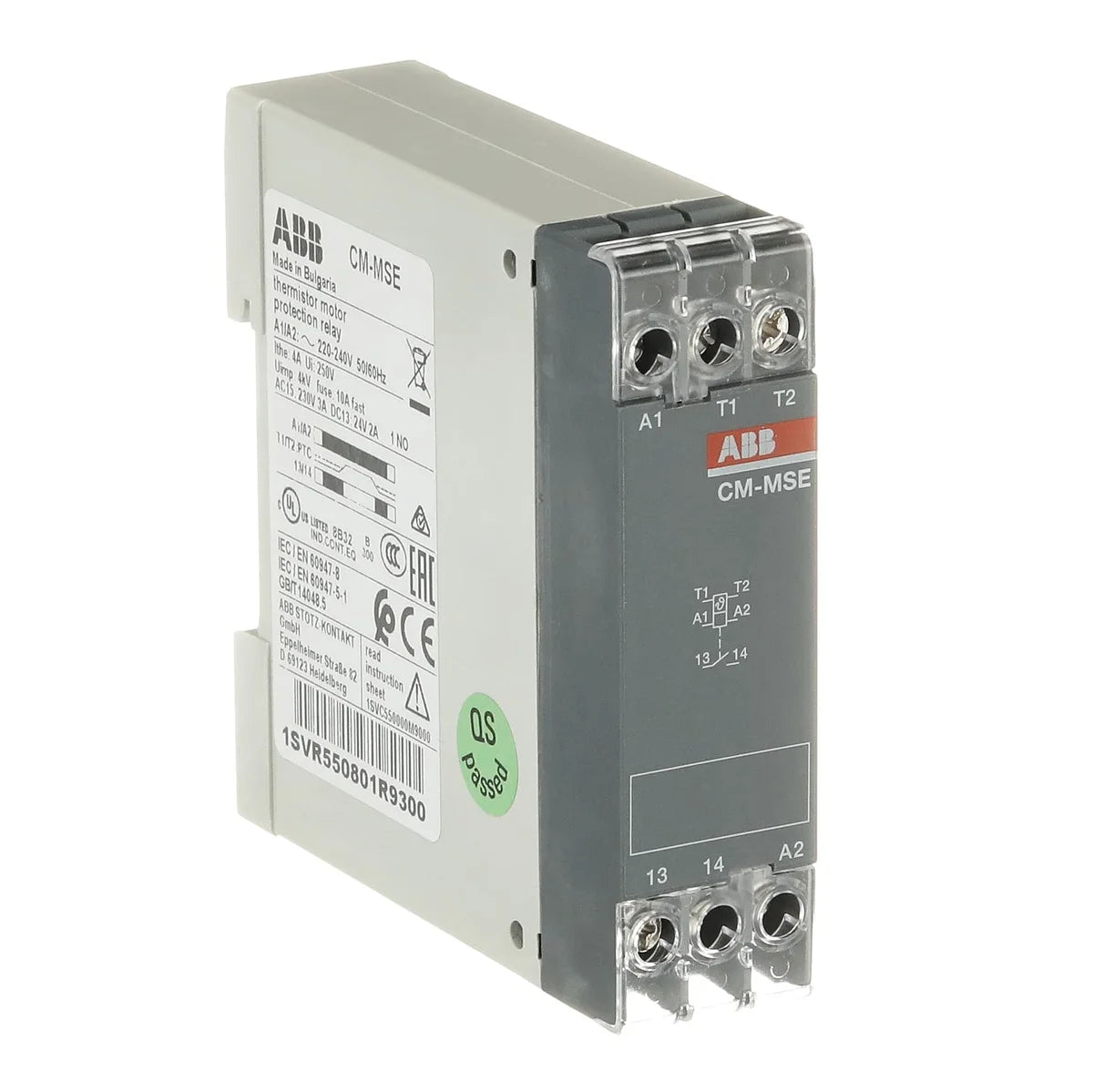

CMABB 1SVR550801R9300 CM-MSE Thermistor Motor Protection Relay 1NO 220-240V AC PTC Relay
Description
About the CM-MSE
About the CM-MSE
The ABB CM-MSE (SKU: 1SVR550801R9300) is a thermistor motor protection relay designed to safeguard electric motors from overheating by monitoring PTC thermistor signals embedded in motor windings. Featuring a single normally-open (1NO) output contact and a rated supply voltage of 220–240V AC, the CM-MSE provides reliable thermal protection in control panels and industrial automation systems. Its compact 22.5 mm width makes it ideal for DIN rail installation in space-constrained enclosures.
Certifications & Standards
- UL 508: Listed to UL standard for industrial control equipment (USA)
- cUL: Canadian UL certification for industrial control equipment
- CSA: Certified to Canadian Standards Association requirements
- CE: Compliant with European Union directives for electrical equipment
- UKCA: UK Conformity Assessed marking for Great Britain market
- CCC: China Compulsory Certification for the Chinese market
- RoHS: Compliant with EU Restriction of Hazardous Substances directive
- REACH: Compliant with EU REACH regulation on chemical substances
Applications & Use Cases
- Motor winding temperature monitoring via embedded PTC thermistors
- Thermal overload protection for AC motors in industrial drive systems
- Control panel integration for motor starters and soft starters
- Protection of pumps, fans, compressors, and conveyor drives
- Industrial automation and process control environments
Frequently Asked Questions
- What type of sensor does the CM-MSE work with?
- The CM-MSE is designed to work with PTC (Positive Temperature Coefficient) thermistors embedded in motor windings, providing accurate and responsive thermal protection.
- What is the output configuration of the CM-MSE relay?
- The CM-MSE features one normally-open (1NO) output contact, which opens when the thermistor detects an over-temperature condition, triggering a motor shutdown signal.
- Is the CM-MSE suitable for DIN rail mounting?
- Yes. At only 22.5 mm wide, the CM-MSE is designed for standard DIN rail installation and integrates easily into compact control panels.
Specification
Full specification
Dimensions 4
| Product Net Width | 22.5 mm |
|---|---|
| Product Net Height | 78 mm |
| Product Net Depth / Length | 78.5 mm |
| Product Net Weight | 0.104 kg |
Technical 21
| Function | 1 sensor circuit, Auto reset |
|---|---|
| Sub-Function | none |
| Sub-Function 2 | Auto reset |
| Rated Control Supply Voltage (Us) | 220 ... 240 V AC |
| Rated Frequency (f) | Supply Circuit 50/60 Hz |
| Output | 1 N/O Contact |
| Terminal Type | Screw Terminals |
| Rated Operational Current AC-12 (Ie) | (230 V) 4 A |
| Rated Operational Current AC-15 (Ie) | (230 V) 3 A |
| Rated Operational Current DC-12 (Ie) | (24 V) 4 A |
| Rated Operational Current DC-13 (Ie) | (24 V) 2 A |
| Rated Impulse Withstand Voltage (Uimp) | Output Circuit 4 kV |
| Rated Insulation Voltage (Ui) | Measuring Circuit / Output Circuit 250 V, Supply Circuit / Output Circuit 250 V |
| Degree of Protection | Housing IP50, Terminals IP20 |
| Short-Circuit Protective Devices | Output Circuit NC - F Type Fuses 10 A, Output Circuit NO - F Type Fuses 10 A |
| Connecting Capacity | Flexible with Ferrule 2x 1.5 mm², Flexible 2x 1 ... 1.5 mm², Rigid 2x 0.75 ... 1.5 mm² |
| Tightening Torque | 0.6 ... 0.8 N·m |
| Wire Stripping Length | 10 mm |
| Mounting Position | 1 ... 6 |
| Mounting on DIN Rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715, TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 |
| Standards | CAN/CSA C22.2 No.14, IEC/EN 63000, IEC/EN 61000-6-2, IEC/EN 61000-6-3, UL 508 |
Technical UL/CSA 3
| Maximum Operating Voltage UL/CSA | Output Circuit 250 V AC |
|---|---|
| Connecting Capacity UL/CSA | Flexible with Ferrule 2x 16 AWG, Flexible 2x 18-16 AWG, Rigid 2x 18-16 AWG |
| Tightening Torque UL/CSA | 7.08 in·lb |
Show all 59 specifications ↓ Show less ↑31 more values in Identification, Environmental, Material Compliance, External Classifications and Standards, Logistics.
Identification 10
| Part number | 1SVR550801R9300 |
|---|---|
| Type designation | CM-MSE |
| Brand | ABB |
| Condition | New, factory sealed |
| Source | ABB and its authorised distributors |
| Warranty | Manufacturer warranty |
| EAN | 4013614348785 |
| eCl@ss | 27371503 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85364900 |
Environmental 2
| Ambient Air Temperature | Operation -20 ... +60 °C, Storage -40 ... +85 °C |
|---|---|
| Maximum Operating Altitude Permissible | Without Derating 2000 m |
Material Compliance 4
| REACH Declaration | 1SVD981001-4501 |
|---|---|
| RoHS Declaration | 1SVD981001-4401 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006536 |
External Classifications and Standards 4
| ETIM 7 | EC002568 - Relay for thermistor protection (PTC) |
|---|---|
| eClass | V11.0 : 27371503 |
| UNSPSC | 39122331 |
| E-Number (Sweden) | 3860213 |
Logistics 11
| Package Level 1 Units | box 1 piece |
|---|---|
| Package Level 1 Width | 23 mm |
| Package Level 1 Depth / Length | 82 mm |
| Package Level 1 Height | 82 mm |
| Package Level 1 Gross Weight | 0.115 kg |
| Package Level 1 EAN | 4013614348785 |
| Package Level 2 EAN | 4013614580826 |
| Shipping weight | 0.115 kg |
| Ships from | Türkiye |
| Dispatch | 11 Nov |
| Stock | In stock |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for 1SVR550801R9300
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- CE
- RoHS
- UKCA
- CCC
- CAN/CSA C22.2 No.14
- IEC/EN 63000
- IEC/EN 61000-6-2
- IEC/EN 61000-6-3
- UL 508
Quick answers
Questions about the CM-MSE
Which supply voltage is CM-MSE rated for?
The rated operational voltage of CM-MSE is 220–240 V AC.
What is the HS code of CM-MSE for customs?
The tariff (HS) code on file for CM-MSE is 85364900.
What is the EAN of CM-MSE?
The EAN (GTIN) of CM-MSE is 4013614348785.
Where does CM-MSE ship from, and how fast?
CM-MSE ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
