Part number
1SVR427054R0000
Model no
CP-T
$185.96 On request Dispatch — · From TürkiyeGet a Quote

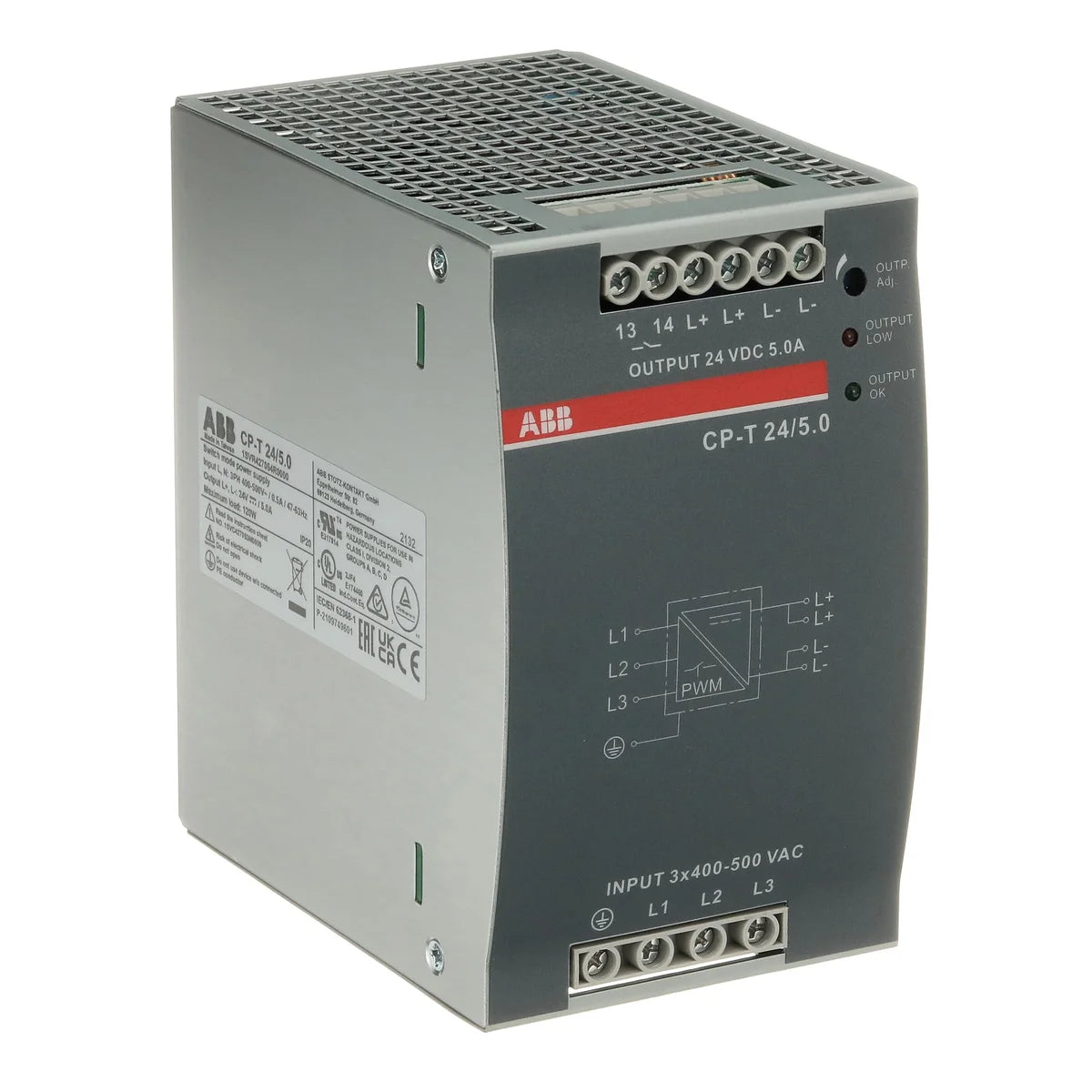

ABB 1SVR427054R0000 CP-T 24/5.0 3x400-500VAC In 24VDC 5A Out 120W Switch Mode Power Supply
  • CE
  • RoHS
  • UL
CP-T

ABB 1SVR427054R0000 CP-T 24/5.0 3x400-500VAC In 24VDC 5A Out 120W Switch Mode Power Supply

Ratings Full specification ↓
Rated current
5 A
Rated operational voltage
3–400–500 V AC
EAN
4016779697866
Other ratings in CP-T All 3 ratings ↓
kW In (A) Part number Stock Price
5 1SVR427054R0000This part On request $185.96
10 1SVR427055R0000 Low stock $236.47
20 1SVR427056R0000 On request $252.68
Description

About the CP-T

The ABB CP-T 24/5.0 (SKU: 1SVR427054R0000) is a three-phase switch mode power supply designed for demanding industrial automation and control panel applications. It accepts a wide input range of 3x 400–500 V AC and delivers a stable 24 VDC output at 5.0 A (120 W), making the CP-T 24/5.0 an ideal choice for powering PLCs, sensors, and distributed I/O systems in industrial environments.

Certifications & Standards

  • CE: Conformité Européenne — meets EU safety, health, and environmental requirements
  • UKCA: UK Conformity Assessed — required for sale in Great Britain
  • UL 60950 / UL508: UL Listed for information technology and industrial control equipment safety
  • cUL: Canadian UL certification for use in Canada
  • CAN/CSA C22.2 No. 60950: Canadian Standard for IT equipment safety
  • CAN/CSA C22.2 No. 213: Canadian Standard for non-incendive electrical equipment for use in hazardous locations
  • CAN/CSA C22.2 No. 107.1: Canadian Standard for general use power supplies
  • CSA: Canadian Standards Association approval
  • ANSI/ISA-12.12: Standard for non-incendive electrical equipment for use in Class I and II, Division 2 hazardous locations
  • IEC 60950-1 / IEC/EN 63000: Safety standard for information technology equipment
  • IEC/EN 61000-6-2: EMC immunity standard for industrial environments
  • IEC/EN 61000-6-3: EMC emission standard for residential and industrial environments
  • IEC 61000-4: Electromagnetic compatibility testing and measurement techniques
  • RoHS: Restriction of Hazardous Substances — compliant with EU Directive 2011/65/EU
  • REACH: Compliant with EU REACH regulation on chemical substances
  • WEEE: Waste Electrical and Electronic Equipment Directive compliant
Specification

Full specification

72 values · Last verified 30 Oct 2026

Dimensions 4

Product Net Width 74 mm
Product Net Height 131 mm
Product Net Depth / Length 119 mm
Product Net Weight 0.78 kg

Technical 26

Function Switch mode power supply
Number of Phases 3-phase
Rated Input Voltage (UIN) 3x 400 ... 500 V AC
Input Voltage (Uin) 3 x 340 ... 575 V AC, 480 ... 820 V DC
Rated Frequency (f) 50 Hz
Rated Frequency Limits 47 ... 63 Hz
Characteristic of Output Hiccup-Mode
Rated Output Power 120 W
Output Power 120 W
Rated Output Voltage 24 V DC
Output Voltage (Uout) 24 V DC
Rated Output Current 5 A
Output Current 5 A
Rated Impulse Withstand Voltage (Uimp) Input Circuit / Output Circuit 6 kV, Input Circuit / PE 4 kV, Input Circuit / Relay Contact 4 kV, Output Circuit / PE 0.8 kV
Rated Insulation Voltage (Ui) Input Circuit / Output Circuit 500 V, Input Circuit / PE 500 V, Input Circuit / Relay Contact 500 V, Output Circuit / PE 50 V
Degree of Protection Housing IP20, Terminals IP20
Pollution Degree 2
Connecting Capacity Input Circuit Flexible with Ferrule 0.2 ... 4 mm², Rigid 0.2 ... 6 mm²
Connecting Capacity Output Circuit Flexible with Ferrule 0.2 ... 4 mm², Rigid 0.2 ... 6 mm²
Tightening Torque Auxiliary Circuit 1 N·m, Input Circuit 1 N·m, Output Circuit 0.6 N·m
Wire Stripping Length Input Circuit 8 mm, Output Circuit 8 mm
Recommended Screw Driver PH2
Minimum Mounting Distance Electrical Conductive Board, Horizontal 25 mm, Electrical Conductive Board, Vertical 25 mm, Other Device Same Type, Horizontal 25 mm, Other Device Same Type, Vertical 25 mm
Mounting Position 1
Mounting on DIN Rail TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715, TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Standards ANSI/ISA-12.12, CAN/CSA C22.2 No.107.1, CAN/CSA C22.2 No.213, CAN/CSA C22.2 No.60950, IEC/EN 63000, IEC 60950-1, IEC/EN 61000-6-2, IEC/EN 61000-6-3, UL 508, UL 60950

Technical UL/CSA 3

Connecting Capacity Input Circuit UL/CSA Rigid 24-10 AWG
Connecting Capacity Output Circuit UL/CSA Rigid 24-10 AWG
Tightening Torque UL/CSA Input Circuit 9 in·lb, Output Circuit 5.5 in·lb
Show all 72 specifications ↓ Show less ↑39 more values in Identification, Electromagnetic Compatibility, Environmental, Material Compliance, External Classifications and Standards, Logistics.

Identification 12

Part number 1SVR427054R0000
Type designation CP-T
Brand ABB
Condition New, factory sealed
Source ABB and its authorised distributors
Warranty Manufacturer warranty
EAN 4016779697866
ETIM class EC002540
eCl@ss 27040701
Minimum Order Quantity 1 piece
Customs Tariff Number 85044095
Replacement Product ID (NEW) ABB1SVR340567R1000

Electromagnetic Compatibility 5

Electrostatic Discharge (ESD Immunity) acc. to IEC 61000-4-2 Level 4 Air Discharge 15 kV, Level 4 Contact Discharge 8 kV
Radiated Electromagnetic Field Immunity acc. to IEC 61000-4-3 Level 3 10 V/m
Surge Immunity acc. to IEC 61000-4-5 Level 3 Line-to-Line 2 kV, Level 4 Line-to-Line 4 kV
Conducted Disturbances Immunity acc. to IEC 61000-4-6 Level 3 10 V
Electromagnetic Compatibility (EMC) Immunity - Class B, Emission - Environment B

Environmental 2

Ambient Air Temperature Operation -40 ... +70 °C, Storage -40 ... +85 °C
Maximum Operating Altitude Permissible 5000 m

Material Compliance 6

REACH Declaration 1SVD982001-4501
RoHS Declaration 1SVD982001-4401
RoHS Information Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA 2CMT2023-006535
WEEE B2C / B2B Business To Business
WEEE Category 5. Small Equipment (No External Dimension More Than 50 cm)

External Classifications and Standards 4

ETIM 10 EC002540 - DC-power supply
eClass V11.0 : 27040701
UNSPSC 39121004
E-Number (Sweden) 5218717

Logistics 10

Package Level 1 Width 161 mm
Package Level 1 Depth / Length 86 mm
Package Level 1 Height 164 mm
Package Level 1 Gross Weight 0.892 kg
Package Level 1 EAN 4016779697866
Package Level 1 Units box 1 piece
Shipping weight 0.892 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for 1SVR427054R0000

No documents are on file for this part yet.

Ask us for the datasheet
Other ratings

All 3 ratings in CP-T
Motor power Rated current Part number Model no Stock Dispatch Price
5 A 1SVR427054R0000 This part CP-T On request — $185.96 Quote
10 A 1SVR427055R0000 CP-T Low stock $236.47
20 A 1SVR427056R0000 CP-T On request — $252.68 Quote
Certifications

Certifications and standards
  • CE
  • RoHS
  • UL
  • ANSI/ISA-12.12
  • CAN/CSA C22.2 No.107.1
  • CAN/CSA C22.2 No.213
  • CAN/CSA C22.2 No.60950
  • IEC/EN 63000
  • IEC 60950-1
  • IEC/EN 61000-6-2
  • IEC/EN 61000-6-3
  • UL 508
  • UL 60950
Quick answers

Questions about the CP-T

What is the rated current of CP-T?

The rated current of CP-T is 5 A.

Which supply voltage is CP-T rated for?

The rated operational voltage of CP-T is 3–400–500 V AC.

What is the HS code of CP-T for customs?

The tariff (HS) code on file for CP-T is 85044095.

What is the EAN of CP-T?

The EAN (GTIN) of CP-T is 4016779697866.

Where does CP-T ship from, and how fast?

CP-T ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
