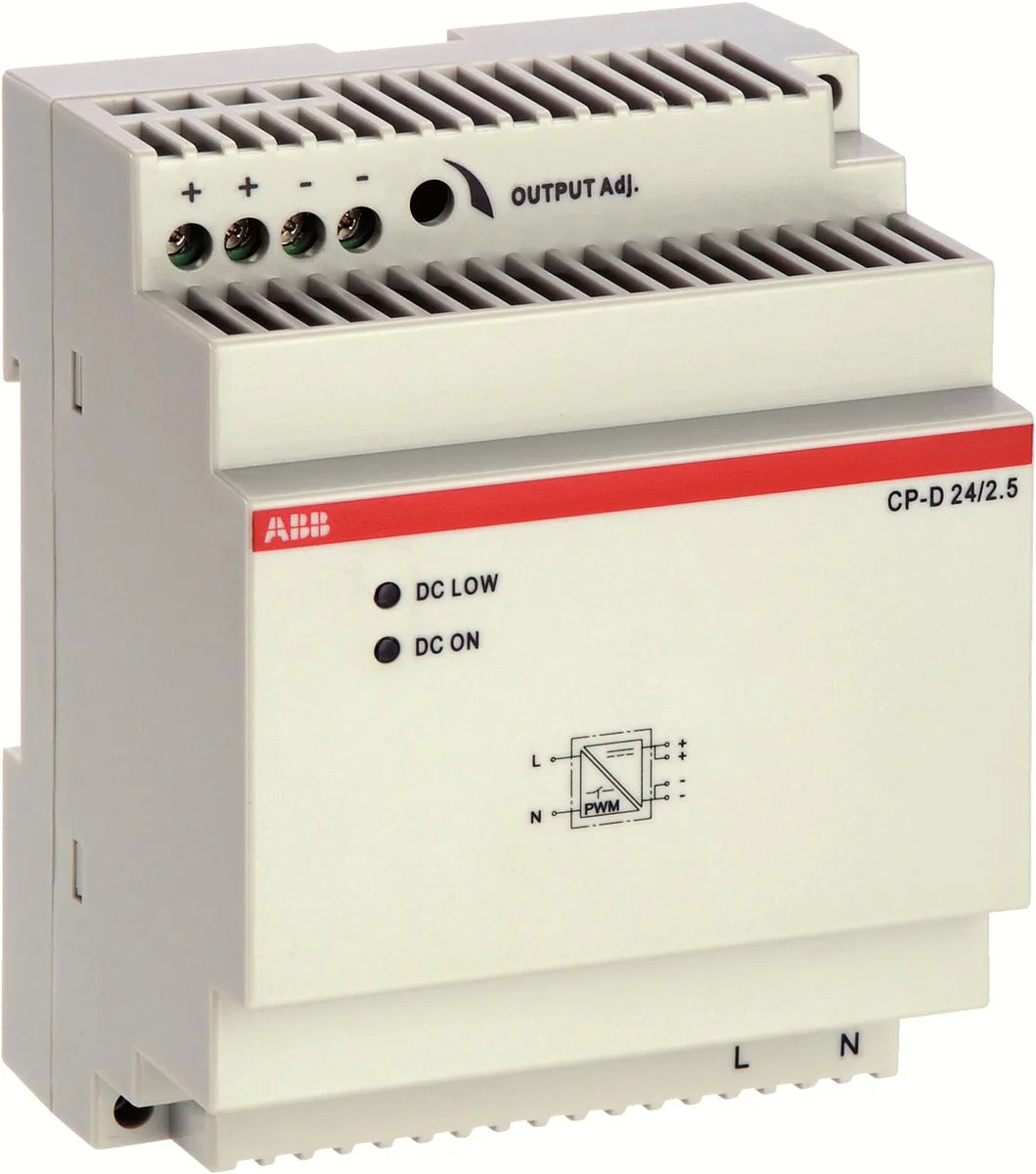

CP-DABB 1SVR427044R0200 CP-D 24/2.5 24VDC 2.5A 60W 100-240VAC Input Switch Mode Power Supply
Description
About the CP-D
About the CP-D
The ABB CP-D 24/2.5 (SKU: 1SVR427044R0200) is a switch mode power supply designed for industrial control panel and automation applications, delivering a regulated 24 VDC / 2.5 A output (60 W) from a wide-range 100–240 V AC input. Part of ABB's CP-D series, this compact DIN-rail-mount SMPS measures just 71 × 91 × 57.5 mm and weighs 252 g, making it ideal for space-constrained enclosures in manufacturing, building automation, and process control environments.
Certifications & Standards
- CE: Conformité Européenne — meets EU safety, health, and environmental requirements
- UKCA: UK Conformity Assessed — meets Great Britain market requirements
- UL 60950 / UL60950: UL safety standard for information technology equipment power supplies
- UL 1310: UL standard for Class 2 power units
- UL 508: UL standard for industrial control equipment
- cUL: Canadian UL certification for the Canadian market
- EN 62368-1: Audio/video, IT and communications technology equipment safety standard
- IEC 60950-1: International safety standard for information technology equipment
- IEC/EN 63000: Technical documentation for RoHS compliance assessment
- IEC/EN 61000-6-2: Electromagnetic compatibility — immunity for industrial environments
- IEC/EN 61000-6-3: Electromagnetic compatibility — emission standard for residential and light industrial environments
- IEC 61000-4: EMC testing and measurement techniques series
- CAN/CSA C22.2 No. 107.1: CSA standard for general use power supplies
- CAN/CSA C22.2 No. 223: CSA standard for power supplies with extra-low voltage outputs
- CAN/CSA C22.2 No. 60950: Canadian safety standard for information technology equipment
- CSA: Canadian Standards Association certification
- RoHS: Restriction of Hazardous Substances — compliant with EU Directive 2011/65/EU
- REACH: Compliant with EU REACH regulation on chemical substances
- WEEE: Waste Electrical and Electronic Equipment Directive compliant
Applications & Use Cases
- Industrial control panels and PLC power rails requiring stable 24 VDC
- Building automation and HVAC control systems
- Process control and instrumentation in manufacturing plants
- Machine tool and packaging machinery auxiliary power
- DIN-rail installations in compact enclosures where footprint is critical
Specification
Full specification
Dimensions 4
| Product Net Width | 71 mm |
|---|---|
| Product Net Height | 91 mm |
| Product Net Depth / Length | 57.5 mm |
| Product Net Weight | 0.252 kg |
Technical 27
| Function | Switch mode power supply |
|---|---|
| Number of Phases | 1-phase |
| Rated Input Voltage (UIN) | 100 ... 240 V AC |
| Input Voltage (Uin) | 90 ... 264 V AC, 120 ... 375 V DC |
| Rated Frequency (f) | 50 / 60 Hz |
| Rated Frequency Limits | 47 ... 63 Hz |
| Characteristic of Output | U/I Characteristic Curve |
| Rated Output Power | 60 W |
| Output Power | 60 W |
| Rated Output Voltage | 24 V DC |
| Output Voltage (Uout) | 24 V DC, 24 ... 28 V DC |
| Rated Output Current | 2.5 A |
| Output Current | 2.5 A |
| Output Current Maximum (Iout) | 2.5 A |
| Rated Impulse Withstand Voltage (Uimp) | Input Circuit / Output Circuit 3 kV |
| Rated Insulation Voltage (Ui) | Input Circuit / Output Circuit 300 V, Input Circuit / PE 300 V, Output Circuit / PE 50 V |
| Degree of Protection | Housing IP20, Terminals IP20 |
| Pollution Degree | 2 |
| Connecting Capacity Input Circuit | Flexible with Ferrule 0.2 ... 2.5 mm², Rigid 0.2 ... 2.5 mm² |
| Connecting Capacity Output Circuit | Flexible with Ferrule 0.2 .... 2.5 mm², Rigid 0.2 ... 2.5 mm² |
| Tightening Torque | Input Circuit 0.7 N·m, Output Circuit 0.7 N·m |
| Wire Stripping Length | Input Circuit 7 mm, Output Circuit 7 mm |
| Recommended Screw Driver | PH1 |
| Minimum Mounting Distance | Electrical Conductive Board, Horizontal 25 mm, Electrical Conductive Board, Vertical 25 mm, Other Device Same Type, Horizontal 25 mm, Other Device Same Type, Vertical 25 mm |
| Mounting Position | 1 |
| Mounting on DIN Rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715, TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 |
| Standards | CAN/CSA C22.2 No.107.1, CAN/CSA C22.2 No.223, CAN/CSA C22.2 No.60950, IEC/EN 63000, IEC 60950-1, IEC/EN 61000-6-2, IEC/EN 61000-6-3, UL 1310, UL 508, UL 60950 |
Technical UL/CSA 3
| Connecting Capacity Input Circuit UL/CSA | Rigid 24-12 AWG |
|---|---|
| Connecting Capacity Output Circuit UL/CSA | Rigid 24-12 AWG |
| Tightening Torque UL/CSA | Input Circuit 6 in·lb, Output Circuit 6 in·lb |
Show all 73 specifications ↓ Show less ↑39 more values in Identification, Electromagnetic Compatibility, Environmental, Material Compliance, External Classifications and Standards, Logistics.
Identification 11
| Part number | 1SVR427044R0200 |
|---|---|
| Type designation | CP-D |
| Brand | ABB |
| Condition | New, factory sealed |
| Source | ABB and its authorised distributors |
| Warranty | Manufacturer warranty |
| EAN | 4016779661188 |
| ETIM class | EC002540 |
| eCl@ss | 27040701 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85044095 |
Electromagnetic Compatibility 6
| Electrostatic Discharge (ESD Immunity) acc. to IEC 61000-4-2 | Level 4 Air Discharge 15 kV, Level 4 Contact Discharge 4 kV |
|---|---|
| Radiated Electromagnetic Field Immunity acc. to IEC 61000-4-3 | Level 3 10 V/m |
| Electrical Fast Transient (Burst Immunity) acc. to IEC 61000-4-4 | Level 4 Power Supply Port Signal 4 kV |
| Surge Immunity acc. to IEC 61000-4-5 | Level 3 Line-to-Line 2 kV |
| Conducted Disturbances Immunity acc. to IEC 61000-4-6 | Level 3 10 V |
| Electromagnetic Compatibility (EMC) | Emission - Class B, Immunity - Class B |
Environmental 2
| Ambient Air Temperature | Operation -40 ... +70 °C, Storage -40 ... +85 °C |
|---|---|
| Maximum Operating Altitude Permissible | 4850 m |
Material Compliance 6
| REACH Declaration | 1SVD982001-4501 |
|---|---|
| RoHS Declaration | 1SVD982001-4401 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006535 |
| WEEE B2C / B2B | Business To Consumer |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
External Classifications and Standards 4
| ETIM 10 | EC002540 - DC-power supply |
|---|---|
| eClass | V11.0 : 27040701 |
| UNSPSC | 39121004 |
| E-Number (Sweden) | 5218729 |
Logistics 10
| Package Level 1 Width | 91 mm |
|---|---|
| Package Level 1 Depth / Length | 134 mm |
| Package Level 1 Height | 87 mm |
| Package Level 1 Gross Weight | 0.311 kg |
| Package Level 1 EAN | 4016779661188 |
| Package Level 1 Units | box 1 piece |
| Shipping weight | 0.311 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
