- Part number
- 1SVR405651R3000
- Model no
- CR-M4SS
Description
About the CR-M4SS
About the CR-M4SS

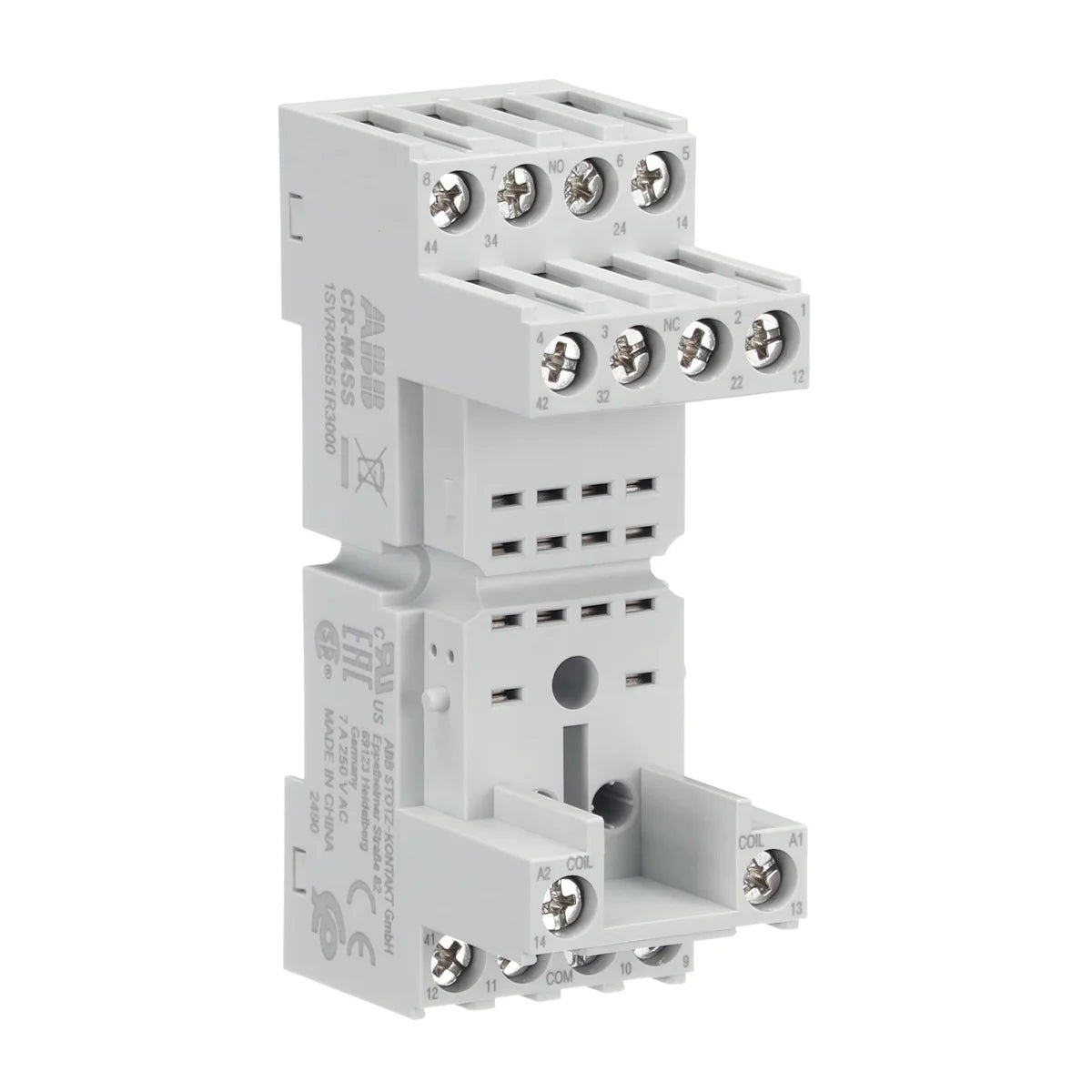

The ABB CR-M4SS (SKU: 1SVR405651R3000) is a standard relay socket designed for use with 2-changeover or 4-changeover CR-M series plug-in relays, rated at 7 A and 250 V. The CR-M4SS provides a reliable and secure DIN rail-mountable interface for CR-M relay modules, simplifying installation and replacement in control panels and industrial automation systems.
Certifications & Standards
- CAN/CSA C22.2 No.14: Canadian standard for industrial control equipment
- IEC/EN 63000: Technical documentation for evaluation of electrical and electronic equipment with respect to hazardous substances
- IEC/EN 61984: Connectors — safety requirements and tests
- UL 508: Standard for industrial control equipment (UL certified)
- CSA C22.2: Canadian Standards Association electrical safety certification
- CSA: Canadian Standards Association approval
- REACH: Compliant with EU REACH regulation on chemical substances
- RoHS: Restriction of Hazardous Substances directive compliant
- CE: Conforms to European Union safety, health, and environmental requirements
- UKCA: UK Conformity Assessed marking for Great Britain market
- EAC: Eurasian Conformity mark for Customs Union countries
Applications & Use Cases
- Control panel wiring for industrial automation systems
- PLC output interfaces requiring plug-in relay modules
- Machine control and process automation cabinets
- Building automation and HVAC control systems
- Relay replacement and maintenance — socket allows relay swap without rewiring
Specification
Full specification
Dimensions 4
| Product Net Width | 27 mm |
|---|---|
| Product Net Height | 42.5 mm |
| Product Net Depth / Length | 82 mm |
| Product Net Weight | 0.07 kg |
Technical 9
| Function | Accessory for interface relays CR-M |
|---|---|
| Sub-Function | Socket for miniature relays |
| Sub-Function 2 | Standard socket for miniature relay 2 c/o or 4 c/o |
| Rated Operational Voltage | 250 V |
| Terminal Type | Screw Terminals |
| Rated Operational Current AC-12 (Ie) | (230 V) 7 A |
| Rated Insulation Voltage (Ui) | 3 V |
| Mounting Position | 1 |
| Standards | CAN/CSA C22.2 No.14, IEC/EN 63000, IEC/EN 61984, UL 508 |
Technical UL/CSA 2
| Connecting Capacity Main Circuit UL/CSA | Flexible with Ferrule 2x 20-16 AWG, Rigid 2x 20-14 AWG, Stranded 2 x 20-14 AWG |
|---|---|
| Flammability According to UL94 | V-0 |
Show all 45 specifications ↓ Show less ↑30 more values in Identification, Environmental, Material Compliance, External Classifications and Standards, Logistics.
Identification 10
| Part number | 1SVR405651R3000 |
|---|---|
| Type designation | CR-M4SS |
| Brand | ABB |
| Condition | New, factory sealed |
| Source | ABB and its authorised distributors |
| Warranty | Manufacturer warranty |
| EAN | 4013614528675 |
| eCl@ss | 27371603 |
| Minimum Order Quantity | 10 piece |
| Customs Tariff Number | 85366990 |
Environmental 2
| Ambient Air Temperature | Operation -40 ... +70 °C, Storage -40 ... +70 °C |
|---|---|
| Maximum Operating Altitude Permissible | 2000 m |
Material Compliance 4
| REACH Declaration | 1SVD981001-4501 |
|---|---|
| RoHS Declaration | 1SVD981001-4401 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006536 |
External Classifications and Standards 4
| ETIM 7 | EC001456 - Relay socket |
|---|---|
| eClass | V11.0 : 27371603 |
| UNSPSC | 39122335 |
| E-Number (Sweden) | 4005374 |
Logistics 10
| Package Level 1 Units | box 10 piece |
|---|---|
| Package Level 1 Width | 141 mm |
| Package Level 1 Depth / Length | 78 mm |
| Package Level 1 Height | 95 mm |
| Package Level 1 Gross Weight | 0.702 kg |
| Package Level 1 EAN | 4013614373800 |
| Shipping weight | 0.702 kg |
| Ships from | Türkiye |
| Dispatch | 17 Nov |
| Stock | In stock |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for 1SVR405651R3000
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- CE
- CSA
- RoHS
- UKCA
- EAC
- CAN/CSA C22.2 No.14
- IEC/EN 63000
- IEC/EN 61984
- UL 508
Quick answers
Questions about the CR-M4SS
What is the rated current of CR-M4SS?
The rated current of CR-M4SS is 7 A.
Which supply voltage is CR-M4SS rated for?
The rated operational voltage of CR-M4SS is 250 V AC.
What is the HS code of CR-M4SS for customs?
The tariff (HS) code on file for CR-M4SS is 85366990.
What is the EAN of CR-M4SS?
The EAN (GTIN) of CR-M4SS is 4013614528675.
Where does CR-M4SS ship from, and how fast?
CR-M4SS ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
