Part number
1SVR405655R0100
$11.76 In stock · 50+ Dispatch Planned dispatch date. We aim to ship within 1 business day. Depending on warehouse workload it can take 2–3 business days. · From Türkiye
CR-P/M

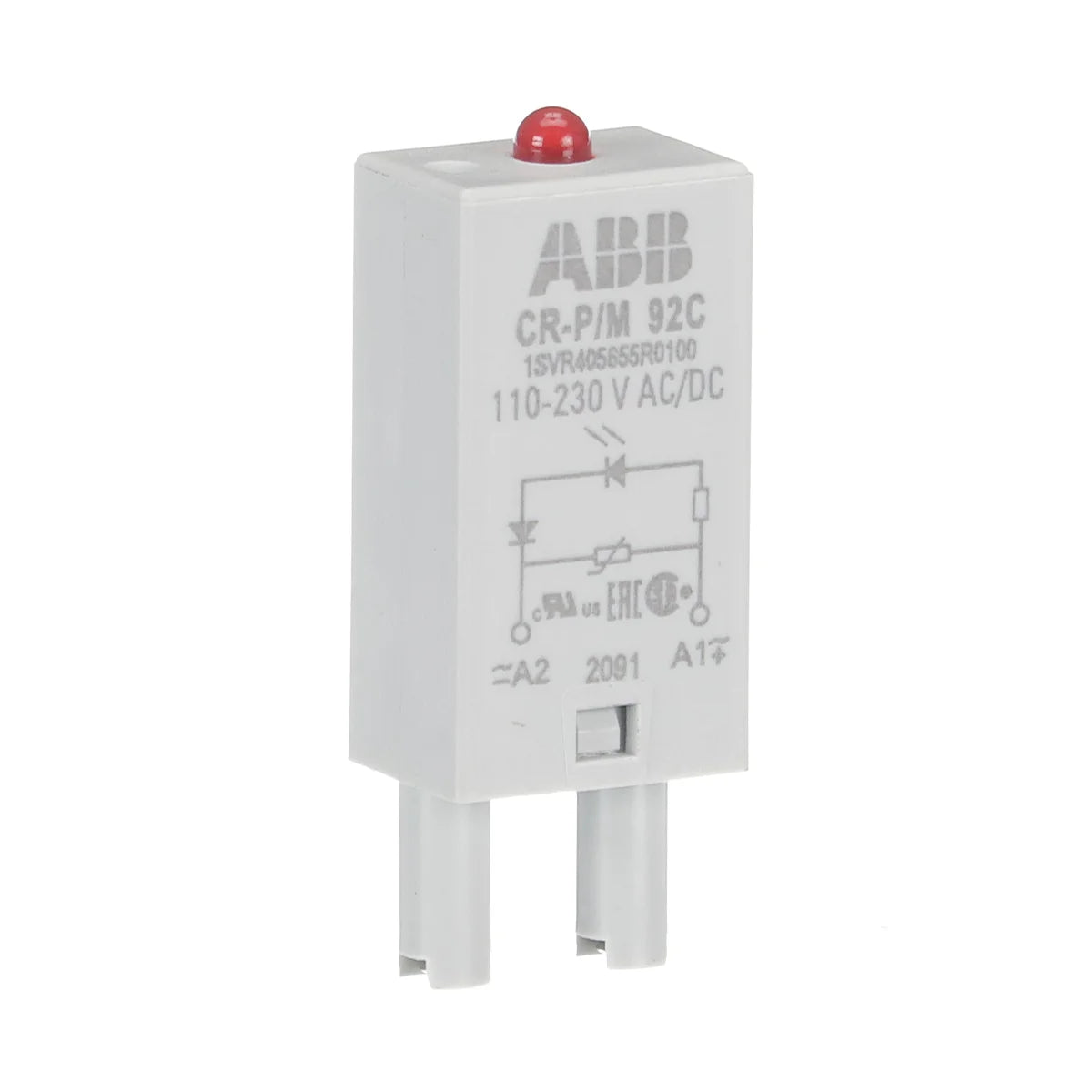

ABB 1SVR405655R0100 CR-P/M 92C Pluggable Varistor & LED Module 110-230VAC/110VDC Accessory for Switching Relay

Product Net Width
13 mm
Product Net Height
24 mm
Product Net Depth / Length
9 mm
Product Net Weight
0.003 kg
EAN
4013614528859
Description

About the 1SVR405655R0100

The ABB CR-P/M 92C (SKU: 1SVR405655R0100) is a pluggable suppression and indication module designed as an accessory for ABB CR-P and CR-M switching relays. Combining a varistor for coil surge suppression with a red LED for energisation status indication, the CR-P/M 92C operates across a wide voltage range of 110–230V AC and 110V DC. Its compact 13 × 24 × 9 mm footprint and plug-in design allow tool-free installation directly onto compatible relay sockets.

Certifications & Standards

  • CE: Conformité Européenne — meets EU safety, health, and environmental requirements
  • UKCA: UK Conformity Assessed — compliant for Great Britain market
  • EAC: Eurasian Conformity — approved for Eurasian Economic Union markets
  • UL 508: UL standard for industrial control equipment
  • CSA C22.2 No.14: Canadian Standards Association standard for industrial control equipment
  • CAN/CSA C22.2 No.14: Canadian national standard for industrial control equipment
  • IEC: Designed and tested in accordance with applicable IEC standards
  • IEC/EN 61984: Connectors — safety requirements and tests
  • IEC/EN 63000: Technical documentation for the assessment of electrical and electronic products with respect to the restriction of hazardous substances
  • EN 61984: European harmonised standard for connectors — safety requirements
  • EN 63000: European harmonised standard for RoHS technical documentation
  • RoHS: Restriction of Hazardous Substances — compliant with EU Directive 2011/65/EU
  • REACH: Compliant with EU REACH regulation (EC) No 1907/2006 on chemical substances
  • CSA: Canadian Standards Association certified

Applications & Use Cases

  • Coil surge suppression on ABB CR-P and CR-M switching relays in control panels
  • Visual energisation monitoring via integrated red LED in PLC and automation cabinets
  • Building automation and HVAC control systems requiring relay status indication
  • Machine control and industrial automation panels with 110–230V AC control circuits
  • OEM equipment builders standardising on ABB CR-series relay platforms
Specification

Full specification

37 values · Last verified 30 Oct 2026

Dimensions 4

Product Net Width 13 mm
Product Net Height 24 mm
Product Net Depth / Length 9 mm
Product Net Weight 0.003 kg

Technical 6

Function Accessory for interface relays CR-M, Accessory for interface relays CR-P
Sub-Function Pluggable function module for pcb and miniature relay sockets
Sub-Function 2 Overvoltage protection, red LED
Rated Control Supply Voltage (Us) 110 ... 230 V AC/DC
Output Signal none
Standards CAN/CSA C22.2 No.14, IEC/EN 63000, IEC/EN 61984, UL 508

Material Compliance 4

REACH Declaration 1SVD981001-4501
RoHS Declaration 1SVD981001-4401
RoHS Information Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA 2CMT2023-006536
Show all 37 specifications ↓ Show less ↑23 more values in Identification, External Classifications and Standards, Logistics.

Identification 9

Part number 1SVR405655R0100
Brand ABB
Condition New, factory sealed
Source ABB and its authorised distributors
Warranty Manufacturer warranty
EAN 4013614528859
eCl@ss 27371692
Minimum Order Quantity 10 piece
Customs Tariff Number 85480090

External Classifications and Standards 4

ETIM 7 EC002586 - Accessories for switching relay
eClass V11.0 : 27371692
UNSPSC 39122331
E-Number (Sweden) 4005390

Logistics 10

Package Level 1 Units bag 10 piece
Package Level 1 Width 130 mm
Package Level 1 Depth / Length 9 mm
Package Level 1 Height 180 mm
Package Level 1 Gross Weight 0.032 kg
Package Level 1 EAN 4013614373947
Shipping weight 0.032 kg
Ships from Türkiye
Dispatch 17 Nov
Stock In stock

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for 1SVR405655R0100

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • RoHS
  • CAN/CSA C22.2 No.14
  • IEC/EN 63000
  • IEC/EN 61984
  • UL 508
Quick answers

Questions about the 1SVR405655R0100

What is the HS code of 1SVR405655R0100 for customs?

The tariff (HS) code on file for 1SVR405655R0100 is 85480090.

What is the EAN of 1SVR405655R0100?

The EAN (GTIN) of 1SVR405655R0100 is 4013614528859.

Where does 1SVR405655R0100 ship from, and how fast?

1SVR405655R0100 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
