Part number
1SVR405650R1000
Model no
CR-PSS
$12.63 In stock · 50+ Dispatch Planned dispatch date. We aim to ship within 1 business day. Depending on warehouse workload it can take 2–3 business days. · From Türkiye
CR-P

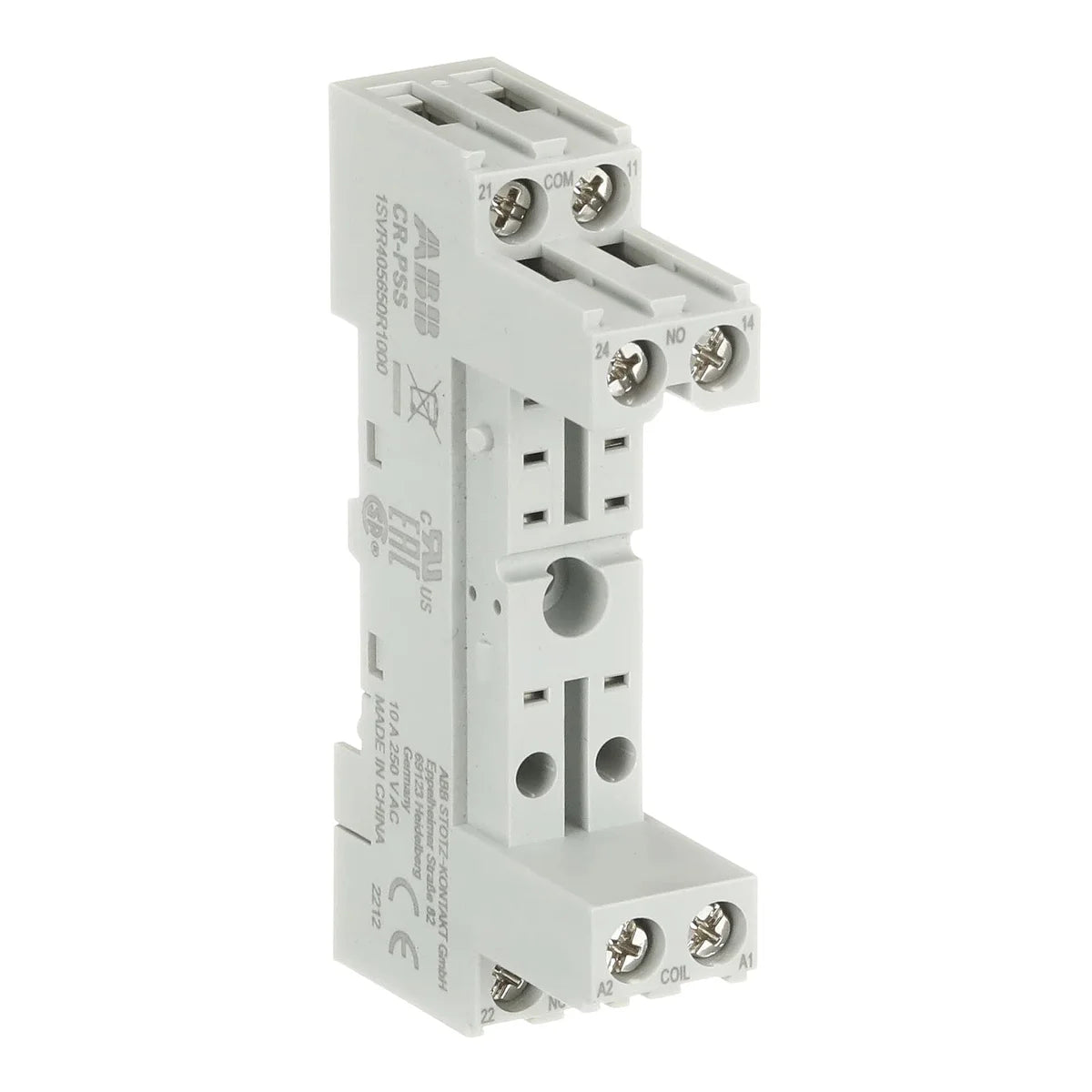

ABB 1SVR405650R1000 CR-PSS Standard Socket for 1C/O or 2C/O CR-P Relay 2A 250V Relay Socket

Rated current
2 A
Rated operational voltage
250 V AC
EAN
4013614528590
Description

About the CR-PSS

The ABB CR-PSS (1SVR405650R1000) is a standard relay socket designed for use with ABB CR-P series 1-changeover or 2-changeover plug-in relays, rated at 2 A and 250 V. The CR-PSS provides a secure, DIN-rail-compatible mounting solution for CR-P relays in control panels and industrial automation applications, simplifying relay replacement without disturbing field wiring. Compact dimensions of 15.5 mm × 42.5 mm × 75 mm and a lightweight 38 g construction make it easy to integrate into dense panel layouts.

Certifications & Standards

  • RoHS: Compliant with EU Restriction of Hazardous Substances Directive
  • CE: Meets European conformity requirements for electrical equipment
  • CAN/CSA C22.2 No. 14: Canadian industrial control equipment standard
  • IEC/EN 63000: Technical documentation for RoHS assessment
  • IEC/EN 61984: Connectors — safety requirements and tests
  • UL 508: Standard for industrial control equipment (USA)
  • CSA C22.2: Canadian Standards Association electrical safety certification
  • REACH: Compliant with EU chemicals regulation (SVHC)
  • UKCA: UK Conformity Assessed marking for Great Britain market
  • EAC: Eurasian Conformity mark for Russia and CIS markets

Applications & Use Cases

  • Control panel relay mounting in industrial automation systems
  • Machine control and PLC output interface circuits
  • Building automation and HVAC control panels
  • Process control and instrumentation enclosures
  • Any application requiring plug-in CR-P relay socketing for easy field replacement

Frequently Asked Questions

Which relays are compatible with the CR-PSS?
The CR-PSS socket is designed for ABB CR-P series relays in both 1-changeover (1C/O) and 2-changeover (2C/O) configurations.

Can the CR-PSS be mounted on a DIN rail?
Yes, the CR-PSS is designed for standard DIN rail mounting, enabling neat, space-efficient panel layouts.

What is the rated current and voltage of the CR-PSS?
The CR-PSS relay socket is rated at 2 A and 250 V, matching the CR-P relay series specifications.

Specification

Full specification

45 values · Last verified 30 Oct 2026

Dimensions 4

Product Net Width 15.5 mm
Product Net Height 42.5 mm
Product Net Depth / Length 75 mm
Product Net Weight 0.038 kg

Technical 9

Function Accessory for interface relays CR-P
Sub-Function Socket for PCB relays
Sub-Function 2 Standard socket for pcb relay 1 c/o or 2 c/o
Rated Operational Voltage 250 V
Terminal Type Screw Terminals
Rated Operational Current AC-12 (Ie) (230 V) 2 A
Rated Insulation Voltage (Ui) 5 V
Mounting Position 1
Standards CAN/CSA C22.2 No.14, IEC/EN 63000, IEC/EN 61984, UL 508

Technical UL/CSA 2

Connecting Capacity Main Circuit UL/CSA Flexible with Ferrule 2x 20-16 AWG, Rigid 2x 20-14 AWG, Stranded 2 x 20-14 AWG
Flammability According to UL94 V-0
Show all 45 specifications ↓ Show less ↑30 more values in Identification, Environmental, Material Compliance, External Classifications and Standards, Logistics.

Identification 10

Part number 1SVR405650R1000
Type designation CR-PSS
Brand ABB
Condition New, factory sealed
Source ABB and its authorised distributors
Warranty Manufacturer warranty
EAN 4013614528590
eCl@ss 27371603
Minimum Order Quantity 10 piece
Customs Tariff Number 85366990

Environmental 2

Ambient Air Temperature Operation -40 ... +70 °C, Storage -40 ... +70 °C
Maximum Operating Altitude Permissible 2000 m

Material Compliance 4

REACH Declaration 1SVD981001-4501
RoHS Declaration 1SVD981001-4401
RoHS Information Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA 2CMT2023-006536

External Classifications and Standards 4

ETIM 7 EC001456 - Relay socket
eClass V11.0 : 27371603
UNSPSC 39122335
E-Number (Sweden) 4005317

Logistics 10

Package Level 1 Units box 10 piece
Package Level 1 Width 81 mm
Package Level 1 Depth / Length 88 mm
Package Level 1 Height 74 mm
Package Level 1 Gross Weight 0.382 kg
Package Level 1 EAN 4013614373084
Shipping weight 0.382 kg
Ships from Türkiye
Dispatch 17 Nov
Stock In stock

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for 1SVR405650R1000

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • CE
  • CSA
  • RoHS
  • UKCA
  • CAN/CSA C22.2 No.14
  • IEC/EN 63000
  • IEC/EN 61984
  • UL 508
Quick answers

Questions about the CR-PSS

What is the rated current of CR-PSS?

The rated current of CR-PSS is 2 A.

Which supply voltage is CR-PSS rated for?

The rated operational voltage of CR-PSS is 250 V AC.

What is the HS code of CR-PSS for customs?

The tariff (HS) code on file for CR-PSS is 85366990.

What is the EAN of CR-PSS?

The EAN (GTIN) of CR-PSS is 4013614528590.

Where does CR-PSS ship from, and how fast?

CR-PSS ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
