Part number
1SVR405621R6000
Model no
CR-U048DC2
$8.44 Low stock Dispatch Planned dispatch date. We aim to ship within 1 business day. Depending on warehouse workload it can take 2–3 business days. · From Türkiye
CR-U

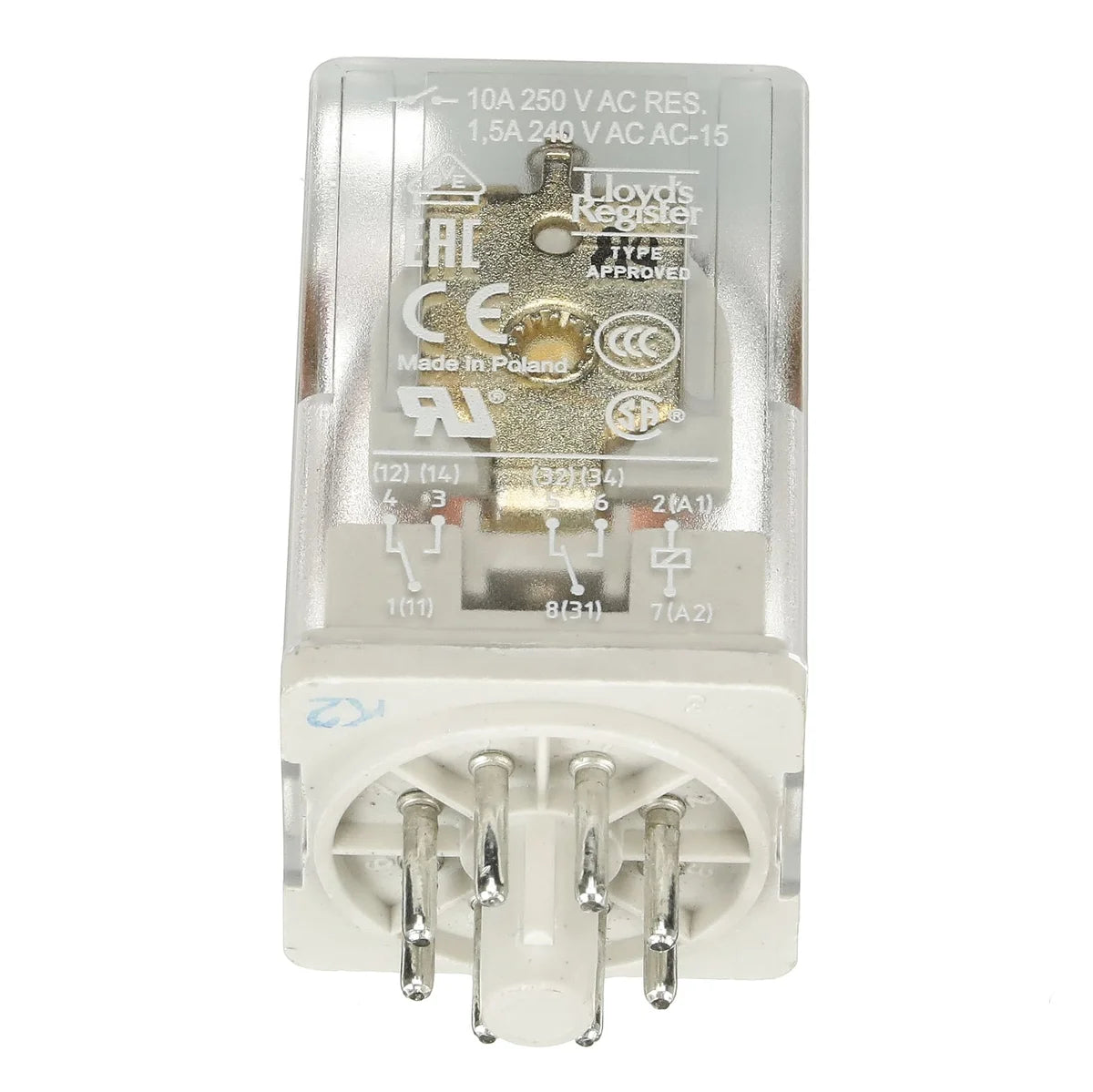

ABB 1SVR405621R6000 CR-U048DC2 2C/O 48VDC Coil 250V 10A DIN Rail Pluggable Interface Switching Relay

Rated current
10 A
Rated operational voltage
250 V AC
EAN
4013614498473
Description

About the CR-U048DC2

The ABB CR-U048DC2 (SKU: 1SVR405621R6000) is a pluggable interface switching relay from the CR-U series, featuring a 48VDC coil, 2 changeover (2C/O) contacts rated at 250V/10A, and DIN rail mounting for seamless integration into industrial control panels. Compact at just 35mm × 54.4mm × 35mm and weighing 83g, the CR-U048DC2 is engineered for reliable signal switching and interface applications in industrial automation environments.

Certifications & Standards

  • CAN/CSA C22.2 No.14: Canadian standard for industrial control equipment
  • IEC/EN 63000: Technical documentation for evaluation of electrical and electronic equipment with respect to restriction of hazardous substances
  • IEC/EN 61810-1: International standard for elementary electromechanical relays
  • UL 508: UL standard for industrial control equipment (North American market)
  • EN 61810: European standard for electromechanical elementary relays
  • CSA C22.2: Canadian Standards Association certification for electrical equipment
  • CSA: Canadian Standards Association certified
  • REACH: Compliant with EU regulation on registration, evaluation, authorisation and restriction of chemicals
  • RoHS: Restriction of Hazardous Substances directive compliant
  • CCC: China Compulsory Certification for the Chinese market
  • CE: Conformité Européenne — meets EU safety, health, and environmental requirements
  • UKCA: UK Conformity Assessed marking for the UK market
  • EAC: Eurasian Conformity mark for the Customs Union market
  • VDE: Verband der Elektrotechnik — German electrical engineering association certification

Applications & Use Cases

  • Signal interface and isolation between control circuits and field devices in industrial automation
  • PLC output expansion and load decoupling in control panels
  • Machine control systems requiring compact, pluggable relay solutions
  • Building automation and HVAC control systems
  • Process control panels where DIN rail space is at a premium
Specification

Full specification

51 values · Last verified 30 Oct 2026

Dimensions 4

Product Net Width 35 mm
Product Net Height 54.4 mm
Product Net Depth / Length 35 mm
Product Net Weight 0.083 kg

Technical 15

Function Pluggable universal interface relay CR-U
Sub-Function Relay w/o built in LED
Rated Control Supply Voltage (Us) 48 V DC
Rated Operational Voltage 250 V AC
Output 2 C/O Contacts
Output Signal 250 V / 10 A
Terminal Type Pin
Rated Operational Current AC-12 (Ie) (230 V) 10 A
Rated Operational Current AC-15 (Ie) (120 V) 3 A, (230 V) 1.5 A
Rated Operational Current DC-12 (Ie) (24 V) 10 A
Rated Operational Current DC-13 (Ie) (24 V) 2 A, (250 V) 0.1 A
Rated Insulation Voltage (Ui) 250 V
Degree of Protection IP40
Mounting Position 1
Standards CAN/CSA C22.2 No.14, IEC/EN 63000, IEC/EN 61810-1, UL 508

Technical UL/CSA 3

Maximum Operating Voltage UL/CSA 300 V AC
Pilot Duty UL/CSA B300
Flammability According to UL94 HB
Show all 51 specifications ↓ Show less ↑29 more values in Identification, Environmental, Material Compliance, External Classifications and Standards, Logistics.

Identification 10

Part number 1SVR405621R6000
Type designation CR-U048DC2
Brand ABB
Condition New, factory sealed
Source ABB and its authorised distributors
Warranty Manufacturer warranty
EAN 4013614498473
eCl@ss 27371601
Minimum Order Quantity 10 piece
Customs Tariff Number 85364900

Environmental 2

Ambient Air Temperature Operation -40 ... +70 °C, Storage -40 ... +85 °C
Maximum Operating Altitude Permissible Without Derating 2000 m

Material Compliance 4

REACH Declaration 1SVD981001-4501
RoHS Declaration 1SVD981001-4401
RoHS Information Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA 2CMT2023-006536

External Classifications and Standards 3

ETIM 7 EC001437 - Switching relay
eClass V11.0 : 27371601
UNSPSC 39122331

Logistics 10

Package Level 1 Units box 10 piece
Package Level 1 Width 182 mm
Package Level 1 Depth / Length 77 mm
Package Level 1 Height 76 mm
Package Level 1 Gross Weight 0.87 kg
Package Level 1 EAN 4013614374036
Shipping weight 0.87 kg
Ships from Türkiye
Dispatch 17 Nov
Stock Low stock

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for 1SVR405621R6000

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • CE
  • RoHS
  • VDE
  • CAN/CSA C22.2 No.14
  • IEC/EN 63000
  • IEC/EN 61810-1
  • UL 508
Quick answers

Questions about the CR-U048DC2

What is the rated current of CR-U048DC2?

The rated current of CR-U048DC2 is 10 A.

Which supply voltage is CR-U048DC2 rated for?

The rated operational voltage of CR-U048DC2 is 250 V AC.

What is the HS code of CR-U048DC2 for customs?

The tariff (HS) code on file for CR-U048DC2 is 85364900.

What is the EAN of CR-U048DC2?

The EAN (GTIN) of CR-U048DC2 is 4013614498473.

Where does CR-U048DC2 ship from, and how fast?

CR-U048DC2 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
