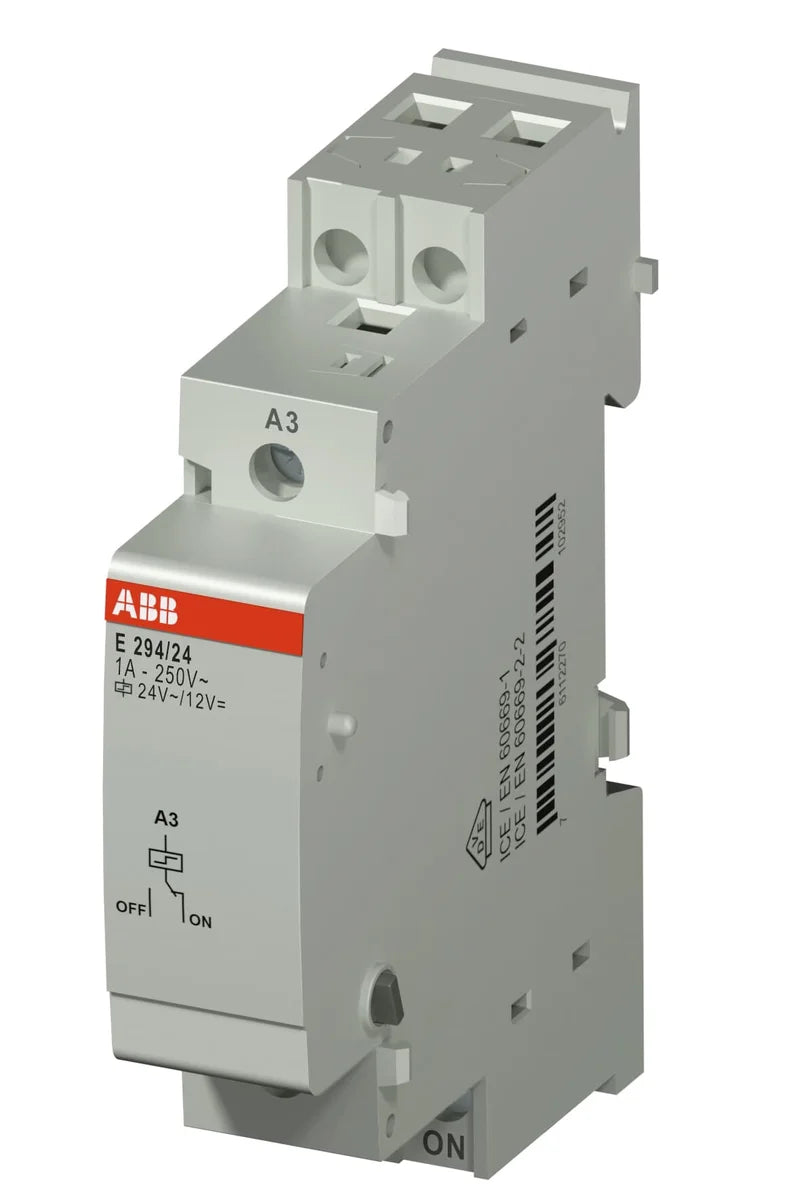

E290ABB 2TAZ312001R2043 E294/24 Central On-Off Control Module 1A DIN-Rail Latching Relay
Description
About the E294/24
About the E294/24
The ABB E294/24 (SKU: 2TAZ312001R2043) is a Central On-Off Control Module latching relay from the E290 series, designed for DIN-Rail mounting in control panels and building automation systems. The E294/24 delivers reliable centralized switching control with a compact 18mm profile, rated at 1A, and fully compliant with IEC/EN 60669 standards. Weighing just 110g, this module integrates seamlessly into modular installation systems for efficient on/off load management.
Certifications & Standards
- IEC/EN 60669-1: General requirements for switches for household and similar fixed electrical installations
- IEC/EN 60669-2-2: Particular requirements for remote-control switches (RCS)
- IEC/EN 60669-2: Particular requirements for switches — general series
- IEC 60068-2: Environmental testing for electrotechnical products
- EN 60669-1: European harmonized standard for fixed electrical installation switches
- EN 60669-2: European harmonized particular requirements for switches
- RoHS: Restriction of Hazardous Substances — compliant for EU markets
- REACH: Registration, Evaluation, Authorisation and Restriction of Chemicals — compliant
- WEEE: Waste Electrical and Electronic Equipment Directive — compliant
- CE: Conformité Européenne — certified for European market placement
- UKCA: UK Conformity Assessed — certified for Great Britain market placement
- VDE: Verband der Elektrotechnik — tested and certified by VDE Institute
Applications & Use Cases
- Centralized on/off switching control in residential and commercial building installations
- DIN-Rail panel integration in distribution boards and control cabinets
- Modular lighting and load management systems
- Industrial automation control panels requiring latching relay functionality
- Building management systems (BMS) requiring centralized switching modules
Specification
Full specification
Technical 8
| Function | Mechanical for centralized control |
|---|---|
| Rated Control Circuit Voltage (Uc) | 24 V AC |
| Number of Main Contacts NC | 0 |
| Number of Main Contacts NO | 0 |
| Tightening Torque | 1.2 - 1.5 N·m |
| Accessory Type | Other |
| Coil Consumption | Control Voltage V AC 24 V AC, Average Pull-in Value 50 Hz 0.684 A |
| Connecting Capacity | Solid 1 x 1 ... 10 mm², Flexible 2 x 2.5 mm², Flexible with Cable End 1 x 0.75 ... 6 mm², Flexible with Cable Lug 1 x 0.75 ... 6 mm² |
Electrical 4
| Rated Voltage (Ur) | 250 V AC |
|---|---|
| Rated Control Supply Voltage (Us) | 250 V AC |
| Rated Current (In) | 1 A |
| Rated Frequency (f) | 50 Hz |
Design 2
| RAL Number | RAL 7035 - Light Grey |
|---|---|
| Color | Grey |
Show all 46 specifications ↓ Show less ↑32 more values in Identification, Material Compliance, Environmental, Dimensions, Installation, External Classifications and Standards, Logistics.
Identification 11
| Part number | 2TAZ312001R2043 |
|---|---|
| Type designation | E294/24 |
| Brand | ABB |
| Condition | New, factory sealed |
| Source | ABB and its authorised distributors |
| Warranty | Manufacturer warranty |
| EAN | 7612270939411 |
| ETIM class | EC000188 |
| eCl@ss | 27371692 |
| Package Level 1 Units | box 5 piece |
| Package Level 1 Gross Weight | 1189 g |
Material Compliance 6
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
|---|---|
| RoHS Date | 20260417 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20260414 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
Environmental 2
| Ambient Air Temperature | Operation -25...+55 °C, Storage -40...+70 °C |
|---|---|
| Climate Class Reference Standard | IEC 60068-2-2 - Deals with dry heat tests applicable both to heat-dissipating and non heat-dissipating specimens, IEC 60068-2-30 - Determines the suitability of components, equipment or other articles for use, transportation and storage under conditions of high humidity - combined with cyclic temperature changes and, in general, producing condensation on the surface of the specimen., IEC 60068-2-1 - Deals with cold tests applicable to both non heat-dissipating and heat-dissipating specimens |
Dimensions 4
| Product Net Width | 18 mm |
|---|---|
| Product Net Height | 85 mm |
| Product Net Depth / Length | 58 mm |
| Product Net Weight | 110 g |
Installation 1
| Mounting Type | DIN-Rail |
|---|
External Classifications and Standards 4
| ETIM 10 | EC000188 - Latching relay |
|---|---|
| UNSPSC | 39122317 |
| eClass | V11.0 : 27371692 |
| Standards | IEC/EN 60669-1, IEC/EN 60669-2-2 |
Logistics 4
| Shipping weight | 110.0 kg |
|---|---|
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for 2TAZ312001R2043
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- CE
- RoHS
- UKCA
- VDE
- IEC/EN 60669-1
- IEC/EN 60669-2-2
Quick answers
Questions about the E294/24
What is the rated current of E294/24?
The rated current of E294/24 is 1 A.
What is the HS code of E294/24 for customs?
The tariff (HS) code on file for E294/24 is 853649.
What is the EAN of E294/24?
The EAN (GTIN) of E294/24 is 7612270939411.
Where does E294/24 ship from, and how fast?
E294/24 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
