Part number
1SVR405621R0000
Model no
CR-U024AC2
$8.23 On request Dispatch — · From TürkiyeGet a Quote
CR-U

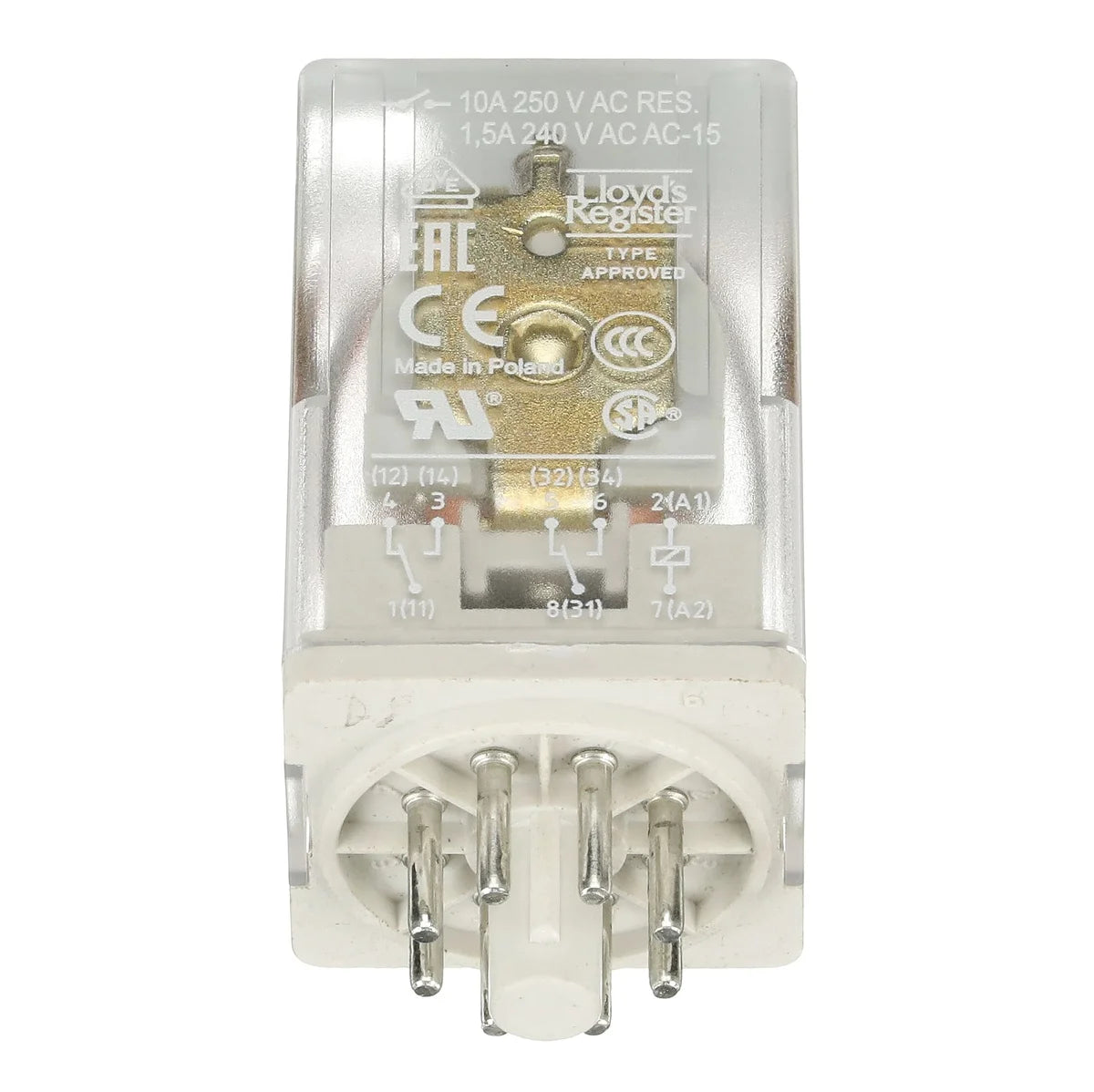

ABB 1SVR405621R0000 CR-U024AC2 2-Pole 10A 250V 24VAC Coil DIN Rail Pluggable Interface Switching Relay

Rated current
10 A
Rated operational voltage
250 V AC
Poles
2P
EAN
4013614498350
Description

About the CR-U024AC2

The ABB CR-U024AC2 (SKU: 1SVR405621R0000) is a pluggable interface switching relay from the CR-U series, designed for reliable signal switching in industrial control panels and automation systems. Featuring 2 changeover (c/o) contacts rated at 250V/10A and a 24VAC coil (A1–A2), the CR-U024AC2 mounts directly on standard DIN rail for quick installation and easy replacement without rewiring.

Certifications & Standards

  • CE: Compliant with European CE marking requirements
  • UL 508: Listed under UL 508 for industrial control equipment
  • CAN/CSA C22.2 No.14: Certified to Canadian industrial control equipment standard
  • CSA C22.2 / CSA: CSA certified for North American markets
  • IEC/EN 61810-1: Compliant with IEC/EN 61810-1 elementary relays standard
  • EN 61810: Meets EN 61810 relay performance requirements
  • IEC/EN 63000: Compliant with IEC/EN 63000 for RoHS technical documentation
  • VDE: VDE approved for German and European electrical safety
  • UKCA: UK Conformity Assessed for Great Britain market
  • EAC: Eurasian Conformity Mark for EAC market access
  • CCC: China Compulsory Certification for Chinese market
  • REACH: Compliant with EU REACH regulation on hazardous substances
  • RoHS: Restriction of Hazardous Substances compliant

Applications & Use Cases

  • Interface and signal isolation between PLC outputs and field devices
  • Control panel wiring in industrial automation and machine building
  • Switching of solenoids, indicators, and actuators in process control
  • HVAC control systems requiring compact, pluggable relay solutions
  • Building automation and facility management panels
Specification

Full specification

53 values · Last verified 30 Oct 2026

Dimensions 4

Product Net Width 35 mm
Product Net Height 54.4 mm
Product Net Depth / Length 35 mm
Product Net Weight 0.083 kg

Technical 16

Function Pluggable universal interface relay CR-U
Sub-Function Relay w/o built in LED
Rated Control Supply Voltage (Us) 24 V AC
Rated Operational Voltage 250 V AC
Rated Frequency (f) 50 / 60 Hz
Output 2 C/O Contacts
Output Signal 250 V / 10 A
Terminal Type Pin
Rated Operational Current AC-12 (Ie) (230 V) 10 A
Rated Operational Current AC-15 (Ie) (120 V) 3 A, (230 V) 1.5 A
Rated Operational Current DC-12 (Ie) (24 V) 10 A
Rated Operational Current DC-13 (Ie) (24 V) 2 A, (250 V) 0.1 A
Rated Insulation Voltage (Ui) 250 V
Degree of Protection IP40
Mounting Position 1
Standards CAN/CSA C22.2 No.14, IEC/EN 63000, IEC/EN 61810-1, UL 508

Technical UL/CSA 3

Maximum Operating Voltage UL/CSA 300 V AC
Pilot Duty UL/CSA B300
Flammability According to UL94 HB
Show all 53 specifications ↓ Show less ↑30 more values in Identification, Environmental, Material Compliance, External Classifications and Standards, Logistics.

Identification 10

Part number 1SVR405621R0000
Type designation CR-U024AC2
Brand ABB
Condition New, factory sealed
Source ABB and its authorised distributors
Warranty Manufacturer warranty
EAN 4013614498350
eCl@ss 27371601
Minimum Order Quantity 10 piece
Customs Tariff Number 85364900

Environmental 2

Ambient Air Temperature Operation -40 ... +55 °C, Storage -40 ... +85 °C
Maximum Operating Altitude Permissible Without Derating 2000 m

Material Compliance 4

REACH Declaration 1SVD981001-4501
RoHS Declaration 1SVD981001-4401
RoHS Information Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA 2CMT2023-006536

External Classifications and Standards 4

ETIM 7 EC001437 - Switching relay
eClass V11.0 : 27371601
UNSPSC 39122331
E-Number (Sweden) 4005410

Logistics 10

Package Level 1 Units box 10 piece
Package Level 1 Width 182 mm
Package Level 1 Depth / Length 77 mm
Package Level 1 Height 76 mm
Package Level 1 Gross Weight 0.87 kg
Package Level 1 EAN 4013614374005
Shipping weight 0.87 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for 1SVR405621R0000

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • CE
  • CSA
  • RoHS
  • UKCA
  • VDE
  • CAN/CSA C22.2 No.14
  • IEC/EN 63000
  • IEC/EN 61810-1
  • UL 508
Quick answers

Questions about the CR-U024AC2

What is the rated current of CR-U024AC2?

The rated current of CR-U024AC2 is 10 A.

Which supply voltage is CR-U024AC2 rated for?

The rated operational voltage of CR-U024AC2 is 250 V AC.

What is the HS code of CR-U024AC2 for customs?

The tariff (HS) code on file for CR-U024AC2 is 85364900.

What is the EAN of CR-U024AC2?

The EAN (GTIN) of CR-U024AC2 is 4013614498350.

Where does CR-U024AC2 ship from, and how fast?

CR-U024AC2 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
